PROVEN RELIABILITY, QUIET OPERATION
System Power 10 450W has been built with price-conscious users in mind that do not want to dispense on reliability and quietness. Elaborated features such as a temperature-controlled fan and a remarkably low stand-by-drain underline the value System Power 10 450W offers even at entry-level.
VERY QUIET OPERATION
High-quality fan for low noise

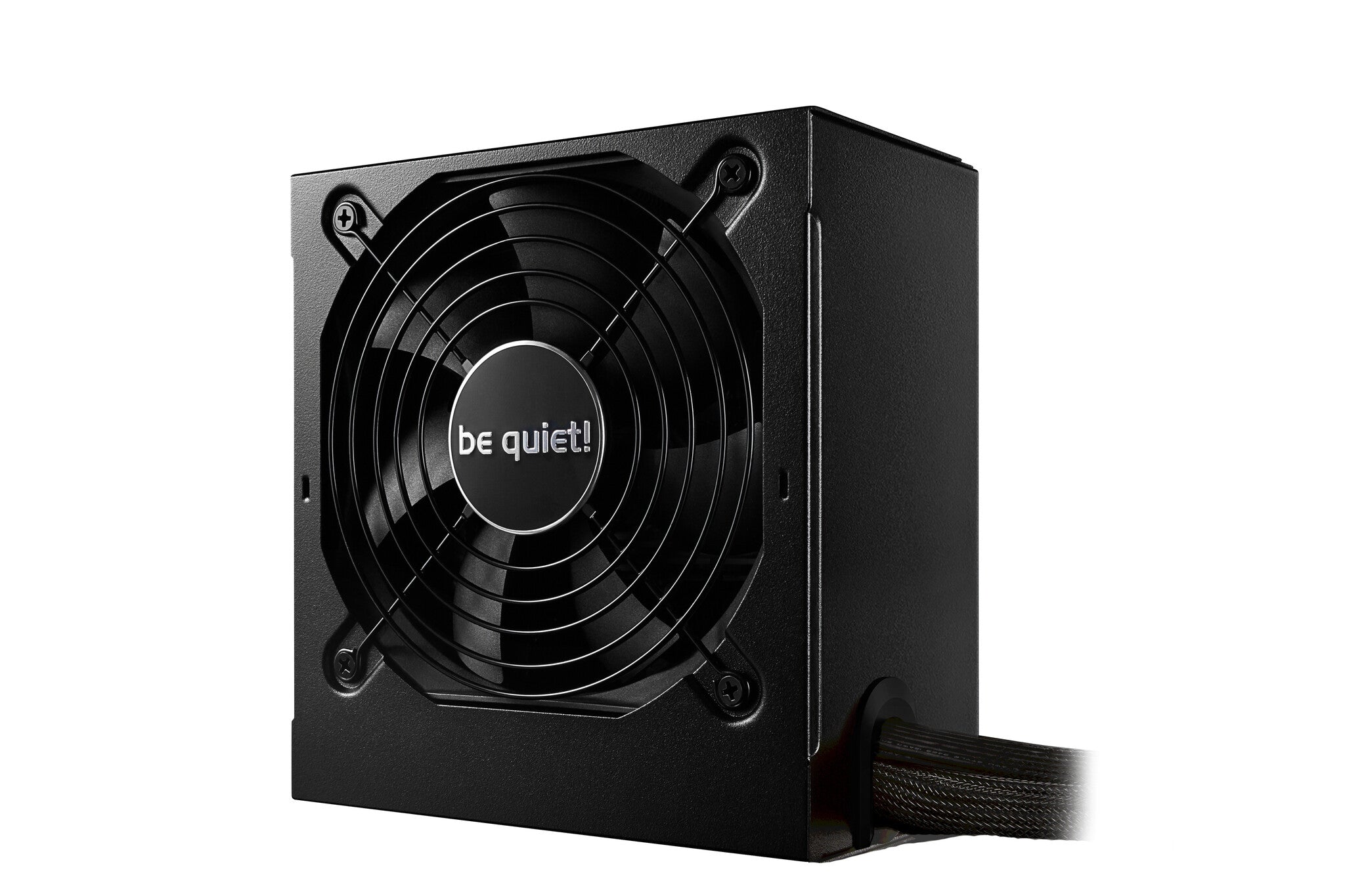

System Power 10 450W is equipped with a temperature-controlled 120mm quality fan. It provides the low noise operation that be quiet! is famous for, offering remarkable quietness at this price-level.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 10 450W provides stable and dependable power for CPU and GPU. This ensures a steady and reliable operation even when your PC meets an unexpectedly heavy load.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of System Power 10 450W Bronze with an efficiency rating of up to 88.5% is convincing evidence of this PSU’s power saving operation.
STRONG 12V RAIL
For a stable PCIe graphics support
System Power 10 450W provides enough power for demanding graphics cards. Safety protections defend against overcurrents, over- and undervoltages, overtemperature, short circuits and overloads, thus keeping your valuable components safe.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 88.5% |
Power Good signal delay range | 100 - 150 ms |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 37.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 100 W |
Combined power (+12V) | 450 W |
Combined power (+3.3V) | 100 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.95 |
Input current | 4 A |
AC input frequency | 50 Hz |
AC input voltage | 200 - 240 V |
Total power | 450 W |

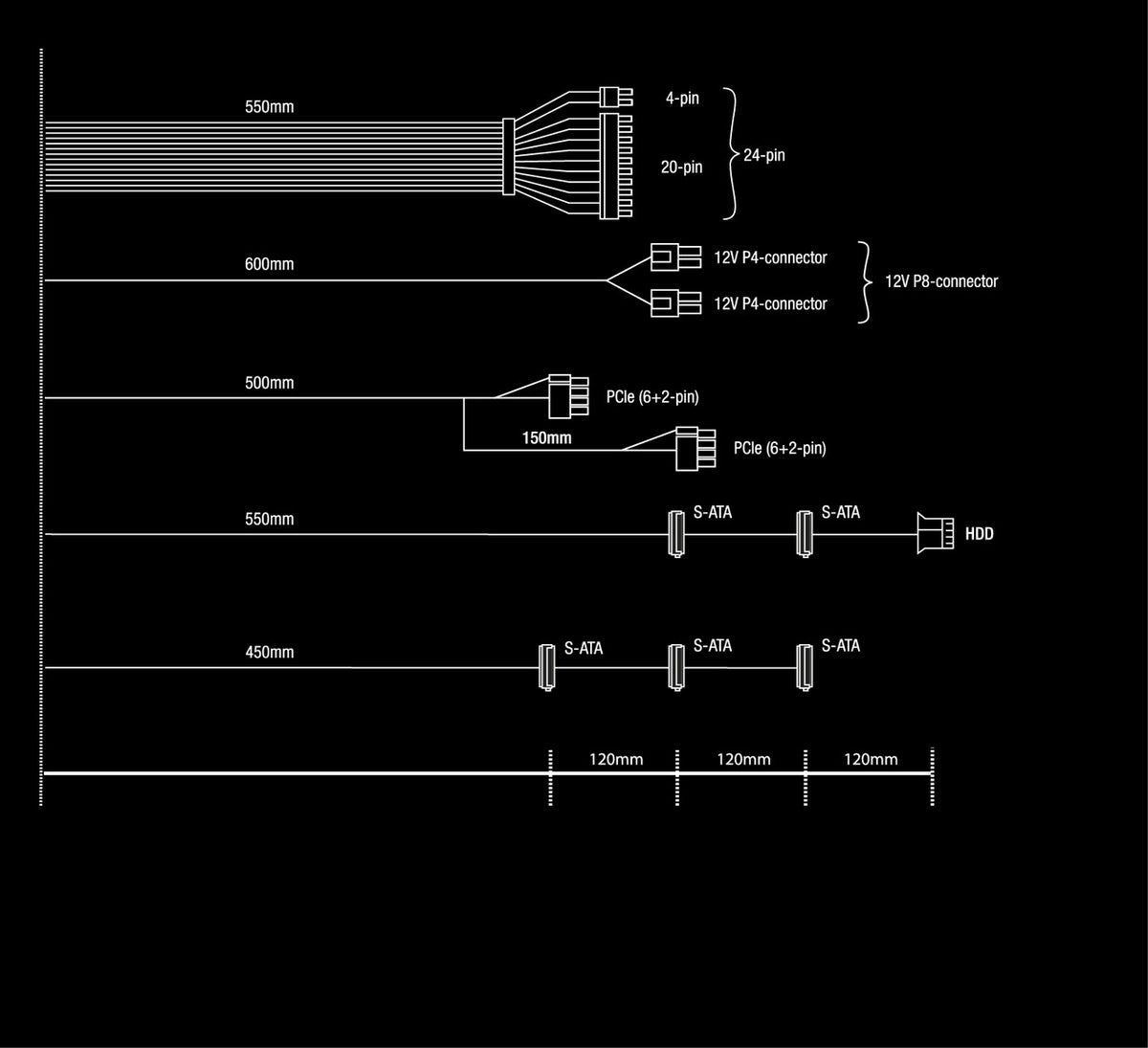

Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 65 cm |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 790 mm |
Peripheral (Molex) power connectors (4-pin) | 1 |
SATA power cable length | 450,550,570,670,690,790 mm |
Number of SATA power connectors | 5 |
Number of PATA power connectors | 1 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Country of origin | Germany |
Certification | CB, TÜV, cRUus, cTUVus, RCM (Australia), BSMI, CU (Russia) |
Mean time between failures (MTBF) | 100000 h |
Bearing technology | Sleeve |
Noise level | 19.2 dB |
EPS version | 2.92 |
ATX version | 2.52 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 0 - 1800 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 0 - 95% |
Operating relative humidity (H-H) | 0 - 90% |
Storage temperature (T-T) | -20 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 1.74 kg |
Height | 150 mm |
Depth | 86 mm |
Width | 140 mm |
Packaging data | |
---|---|
Package weight | 2.1 kg |
Package height | 97 mm |
Package depth | 268 mm |
Package width | 195 mm |
Manual languages | German, English, Spanish, French, Polish, Russian |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | CCC, CE, ENERGY STAR, ErP, Federal Communications Commission (FCC), RoHS, WEEE |
Warranty period | 5 year(s) |
Other features | |
---|---|

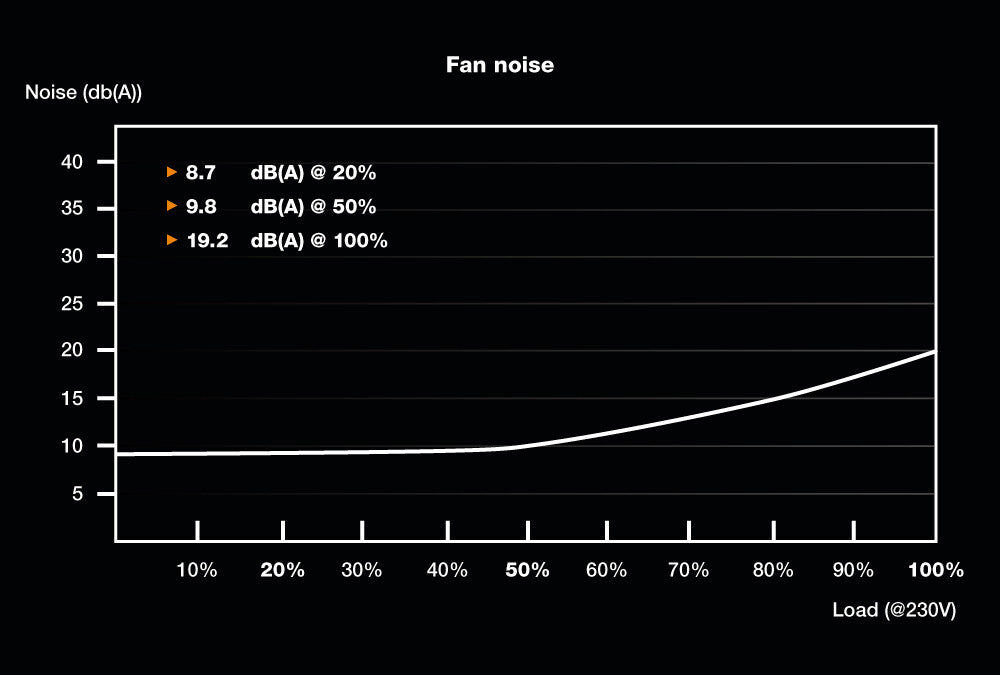

Noise level (full-load mode, 100%) | 19.2 dB |
Noise level (quiet mode, 50%) | 9.8 dB |
Noise level (silent mode, | 8.7 dB |
Screws included | Yes |
