Proven Reliability and Good Efficiency

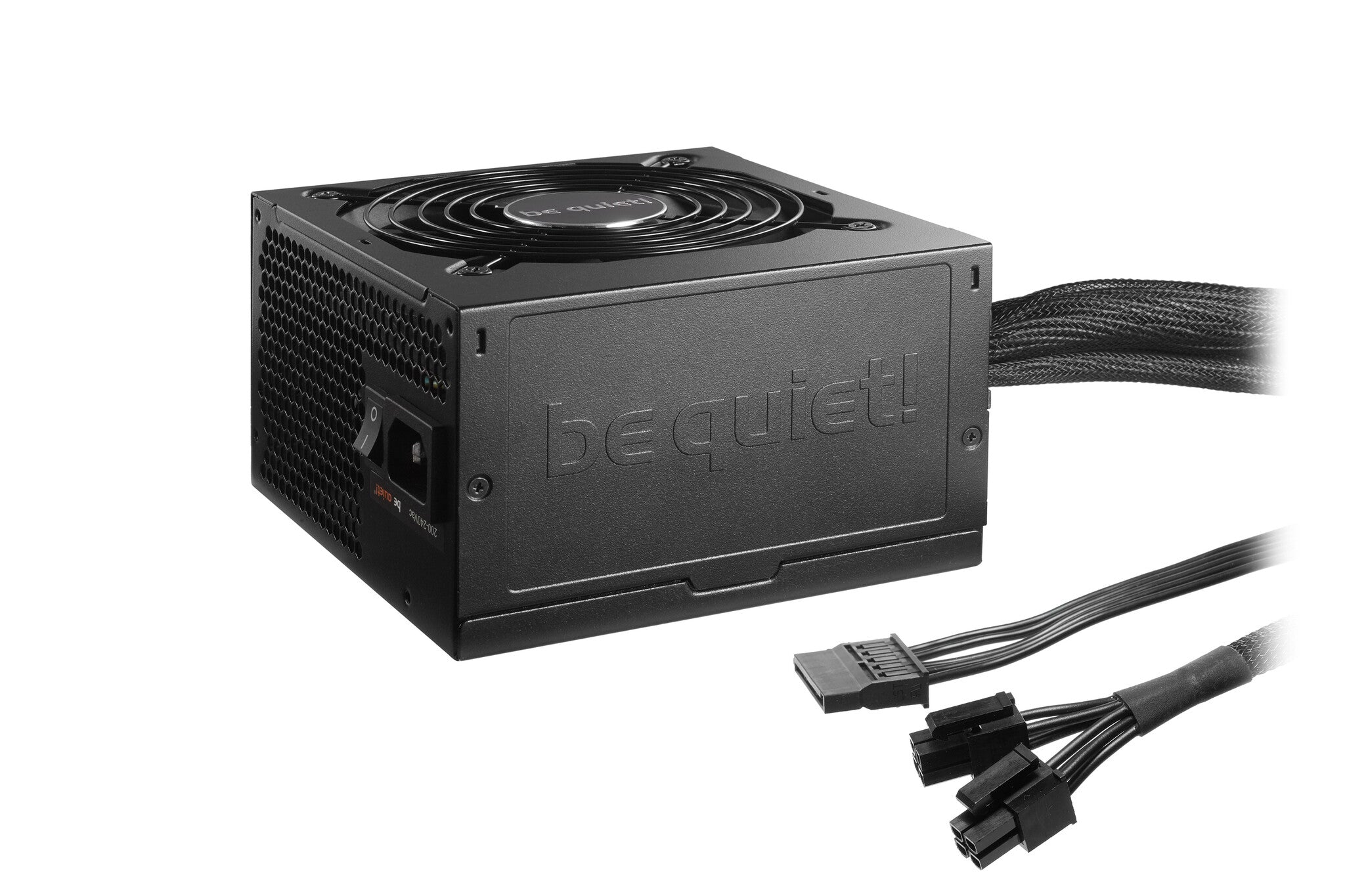

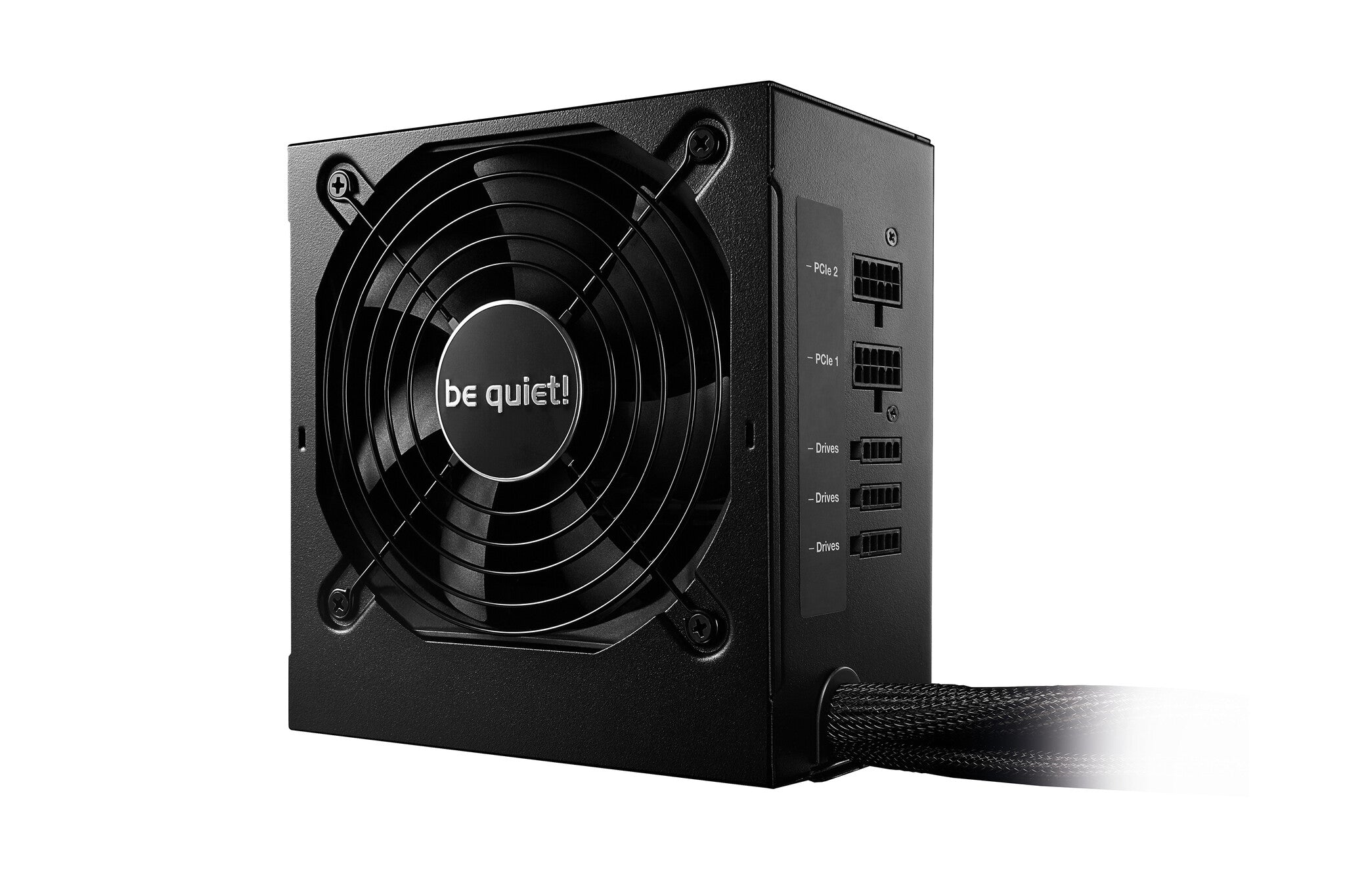

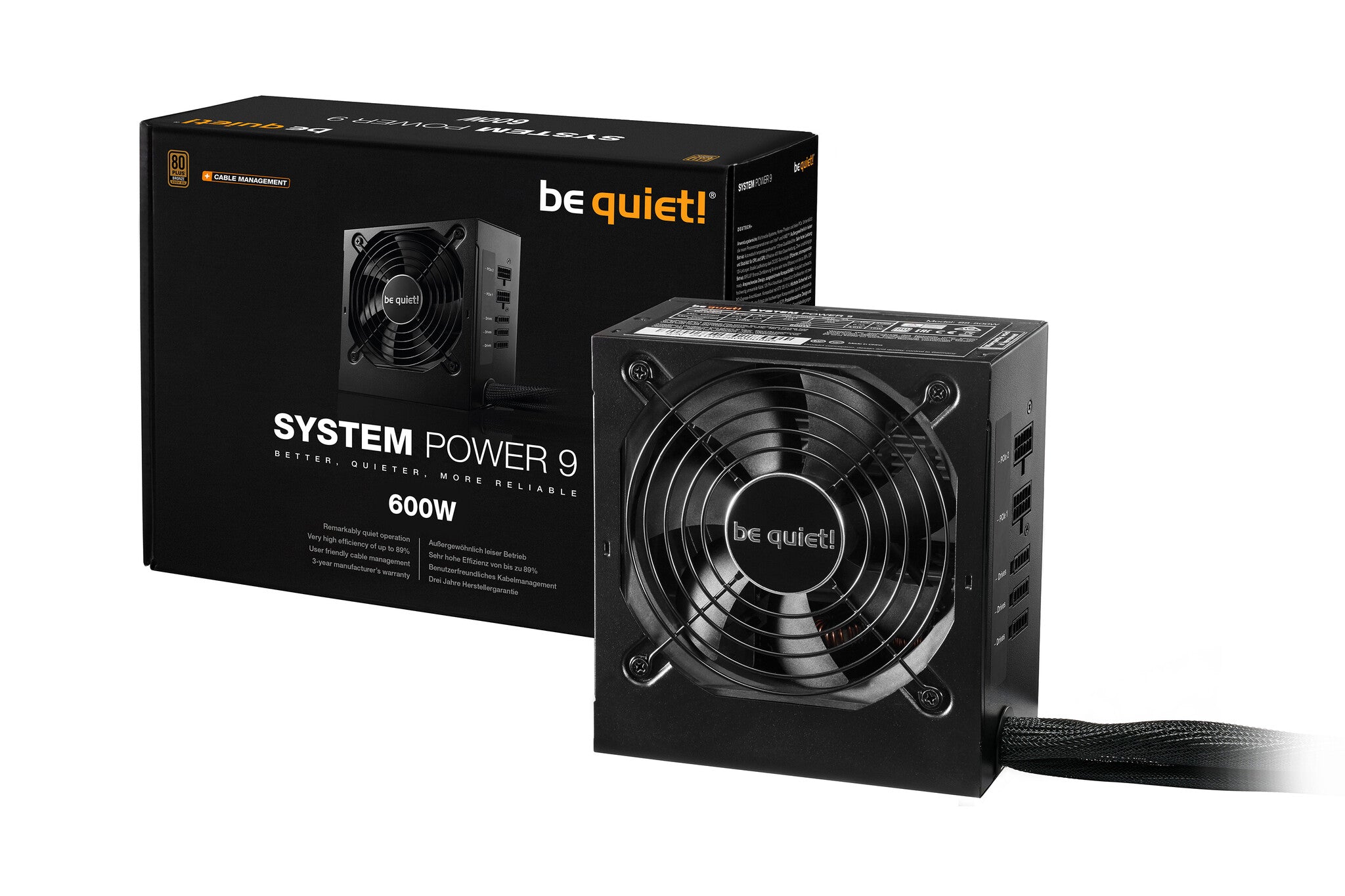

Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 600W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 89% |
Max output current (+5Vsb) | 3 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 15 A |
Max output current (+12V2) | 22 A |
Max output current (+12V1) | 28 A |
Max output current (+3.3V) | 24 A |
Combined power (+5Vsb) | 15 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 576 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Power factor | 0.95 |
Input current | 6 A |
AC input frequency | 50 Hz |
AC input voltage | 200 - 240 V |
Total power | 600 W |
Ports & interfaces | |
---|---|

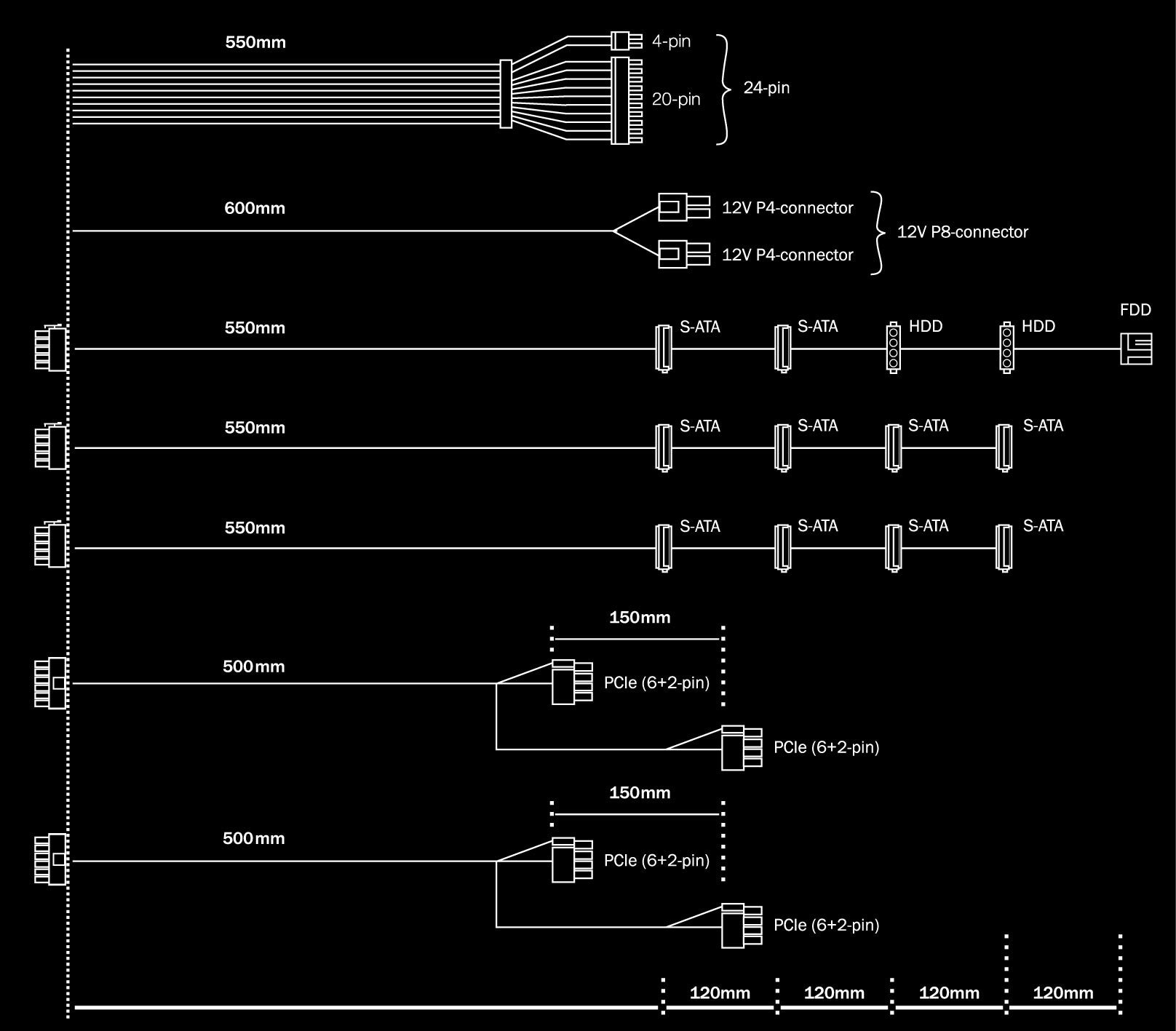

Cabling type | Semi-Modular |
Floppy drive power connector | 1 |
CPU power cable length | 60 cm |
CPU power connector (4+4 pin) | Yes |
PCI Express power cable length | 50 cm |
PCI Express power connectors (6+2 pin) | 4 |
SATA power cable length | 550,670 mm |
Number of SATA power connectors | 10 |
Number of PATA power connectors | 2 |
Motherboard power cable length | 55 cm |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Compatible products | Intel C6/C7 |
Certification | CE, CB, TÜV, RCM, CU |
Bearing technology | Sleeve |
EPS version | 2.92 |
ATX version | 2.51 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Packaging content | |
---|---|
Cables included | PCIe, SATA |
Weight & dimensions | |
---|---|
Weight | 1.66 kg |
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 2.42 kg |
Package height | 195 mm |
Package depth | 268 mm |
Package width | 97 mm |
Manual | Yes |
Technical details | |
---|---|
Sustainability certificates | RoHS, ENERGY STAR |
Logistics data | |
---|---|
Products per master (outer) case | 6 pc(s) |
Master (outer) case gross weight | 15.2 kg |
Harmonized System (HS) code | 84733020 |
Master (outer) case height | 556 mm |
Master (outer) case length | 215 mm |
Master (outer) case width | 311 mm |
Other features | |
---|---|

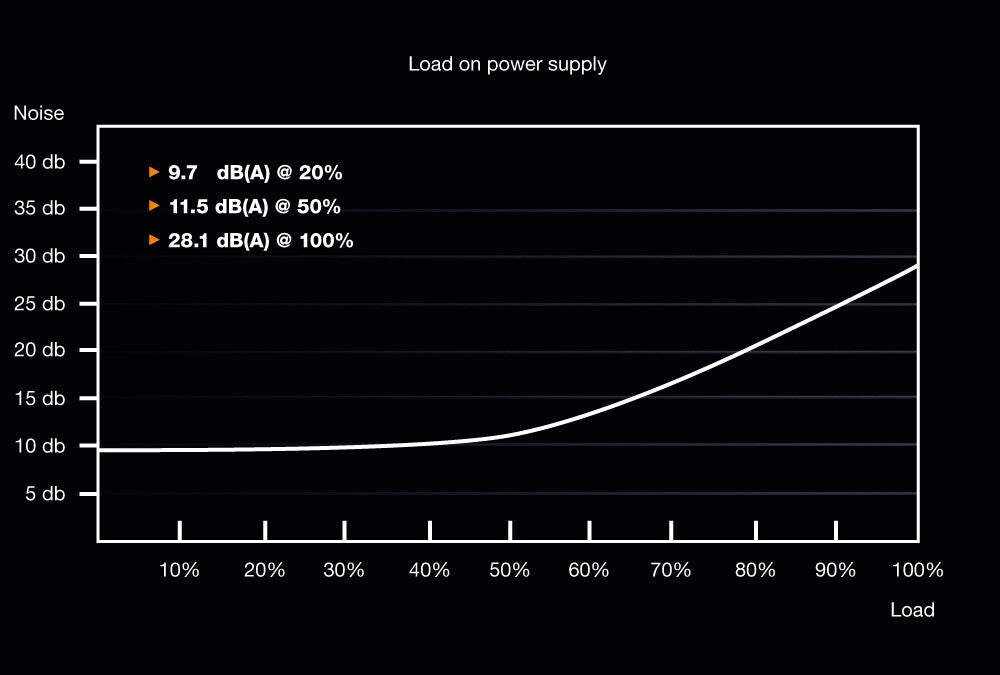

Noise level (full-load mode, 100%) | 28.1 dB |
Noise level (quiet mode, 50%) | 11.5 dB |
Noise level (silent mode, | 9.7 dB |
Screws included | Yes |
