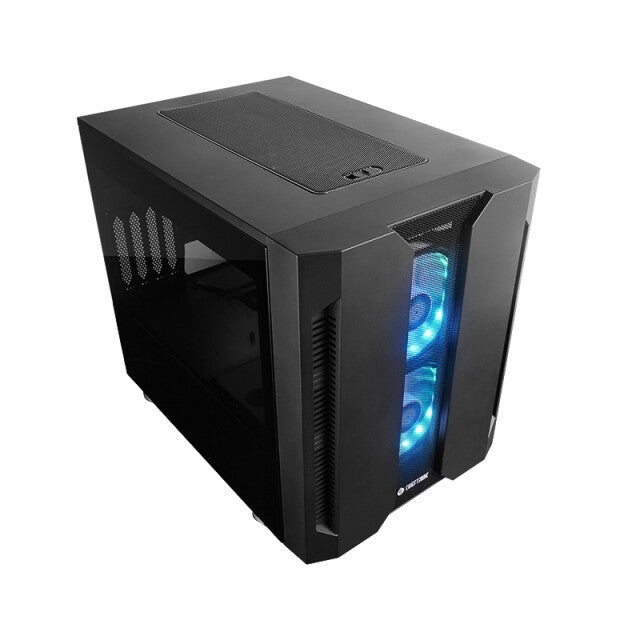

The Chieftronic M2 is the next upgraded iteration of the original M1 gaming cube case for significantly improved performance. The newly designed front panel incorporates mesh for optimized airflow, the increased number of stock fans to 3 pieces and the added support for 240mm radiator in the top panel, in addition to the front support for 280mm radiator, makes the M2 a very capable case for a high-performance gaming rig. Side panels made from tempered glass allow a clean view of the installed system and the case comes with a certified A-RGB control hub, ensuring M/B sync compatibility with: ASUS™ Aura, ASRock™ RGB Sync, MSI™ Mystic Light Sync and Gigabyte™ RGB Fusion.
Design | |
---|---|
Certification | EAC |
Maximum PSU length | 16 cm |
Maximum graphics card length | 34 cm |
Maximum CPU cooler height | 20 cm |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of storage drives supported | 4 |
Number of internal 3.5" bays | 2 |
Number of 2.5" bays | 2 |
Supported motherboard form factors | micro ATX, Mini-ITX |
Product colour | Black |
Material | SPCC, Tempered glass |
Type | PC |
Form factor | Cube |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|

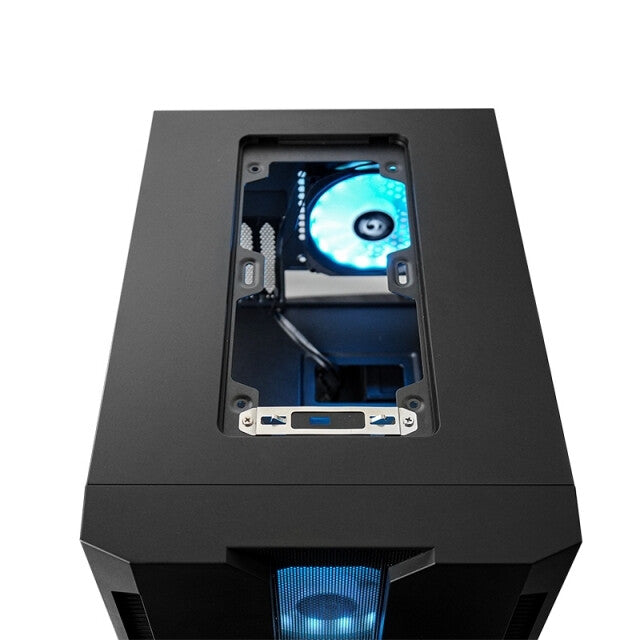

Top radiator sizes supported | 240 mm |
Front radiator sizes supported | 280 mm |
Top fans diameters supported | 120 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 2x 120 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Technical details | |
---|---|
Sustainability compliance | Yes |
Sustainability certificates | CE, RoHS |
Weight & dimensions | |
---|---|
Weight | 7.47 kg |
Height | 345 mm |
Depth | 398 mm |
Width | 273 mm |
Packaging data | |
---|---|
Package weight | 8.93 kg |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
