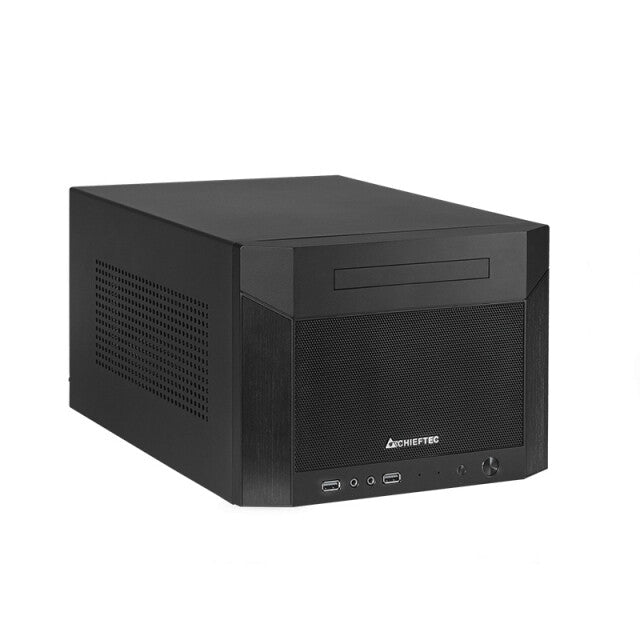

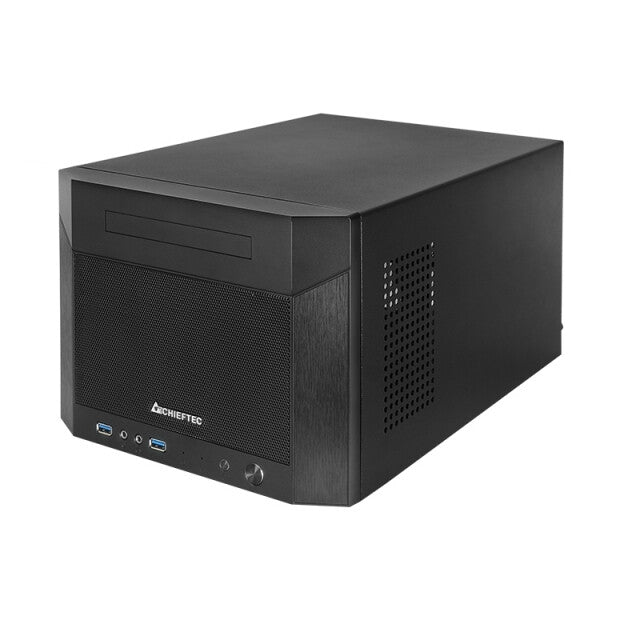

The CHIEFTEC ProCube Mini serves as a compact, multifunctional cube case in ITX form factor, while ensuring high flexibility for the components used.

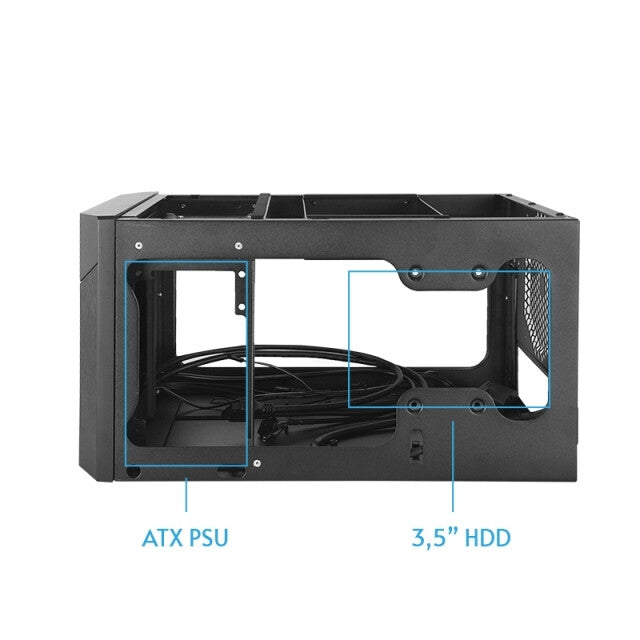

Compatible with ATX PSU’s, Dual Slot GPU’s up to 320mm in length, 3x 3.5” HDD, 2x 2.5” SSDs, and a slimline ODD, the ProCube is the prime example of highly functional design in compact dimensions.
With a front panel design that elegantly combines mesh and brushed aluminum, the ProCube Mini will blend in seamlessly in many environments from the living room to the home office and any corporate working environment.
Design | |
---|---|
Maximum graphics card length | 32 cm |
Maximum CPU cooler height | 14.5 cm |
On/off button | Yes |

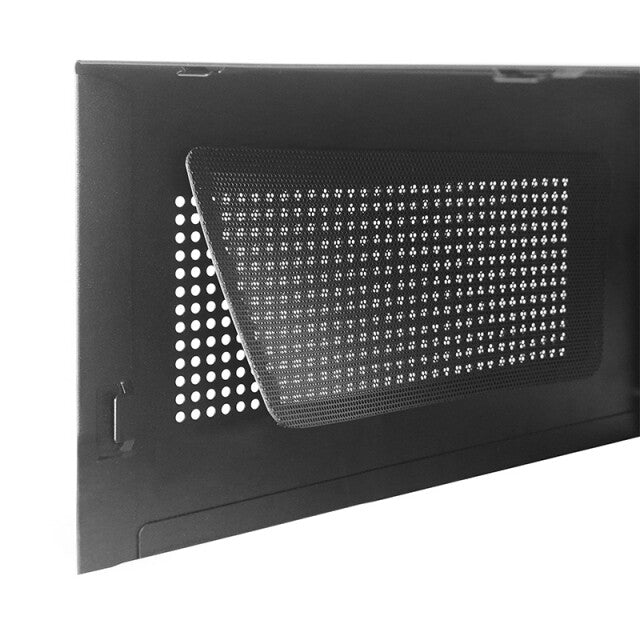

Anti-dust filter | Yes |
Suitable for | Home/Office |
Number of expansion slots | 2 |
Number of storage drives supported | 3 |
Number of internal 5.25" bays | 1 |
Number of internal 3.5" bays | 3 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 3 |
Number of 5.25" bays | 1 |
Supported motherboard form factors | Mini-ITX |
Product colour | Black |
Material | SPCC |
Type | PC |
Form factor | Cube |
Power supply | |
---|---|
Power supply location | Bottom |
Ports & interfaces | |
---|---|
Audio output | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Storage | |
---|---|
Number of HDDs supported | 3 |
Supported HDD sizes | 2.5,3.5,5.25" |
Weight & dimensions | |
---|---|
Material thickness | 0.8 mm |
Weight | 3.79 kg |
Height | 195 mm |
Depth | 356 mm |
Width | 260 mm |
