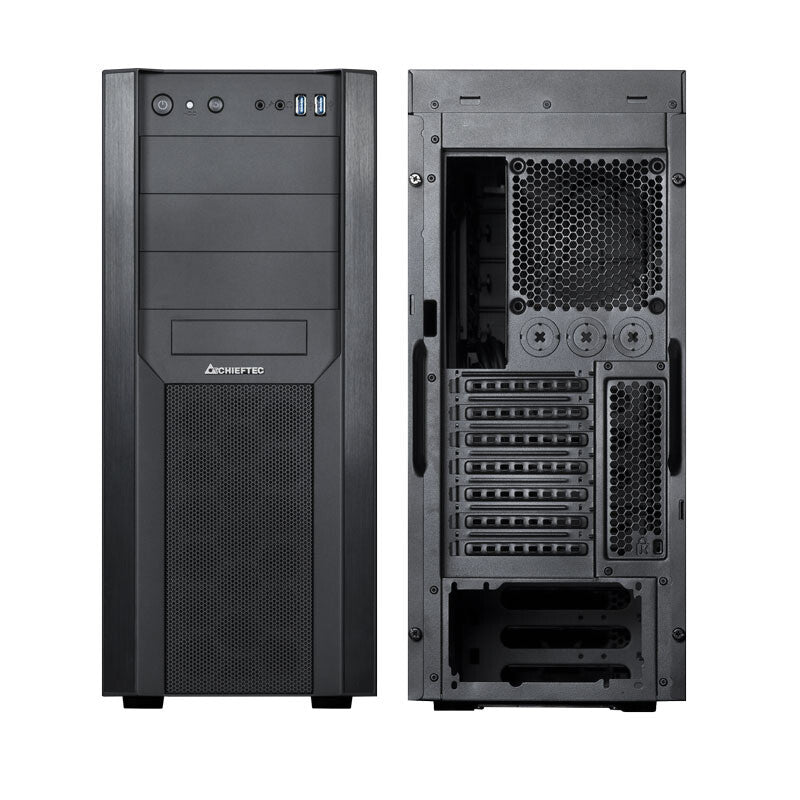

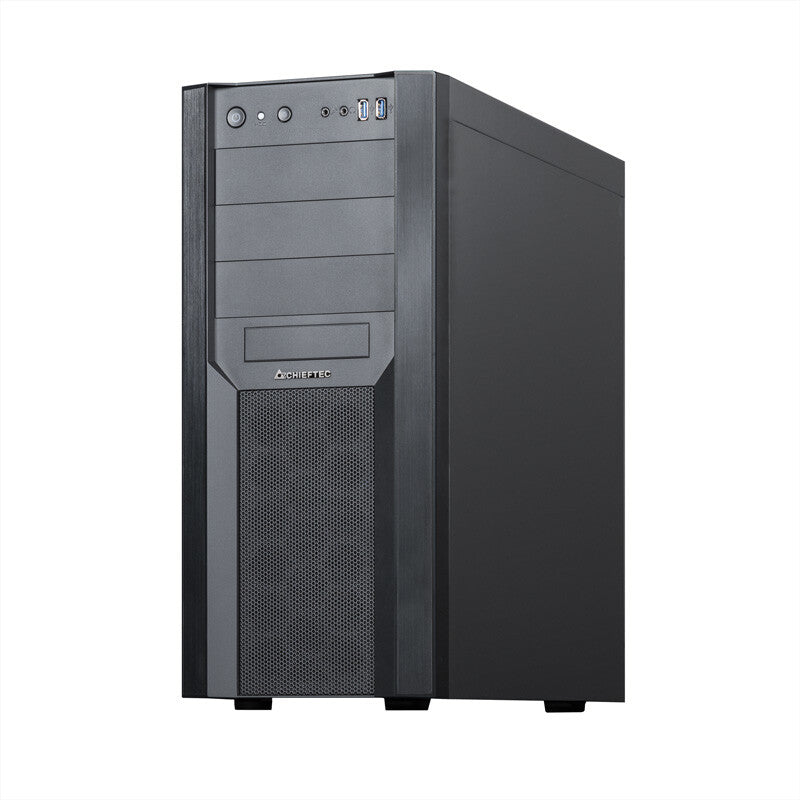

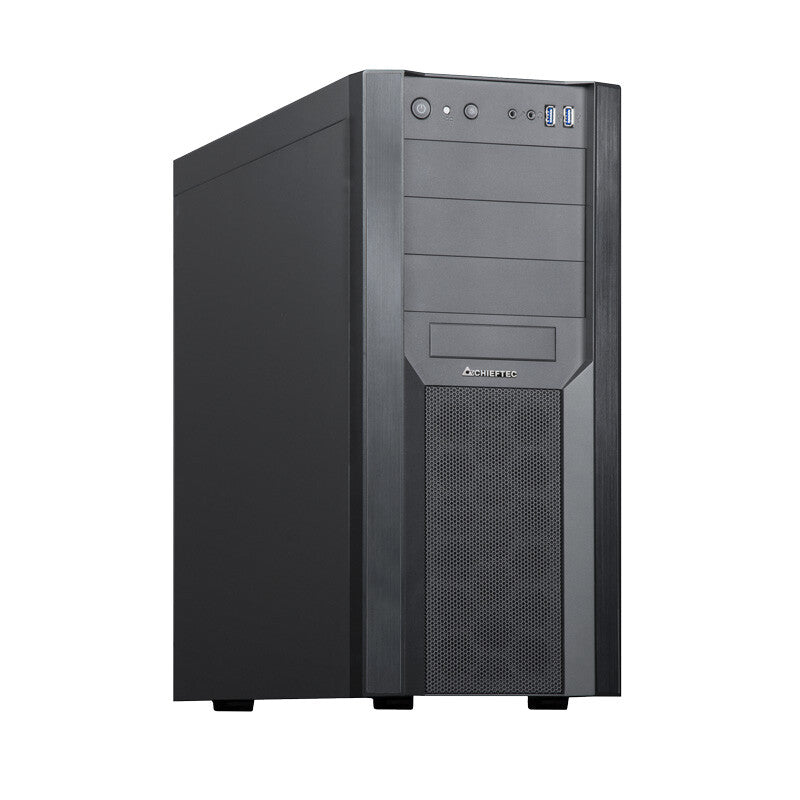

The CW-01B-OP is Chieftec’s interpretation of a high-performance workstation case, providing high functional flexibility with external and internal drives and diverse cooling options. Preinstalled dust filters guarantee you a dust-free system. Featuring a modern, yet timeless, design combining brushed aluminum and filtered mesh, the Chieftec CW-01B-OP provides great airflow for optimal workstation performance.
Design | |
---|---|
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 16.5 cm |

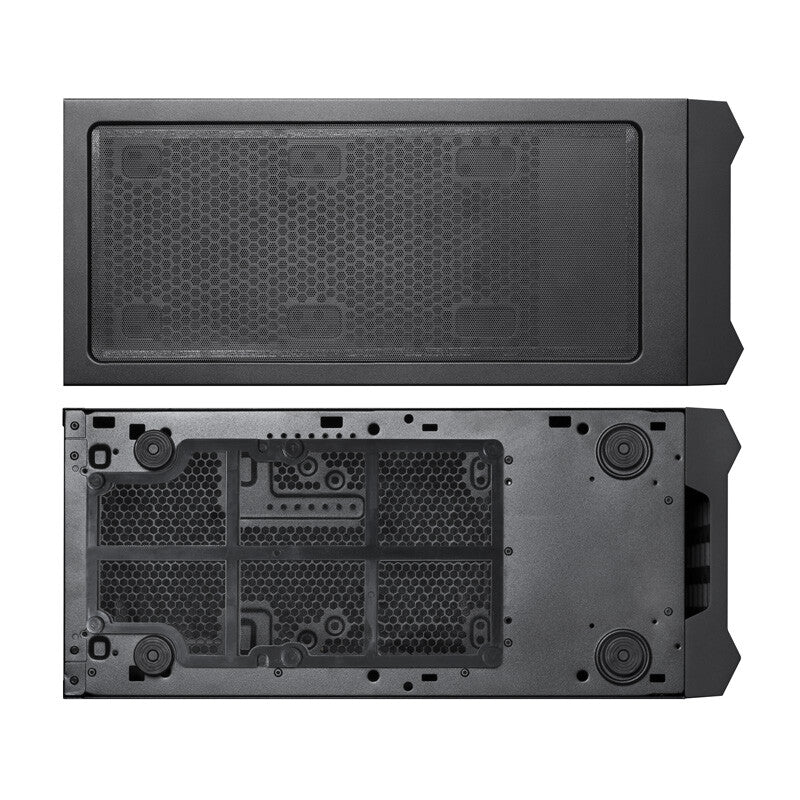

Anti-dust filter | Yes |
Illumination | No |
Side window | No |

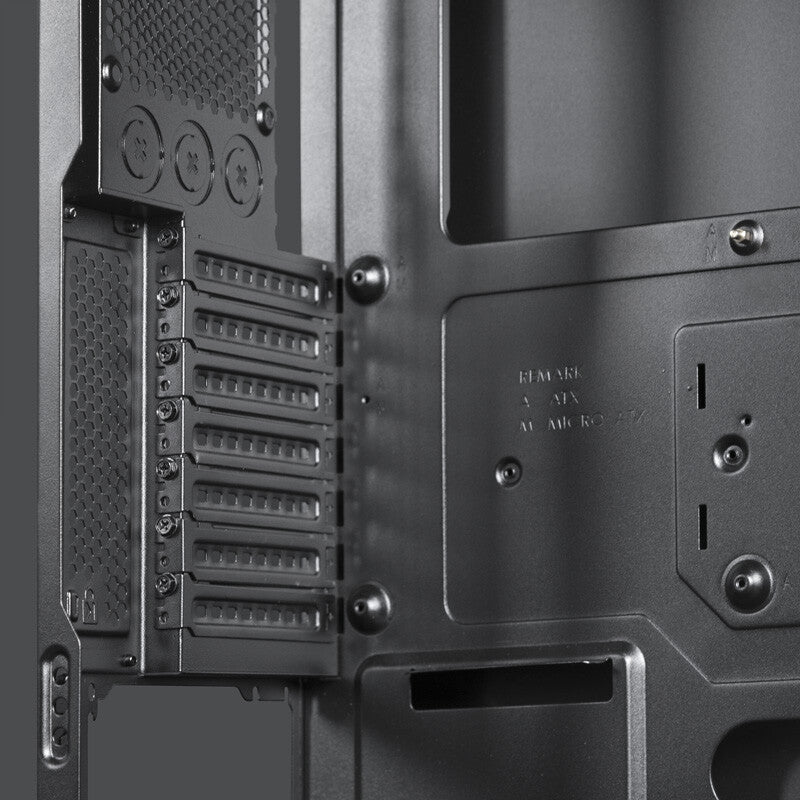

Number of expansion slots | 7 |
Number of external 5.25" bays | 3 |

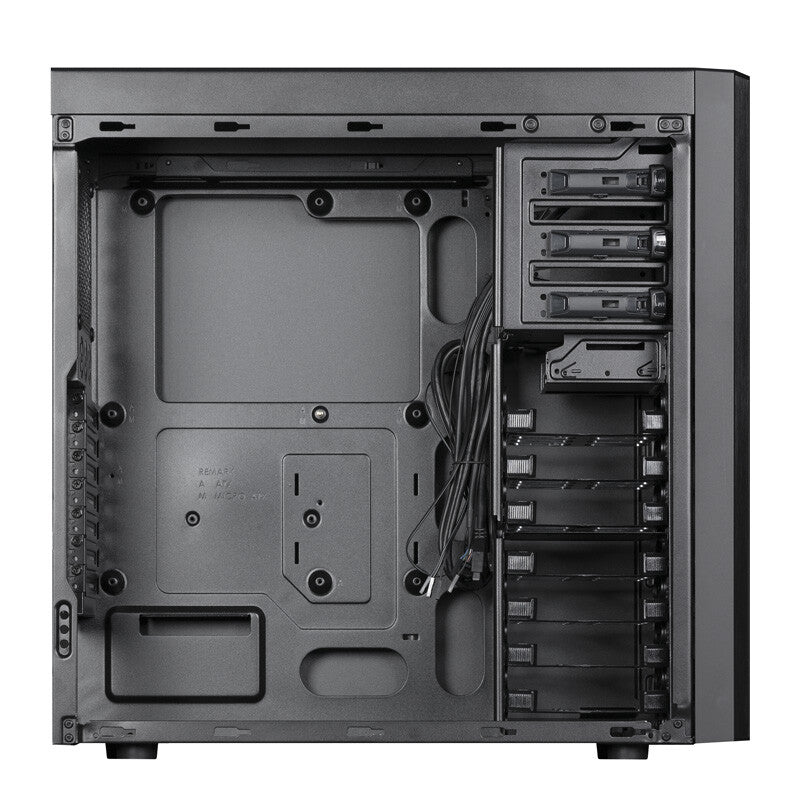

Number of internal 3.5" bays | 7 |
Number of 2.5" bays | 7 |
Number of 3.5" bays | 7 |
Number of 5.25" bays | 3 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | SPCC |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 280 mm |
Bottom fans diameters supported | 120,140 mm |
Number of bottom fans supported (max) | 1 |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Side fans diameters supported | 120 mm |
Number of side fans supported (max) | 1 |
Front fans diameters supported | 120 mm |
Number of front fans supported (max) | 2 |
Storage | |
---|---|

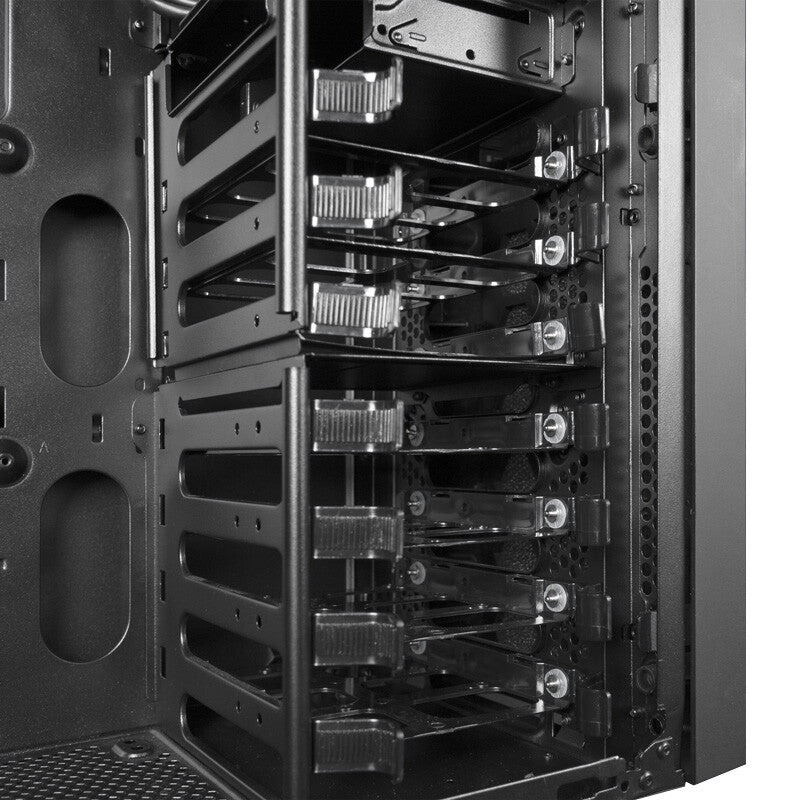

HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Material thickness | 0.7 mm |
Weight | 6.8 kg |
Height | 471 mm |
Depth | 490 mm |
Width | 210 mm |
Packaging data | |
---|---|
Package weight | 7.8 kg |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
