The Saber's Edge
With a construction that provides generous airflow and a stream of light, the CMP 510 boasts a glowing ARGB edge to adorn the front panel. Mesh makes up a substantial portion of its structure to provide optimum performance potential.
Liquid-cooling support and the capability to house a total of 6 fans ensures the CMP 510 is always ready for thermal upgrades. Graphics card clearance spans 350mm to support the latest, largest cards.
ARGB Strip
A glowing ARGB edge is cut into the clean geometry of the front panel design.

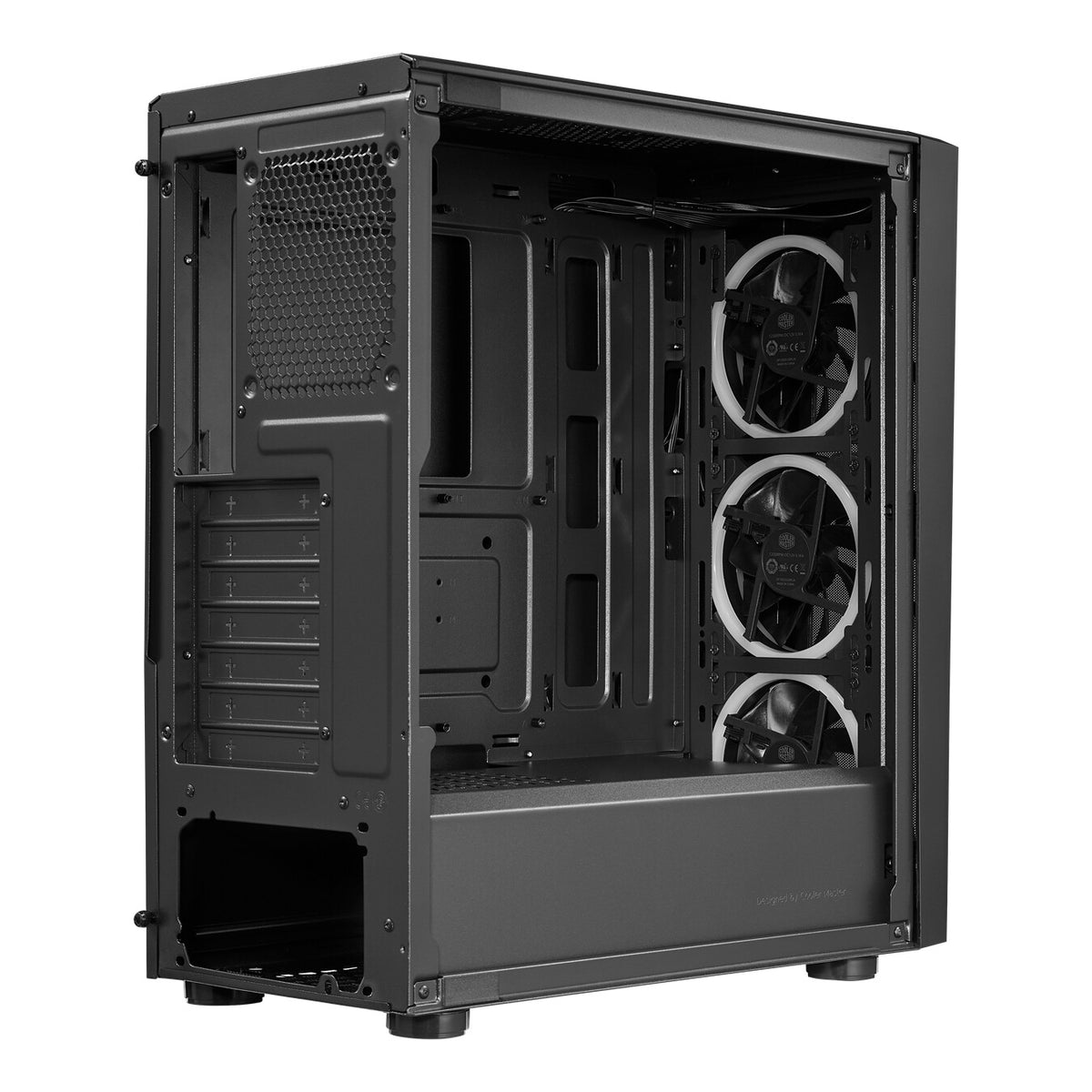

Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Large Filtered Intakes

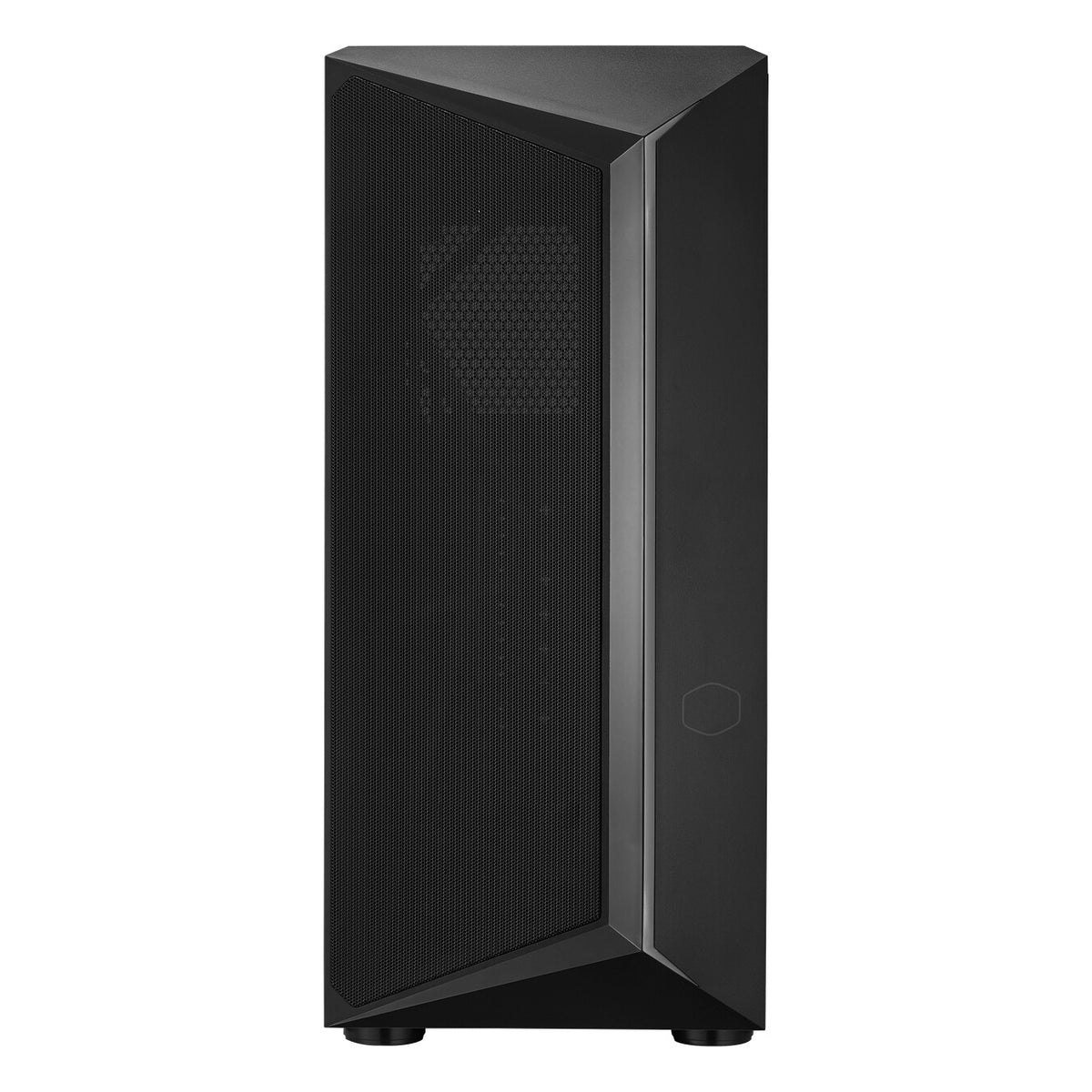

The front panel is constructed with a substantially large, unrestricted intake grill to provide superb airflow to the system.
Full Black Coating & PSU Cover
Let your system stand out with an all-black background and a PSU cover to hide cables.
Breathable Power Supply Shroud
The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
Room For Upgrades
Support for up to a 350mm graphics card, a 162mm CPU cooler, and multiple fans/radiators locations provides room for upgrades to stay ahead of the game.
Design | |
---|---|
Maximum PSU length | 16 cm |
Maximum graphics card length | 35 cm |
Maximum CPU cooler height | 16.1 cm |
Anti-dust filter | Yes |
Illumination colour | Multi |
Illumination | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | Plastic, Steel, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 1 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140,240,280 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 120 mm |
Storage | |
---|---|
HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5" |
General | |
---|---|
Product Family | CMP |
Weight & dimensions | |
---|---|
Weight | 6.08 kg |
Height | 463 mm |
Depth | 445 mm |
Width | 204 mm |
Packaging data | |
---|---|
Package weight | 7.13 kg |
Package height | 504 mm |
Package depth | 505 mm |
Package width | 266 mm |
LED controller | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Other features | |
---|---|
Volume | 39.85 L |
