Homecoming Classic
Cooler Master’s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups.
Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces.

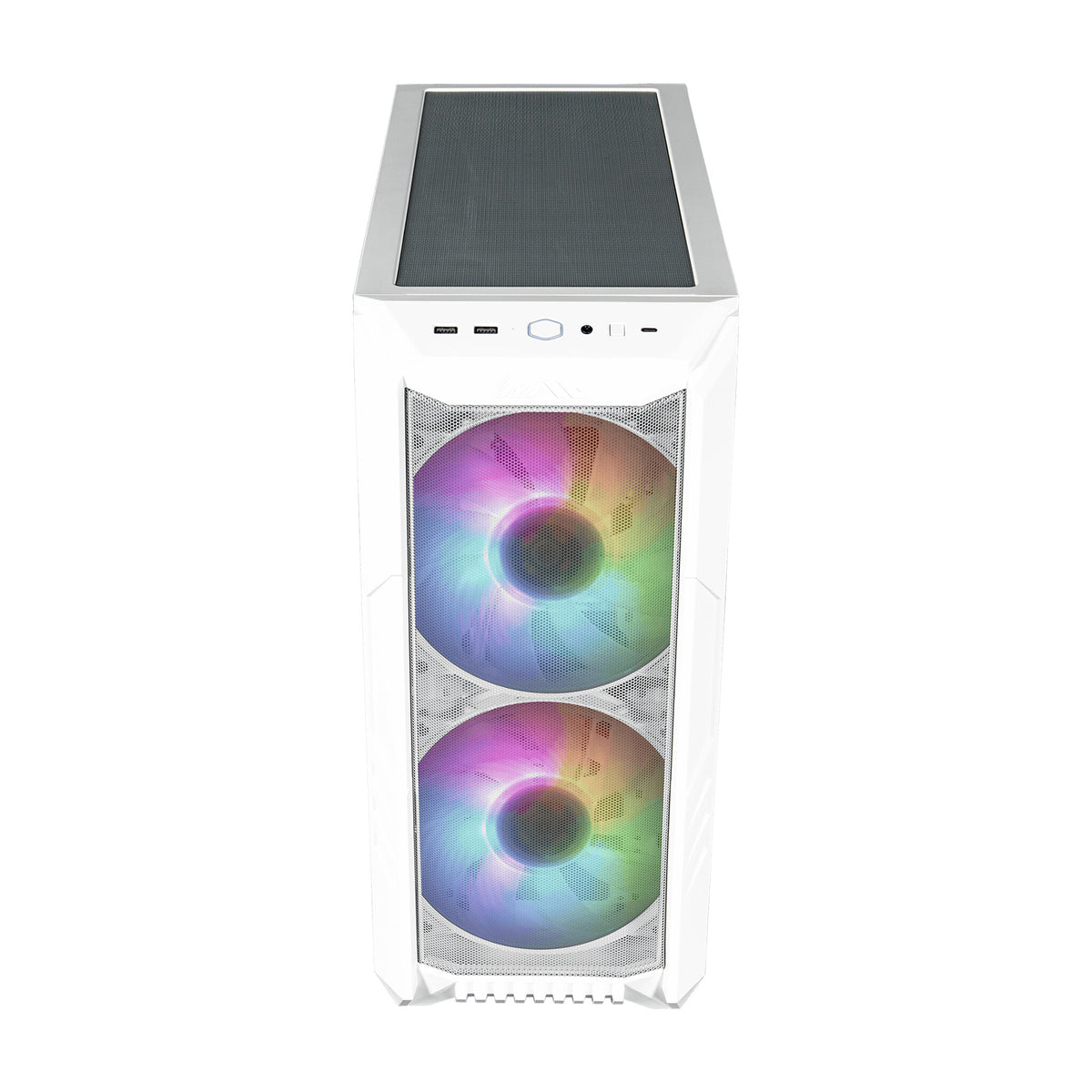

Mesh Front Panel
Large filtered intakes promotes high airflow, keeping internal components running at optimal temperature.
Dual 200MM ARGB Fans
Iconic 200mm ARGB fans embedded in the core of the HAF Series in design and function move high volumes of air quietly and effectively due to their large size. Utilizing the included hub, ARGB lighting can be customized to create a comprehensive theme to match your build.
Rotatable GPU Fan
A 120mm fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance. The fan bracket can be rotated to accommodate various GPU size and configurations.
Screwless & Tool-free TG Side Panel Design
The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
USB 3.2 Gen 2 Type C Support
USB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.
Removable Top Panel
The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
Versatile Cooling Options
Support for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
Want to know more?
Got any unanswered questions or future product requests? Or maybe you just want the latest scoop on upcoming product launches and giveaways? Join us our community on Reddit and Discord to talk directly to the designers of the products!
Design | |
---|---|
Maximum PSU length | 18 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 16.7 cm |
Reset button | Yes |
RGB control button | Yes |
Anti-dust filter | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, SSI CEB, ITX, EATX |
Product colour | White |
Material | Mesh, Tempered glass, Plastic, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240,360,140,280 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,200,280,140,240,360 mm |
Top fans diameters supported | 140,120,200 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 140,120,200 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 200 mm |
Storage | |
---|---|
HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 9.5 kg |
Height | 510 mm |
Depth | 516 mm |
Width | 224 mm |
Packaging data | |
---|---|
Package weight | 11.2 kg |
Package height | 605 mm |
Package depth | 588 mm |
Package width | 315 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
