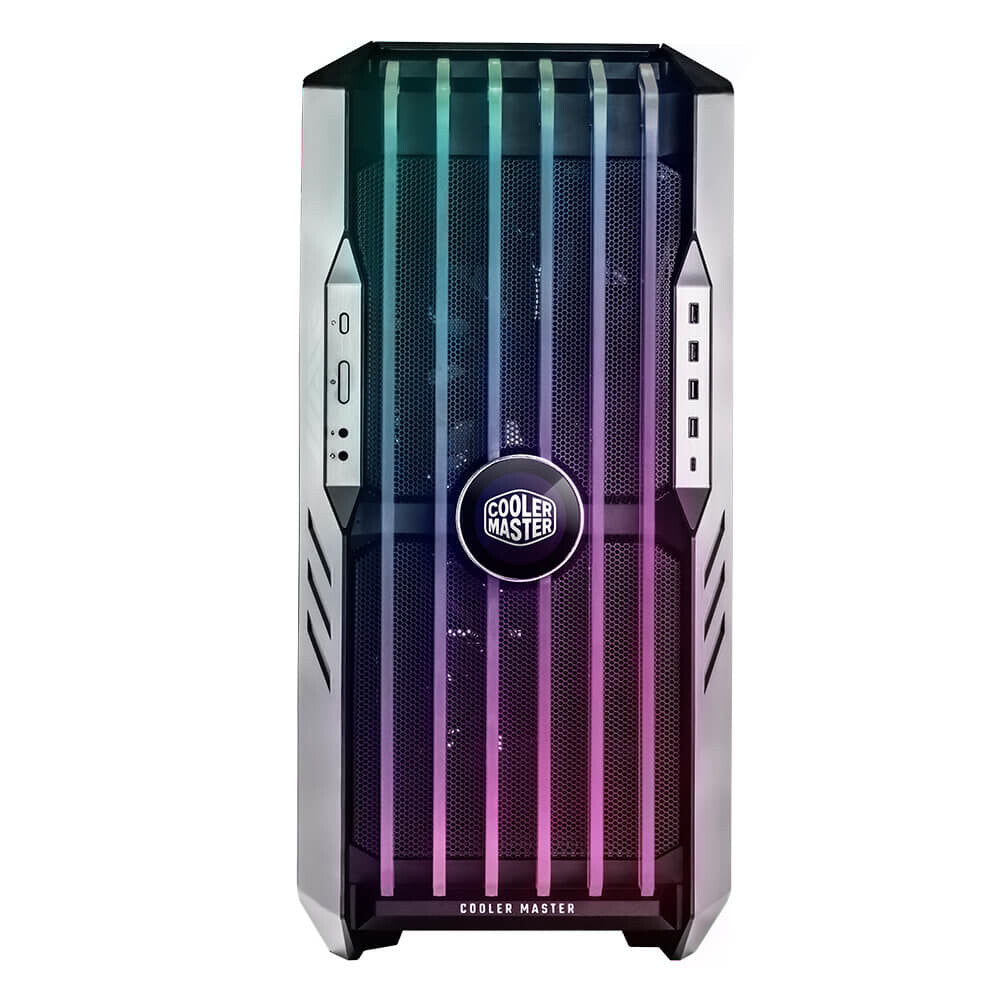

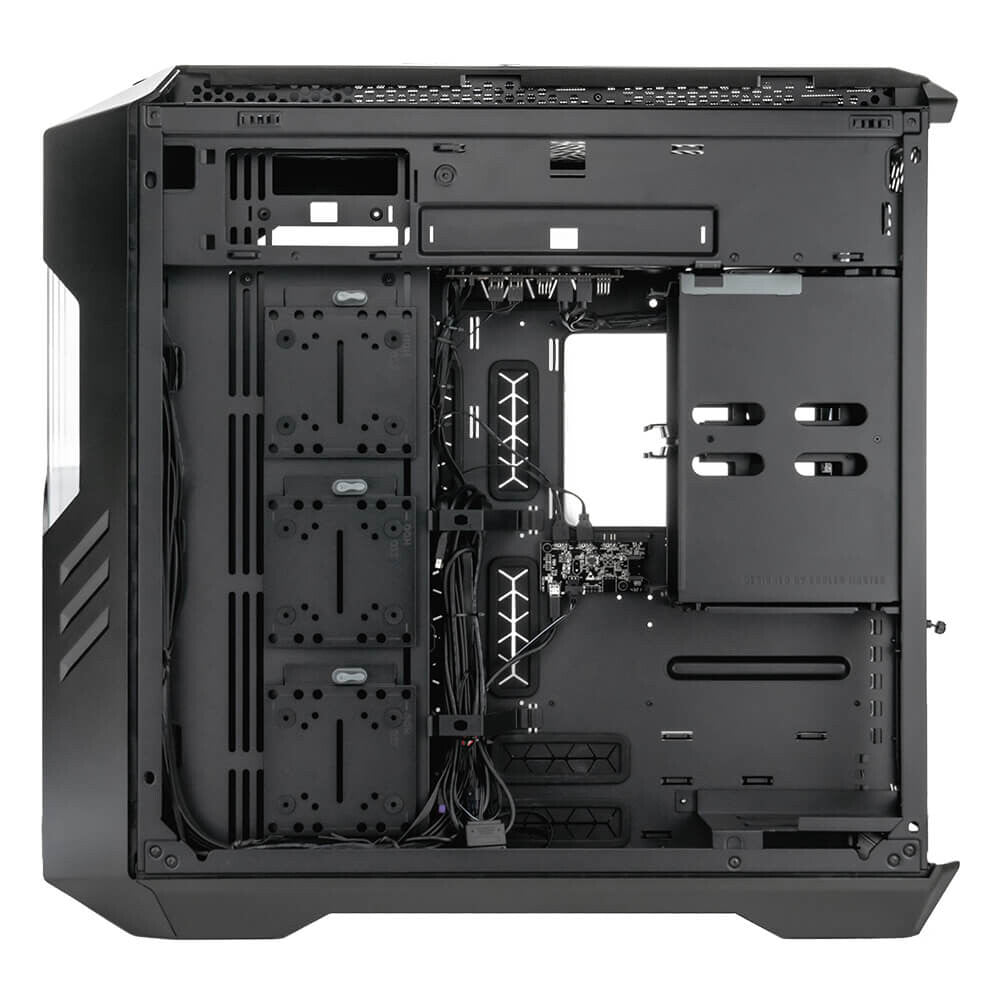

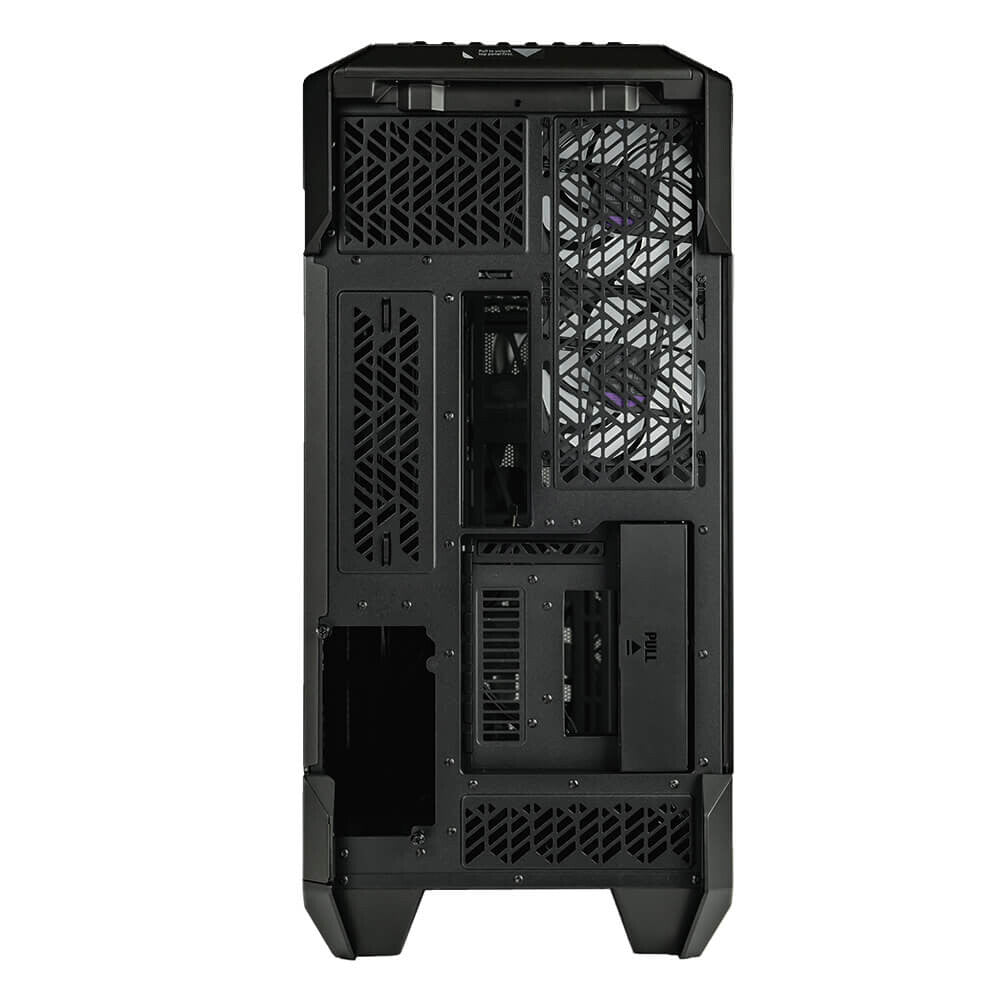

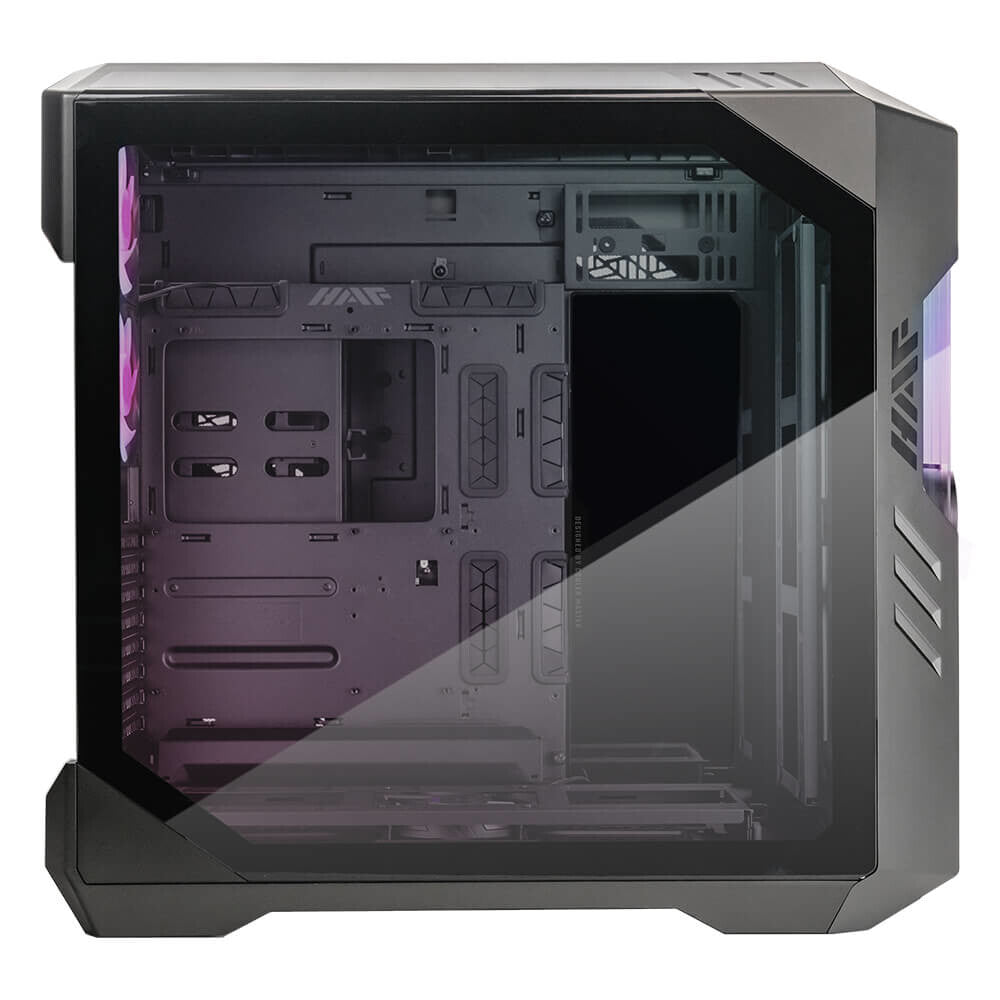

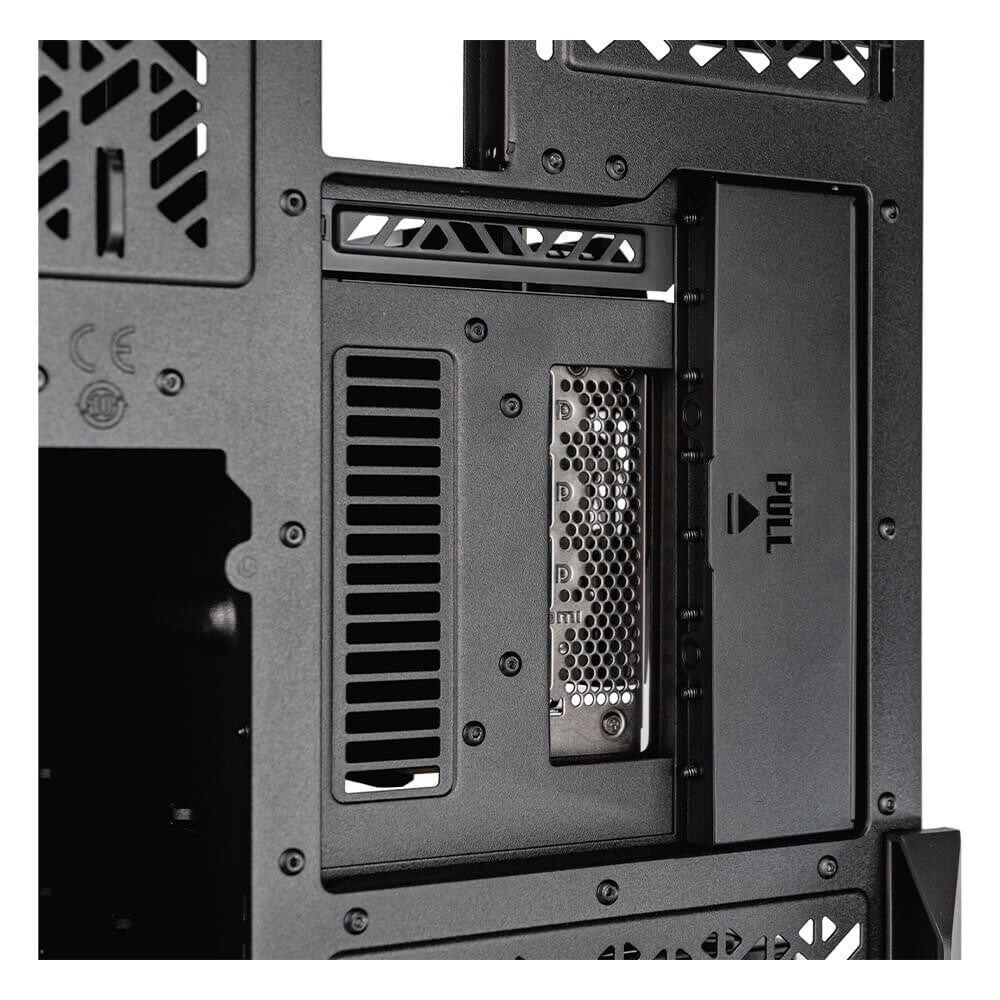

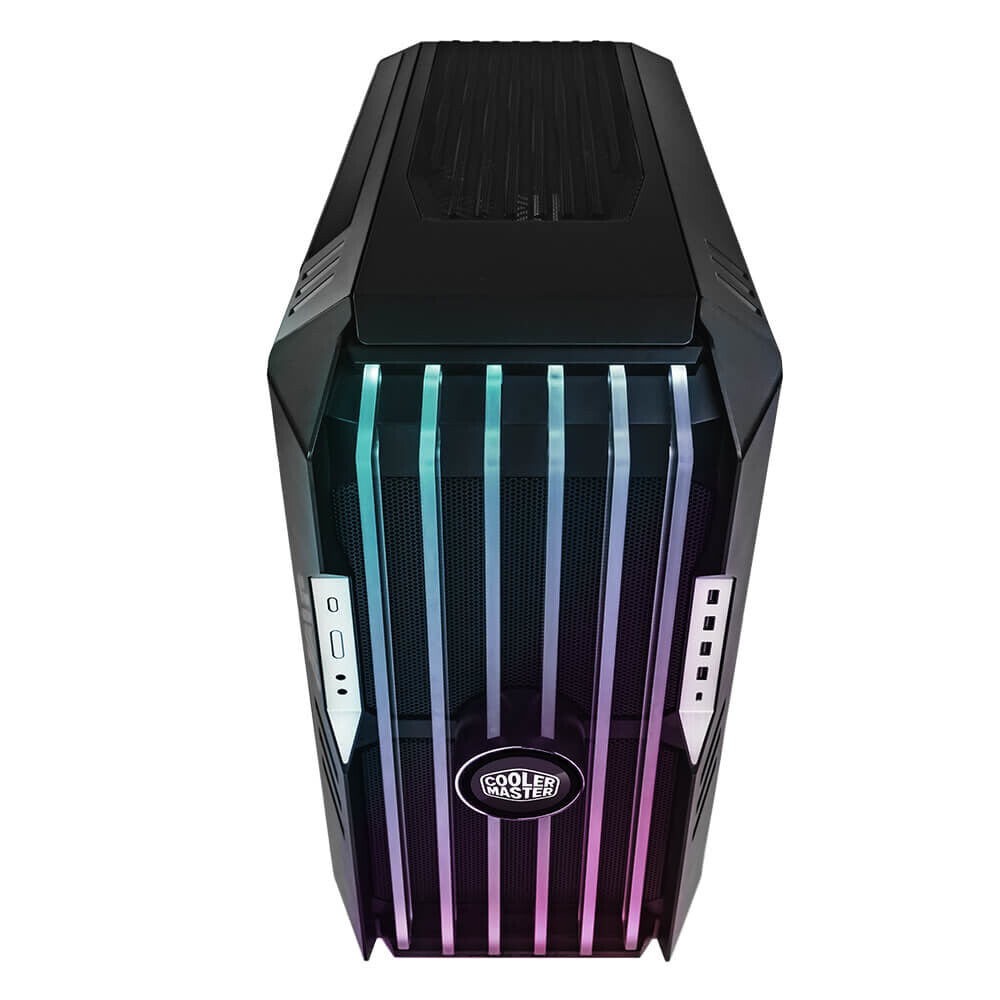

THE HAF 700 EVO TRULY HAS NO LIMITS
Drawing inspiration from our ever-growing community of enthusiasts, the HAF 700 EVO is capable of housing up to EATX motherboards such as the Dominus Extreme, as well as any sized graphics cards in both horizontal and vertical orientations.
Users can enjoy direct side intake and support for power supplies of up to 200mm, and well as unparalleled number of options for installing disks, pumps and radiators.
MAMMOTH RADIATOR SUPPORT

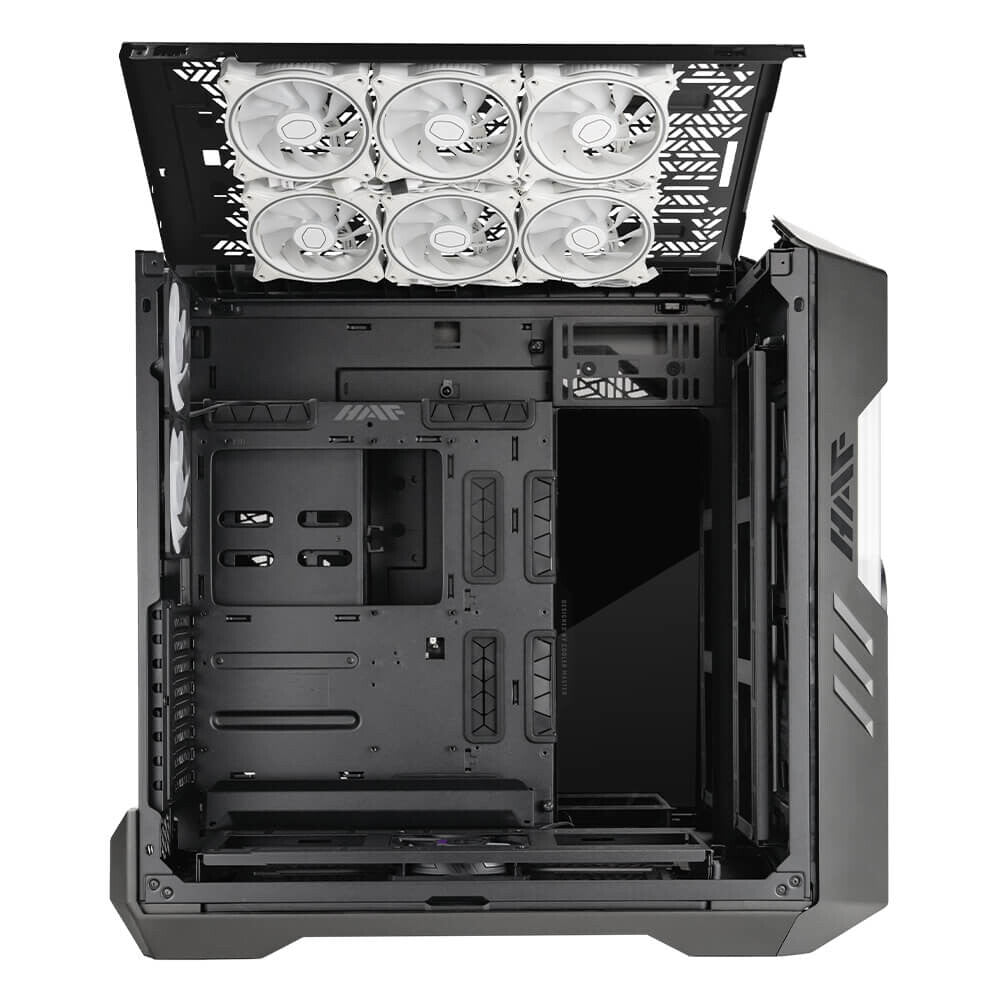

HAF 700 EVO provides users unparalleled options for out-of-the-box cooling support. Users may pick and choose between installing a selection of radiator sizes in various mounting locations: 480mm (side panel), 360mm (front panel, bottom panel, or up to dual radiators on the top panel), or 240mm (rear panel).

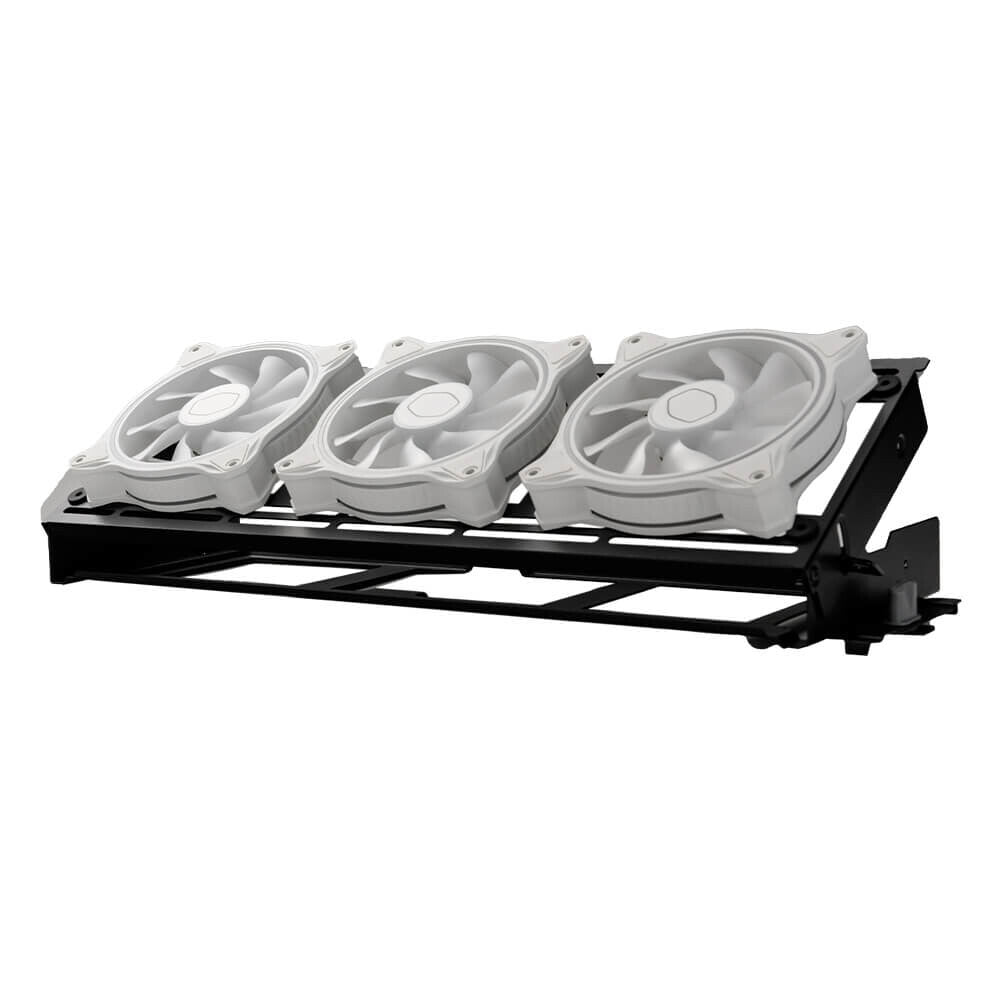

ROTATABLE RADIATOR BRACKET
HAF 700 EVO boasts two rotatable fan/radiator brackets. These brackets are fully modular and can be installed in multiple positions for complex setups. Users may choose one of the two to rotate, showcasing their radiator at unique angles.
THE “HAF STANDARD” IN COOLING
From the revamped FineMesh V2 to the exclusive Performance Edition 200mm SickleFlow fans, HAF 700 Evo surely packs a punch. HAF 700 Evo surely also provides unparalleled options for users looking to water-cool their systems with custom solutions.
A DECADE OF HAF DESIGN, REVOLUTIONIZED
The HAF 700 Evo is almost entirely tool-less and you can install almost any component without the need for screwdrivers , including:
– GPUs
– Vertical GPU Holder Kit
– Power Supply

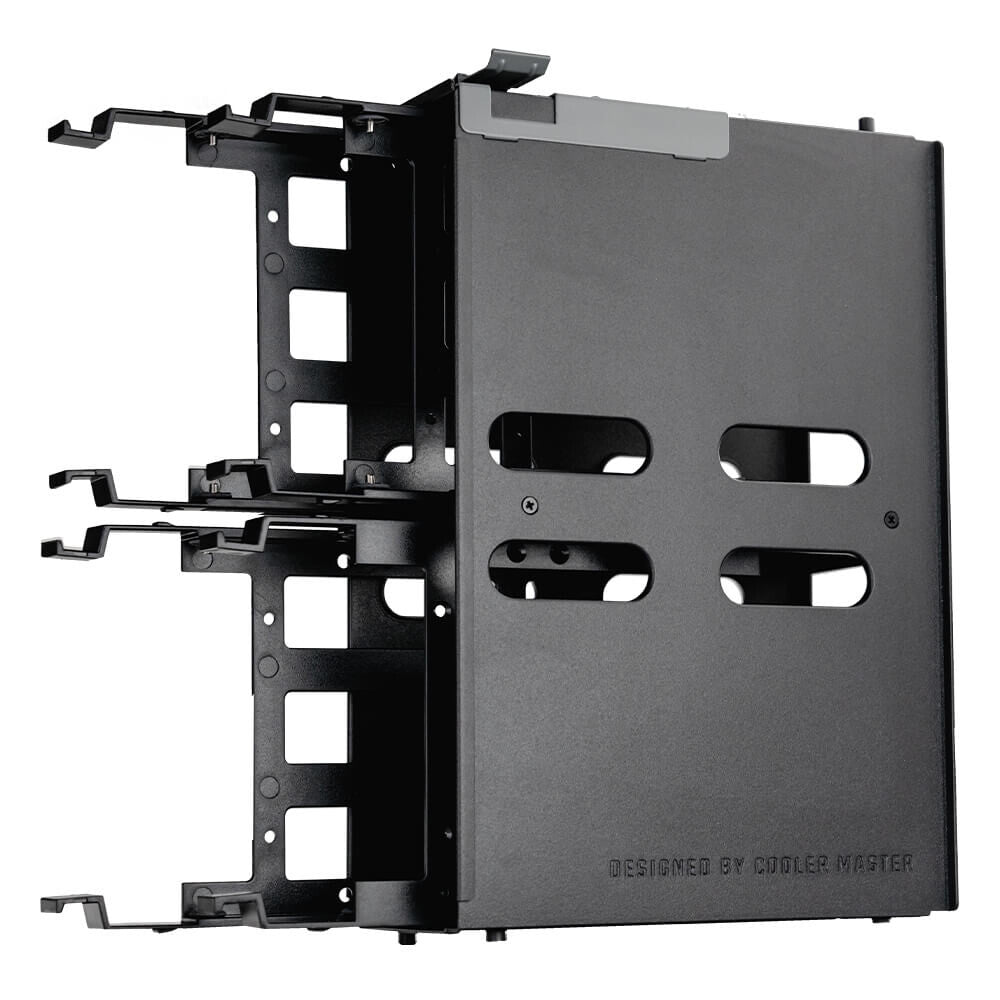

– 3.5″ Drives
– 2.5″ Drives
– HDD cage
– Pumps and Reservoirs
– Internal & External Paneling
IRIS: BUILT IN REAL-STATS MONITOR
Monitor system stats in real time or showcase your personality on Iris, your built-in LCD assistant. Immerse yourself in full range customization of Iris’s display and ARGB Gen2 elements via MasterPlus+, and bring to life vastly diverse setups, unique in aesthetics and function.
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 49 cm |
Maximum CPU cooler height | 16.6 cm |
Anti-dust filter | Yes |
Number of expansion slots | 8 |
Number of 2.5" bays | 12 |
Number of 3.5" bays | 12 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
Product colour | Grey |
Material | Mesh, Plastic, Steel, Tempered glass |
Type | PC |
Form factor | Full Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Cooling | |
---|---|
Top radiator sizes supported | 360,420 mm |
Rear radiator sizes supported | 240 mm |
Side radiator sizes supported | 420,480 mm |
Front radiator sizes supported | 360,420 mm |
Bottom fans diameters supported | 120,140 mm |
Number of bottom fans supported (max) | 3 |
Bottom fans installed | 1x 120 mm |
Top fans diameters supported | 120,140,200 mm |
Number of top fans supported (max) | 6 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 2 |
Rear fans installed | 2x 120 mm |
Side fans diameters supported | 120,140 mm |
Number of side fans supported (max) | 4 |
Front fans diameters supported | 120,140,200 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 200 mm |
Storage | |
---|---|
HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5" |
General | |
---|---|
Product Family | HAF |
Weight & dimensions | |
---|---|
Weight | 24.3 kg |
Height | 540 mm |
Depth | 556 mm |
Width | 279 mm |
Packaging data | |
---|---|
Package weight | 29 kg |
Package height | 725 mm |
Package depth | 780 mm |
Package width | 399 mm |
Accessories included | Universal Graphics Card Holder Kit V2 |
LED controller | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
