8 In-house Designed Superconductive Composite Heat Pipes
8 Superconductive composite heat pipes utilize groove and powder wick structure with dual variable heat pipe thickness for maximum efficiency of heat transfer.
Performance Dual Tower
Redesigned dual tower maximizes performance and surface area with optimized fin density and thickness.
8 Heat Pipe Array
Optimized lay out consisting of 8 heat pipes to ensure the heat is transferred to all fin area for efficient dissipation.

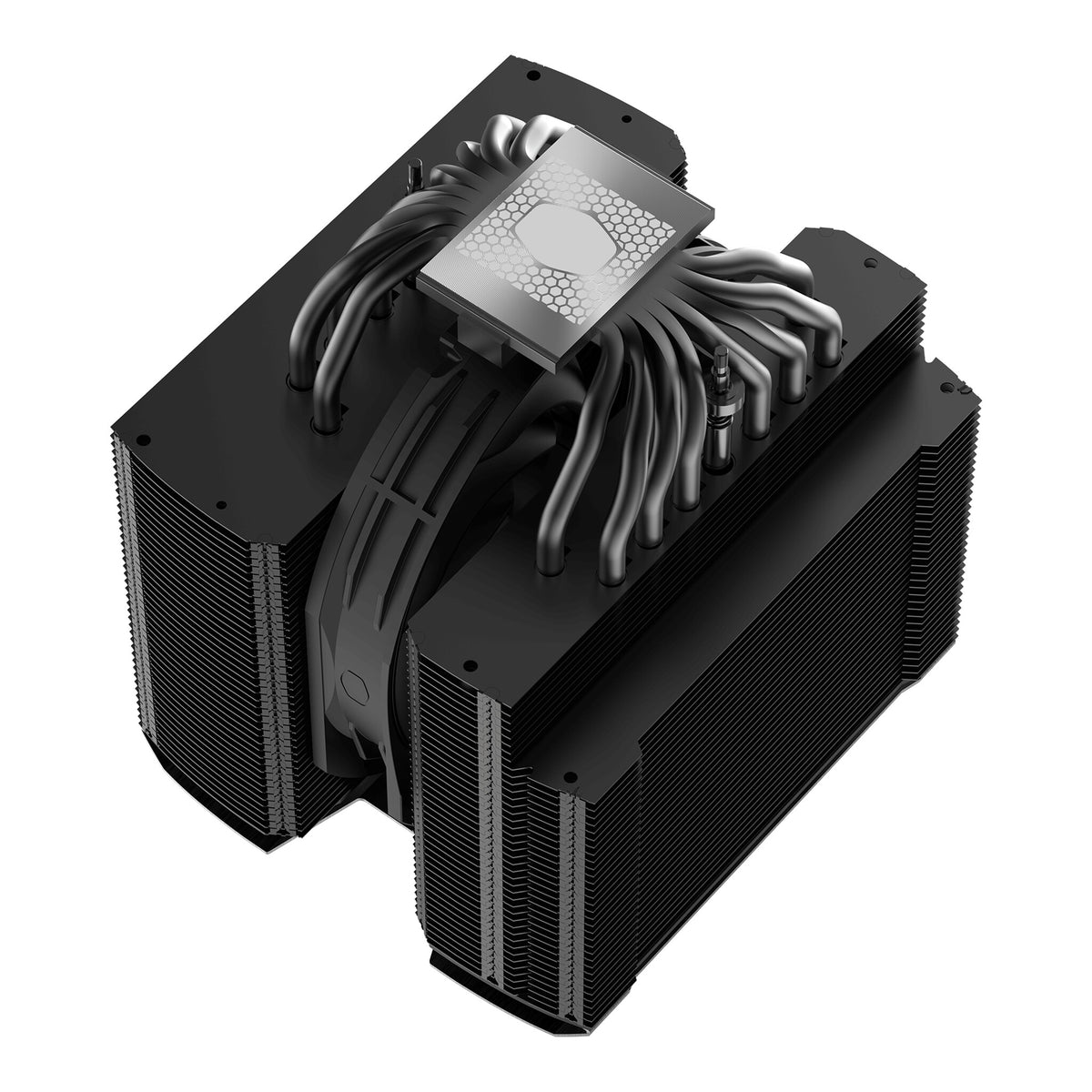

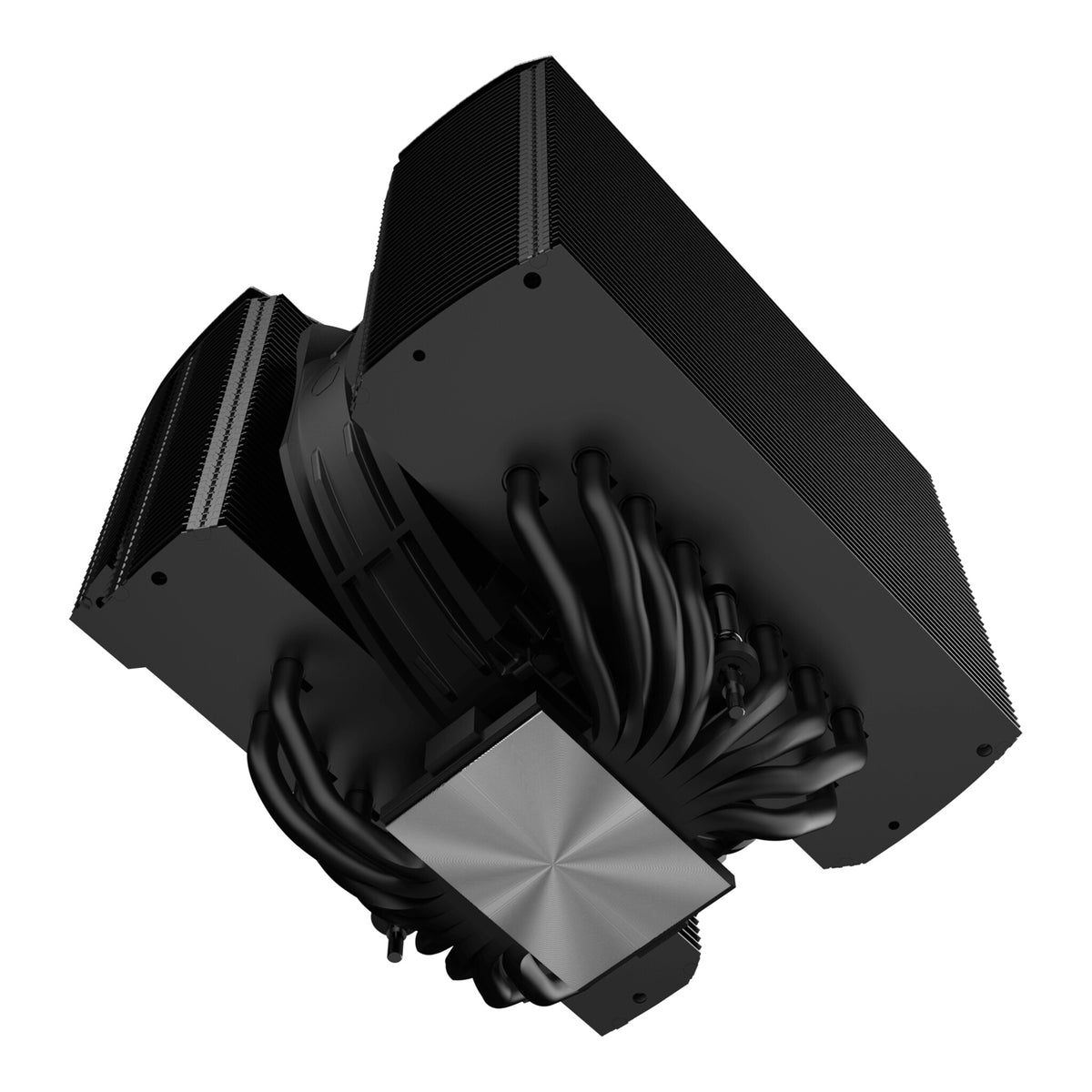

Expanded Copper Base
Expanded surface area of nickel plated copper base provides seamless contact and complete coverage to target all heat zones. Base layer thickness minimized for faster heat conductivity as well as lower cooler height for improved case compatibility.
Dual Mobius Fans
Equipped with dual variable Mobius fans for exceptional silence without compromising performance.

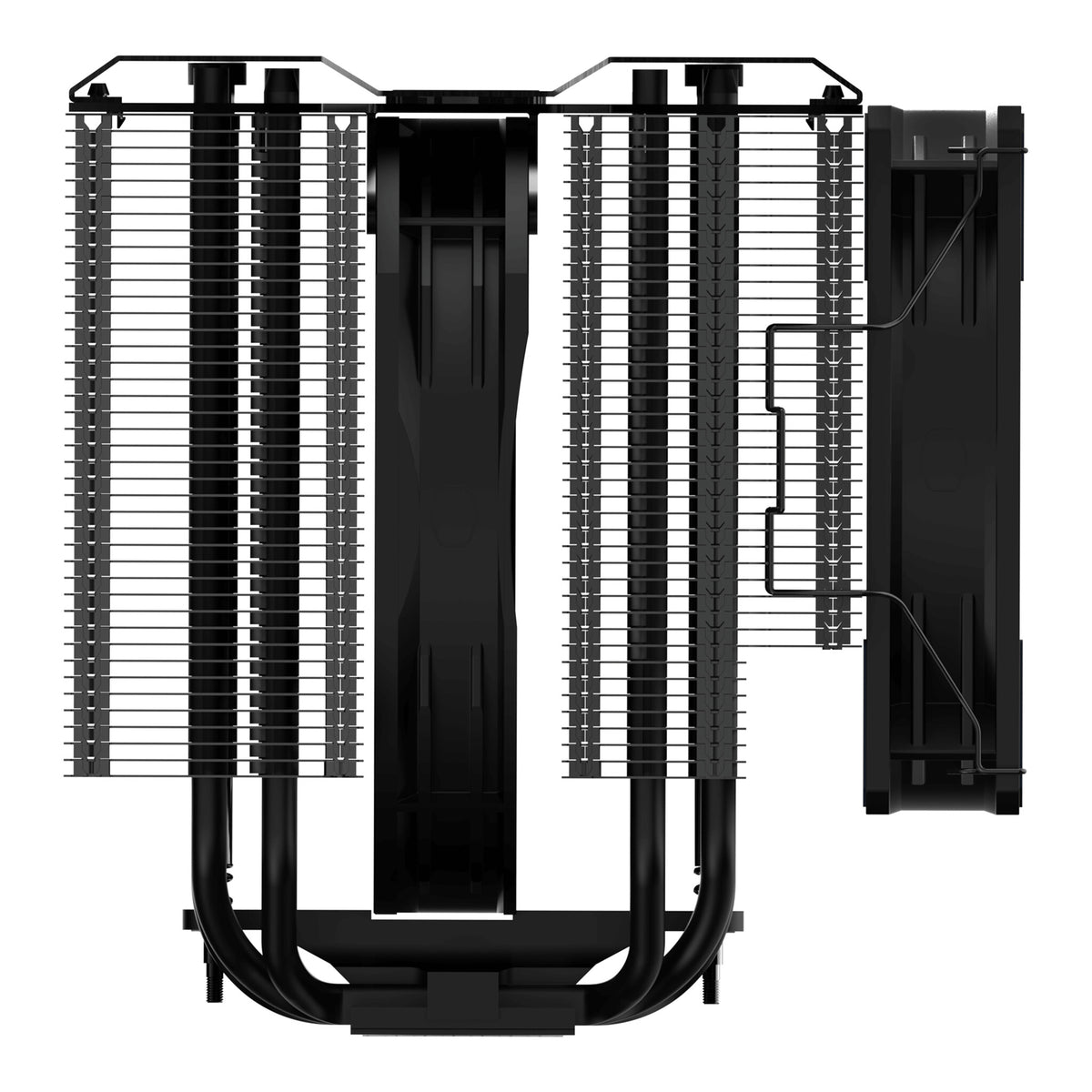

Dual Staggered Fan Setup
Staggered 120mm and 135mm Mobius fans create ultimate Push-Pull setup for perfect airflow and air pressure to maximize heat dissipation.
Maximum RAM Clearance
120mm Mobius fan provides 42mm of RAM clearance to fit a wider range of builds without sacrificing performance.

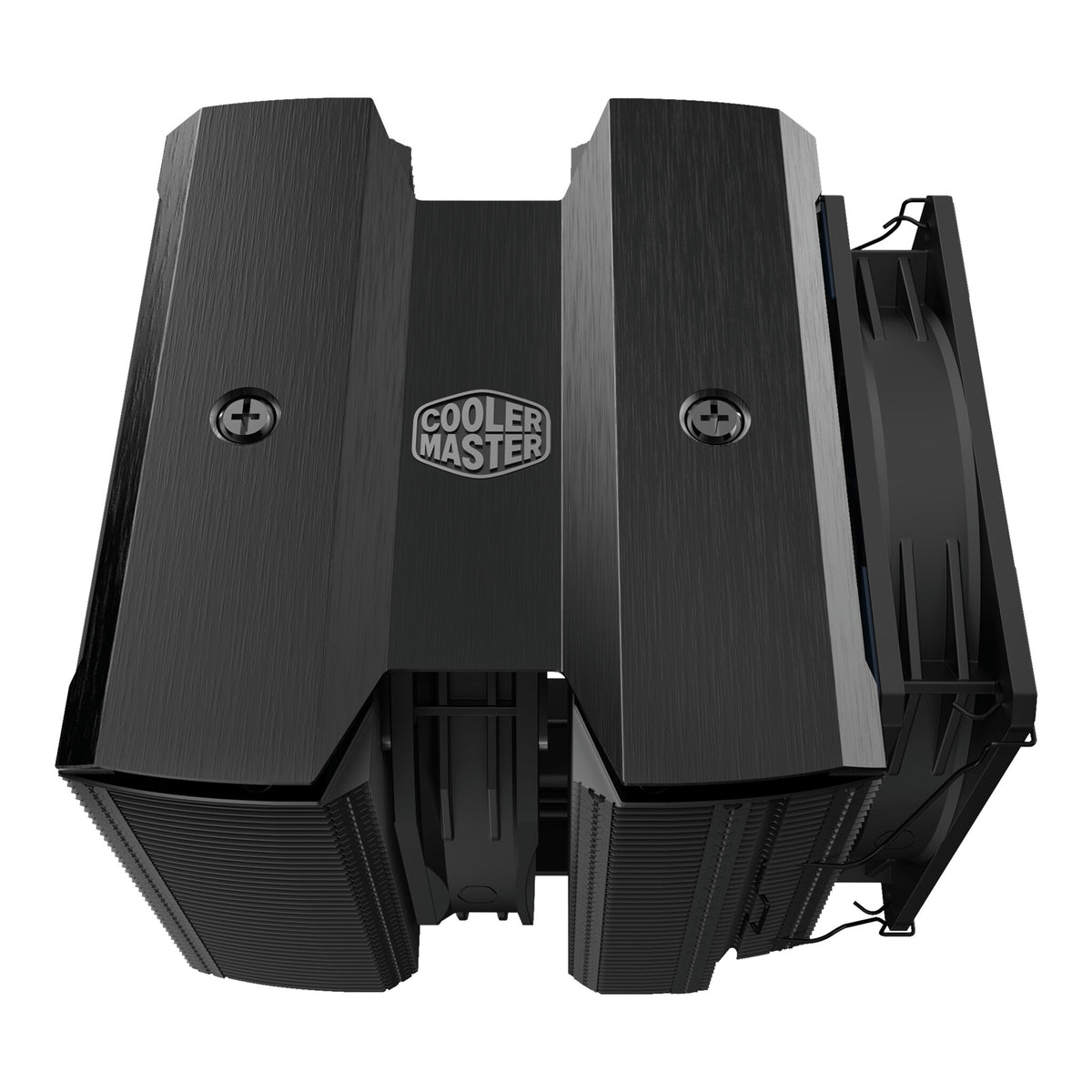

All Black Stealth Design
Stealth Series aluminum top cover and all black hardware provides a premium and clean design.
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 200000 h |
Pulse-width modulation (PWM) support | Yes |
Fan 2 maximum air pressure | 2.69 mmH2O |
Fan 2 maximum airflow | 63.1 cfm |
Fan 2 noise level (high speed) | 22.6 dB |
Fan 2 rotational speed (max) | 1950 RPM |
Maximum air pressure | 1.92 mmH2O |
Maximum airflow | 63.6 cfm |
Noise level (high speed) | 24.6 dB |
Rotational speed (max) | 1550 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 120/135 mm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of heat pipes | 8 |
Fins material | Aluminium |
Number of fans | 2 fan(s) |
Product colour | Black |
Power | |
---|---|
Rated voltage | 12 V |
Weight & dimensions | |
---|---|
Package weight | 2.25 kg |
Package height | 243 mm |
Package depth | 248 mm |
Package width | 191 mm |
Fan 2 dimensions (W x D x H) | 120 x 120 x 25 mm |
Fan dimensions (W x D x H) | 135 x 135 x 26 mm |
Weight | 1.63 kg |
Height | 165.6 mm |
Depth | 162.2 mm |
Width | 150.6 mm |
General | |
---|---|
Product Family | MasterAir |
Logistics data | |
---|---|
Products per master (outer) case | 4 pc(s) |
Master (outer) case height | 278 mm |
Master (outer) case length | 520 mm |
Master (outer) case width | 405 mm |
