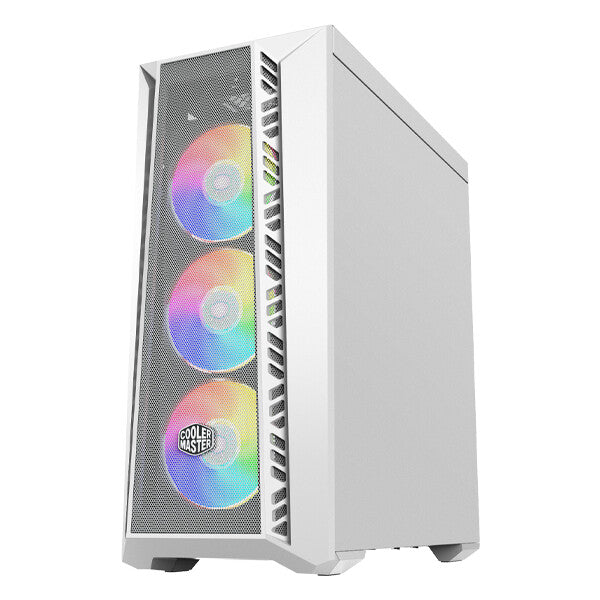

MasterBox 520 is the ideal chassis for both novice and experienced gamers alike, providing users multiple options in case design to satisfy different needs. Whether you place upmost value on system performance and high quality gaming experiences, or dazzling aesthetics and an outlook that stands out, MasterBox 520 has something in for you. Pre-installed with three 120mm ARGB fans, your system is brought to life with stunning lighting effects, completely customizable to match your theme or preference. Additional mechanical upgrades such as a removable top panel and robust dust filter ensure a pleasant, hassle-free installation experience.
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 16.5 cm |
Reset button | Yes |
RGB control button | Yes |
Anti-dust filter | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 3 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, SSI CEB, Mini-ITX, EATX |
Product colour | White |
Material | ABS, Tempered glass, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240,360,140,280 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,280,140,240,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 120 mm |
General | |
---|---|
Product Family | MasterBox |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 7.13 kg |
Height | 498 mm |
Depth | 502 mm |
Width | 210 mm |
Packaging data | |
---|---|
LED controller | Yes |
Other features | |
---|---|
Volume | 50 L |
