GAMING ON WIDE-OPEN THROTTLE

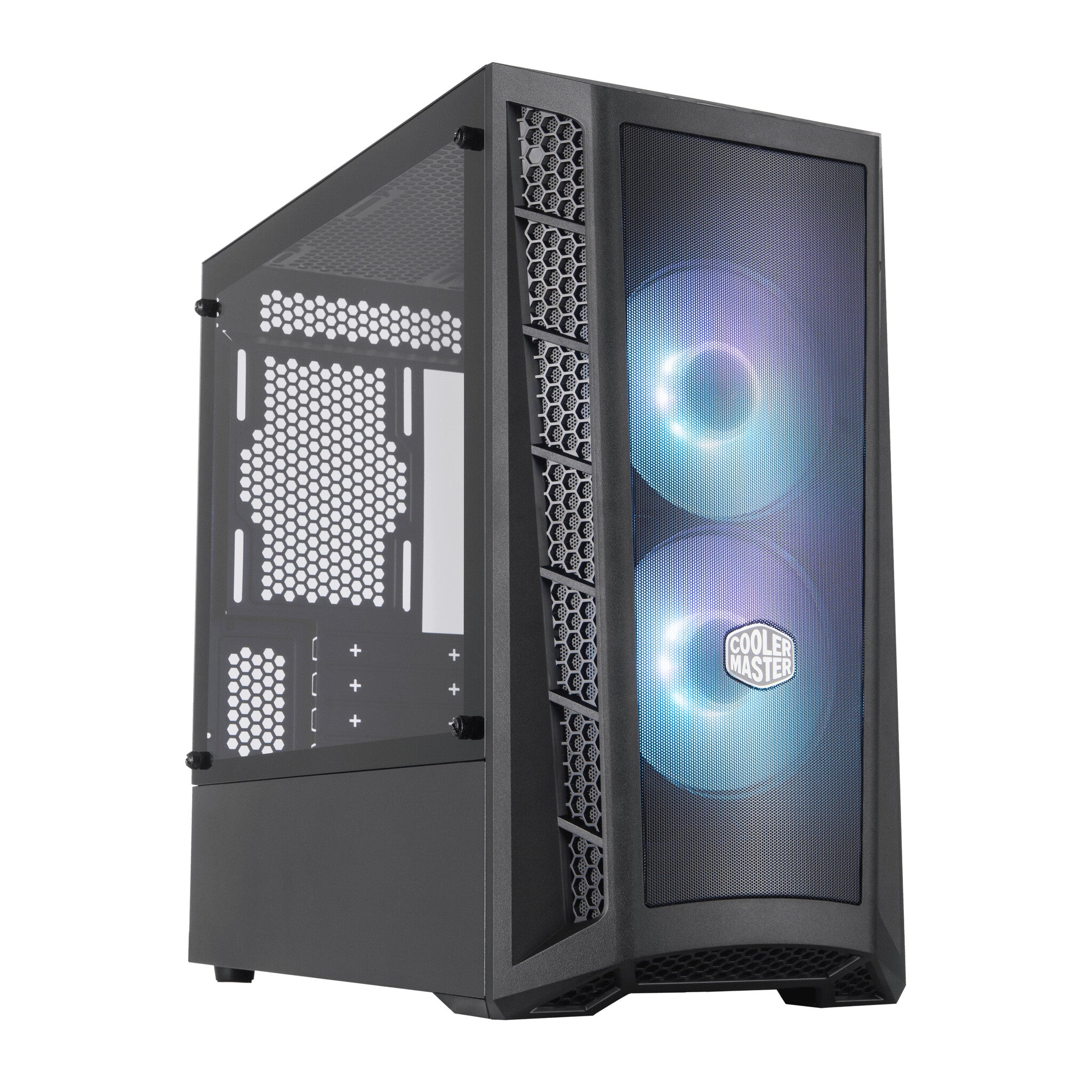

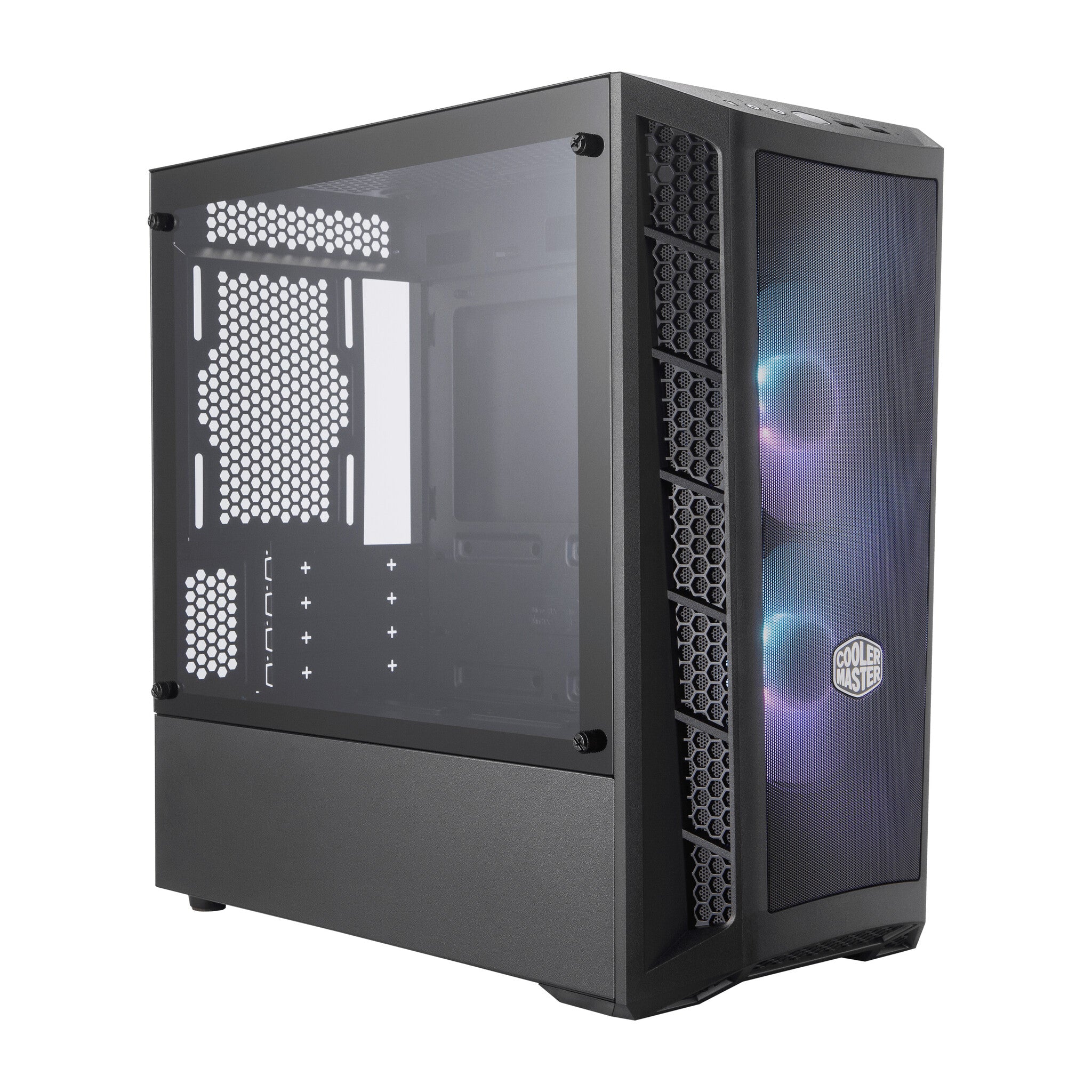

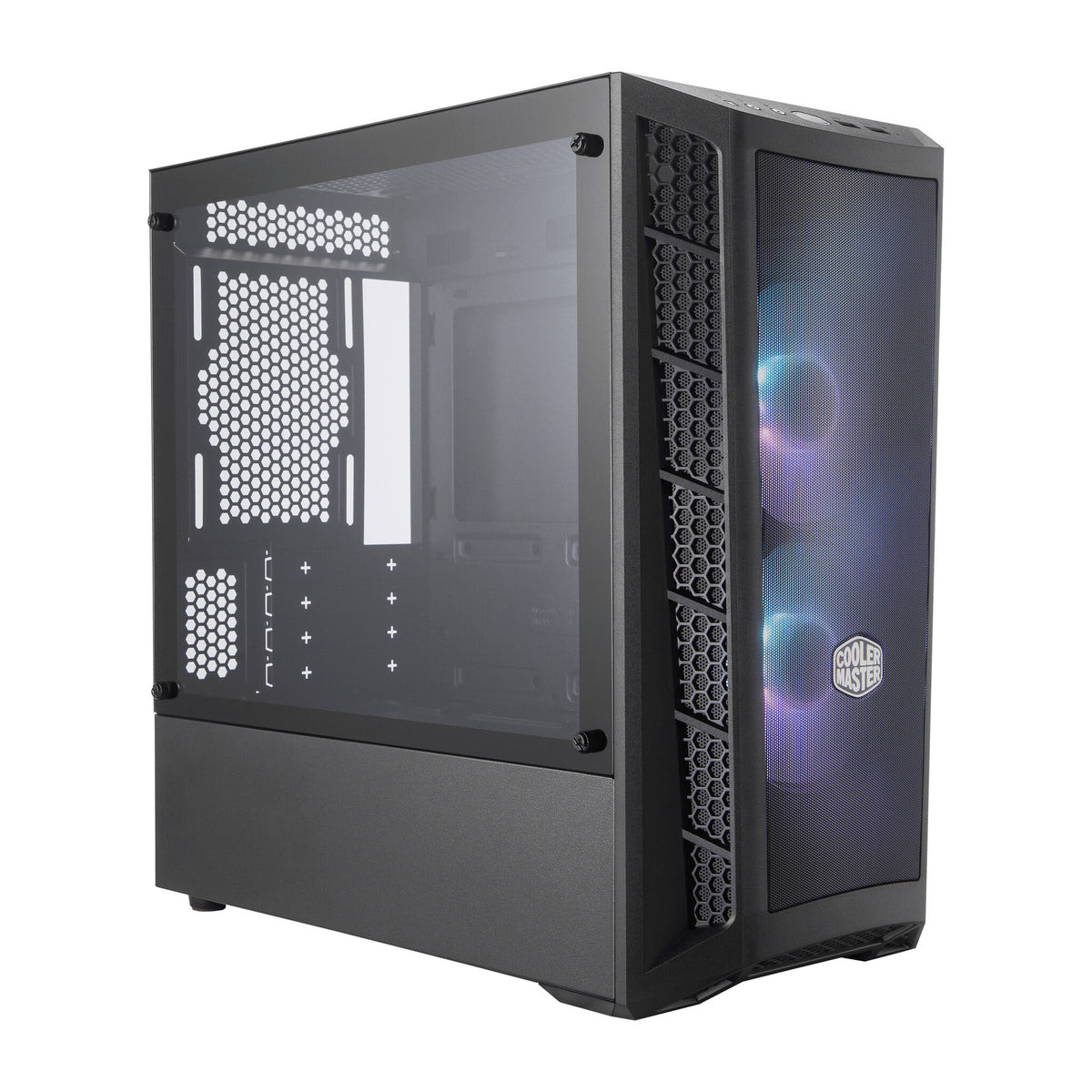

The MasterBox MB311L ARGB is a Micro-ATX airflow PC case pre-installed with two ARGB fans and made to be built with the latest gaming hardware. The front panel’s façade is made entirely of Fine Mesh, placed between two honeycomb vents on either side to maximize airflow. Since running the latest games, smoothly, means keeping the latest hardware efficiently cooled, top panel ventilation offers the option to add even more cooling hardware—if nothing is mounted, the top panel acts as passive ventilation.
The internal layout was engineered for a high compatibility for the latest gaming hardware while also accounting for future upgrades. Following in the principles of the award-winning MB Series, versatility is paired with presentation to ensure that any gaming system built inside the MasterBox MB311L ARGB looks as good as it performs.

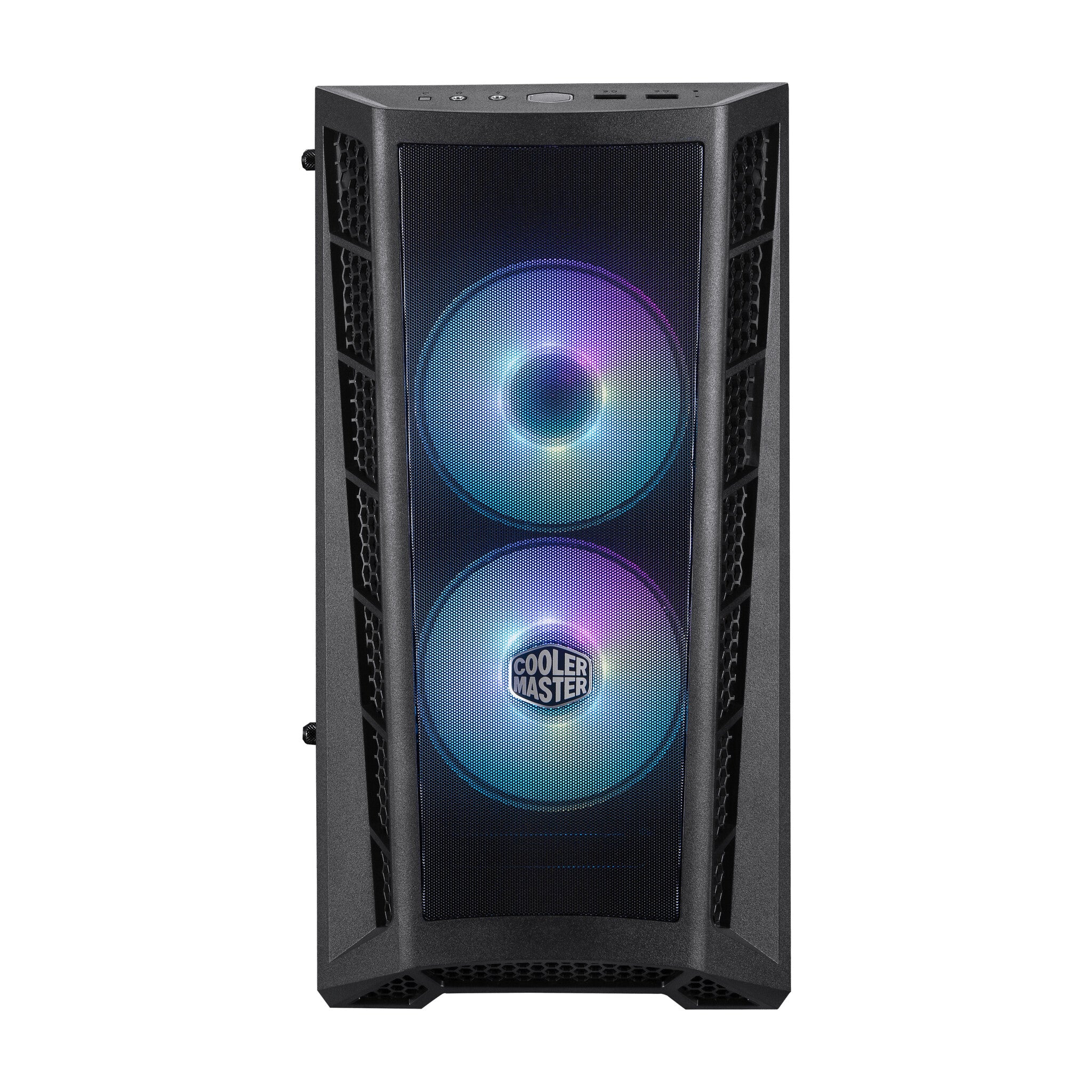

FINE MESH FRONT PANEL
Cooler Master’s Fine Mesh design on the front panel is proven to provide proficient airflow while filtering out dust.
MESH INTAKES
Large, mesh intakes span each side of the front panel to provide additional airflow to system.
OPTIMIZED AIRFLOW
Airflow is optimized by a collaboration between the Fine Mesh front panel, additional mesh intakes, top panel ventilation, and rear exhaust.

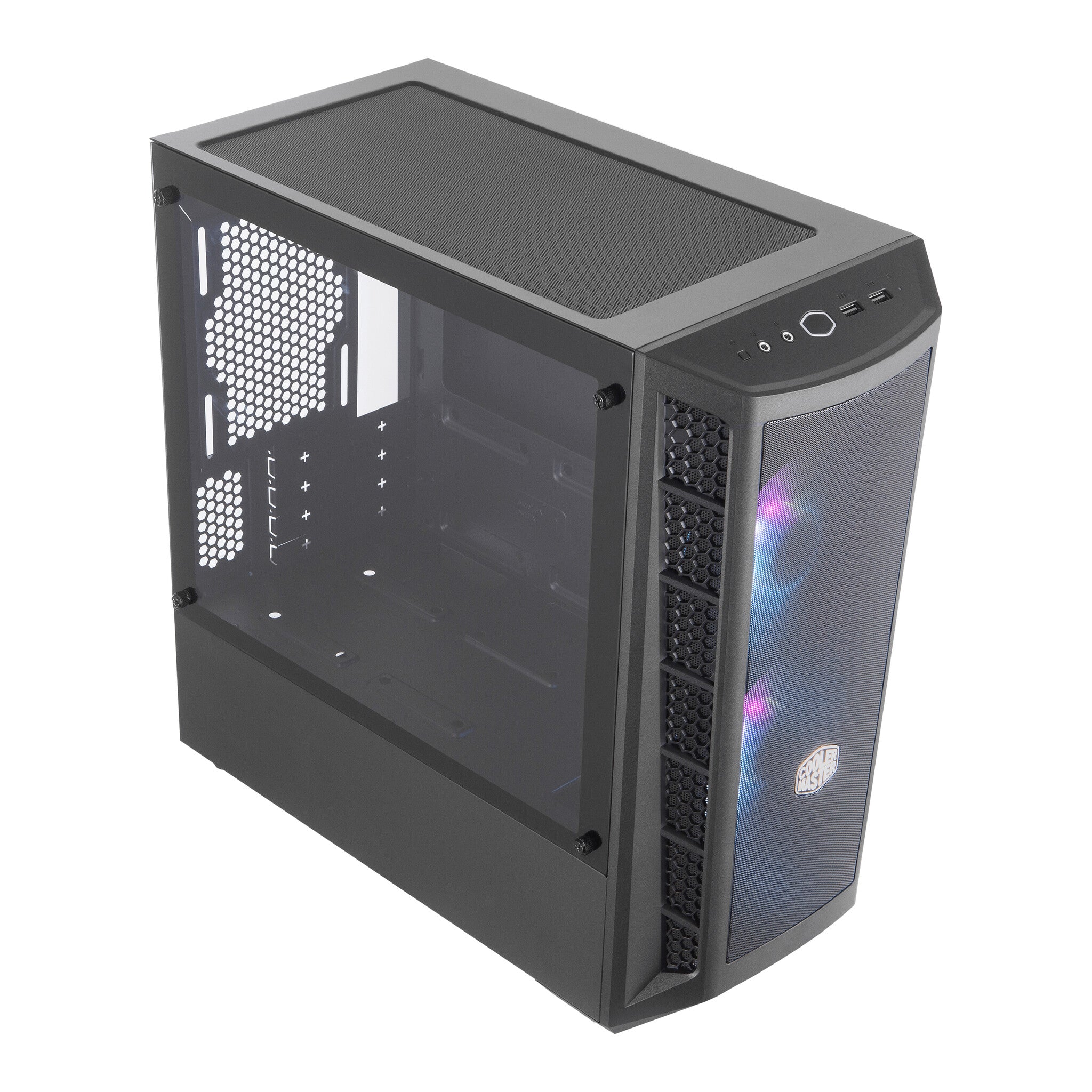

TEMPERED GLASS SIDE PANEL
Hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
ADAPTABLE DRIVE CAGE
The drive cage is able to shift toward the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.
VERSATILE COOLING OPTIONS
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
ROOM FOR UPGRADES
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.
Design | |
---|---|
Maximum PSU length | 32.5 cm |
Maximum graphics card length | 34.4 cm |
Maximum CPU cooler height | 16.6 cm |
Cable management | Yes |
Anti-dust filter | Yes |
Side window | Yes |
Number of expansion slots | 4 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | micro ATX, Mini-ITX |
Product colour | Black |
Material | Mesh, Plastic, Tempered glass |
Type | PC |
Form factor | Mini Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | No |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140,240,280 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Front fans supported description | 3x 120mm, 2x 140mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 2x 120 mm |
General | |
---|---|
Product Family | MasterBox |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 5.47 kg |
Height | 400 mm |
Depth | 366.5 mm |
Width | 210 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Other features | |
---|---|
Cable management clearance | 2.2 cm |
