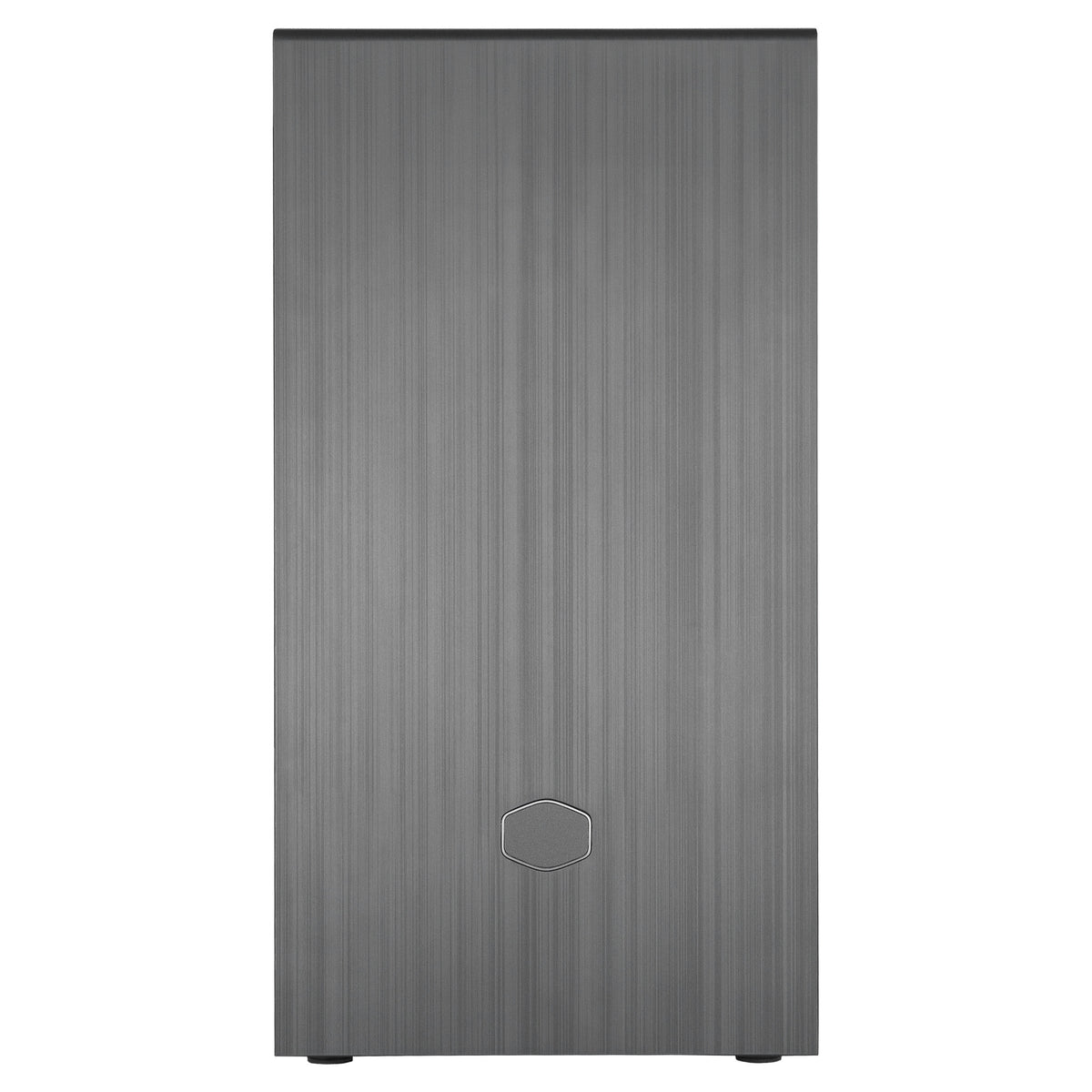

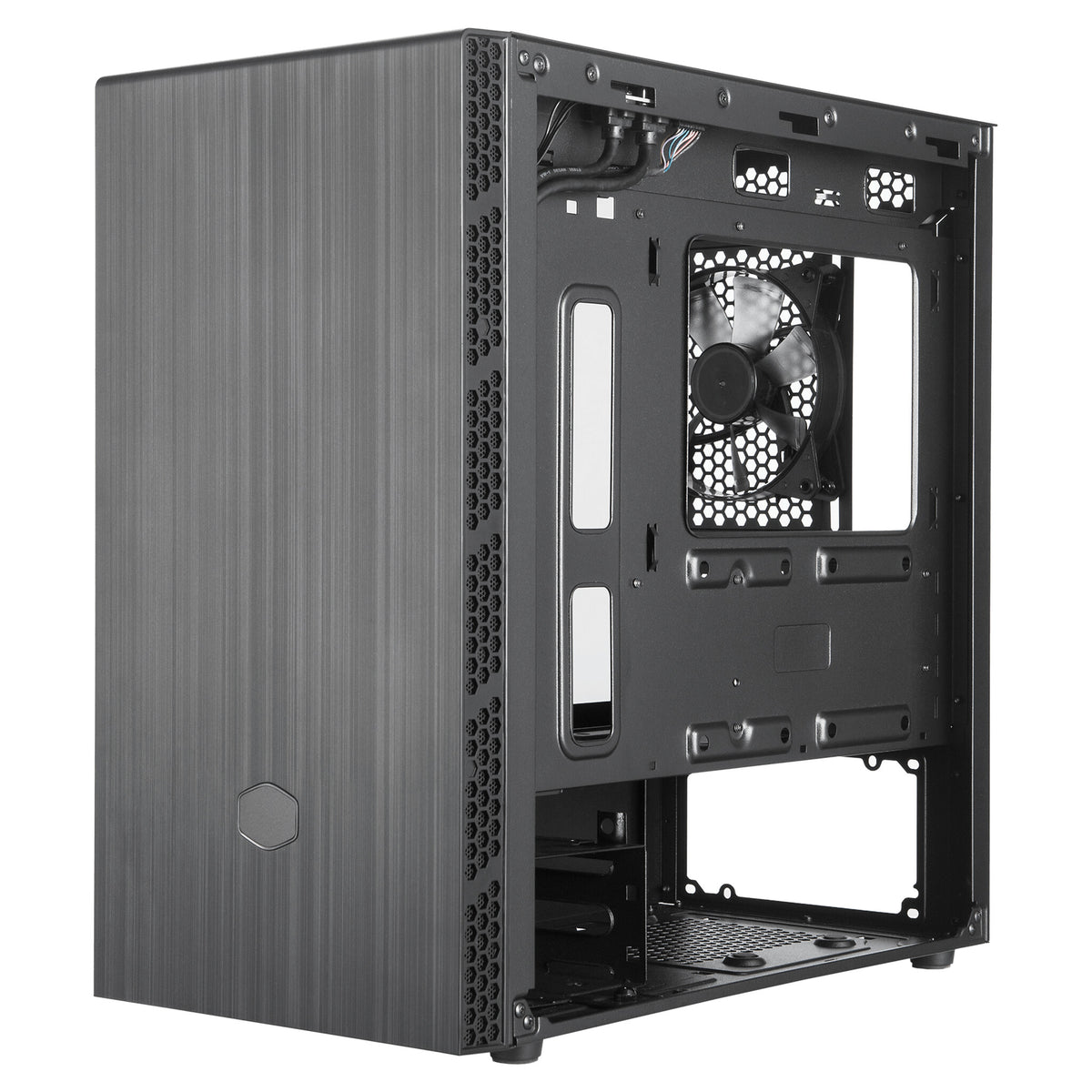

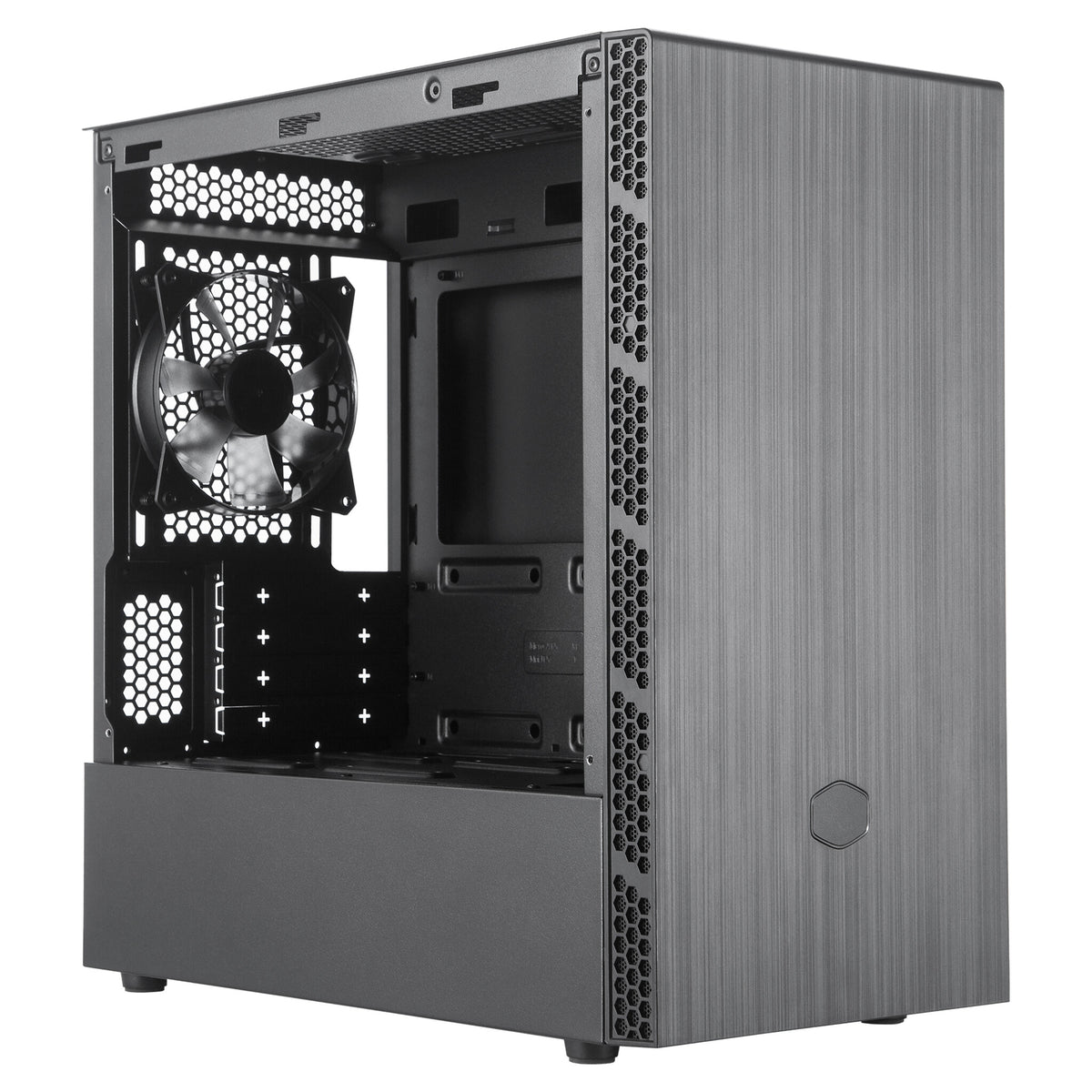

A brushed finish spans the entire front panel for an elegant and minimalistic design.
Hexagon Gleam
If an optional, illuminated fan is installed, the Cooler Master hexagon logo will capture light from the fan and emit a glow on the front panel.
Mesh Intakes

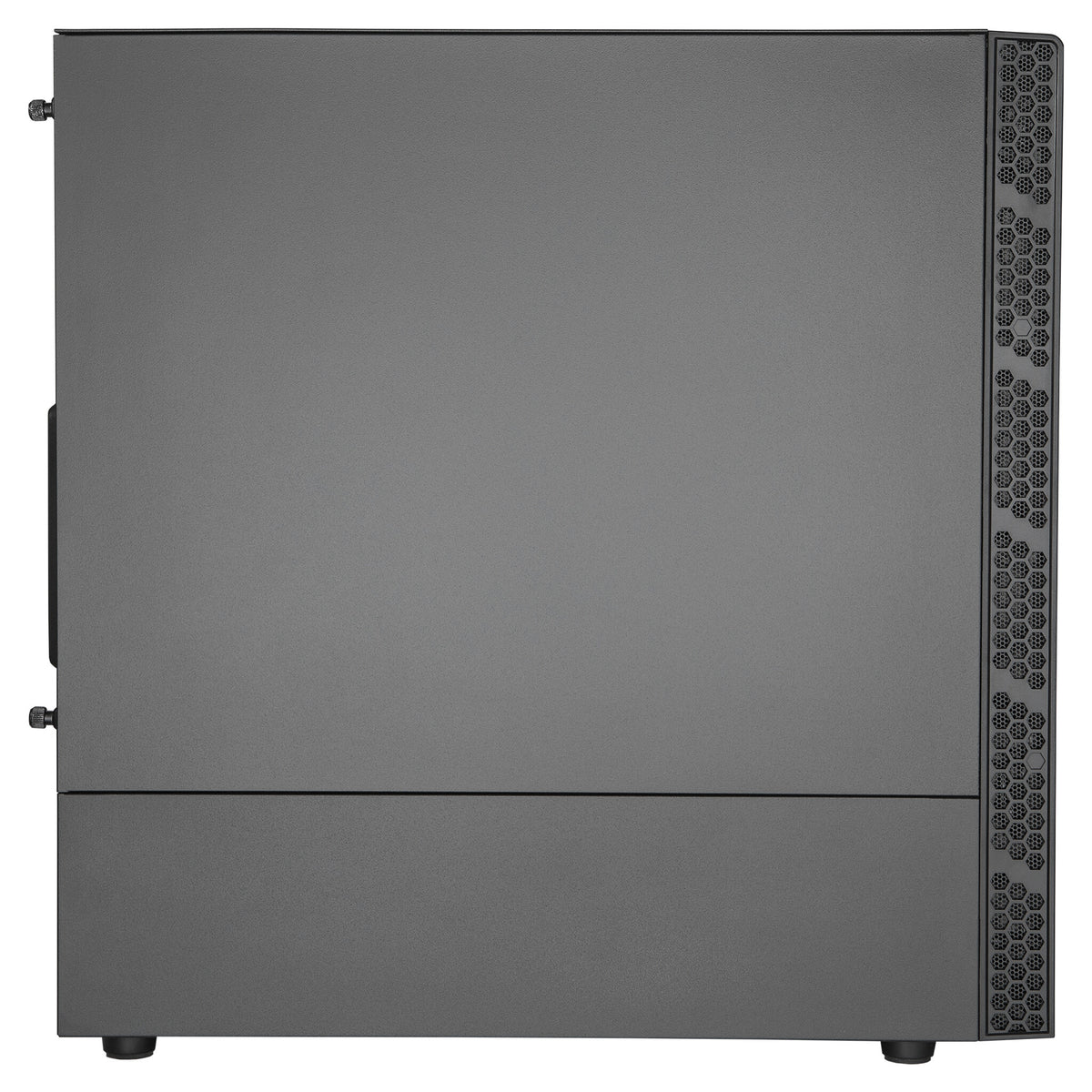

Large, mesh intakes span each side of the front panel to provide additional airflow to system.
With/Without ODD Support
Depending on preference, an ODD version of the chassis is available. If an ODD is not preferred, a cleaner appearance and more cooling options on the top and front panels are supported.
Adaptable Drive Cage

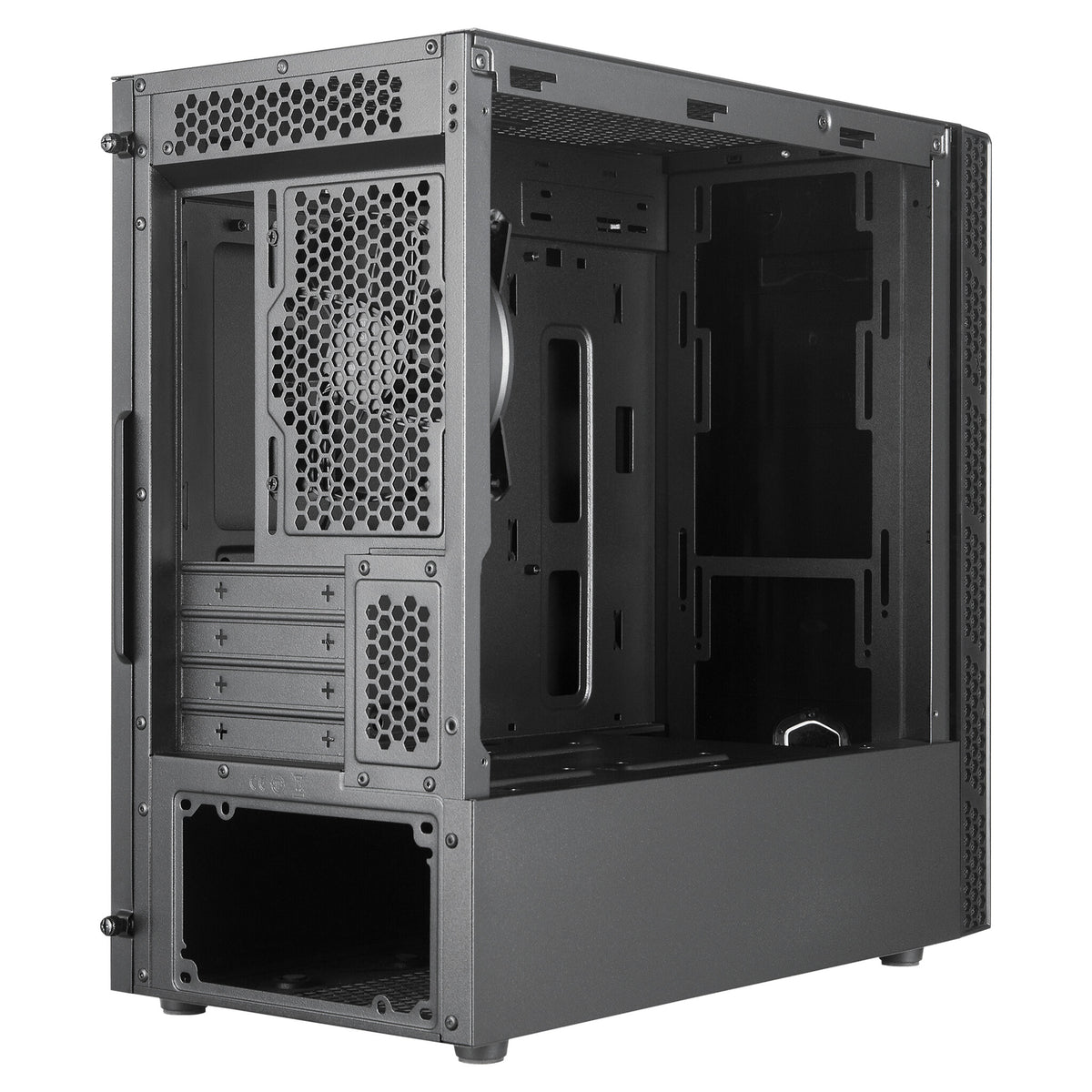

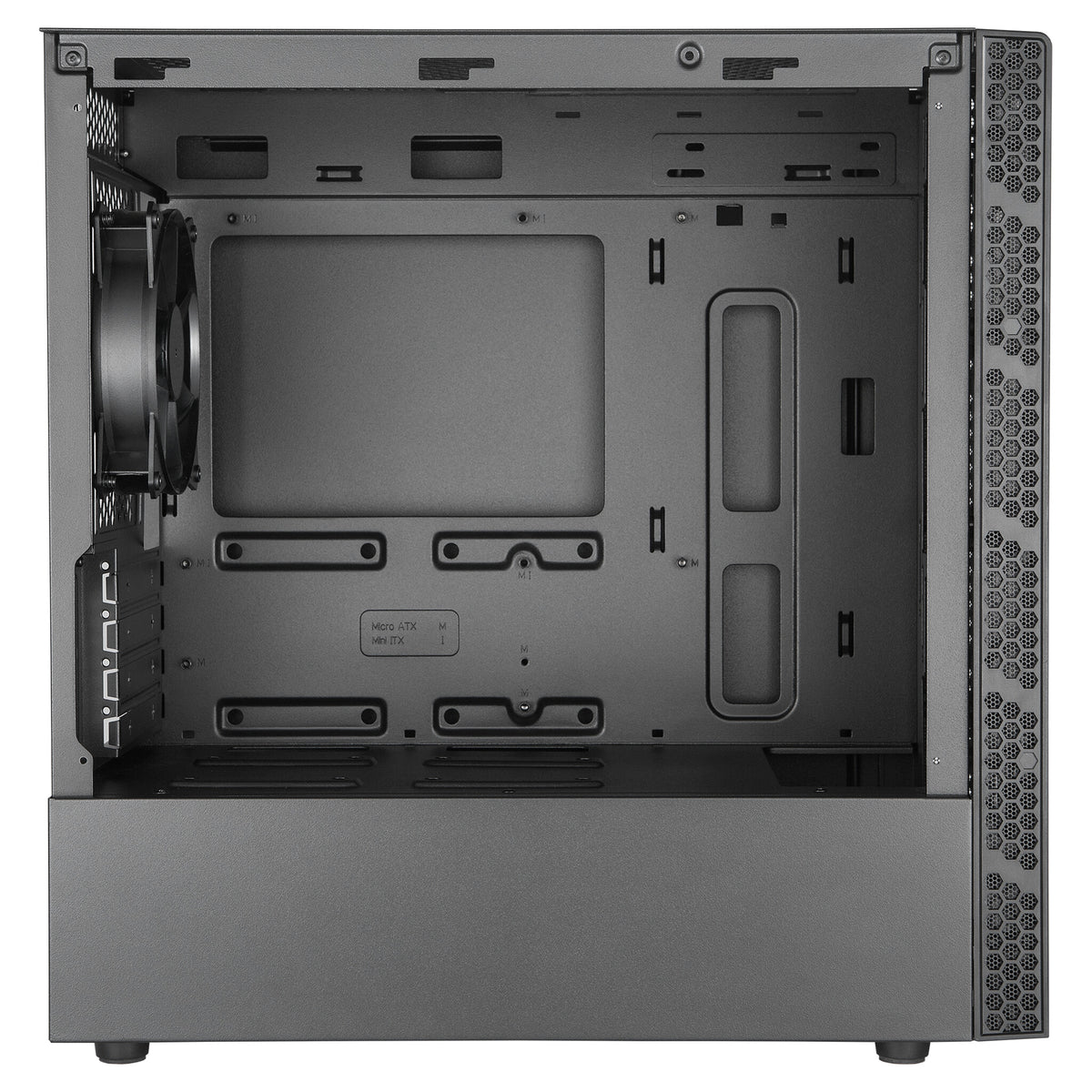

The drive cage is (re)movable, able to shift toward the front to accommodate for PSU space, backwards to provide additional radiator space, or even completely removed.
Versatile Cooling Options
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
Room For Upgrades
Support for up to a 344mm graphics card, a 166mm CPU cooler, and up to a 325mm PSU in length provides room for upgrades to stay ahead of the game.
Design | |
---|---|
Maximum PSU length | 32.5 cm |
Maximum graphics card length | 34.4 cm |
Maximum CPU cooler height | 16.7 cm |
Anti-dust filter | Yes |
Side window | No |
Number of expansion slots | 4 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | micro ATX, Mini-ITX |
Product colour | Black |
Material | Mesh, Plastic, Steel |
Type | PC |
Form factor | Mini Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,140 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 120,140,240,280 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
General | |
---|---|
Product Family | MasterBox |
Weight & dimensions | |
---|---|
Weight | 5.47 kg |
Height | 410 mm |
Depth | 411 mm |
Width | 210 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
