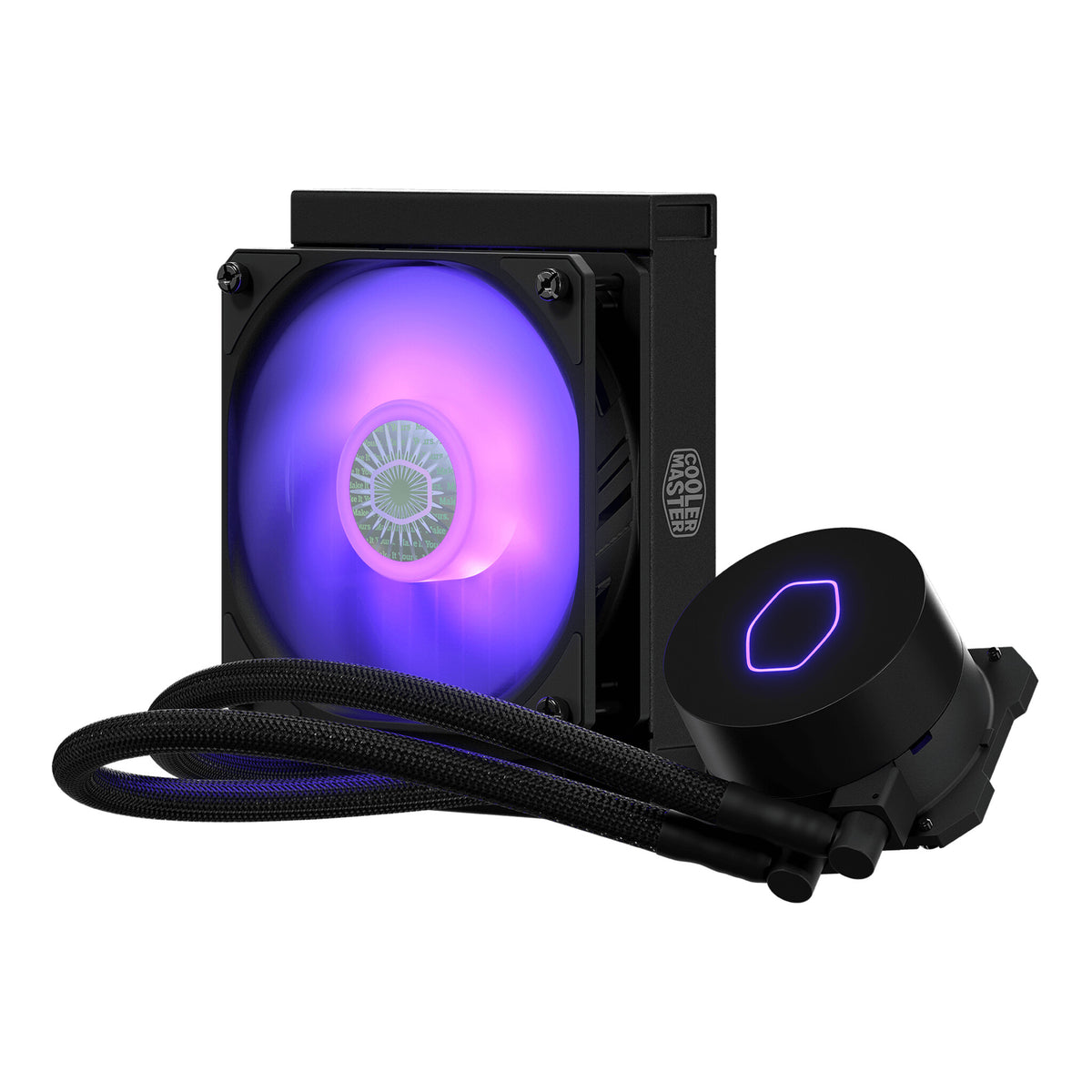

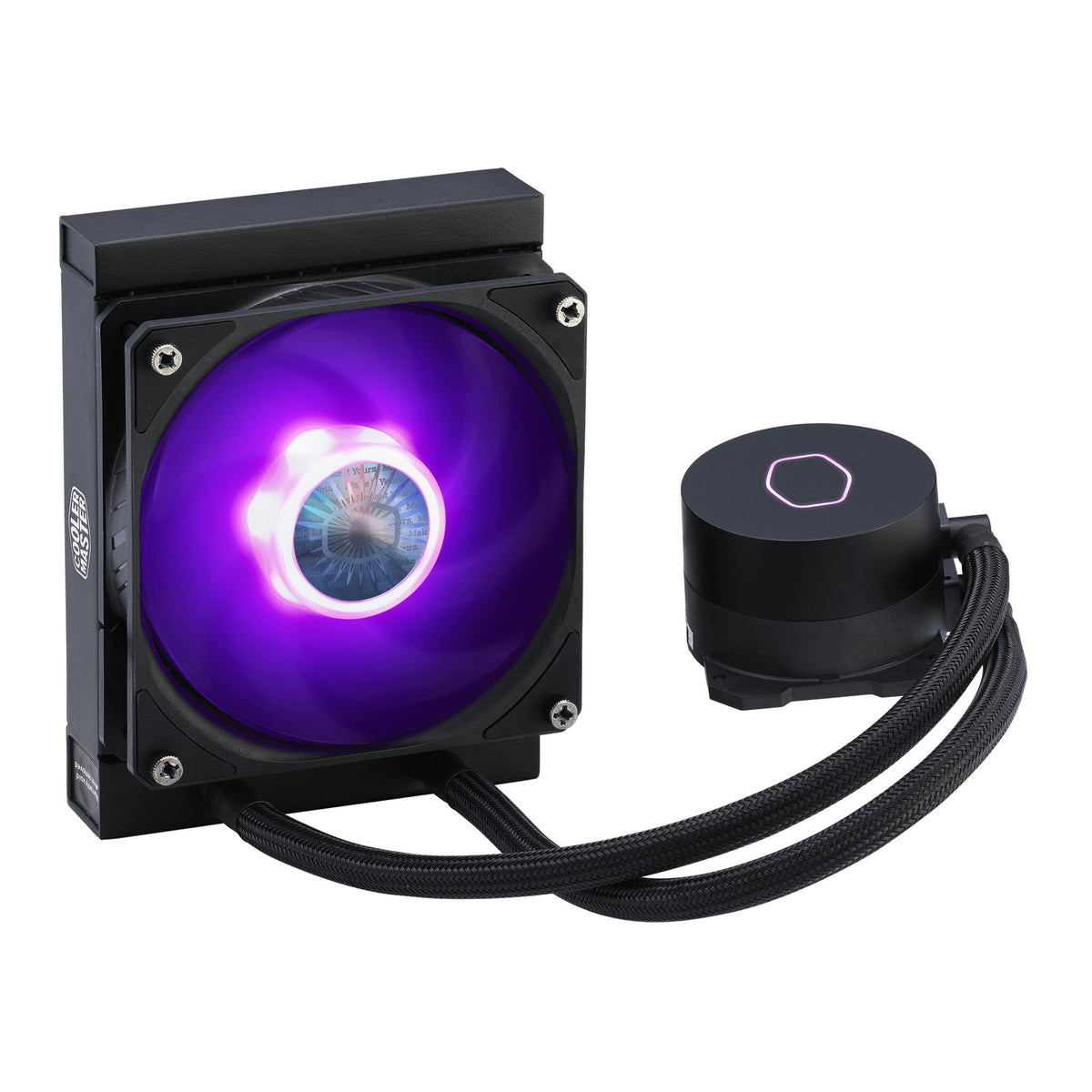

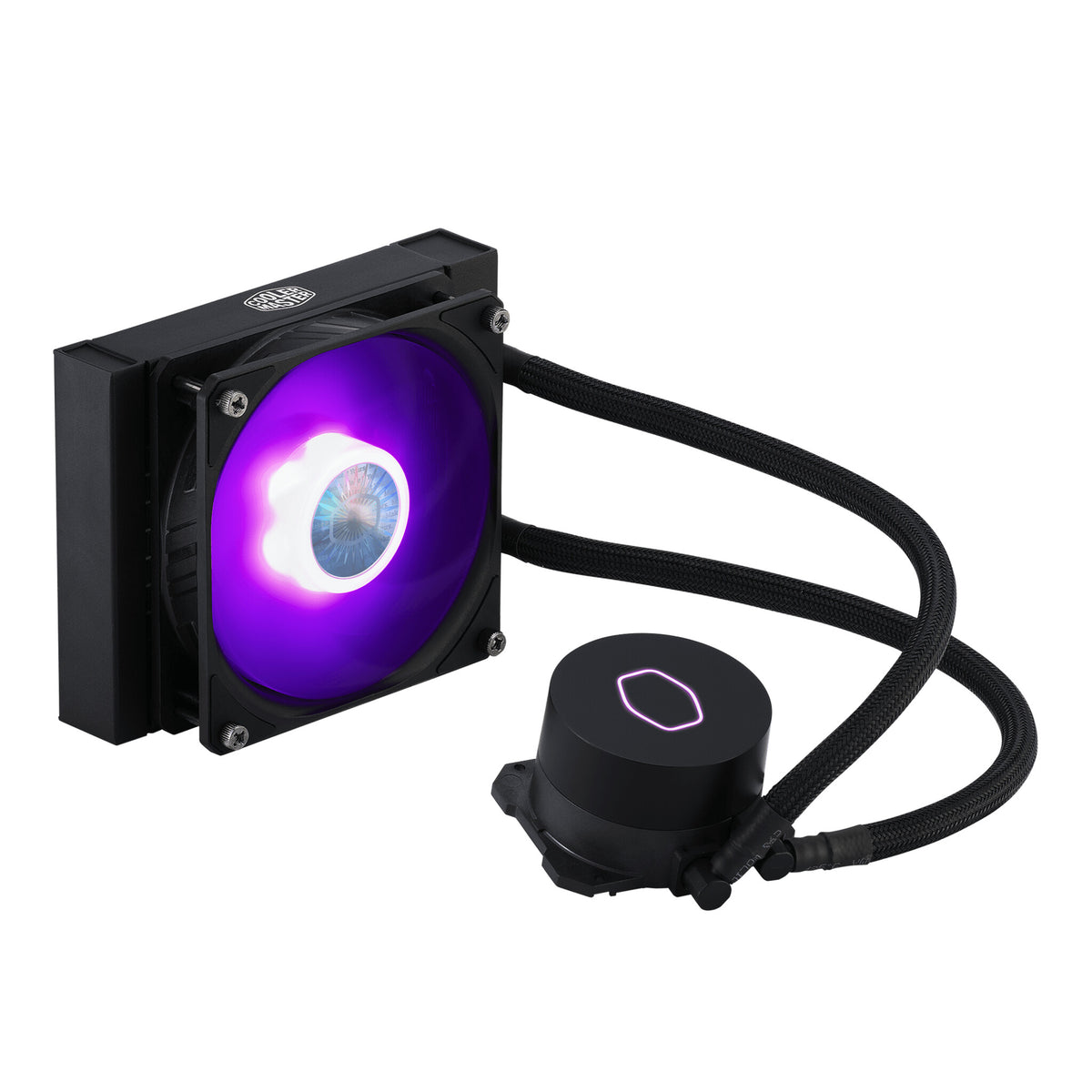

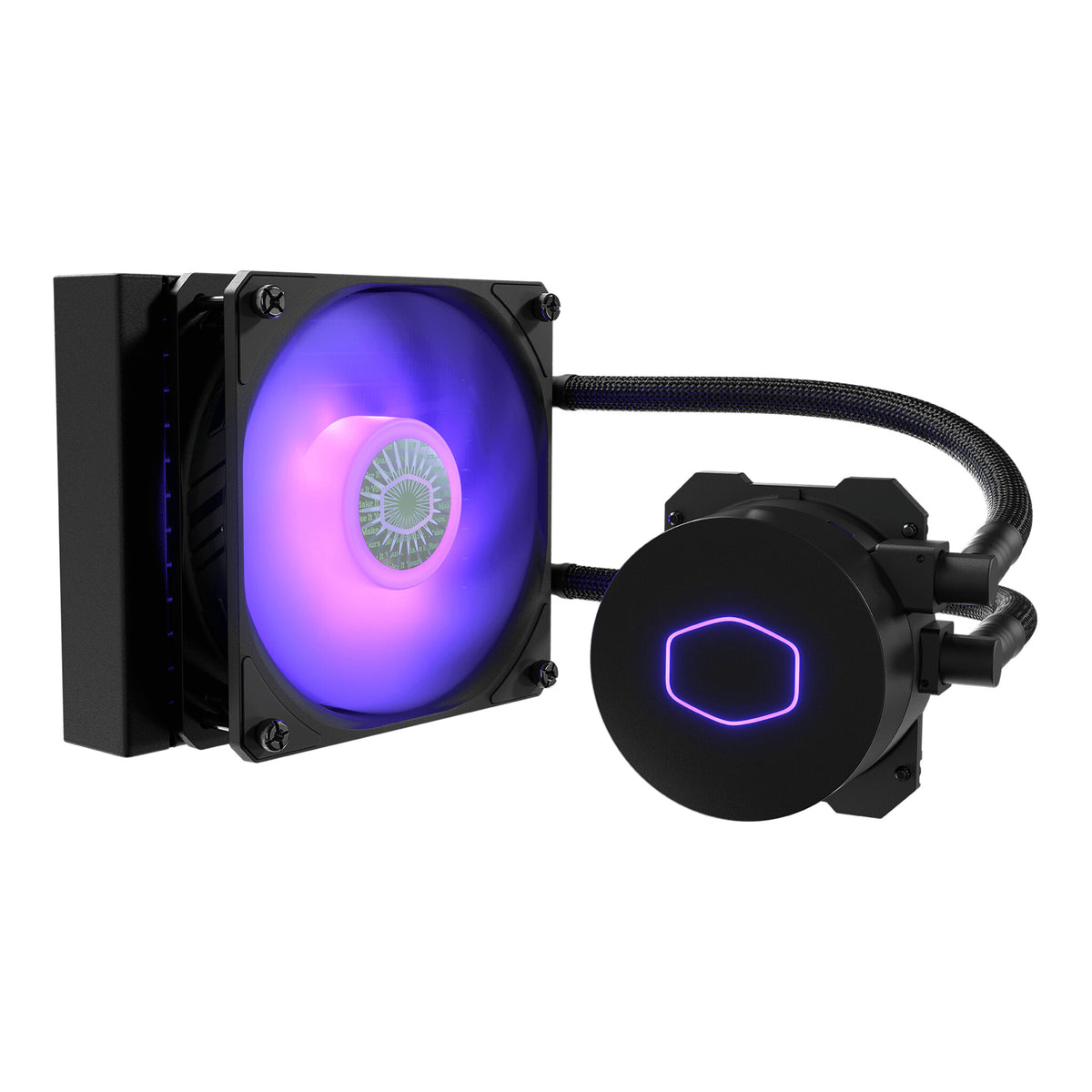

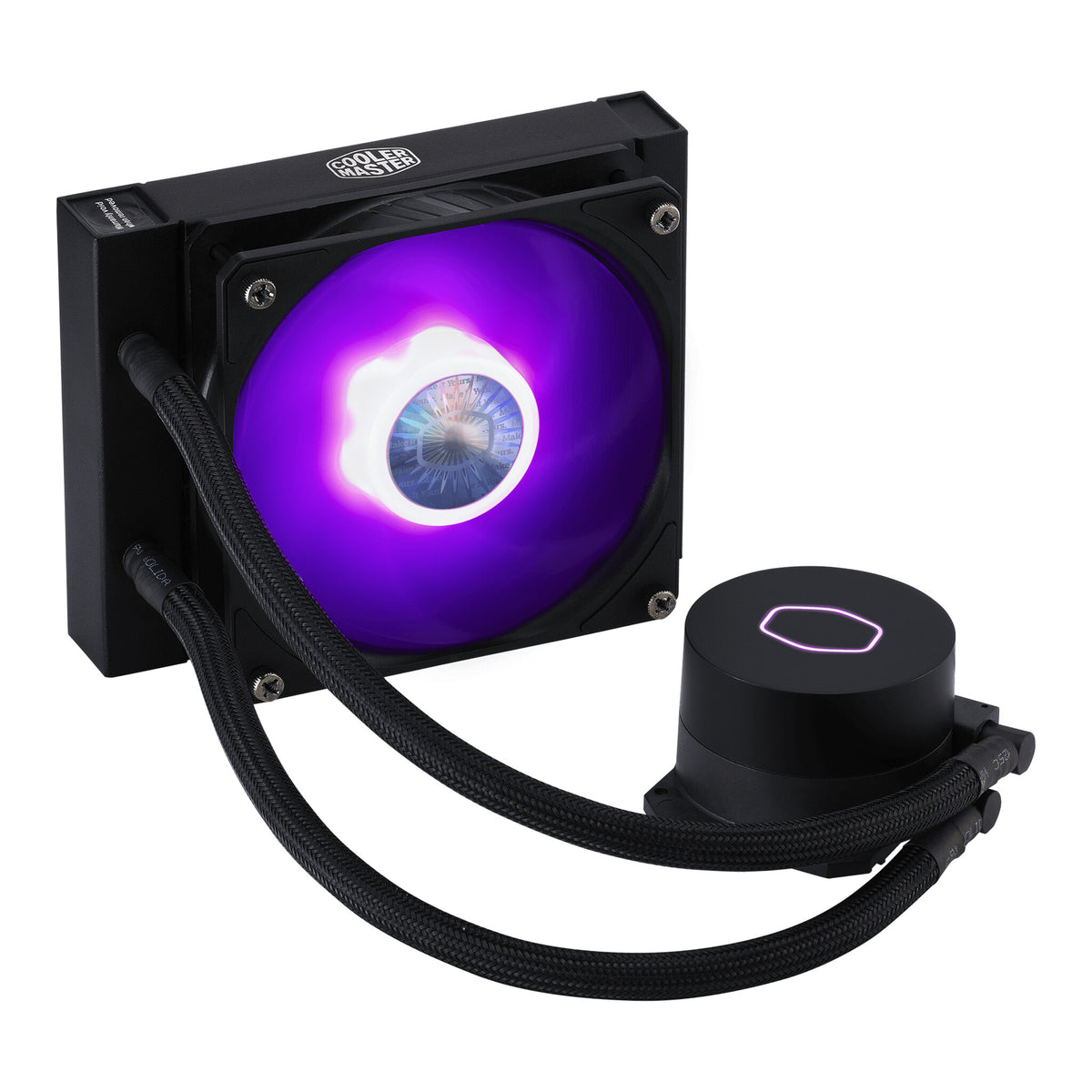

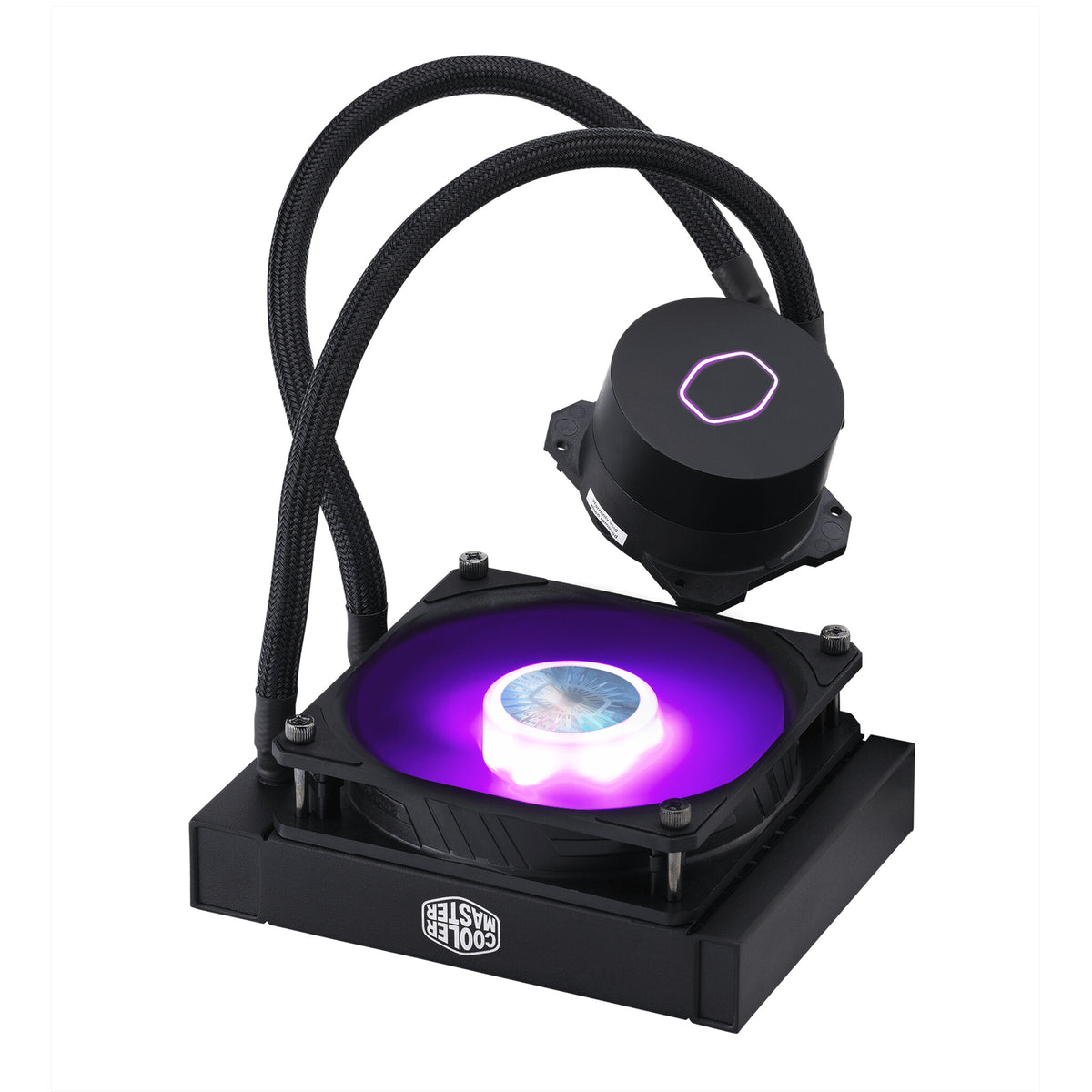

CoolerMaster MasterLiquid ML120L RGB V2 is a refreshed design from the popular MasterLiquid Lite Series that elevates the exterior design elements. The Pump of the ML120L RGB V2 has been enhanced with the newly designed 3rd Gen. Dual Chamber Pump that improves the overall cooling efficiency of the AIO water cooler. The radiator surface area has been enlarged to increase the surface area for heat dissipation for optimized cooling performance. The
ML120L RGB V2 will included the latest SickleFlow 120 RGB fan with a brand new design and Air Balance fan blades that is quieter than before without compromising on air flow and pressure.
3rd Generation Dual Chamber Pump – Newly designed dual chamber pump for improved overall cooling efficiency and performance.
Enlarged Cooling Surface Area – Increased surface area on the radiator for better heat dissipation and enhanced cooling performance
New SickleFlow 120 RGB Fan – Improved lighting and performance using Air Balance fan blades, with new refreshed exterior design.
Reinforced Sealing – Using unique formula from high Industrial Grade EPDM material to increase the lifespan and reinforce the sealing to prevent leakage
RGB Lighting Solution – Fully customizable RGB lighting that is certified compatible with all major motherboard manufacturers (Wired Controller also included).
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 160000 h |
Pump's mean time to failure (MTTF) | 70000 h |
Fan speed (min) | 650 RPM |
Fan speed (max) | 1800 RPM |
Quantity per pack | 1 pc(s) |
Pump connector | 3-pin |
Pump noise level | 15 dB |
Fan noise level (max) | 27 dB |
Fan noise level (min) | 8 dB |
Maximum air pressure | 2.5 mmH2O |
Maximum airflow | 62 cfm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Blue, Green, Red |
Illumination LED | Yes |
Radiator material | Aluminium |
Product colour | Black |
Power | |
---|---|
Thermal Design Power (TDP) | 180 W |
Pump voltage | 12 V |
Fan voltage | 12 V |
Fan current | 0.15 A |
Pump power consumption | 2.36 W |
Weight & dimensions | |
---|---|
Package weight | 1.41 kg |
Package height | 137 mm |
Package depth | 239 mm |
Package width | 207 mm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Weight | 649 g |
Pump height | 4.71 cm |
Pump depth | 7.99 cm |
Pump width | 7.6 cm |
Radiator height | 2.72 cm |
Radiator depth | 15.7 cm |
Radiator width | 12 cm |
General | |
---|---|
Product Family | MasterLiquid |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
