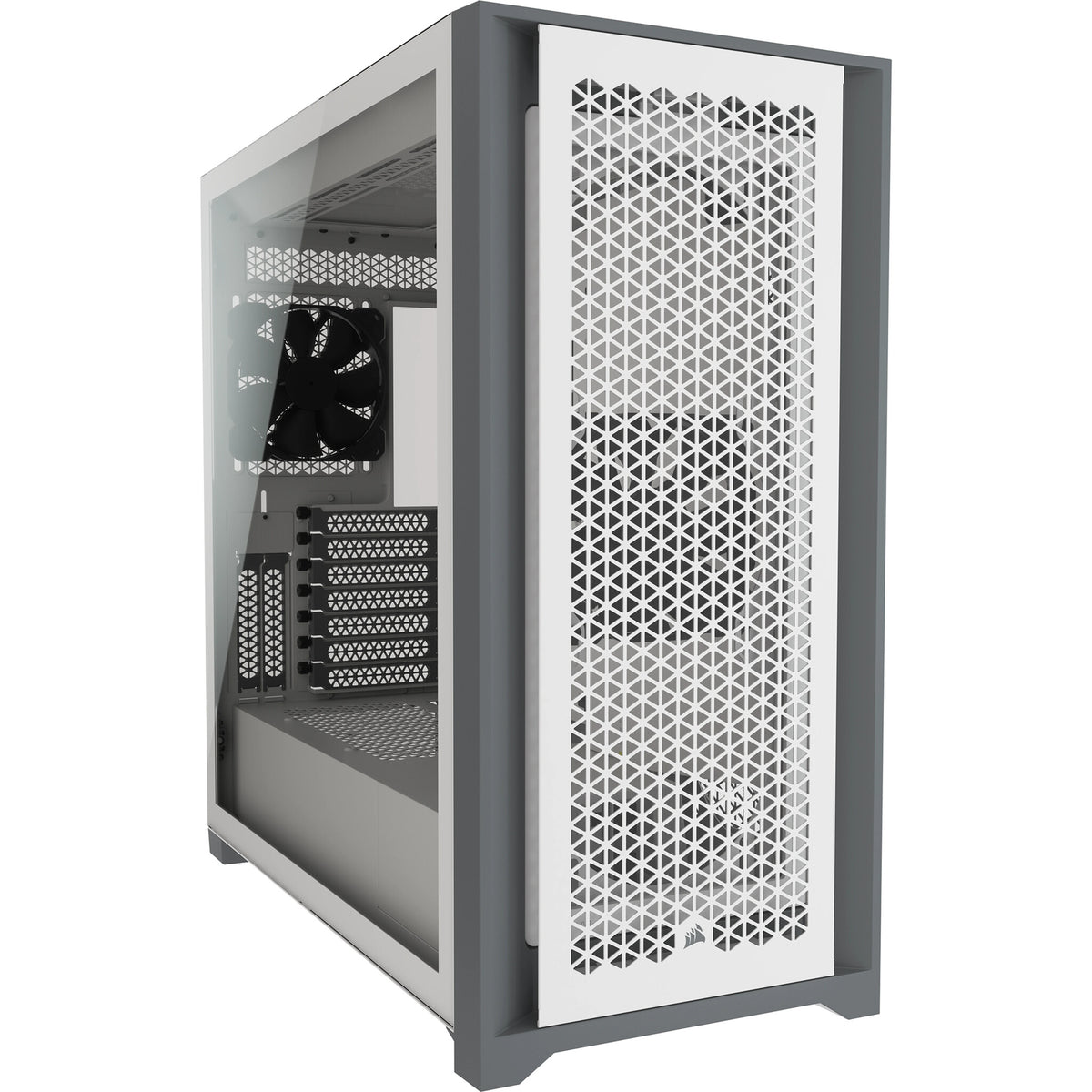

The CORSAIR 5000D AIRFLOW is a mid-tower ATX case that shows off your PC, and not its cables. Hidden cable management and an airflow-optimized front panel make building a clean, cool PC easy, with two included CORSAIR AirGuide fans.
MID-TOWER ATX CASE
FOR AN IMMACULATE BUILD THAT KEEPS ITS COOL
The CORSAIR 5000D AIRFLOW is a mid-tower ATX case with easy cable management for a clean build, with room for a 360mm push pull radiator, a high-airflow front panel, and two included CORSAIR AirGuide fans for concentrated airflow.
Clean and Cool

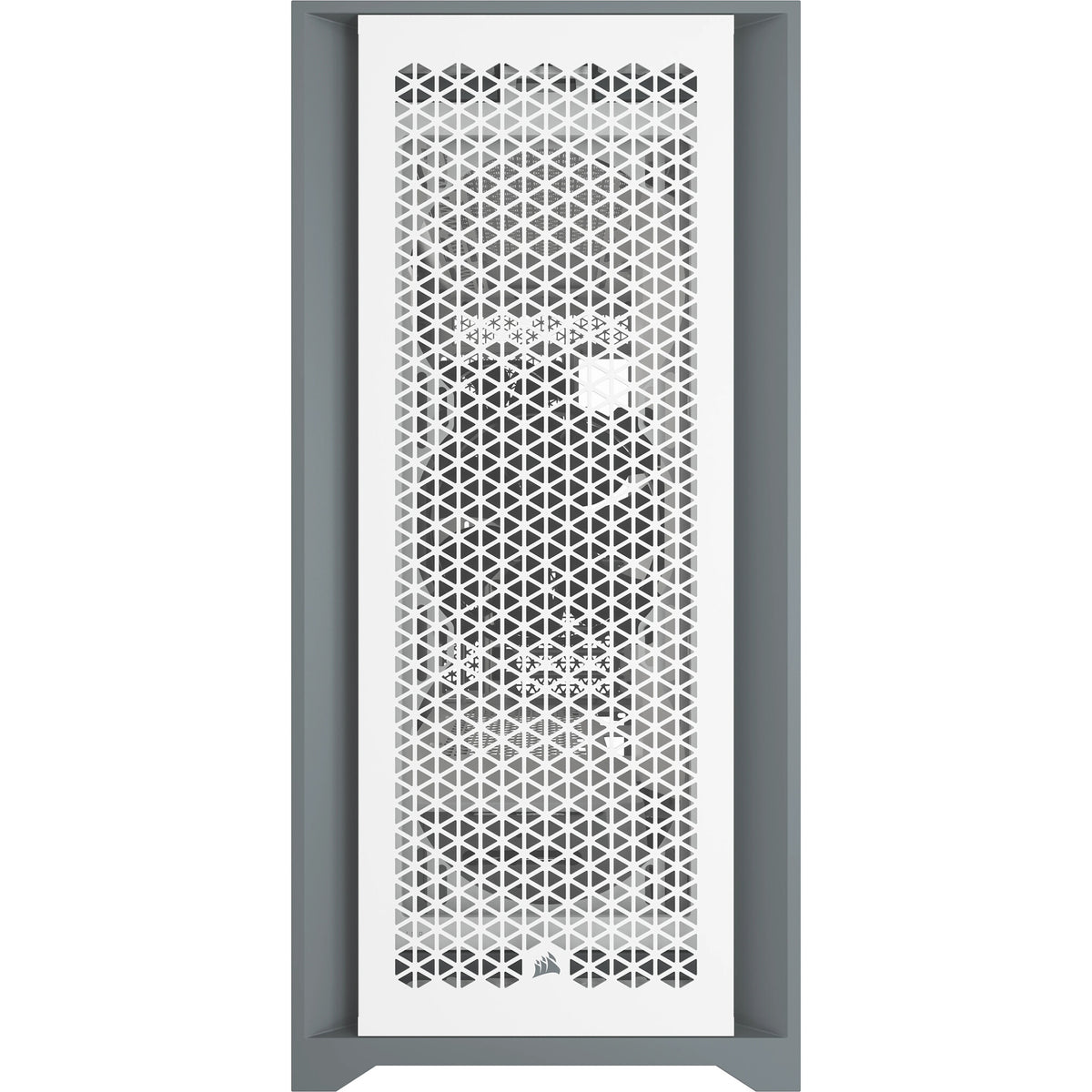

An optimized steel front panel delivers massive airflow to your system for maximum cooling.
Maximum cooling potential

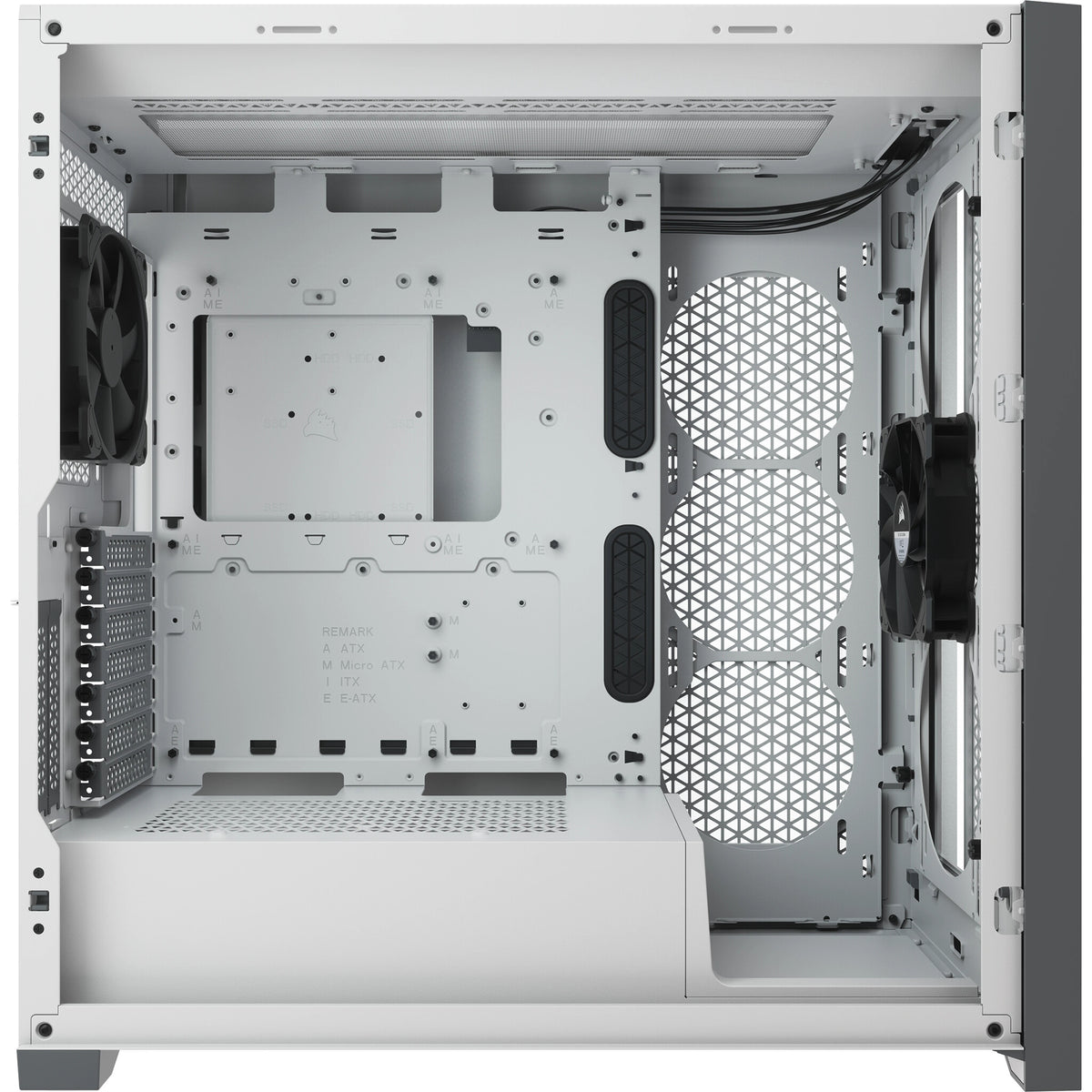

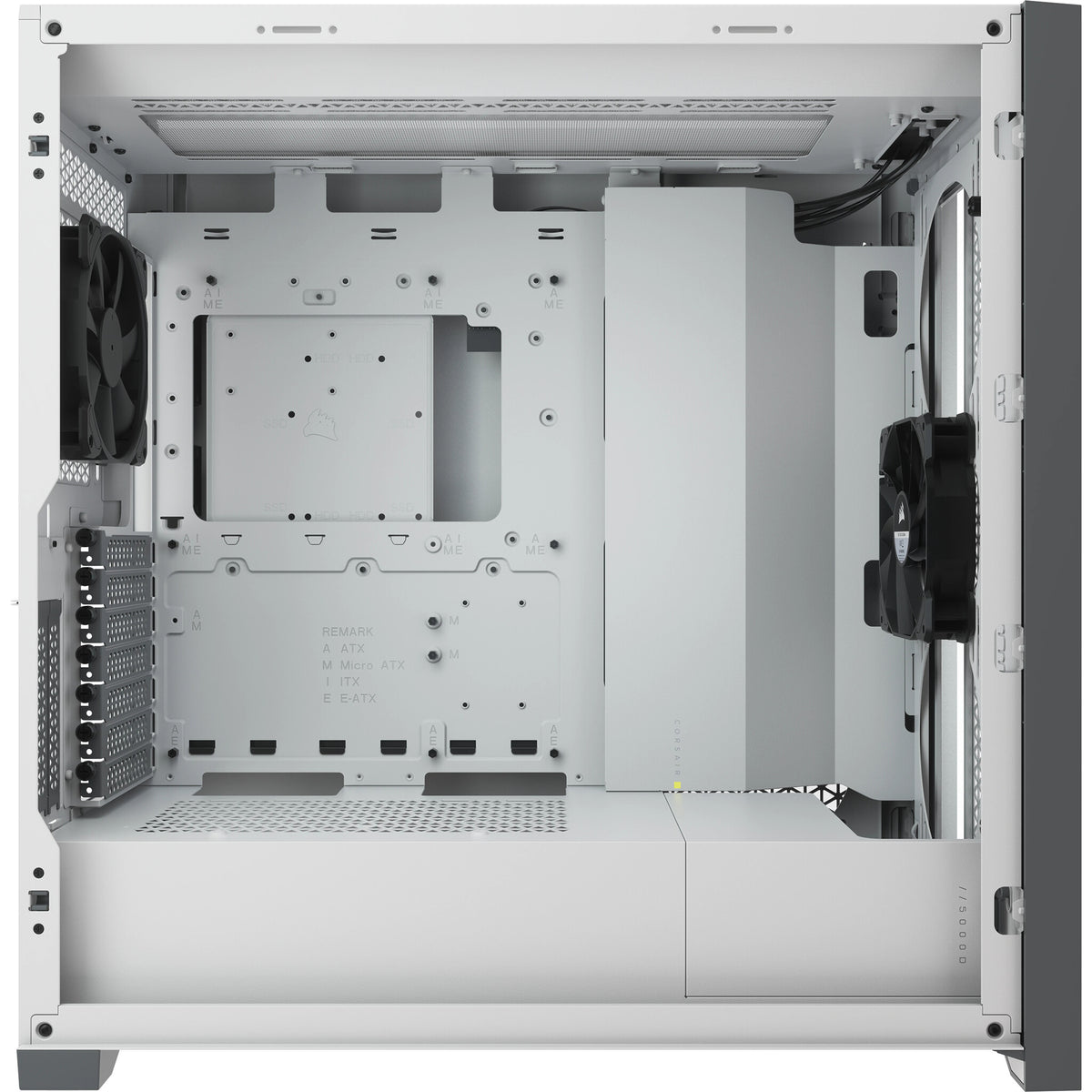

A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front or side and a 360mm push/pull in the roof.
There's no replacement for displacement
The 5000D AIRFLOW isn’t your run-of-the-mill, standard mid-tower ATX case. Its brilliantly engineered interior offers incredible expansion capability for liquid cooling.
Powerful directed Airflow

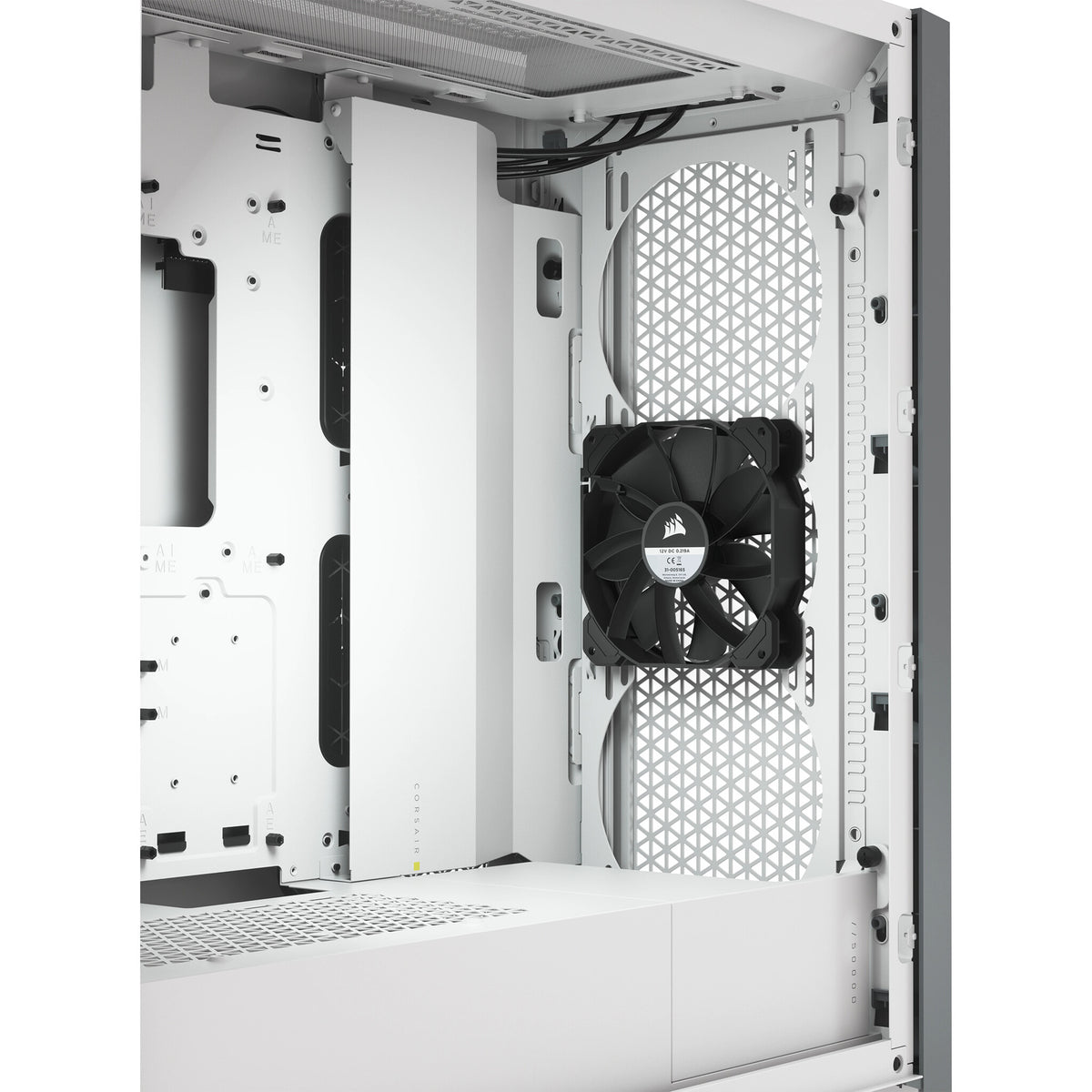

Equipped with two CORSAIR AirGuide 120mm fans featuring anti-vortex vanes to concentrate airflow and enhance cooling.
Take command of your cooling

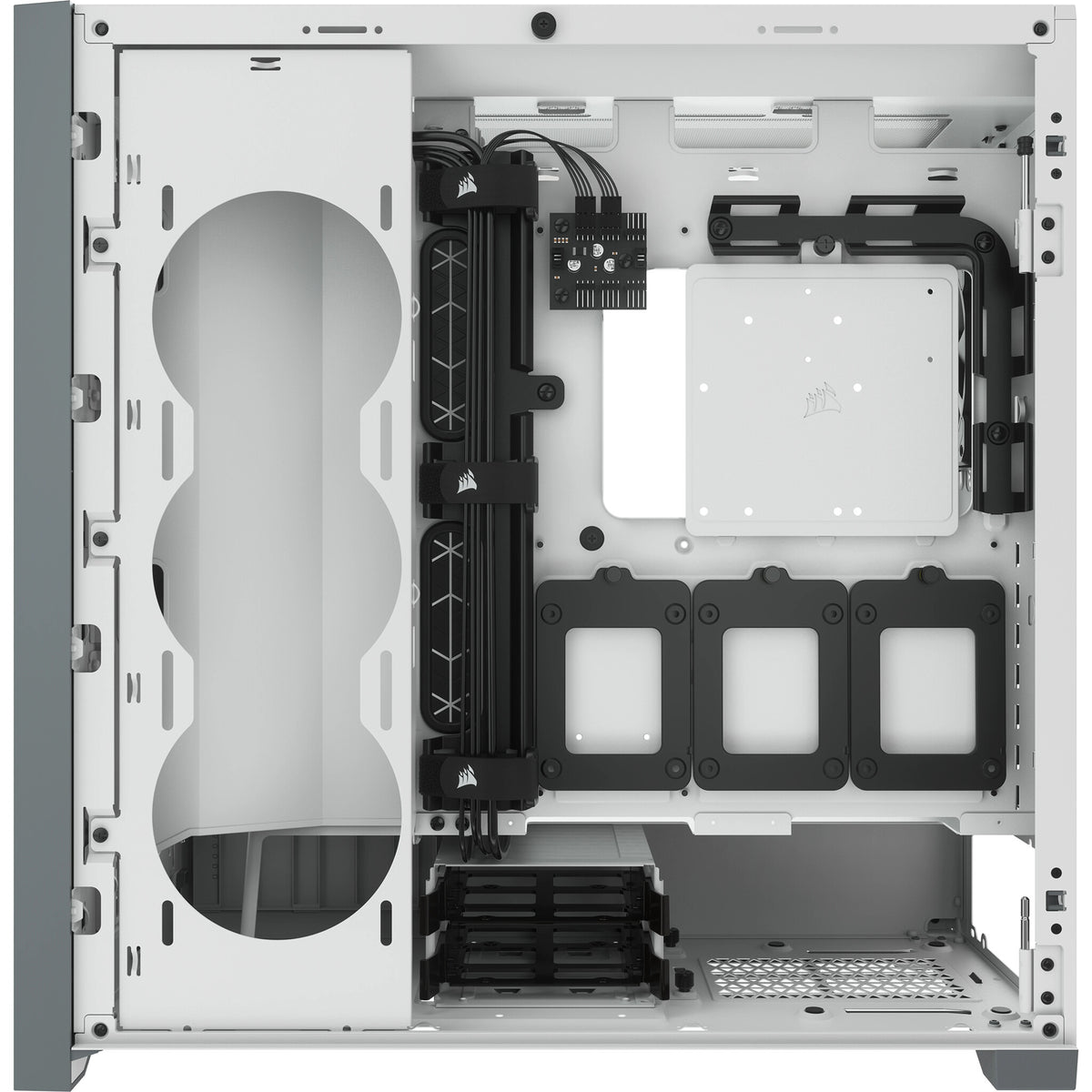

A PWM fan repeater controls the included fans, with connections for up to six in total. Reduce fan speed when you want to keep your system quiet, or increase when you want to push its performance, all from a single 4-pin PWM header on your motherboard.
Extreme Cooling
Maximum Cooling Potential: A spacious interior fits up to 10x 120mm or 4x 140mm cooling fans, along with multiple radiators including up to a 360mm in front and a 360mm push/pull in the roof.

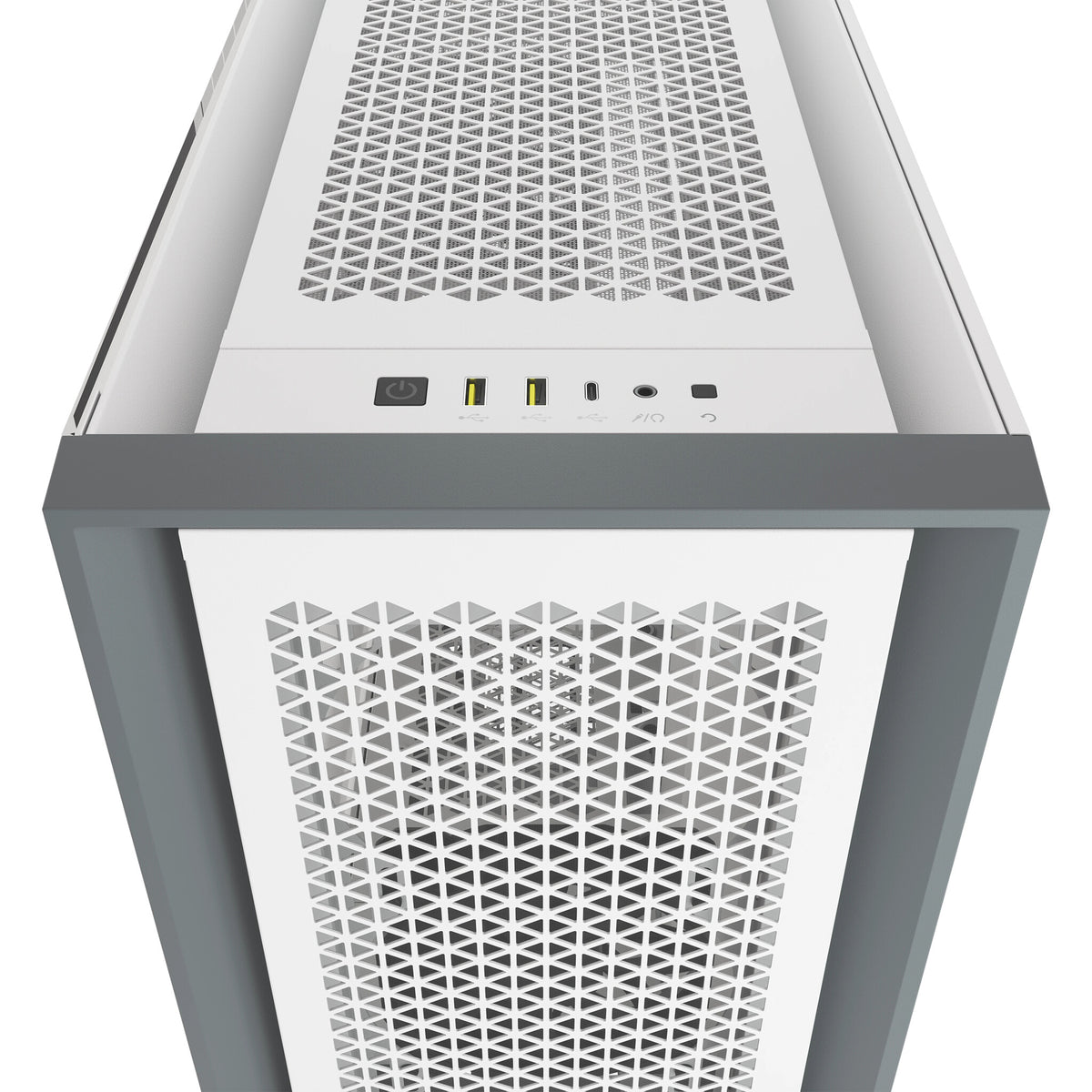

Modern Front Panel I/O
Puts your connections within easy reach, including a USB 3.1 Type-C Port, 2x USB 3.0 port, and a combination audio/microphone jack.
vertical gpu mount ready
With included vertical PCIe slots and a screw mount for a CORSAIR PCI-Express 3.0 extension cable (sold separately), you can show off your GPU and keep it secure at the same time.
Design | |
---|---|
Certification | RoHS, UKCA, CE |
Maximum PSU length | 25 cm |
Maximum graphics card length | 40 cm |
Maximum CPU cooler height | 17 cm |
On/off button | Yes |
Reset button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination | No |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 9 |
Number of storage drives supported | 6 |
Number of internal 3.5" bays | 2 |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
Product colour | White |
Material | Plastic, Steel, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Combo headphone/mic port | Yes |
Number of front USB ports | 3 |
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 280,360 mm |
Top radiator installed | No |
Rear radiator sizes supported | 120 mm |
Rear radiator installed | No |
Side radiator sizes supported | 240,360 mm |
Front radiator sizes supported | 280,360 mm |
Front radiator installed | No |
Liquid cooling capability | Yes |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Side fans diameters supported | 120 mm |
Number of side fans supported (max) | 3 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 1x 120 mm |
Fan speed control | Yes |
Storage | |
---|---|
Number of HDDs supported | 2 |
SSD form factor | 2.5" |
HDD/SSD combo cage | No |
Supported HDD sizes | 3.5" |
Technical details | |
---|---|
Warranty period | 2 year(s) |
Sustainability certificates | CE, RoHS, UKCA |
Weight & dimensions | |
---|---|
Weight | 13.8 kg |
Height | 520 mm |
Depth | 520 mm |
Width | 245 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
