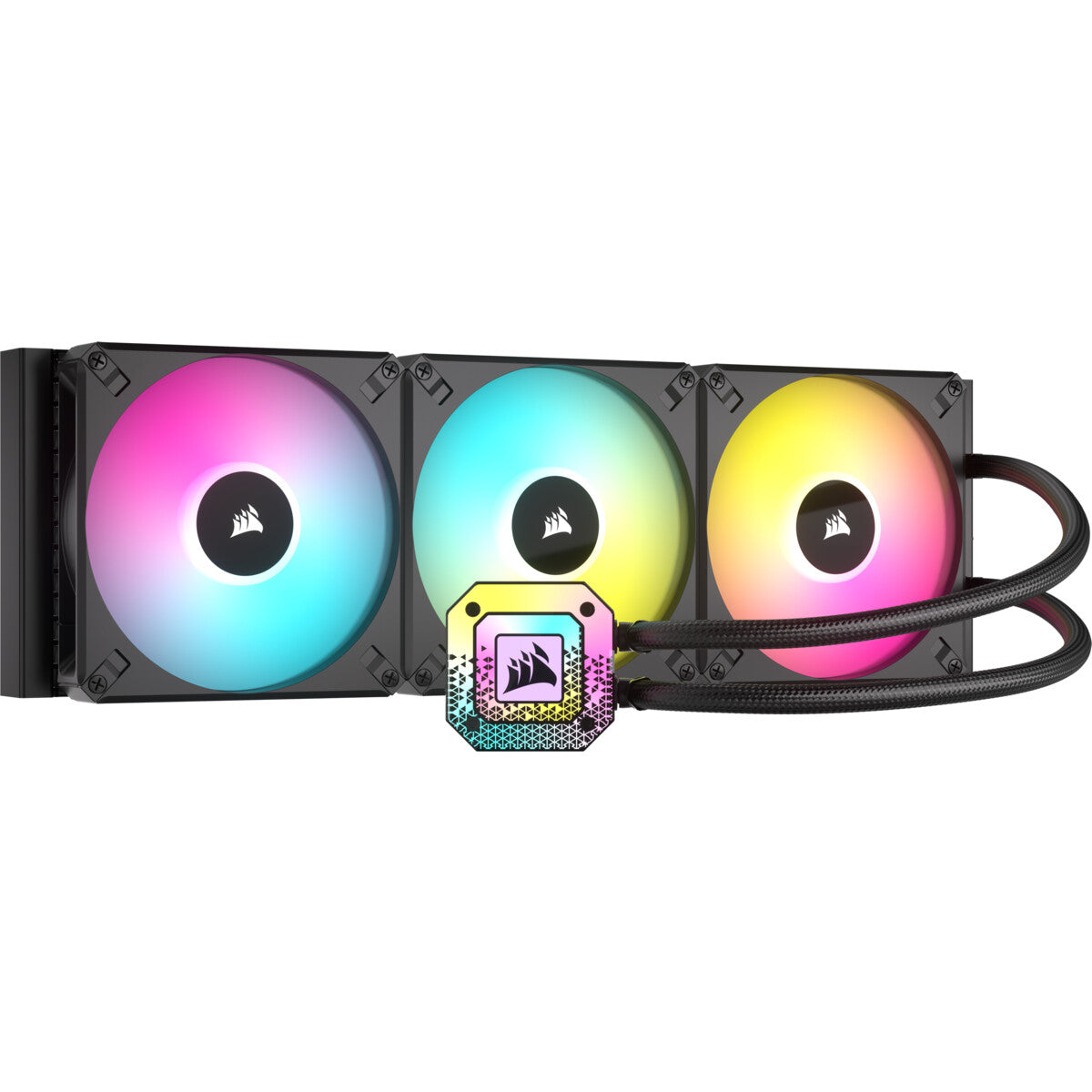

ELITE CAPELLIX XT SERIES
LIQUID CPU COOLER
NEW CHAMPION OF COOLING
EFFICIENT AND SILENT CPU COOLING
All-in-one liquid coolers don't dissipate processor heat inside the case like traditional air coolers, but instead guide it to the edge of the case and blow it out with dedicated fans. This results in cooler components and less noise. The ELITE CAPELLIX XT is an upgrade to our most powerful CPU cooler:
- Includes our best performing AF RGB ELITE fans.
- Uses extreme performance XTM70 thermal paste.
- Provides superior lighting effects with CAPELLIX LEDs.
OUR BEST PERFORMING RGB FANS
CORSAIR AF RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
Anti-vortex vanes ensure more uniform airflow over radiator fins and more optimal heat dissipation.
EXTREME PERFORMANCE THERMAL PASTE
All ELITE CAPELLIX XT AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
PERFORMANCE NEVER LOOKED BETTER

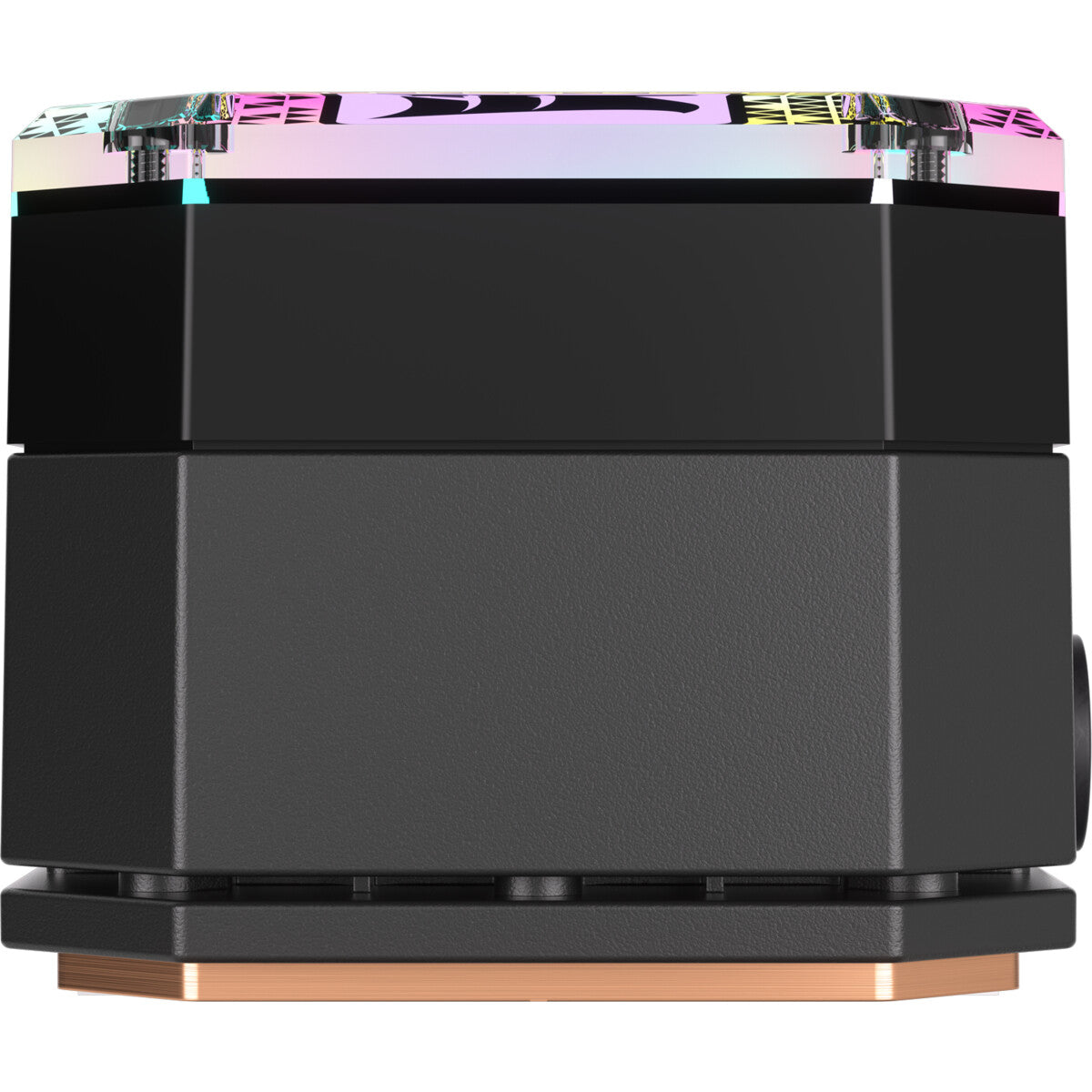

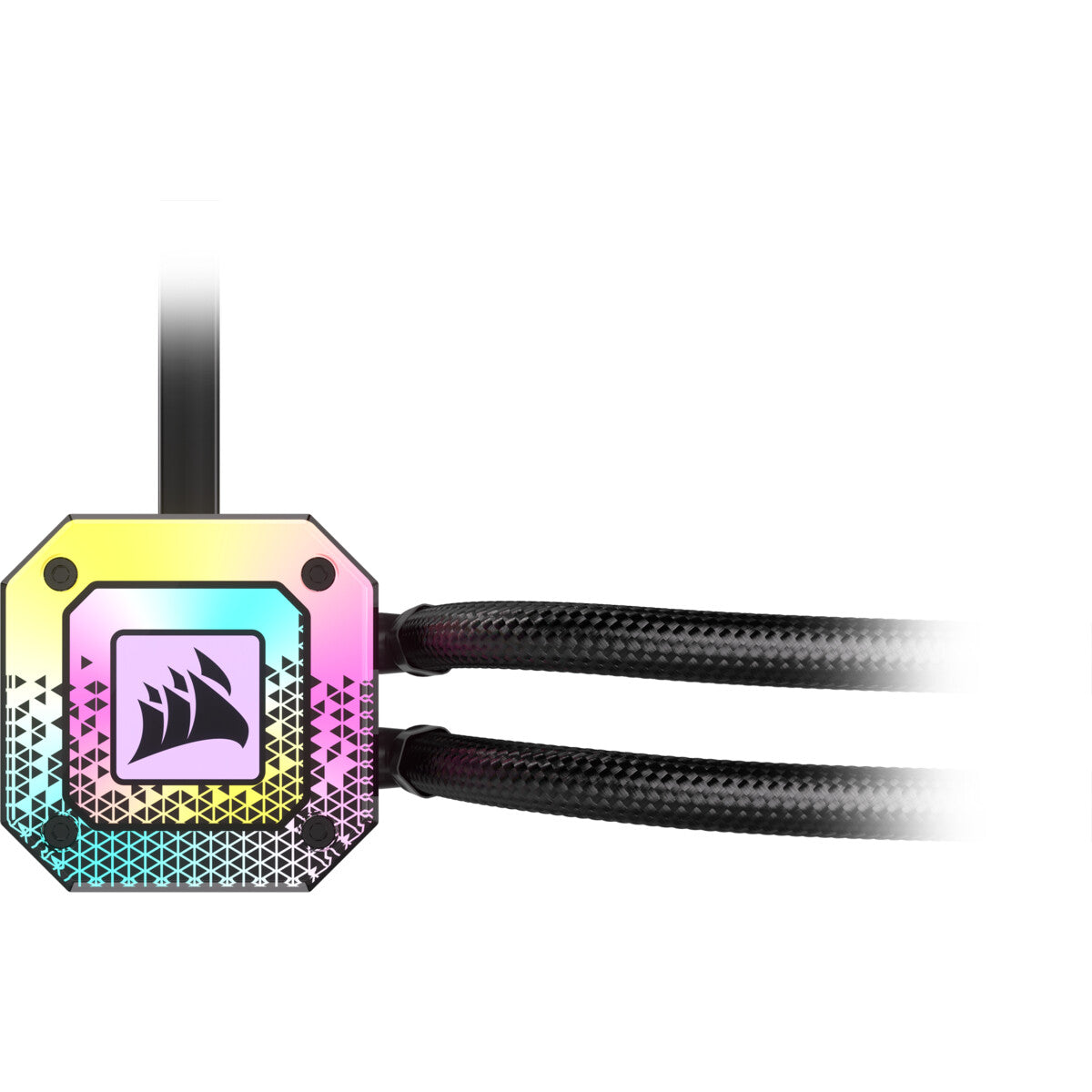

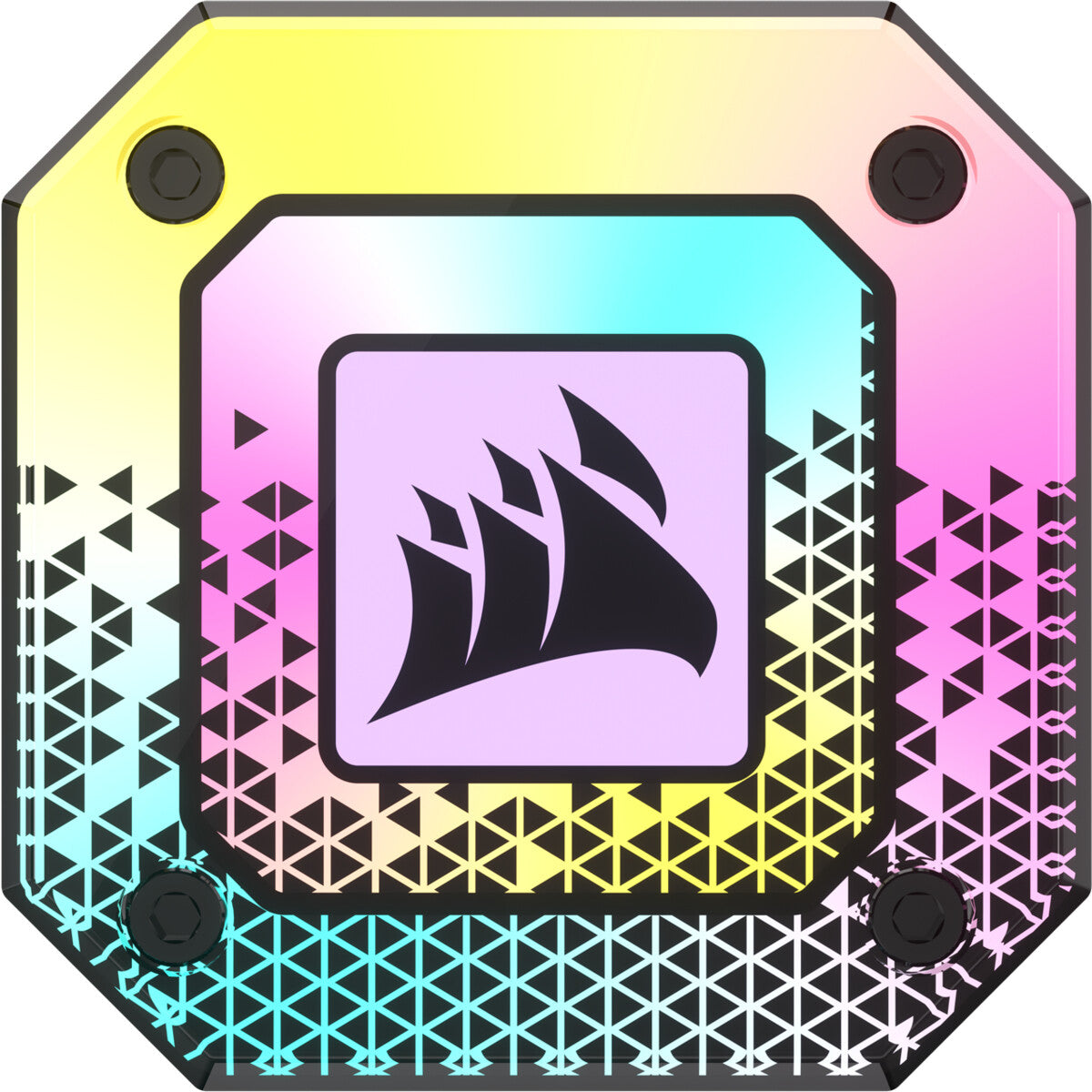

The ELITE CAPELLIX XT cooler pump head houses 33 ultra-bright CAPELLIX LEDs to go along with its RGB fans. When you add powerful, low-noise cooling to the mix, your system will look great
ZERO RPM MODE
Reduce fan noise to a minimum. When your computer doesn’t need active cooling, Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely.
UPGRADE TO LCD ANYTIME
When you want to take it to the next level, you can upgrade your CPU cooler by swapping the original pump cap with the ELITE LCD Upgrade Kit.
SMARTER COOLING WITH iCUE CONTROL
An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.
EXTENDED TUBING AND EASY INSTALLATION
Extended tubing length of 400mm (H100i, H115i) / 450mm (H150i, H170i), modular tool-free mounting brackets, and pre-applied XTM70 thermal paste make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 115X, 1200, 1700, 2011, and 2066, plus AMD Socket AM4, AM5, and sTRX4/sTR4.
AVAILABLE IN FOUR RADIATOR SIZES AND PERFORMANCE LEVELS
UNITE YOUR SETUP
CORSAIR iCUE software brings your entire setup together, creating a fully immersive ecosystem with intuitive control.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2 mmH2O |
Minimum air pressure | 0.16 mmH2O |
Maximum airflow | 89 cfm |
Minimum airflow (imperial) | 19.5 cfm |
Noise level (high speed) | 33.8 dB |
Noise level (low speed) | 5 dB |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2066, Socket AM4, Socket sTR4, Socket sTRX4 |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Illumination colour | Multi |
Number of LEDs | 33 |
Illumination LED | Yes |
Number of fans | 3 fan(s) |

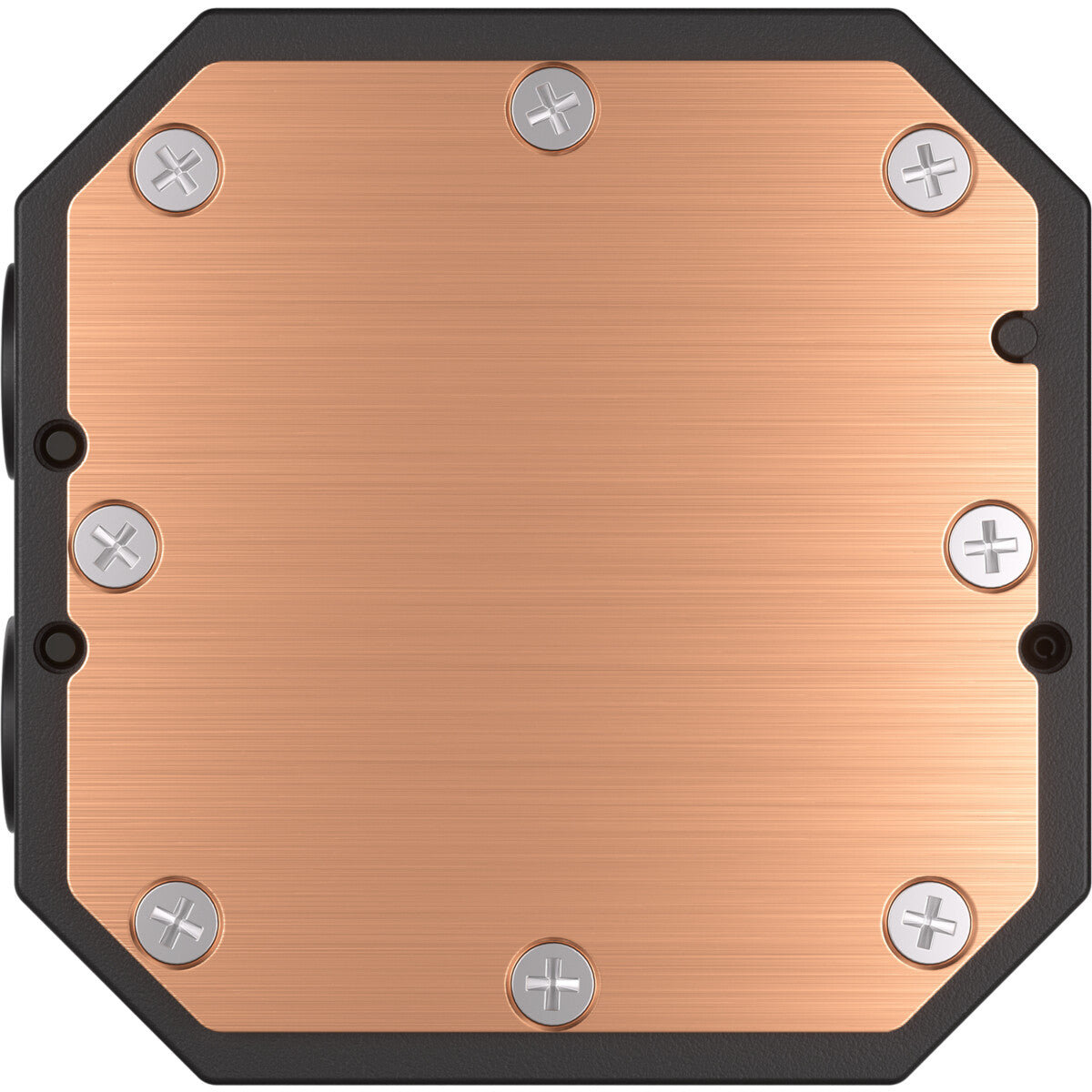

Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Weight & dimensions | |
---|---|
Fan thickness | 2.5 cm |
Weight | 1.95 kg |
Depth | 56 mm |
Tube length | 45 cm |
Width | 56 mm |
Packaging content | |
---|---|
Thermal pad included | Yes |
Screws included | Yes |
Mounting kit | Yes |
Package type | Box |
