Great for 2D CAD, Design and Creative Applications

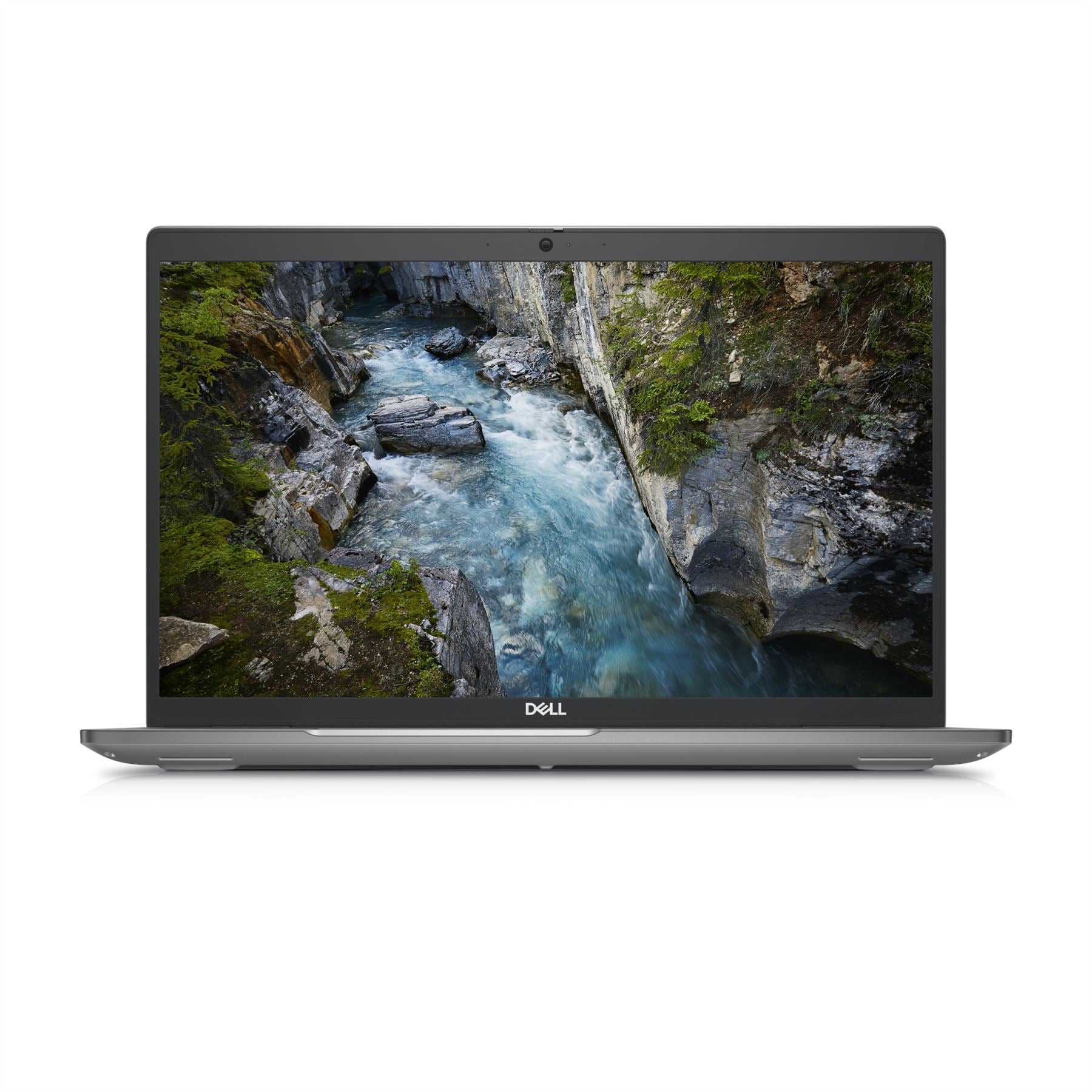

With intelligently optimized performance, the 3580 is a reliable workstation for entry-level design and creative applications.
Design | |
---|---|
Intel® vPro™ Platform Eligibility | Yes |
Form factor | Clamshell |
Product colour | Grey |
Product type | Mobile workstation |
Display | |
---|---|
Contrast ratio (typical) | 800:1 |
Maximum refresh rate | 60 Hz |
Display response rise/fall | 35 ms |
RGB colour space | sRGB |
Colour gamut | 100% |
Pixel pitch | 0.179 x 0.179 mm |
Pixel density | 141 ppi |
Display brightness | 400 cd/m² |
Anti-glare screen | Yes |
LED backlight | Yes |
Native aspect ratio | 16:9 |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 39.6 cm (15.6") |
Processor | |
---|---|
Processor base power | 28 W |
Maximum turbo power | 64 W |
Configurable TDP-down | 20 W |
Processor cache type | Smart Cache |
Processor cache | 18 MB |
Processor cores | 12 |
Performance-core Max Turbo Frequency | 5 GHz |
Efficient-core Max Turbo Frequency | 3.7 GHz |
Processor boost frequency | 5 GHz |
Processor model | i7-1360P |
Processor generation | 13th gen Intel® Core™ i7 |
Processor family | Intel® Core™ i7 |
Processor manufacturer | Intel |
Memory | |
---|---|
Memory channels | Dual-channel |
Maximum internal memory | 64 GB |
Memory slots | 2x SO-DIMM |
Memory layout (slots x size) | 2 x 8 GB |
Memory clock speed | 4800 MHz |
Memory form factor | SO-DIMM |
Internal memory type | DDR5-SDRAM |
Internal memory | 16 GB |
Storage | |
---|---|
Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
Card reader integrated | Yes |
Optical drive type | No |
SSD form factor | M.2 |
SSD performance class | 35 |
SSD interface | PCI Express 4.0 |
NVMe | Yes |
SSD capacity | 512 GB |
Number of SSDs installed | 1 |
Total SSDs capacity | 512 GB |
Storage media | SSD |
Total storage capacity | 512 GB |
Graphics | |
---|---|
Discrete graphics memory type | GDDR6 |
Discrete graphics card memory | 4 GB |
On-board graphics card model | Intel Iris Xe Graphics |
On-board GPU manufacturer | Intel |
Discrete graphics card model | NVIDIA RTX A500 |
Discrete GPU manufacturer | NVIDIA |
Discrete graphics card | Yes |
On-board graphics card | Yes |
Audio | |
---|---|
Number of microphones | 2 |
Built-in microphone | Yes |
Speaker power | 2 W |
Speakers manufacturer | Waves |
Number of built-in speakers | 2 |
Audio system | MaxxAudio |
Camera | |
---|---|
Privacy type | Privacy shutter |
Privacy camera | Yes |
Infrared (IR) camera | Yes |
Video capturing speed | 30 fps |
Front camera resolution | 1920 x 1080 pixels |
Front camera HD type | Full HD |
Front camera resolution (numeric) | 2.07 MP |
Front camera | Yes |
Network | |
---|---|
MIMO | Yes |
MIMO type | Multi User MIMO |
WWAN | Upgradable |
Bluetooth | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN | Yes |
WLAN controller model | Intel Wi-Fi 6E AX211 |
WLAN controller manufacturer | Intel |
Antenna type | 2x2 |
Wi-Fi data rate (max) | 2400 Mbit/s |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Mobile network connection | No |
Ports & interfaces | |
---|---|
Number of USB ports with PowerShare support | 1 |
PowerShare | Yes |
USB Power Delivery | Yes |
USB Type-C DisplayPort Alternate Mode | Yes |
Charging port type | USB Type-C |
Combo headphone/mic port | Yes |
Thunderbolt 4 ports quantity | 2 |
Intel® Thunderbolt 4 | Yes |
HDMI version | 2.0 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Keyboard | |
---|---|
Keyboard backlit | Yes |
Numeric keypad | Yes |
Keyboard language | UK English |
Pointing device | Touchpad |
Software | |
---|---|
Trial software | No Microsoft Office License Included 30 day Trial Offer Only |
Operating system language | German, Dutch, English, French, Italian |
Operating system installed | Windows 11 Pro |
Processor special features | |
---|---|
Intel Flex Memory Access | Yes |
Intel Trusted Execution Technology | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Execute Disable Bit | Yes |
CPU configuration (max) | 1 |
Embedded options available | No |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Battery | |
---|---|
Battery weight | 220 g |
Battery recharge time | 3 h |
Battery voltage | 11.4 V |
Battery capacity | 54 Wh |
Number of battery cells | 3 |
Battery technology | Lithium-Ion (Li-Ion) |
Power | |
---|---|
USB charging current | 6.5 A |
USB charging voltage | 20,5 V |
AC adapter input voltage | 100 - 240 V |
AC adapter frequency | 50/60 Hz |
AC adapter power | 130 W |
Security | |
---|---|
Trusted Platform Module (TPM) | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Smart card reader | Yes |
Cable lock slot type | Wedge |
Cable lock slot | Yes |
Operational conditions | |
---|---|
Non-operating vibration | 1.3 G |
Operating vibration | 0.66 G |
Non-operating shock | 160 G |
Operating shock | 110 G |
Non-operating altitude | -15.2 - 10668 m |
Operating altitude | -15.2 - 3048 m |
Storage relative humidity (H-H) | 0 - 95% |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 65 °C |
Operating temperature (T-T) | 0 - 35 °C |
Weight & dimensions | |
---|---|
Height (rear) | 2.28 cm |
Height (front) | 2.08 cm |
Depth | 233.3 mm |
Width | 357.8 mm |
Weight | 1.61 kg |
General | |
---|---|
Product Family | Precision |
Product Series | 3000 |
Carbon footprint | |
---|---|
Total carbon footprint | 327 kg of CO2e |
Total carbon emissions (Standard deviation) | 68 kg of CO2e |
Carbon emissions (Manufacturing) | 277 kg of CO2e |
Carbon emissions (Logistics) | 12 kg of CO2e |
Carbon emissions (Use) | 36 kg of CO2e |
Carbon emissions (End-of-Life) | 2 kg of CO2e |
Total carbon emissions (w/o Use phase) | 291 kg of CO2e |
PAIA version | 1.3.2 |
