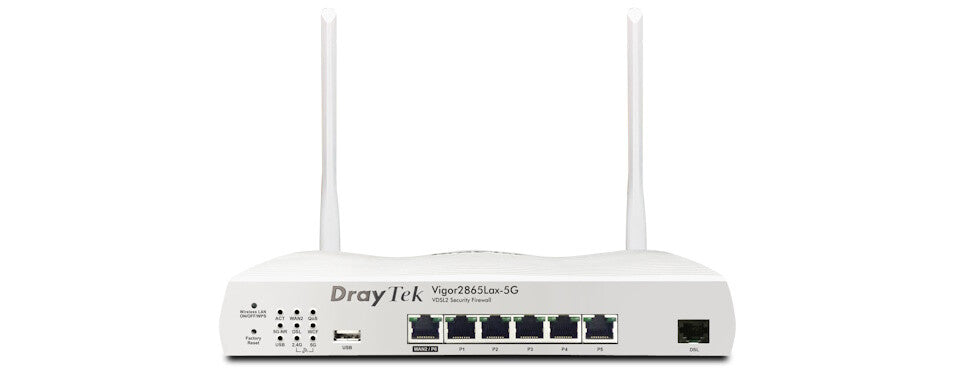

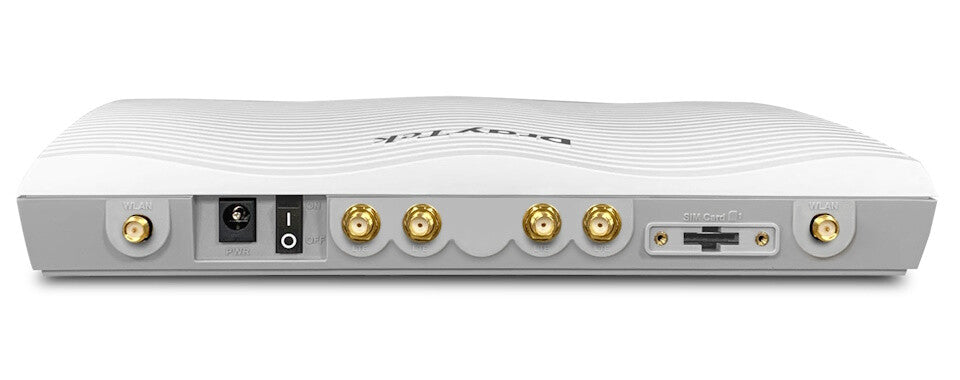

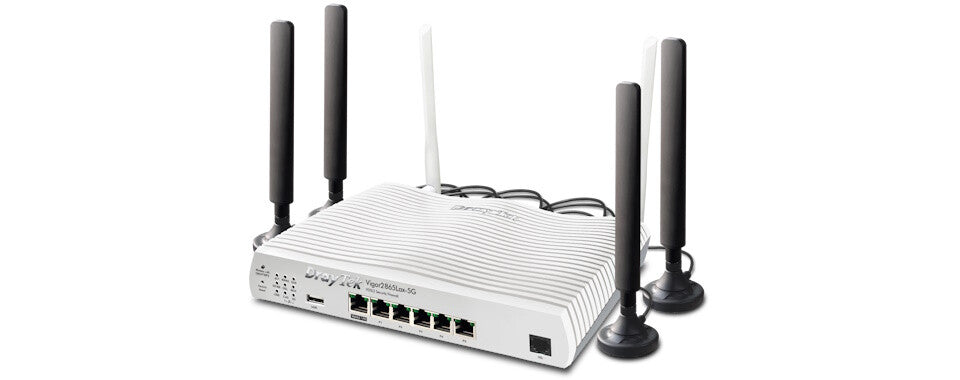

DrayTek’s Vigor 2865 series Multi-WAN Firewall VPN routers are well-suited for Superfast VDSL Broadband and Ethernet-based FTTP Fibre Broadband. Offering Gigabit throughput, Quality of Service, VPN client/server, comprehensive Firewall, and Content Filtering controls, the 2865 series stands out as one of the most versatile devices on the market, compatible with various network requirements.The new Vigor 2865Lax-5G model integrates a 5G/LTE modem, enabling users to leverage mobile broadband effectively, whether for failover or load-balanced broadband connections. Additionally, its Wi-Fi 6 module ensures rapid and efficient wireless connectivity with DrayTek VigorAP access points and end devices.
| WAN connection | |
|---|---|
| WAN connection type | RJ-11/RJ-45/SIM/USB |
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | Yes |
| DSL WAN | Yes |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN support | IPsec, SSL, OpenVPN, WireGuard, PPTP, L2TP |
| VPN Passthrough | Yes |
| VPN tunnels quantity | 32 |
| VPN server | IPsec, SSL, OpenVPN, WireGuard, PPTP, L2TP |
| Wireless Distribution System (WDS) bridge | Yes |
| Number of guest networks (2.4 GHz) | 4 |
| Number of guest networks (5 GHz) | 4 |
| Static route | Yes |
| SSID-based VLAN assignment | Yes |
| Policy-based routing | Yes |
| Dynamic DNS (DDNS) | Yes |
| Automatic channel selection | Yes |
| Load balancing system | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Full duplex | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Mobile network | |
|---|---|
| Mobile network generation | 5G |
| DSL features | |
|---|---|
| Internal modem | Yes |
| VDSL2 | Yes |
| VDSL | Yes |
| ADSL2+ | Yes |
| ADSL2 | Yes |
| ADSL | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| RJ-11 ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
|---|---|
| MIMO | Yes |
| MU-MIMO technology | Yes |
| WPS push button | Yes |
| Intelligent Mesh technology | Yes |
| Reset button | Yes |
| Wake-on-LAN ready | Yes |
| Quality of Service (QoS) support | Yes |
| Bandwidth control | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Web-based setup wizard | Yes |
| Web-based management | Yes |
| Security | |
|---|---|
| Network address translation (NAT) | Yes |
| DMZ support | Yes |
| System event log | Yes |
| URL filtering | Yes |
| IP address filtering | Yes |
| MAC address filtering | Yes |
| Filtering | Yes |
| DDoS protection | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Schedule access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Access Control List (ACL) | Yes |
| Firewall | Yes |
| Security algorithms | 3DES, AES, HTTPS, IPSec, MD5, MSCHAPv2, SHA-1, SHA-2, SHA-256, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS, TLS, WEP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-Personal, WPA2-RADIUS, WPA2-TKIP, WPA3, WPA3-EAP, WPA3-Enterprise, WPA3-PSK, WPA3-Personal |
| Protocols | |
|---|---|
| Management protocols | HTTP, HTTPS, Telnet, SSH, FTP, TR-069 |
| Routing protocols | BGP, IP, RIP-1, RIP-2, RIPng |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| Indication light | Yes |
| Wall mountable | Yes |
| Rack capacity | 1U |
| Housing material | Plastic |
| Product type | Rack/wall router |
| Packaging content | |
|---|---|
| Packaging content | •4x 1m LTE Extension Base•4x Detachable LTE Antennas |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Antenna included | Yes |
| Cables included | LAN (RJ-45) |
| Antenna | |
|---|---|
| Detachable antenna(s) | Yes |
| Antenna direction type | Omni-directional |
| Antenna design | External |
| Features | |
|---|---|
| Firmware upgradeable | Yes |
| Operating system installed | DrayOS |
| Power | |
|---|---|
| Power consumption (typical) | 31.2 W |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 241 mm |
| Depth | 165 mm |
| Height | 44 mm |
| Weight | 670 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Technical details | |
|---|---|
| Vendor code | Vigor 2865Lax-5G |
