If you asked us to name one of our best projects, we’d say Arx 500 Air – we took all the best solutions we know and put them together. As a result, we’ve made a large (but slightly shorter than Arx 700 series) PC case for you your components that's as breathable as a room where someone opened all the windows wide.
And replaced one of the walls (and the ceiling) with dust filters.

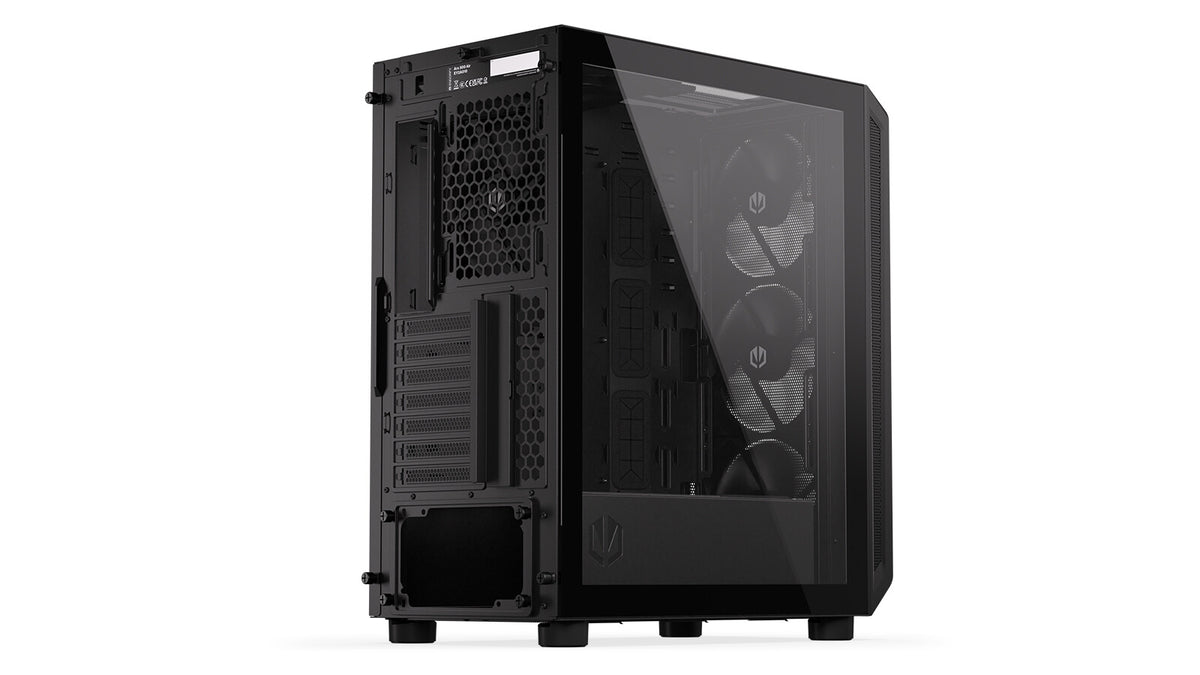

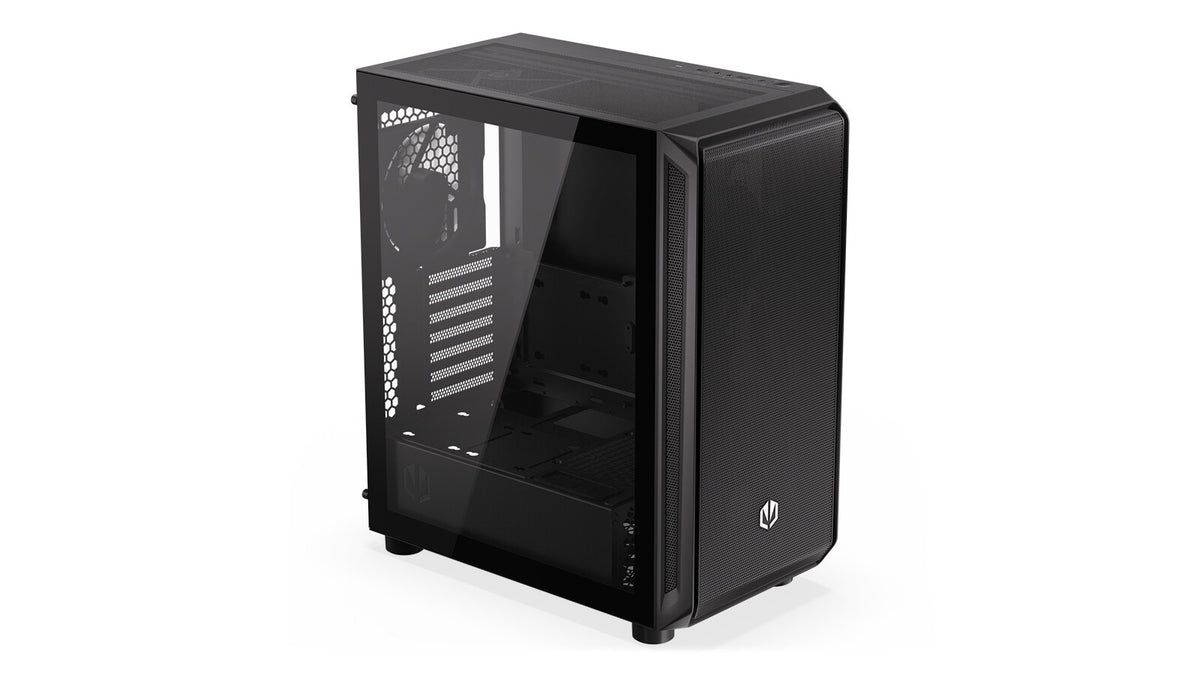

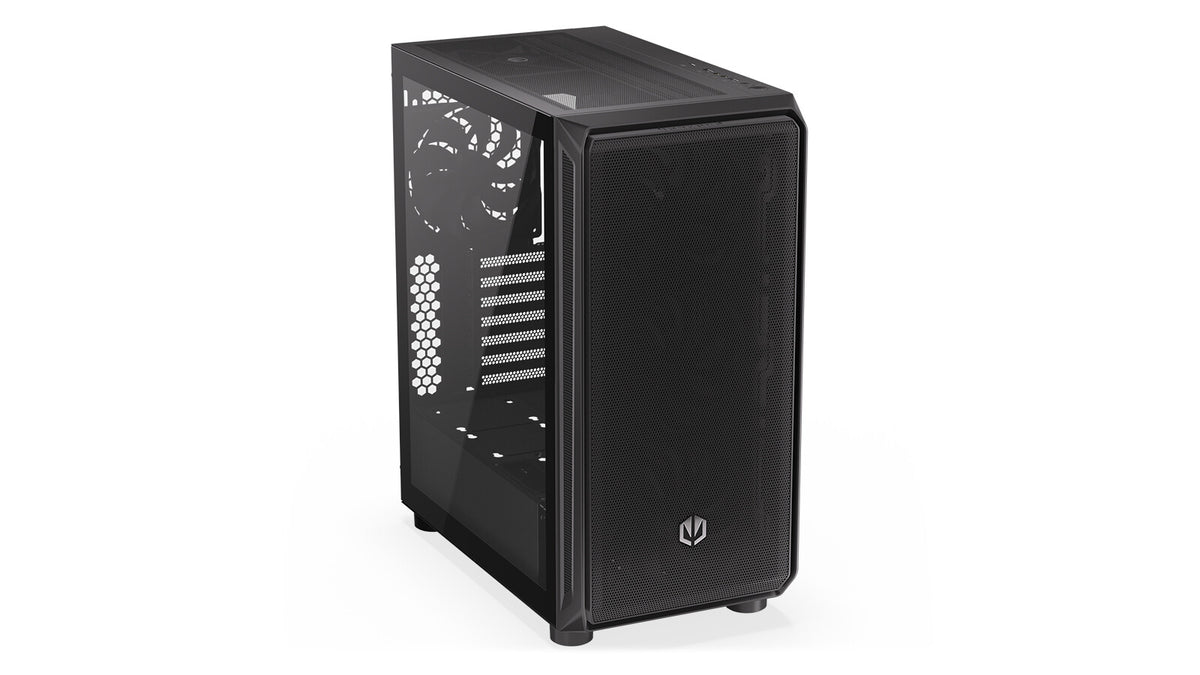

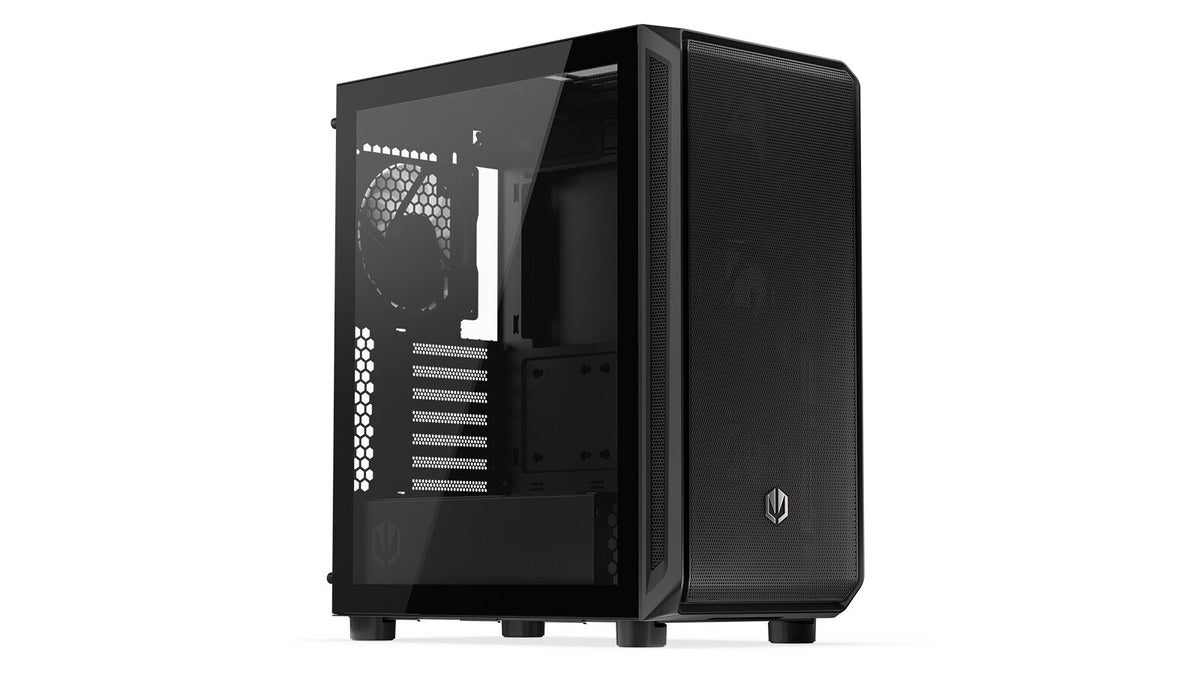

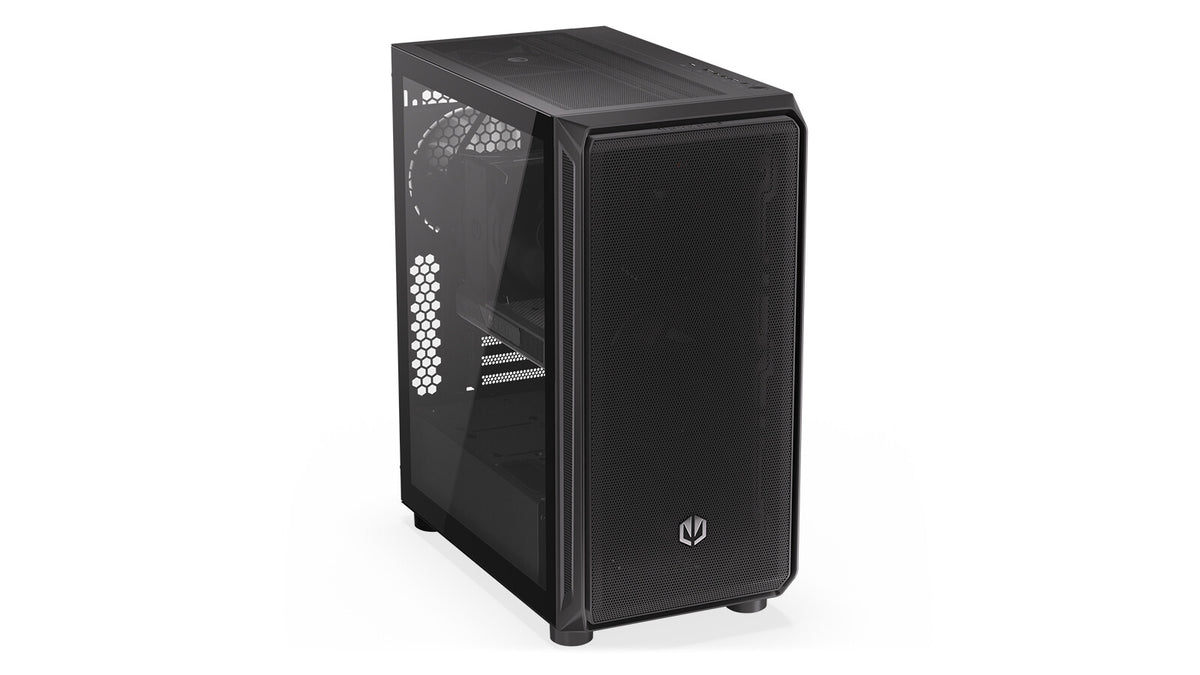

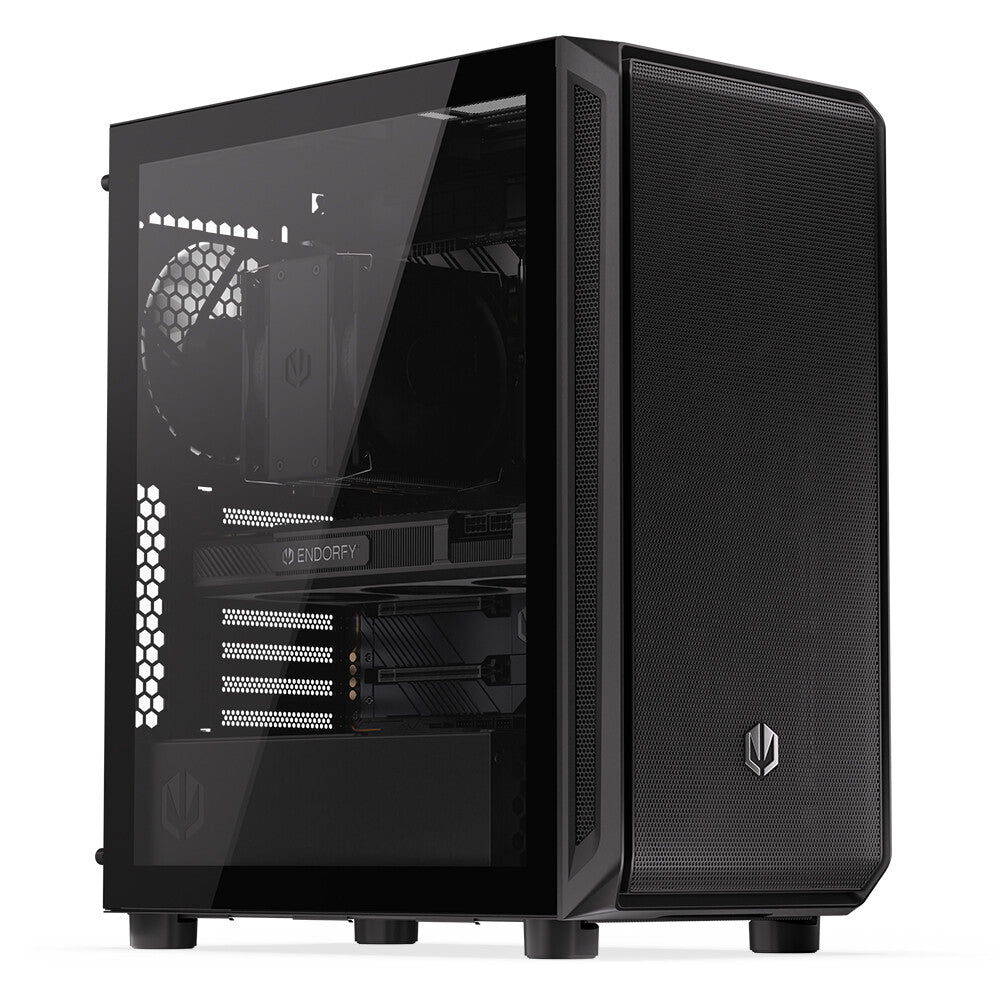

Arx 500 Air
We’ve seen a lot when it comes to PC cases – but the Arx 500 Air still brings a big smile to our faces. No wonder, because we packed all our knowledge into it. Spoiler alert – it came out like a dream.

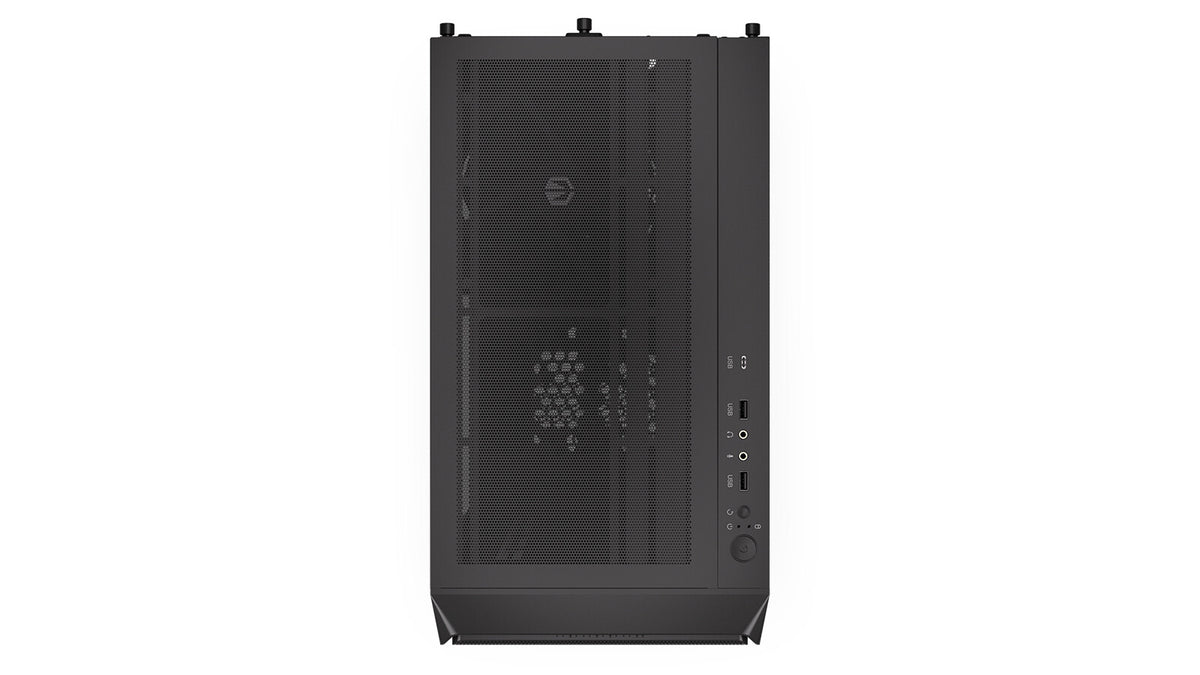

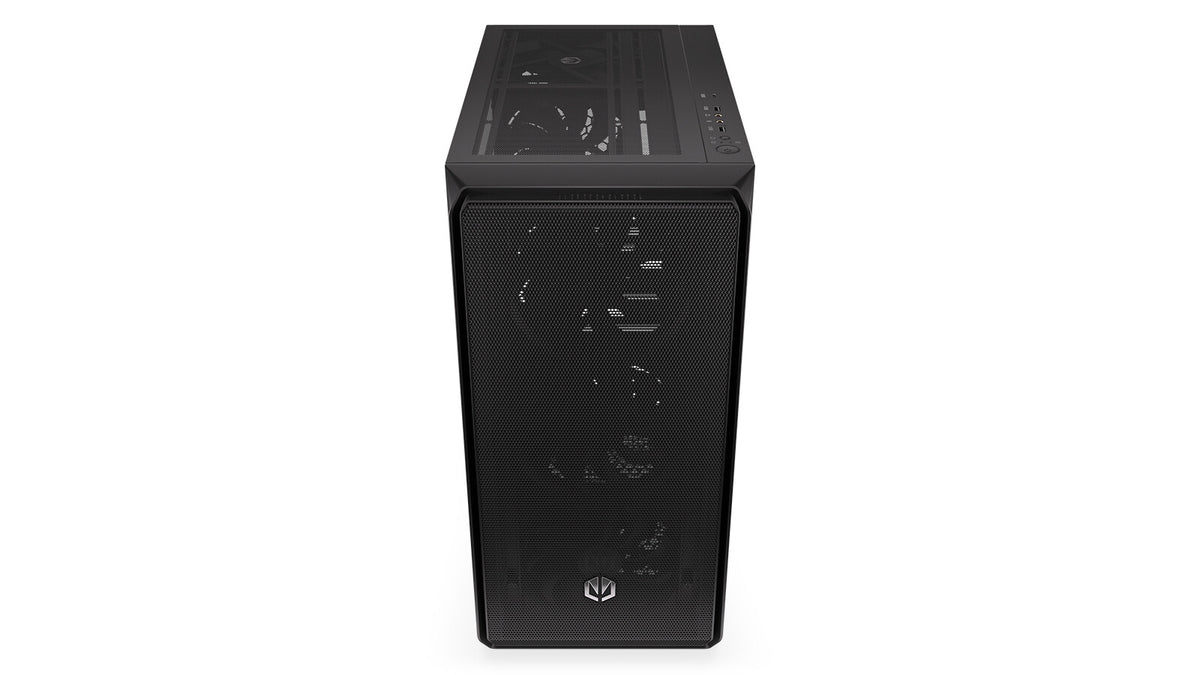

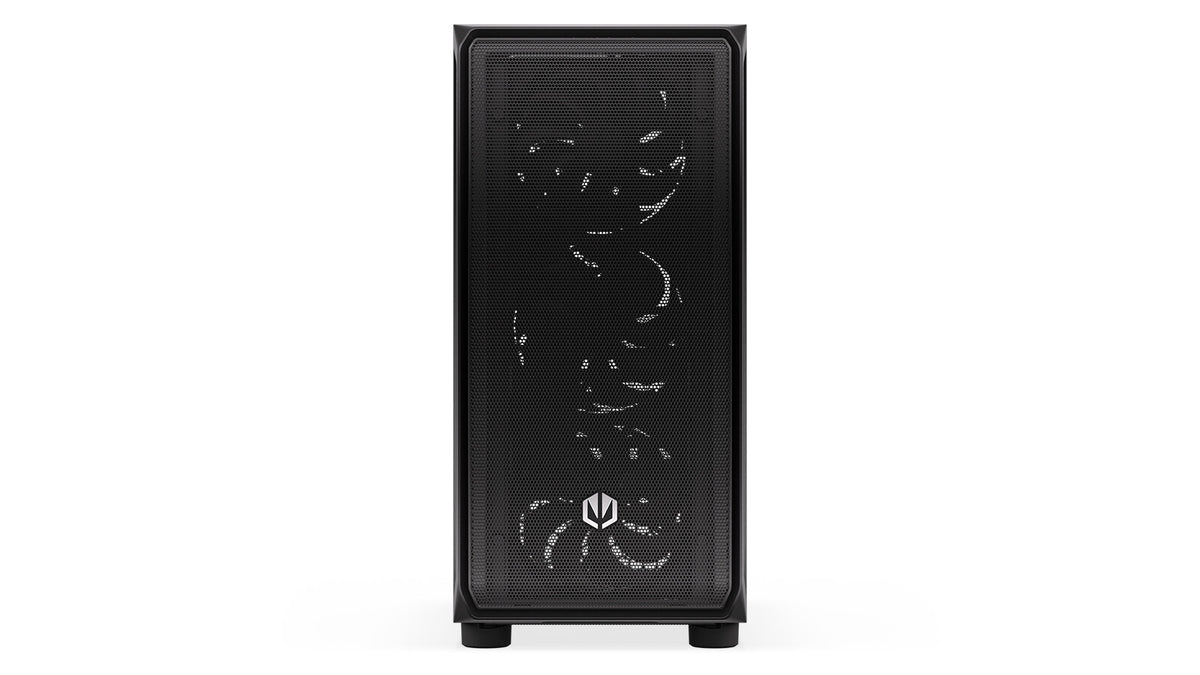

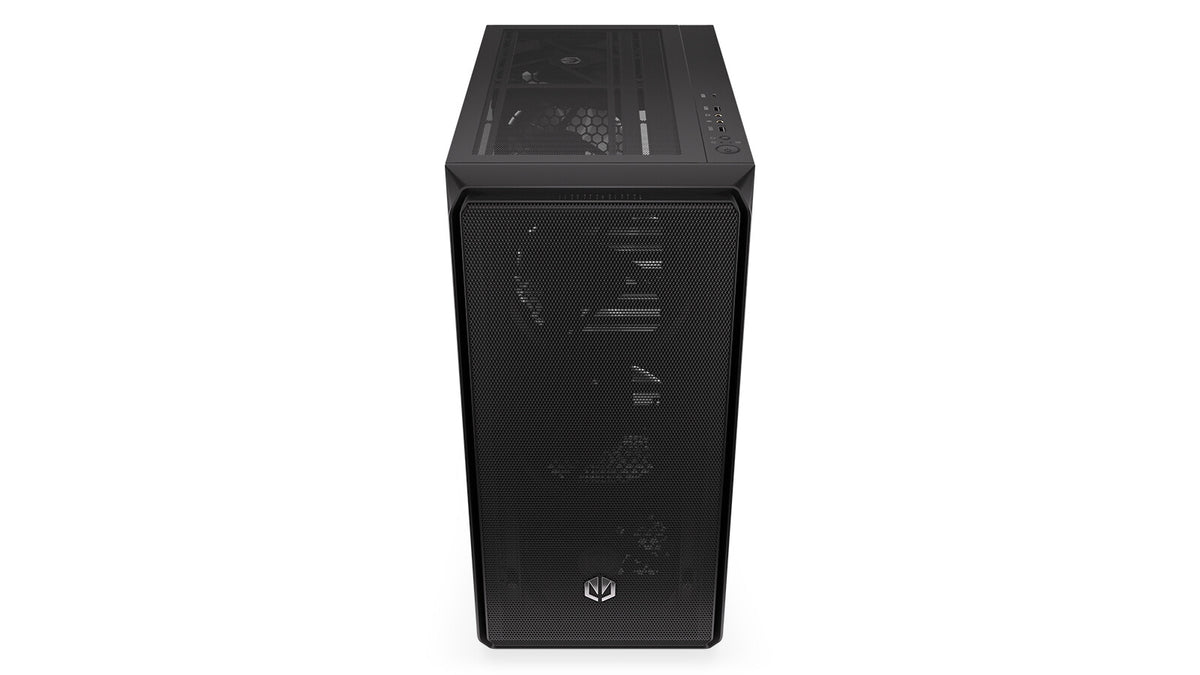

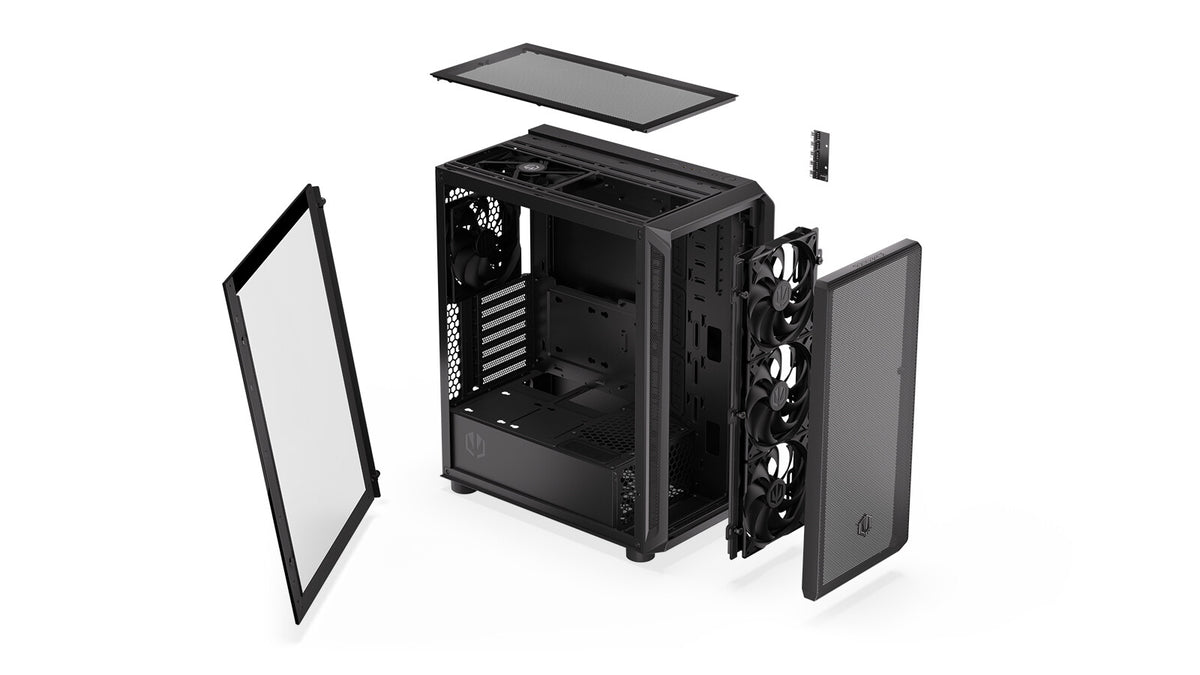

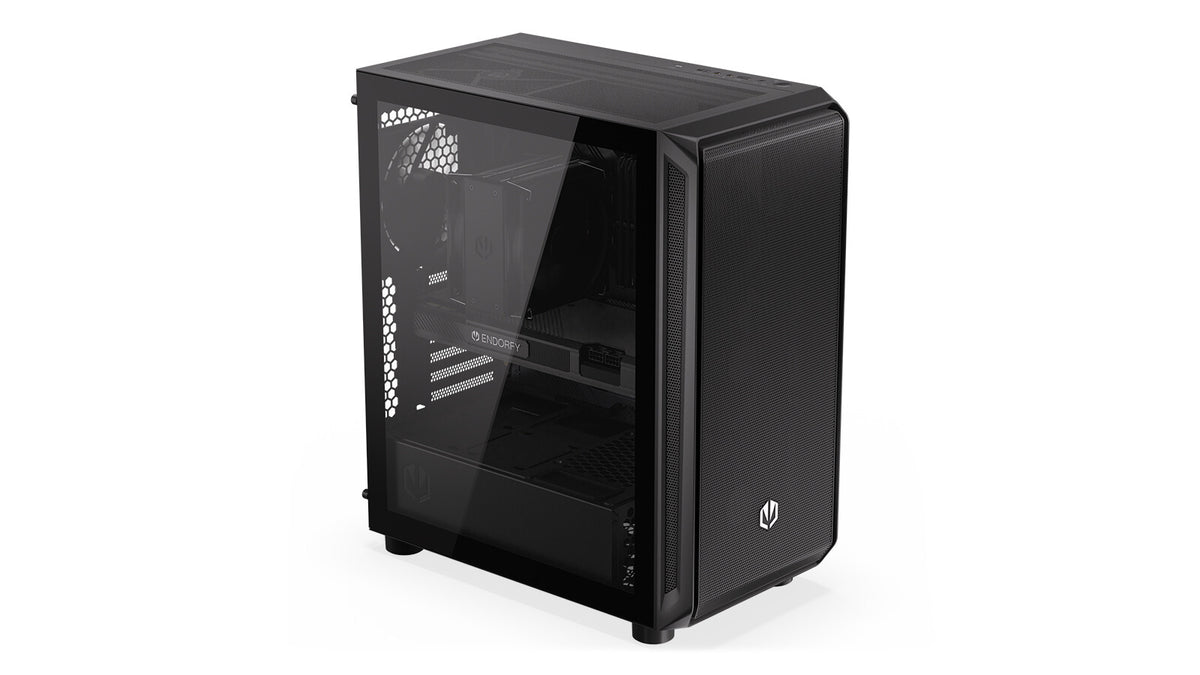

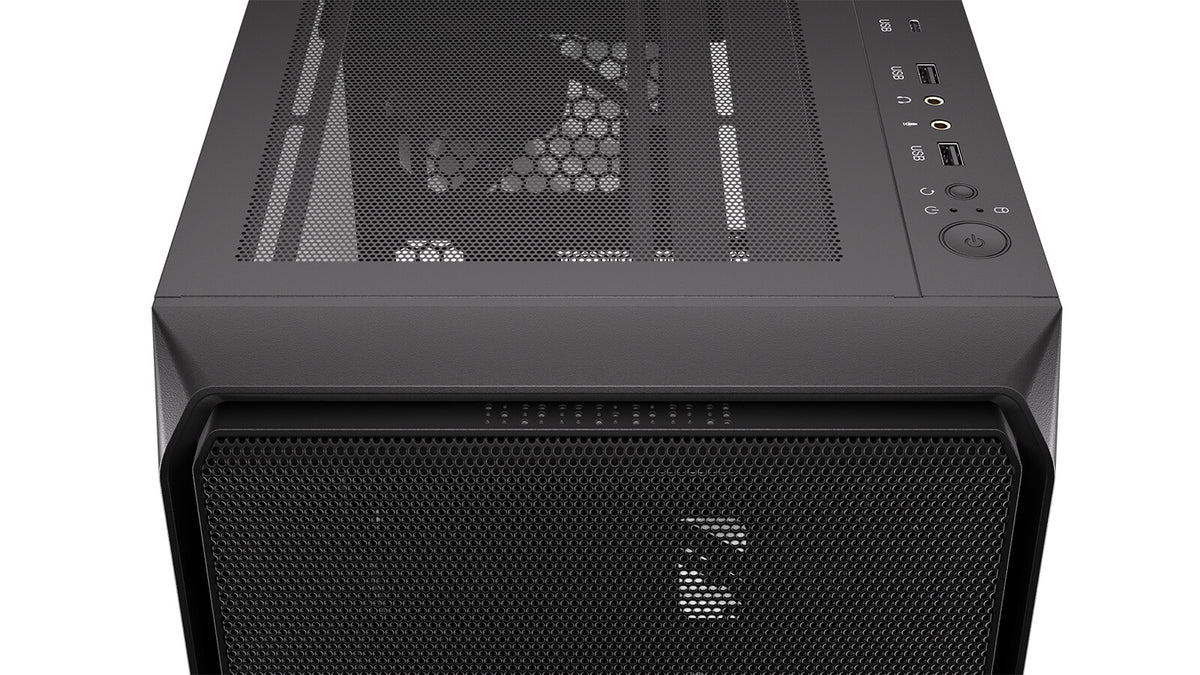

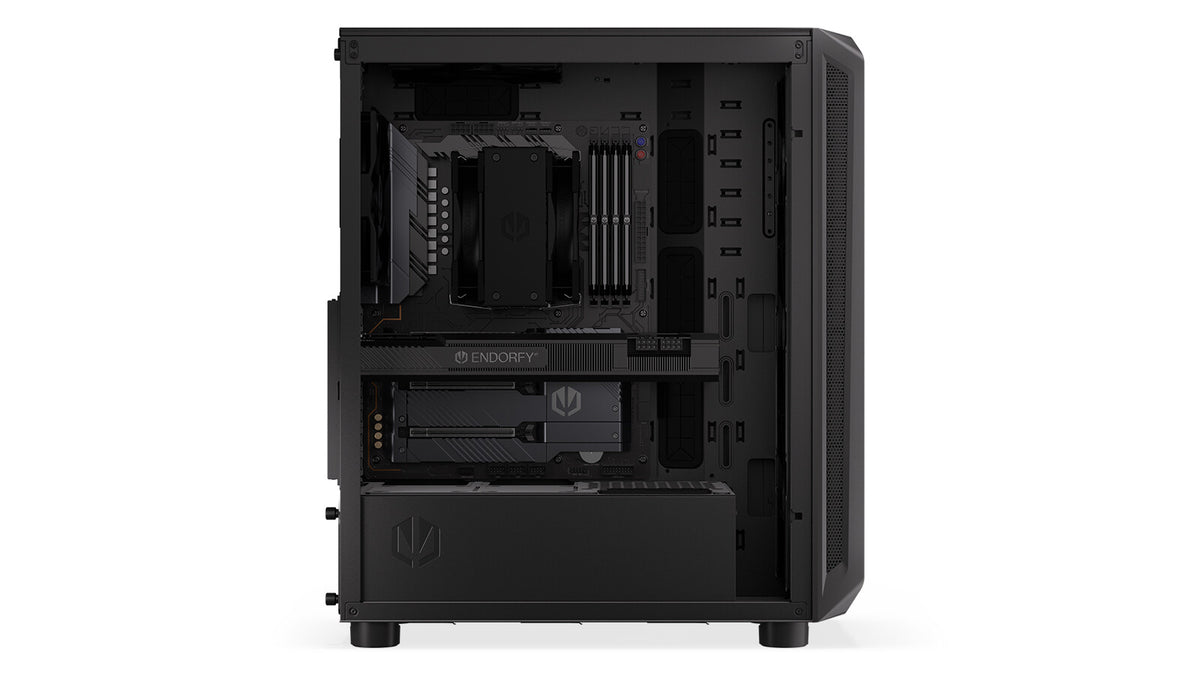

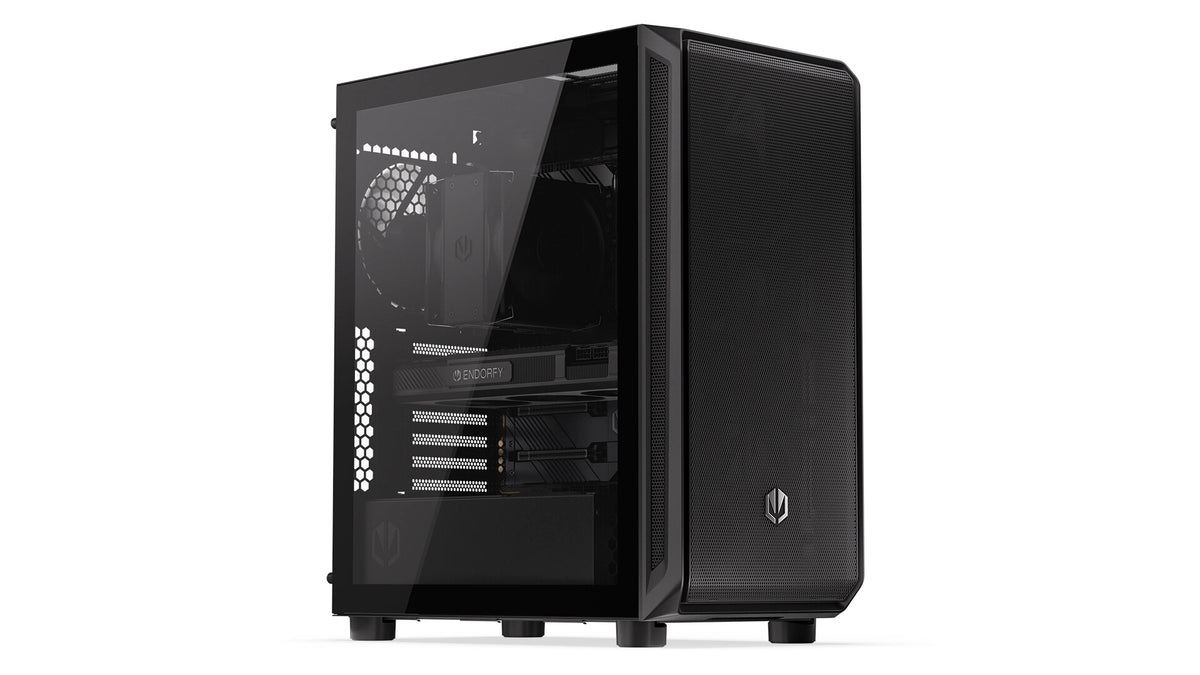

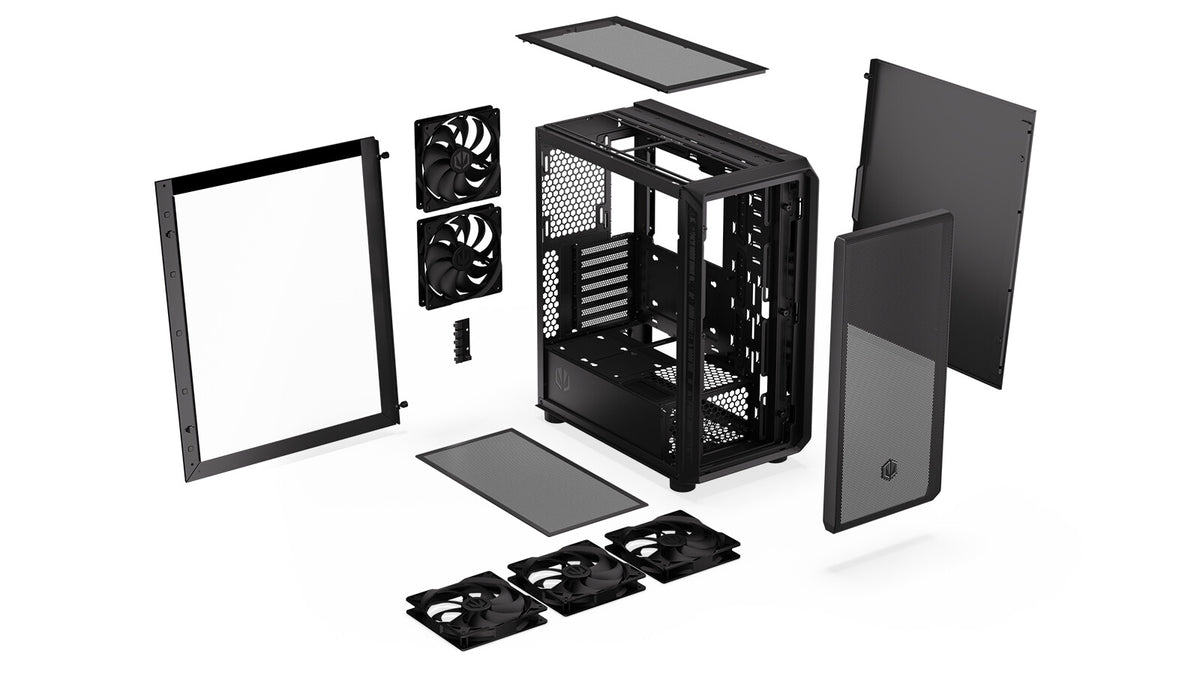

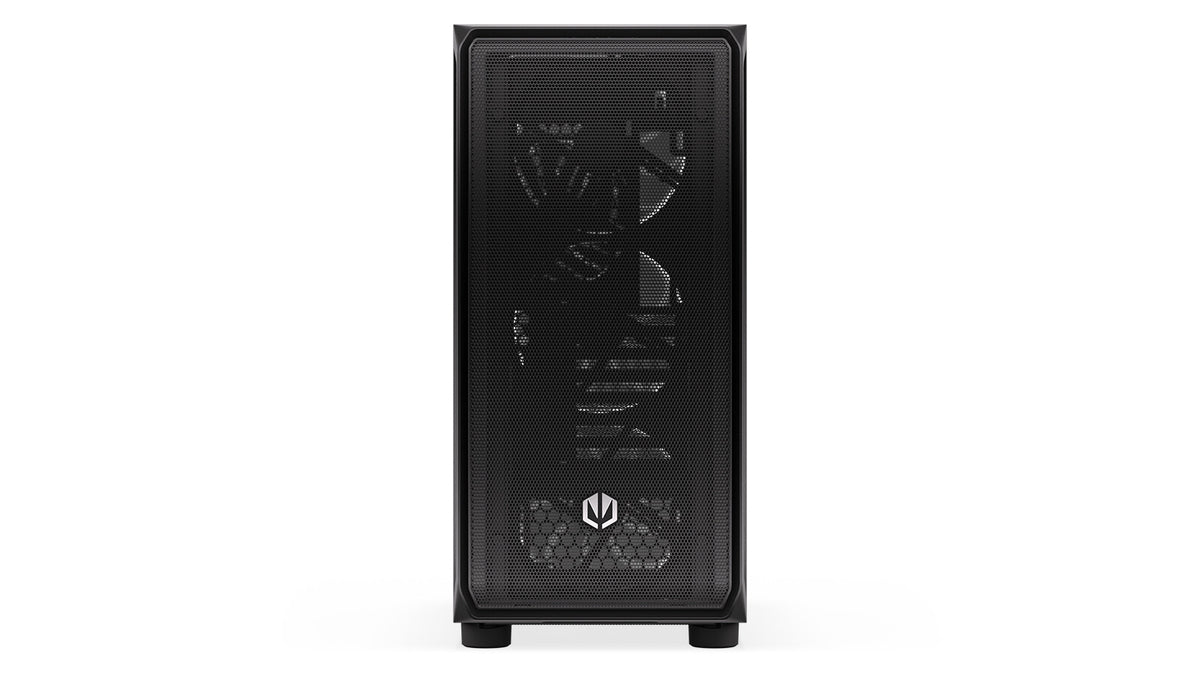

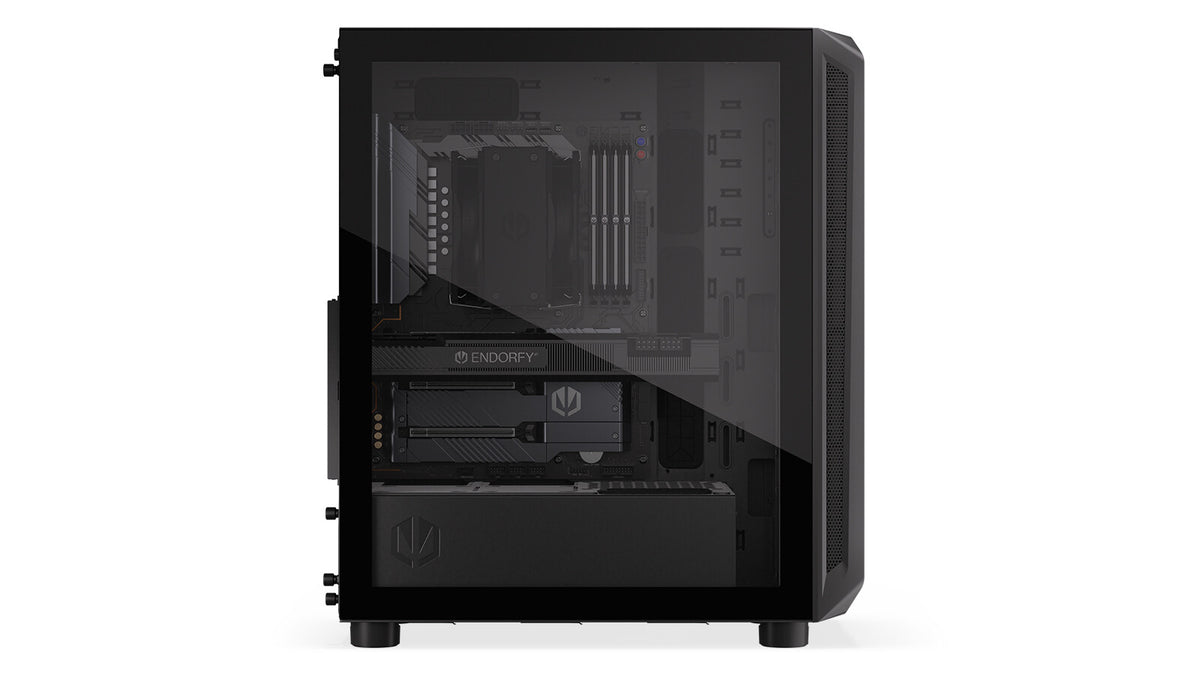

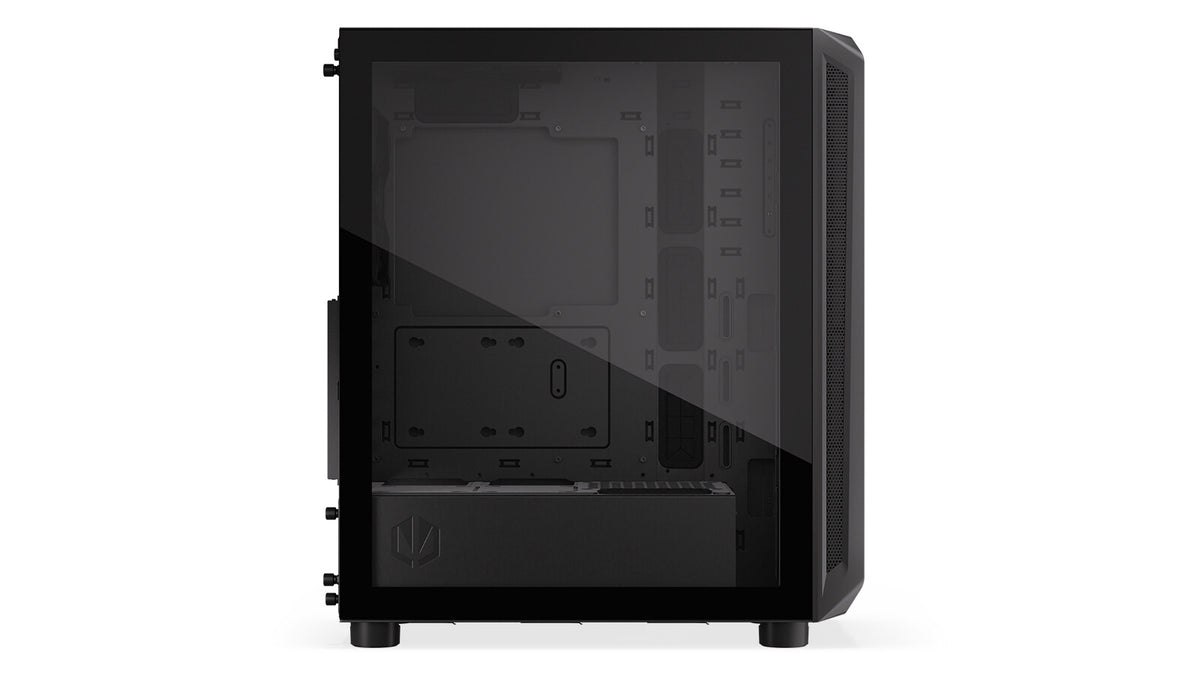

This is one of the largest cases we’ve ever created, only slightly shorter than Arx 700 series. It measures 486×228×429 mm – enough to fit a tall cooling system (up to 179 mm), 7 fans (including 5 Stratus 140 PWM that we give you for a good start), and most graphics cards available on the market (up to 350 mm long). Everything sits in a pleasant breeze, because the finely perforated front and top panels let in fresh air and block dust. You can check it out through the tempered glass window.
Design | |
---|---|
Maximum PSU length | 30 cm |
Maximum graphics card length | 35 cm |
Maximum CPU cooler height | 17.9 cm |
On/off button | Yes |
Reset button | Yes |
Transport wheels | No |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans |
Illumination | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of 2.5" bays | 6 |
Number of 3.5" bays | 1 |
Supported motherboard form factors | ATX, ITX, micro ATX |
Product colour | Black |
Material | Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply included | No |

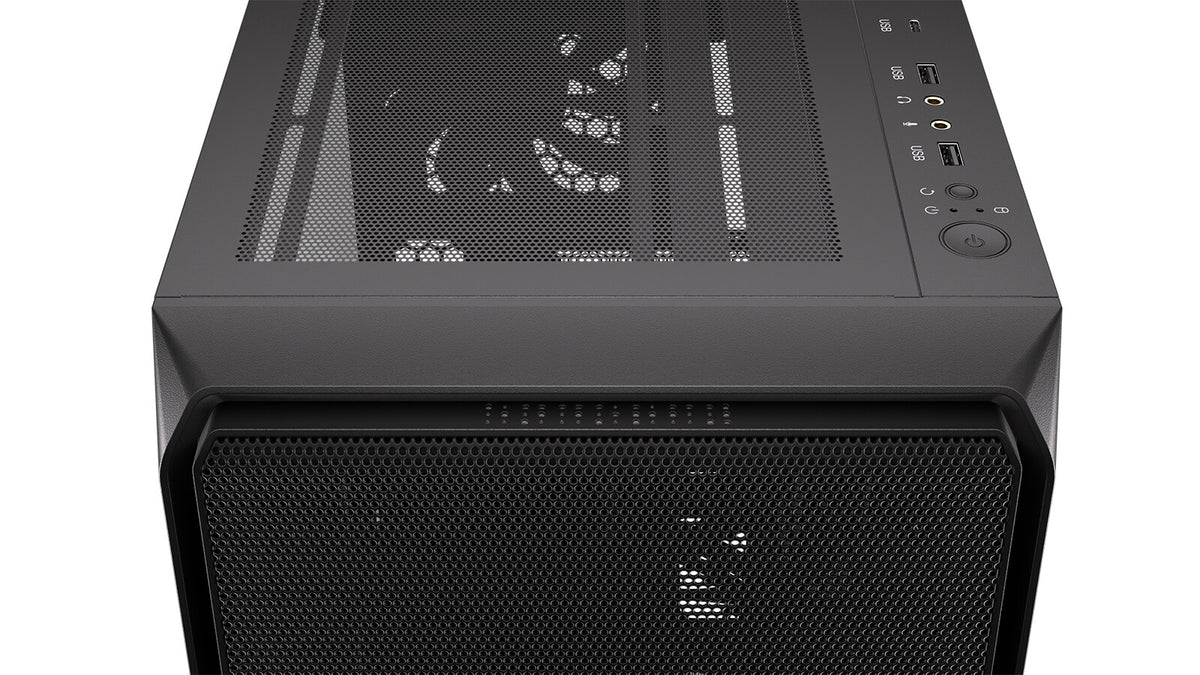

Ports & interfaces | |
---|---|
USB Type-C ports quantity | 1 |
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 120,240,280 mm |
Rear radiator sizes supported | 120,140 mm |
Front radiator sizes supported | 120,240,280,360 mm |
Rear fans diameters supported | 140 mm |
Rear fans installed | 1x 140 mm |
Front fans diameters supported | 140 mm |
Front fans installed | 3x 140 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 7.5 kg |
Height | 486 mm |
Depth | 429 mm |
Width | 228 mm |
