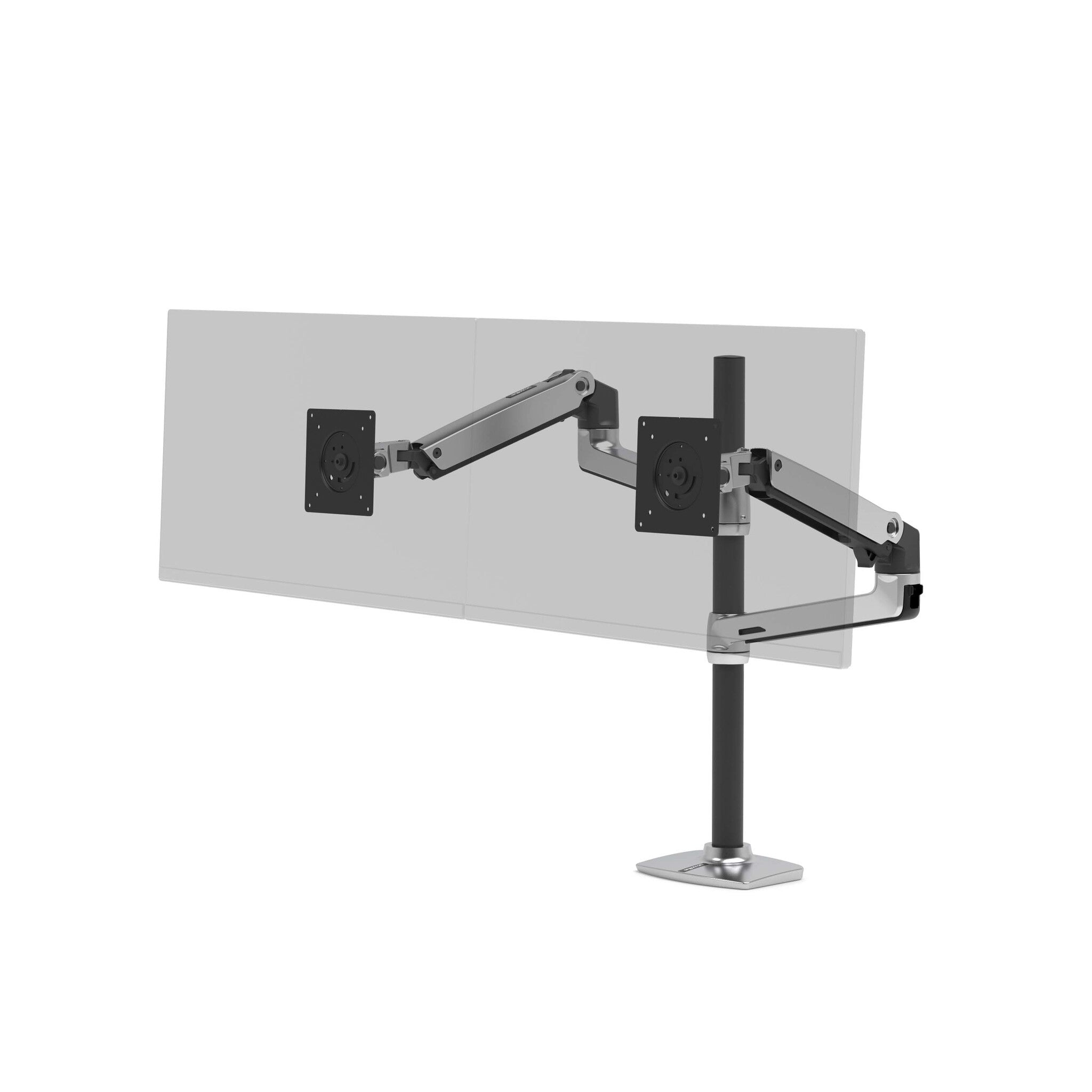

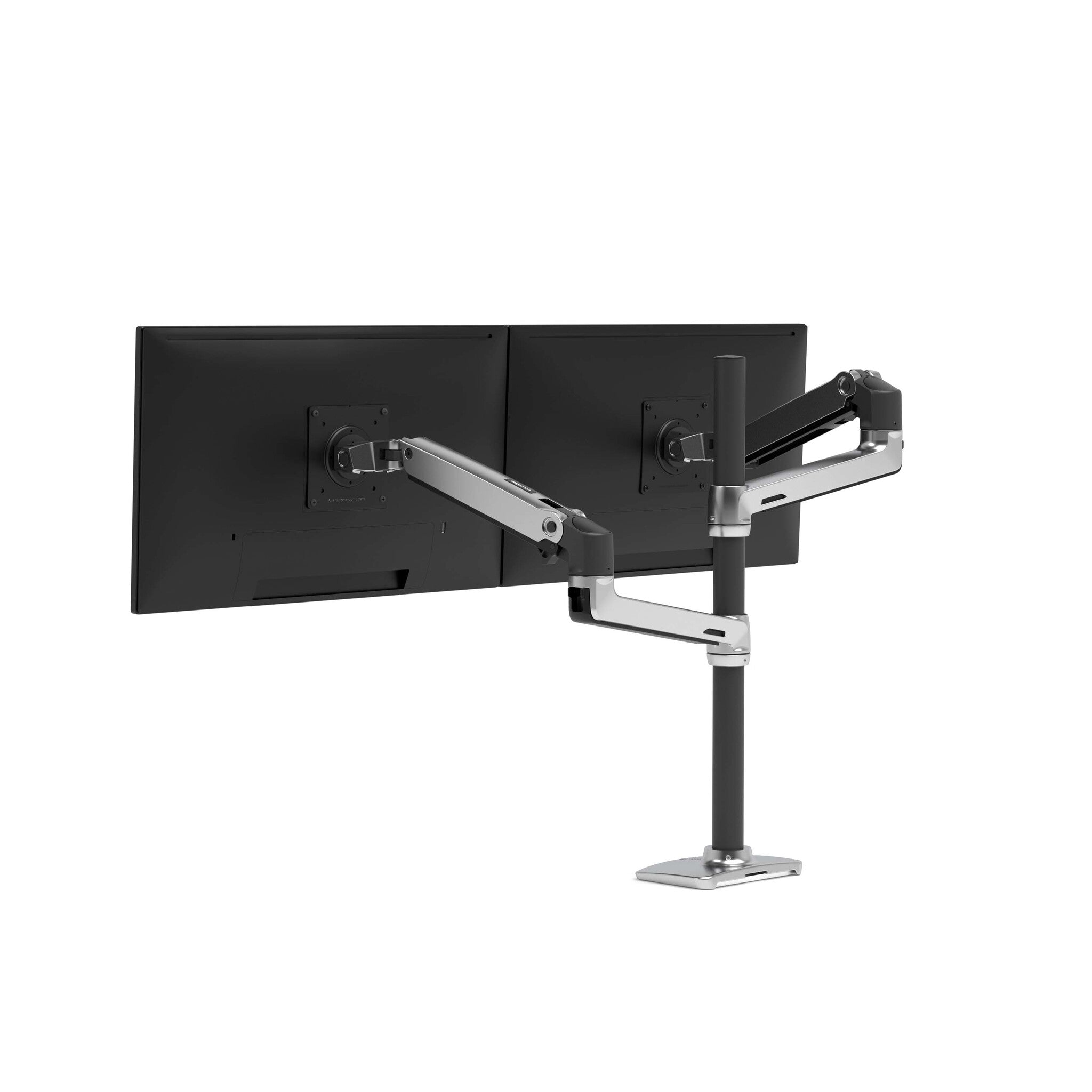

- 22" (55.9 cm) tall pole provides configuration flexibility. Ideal for larger displays

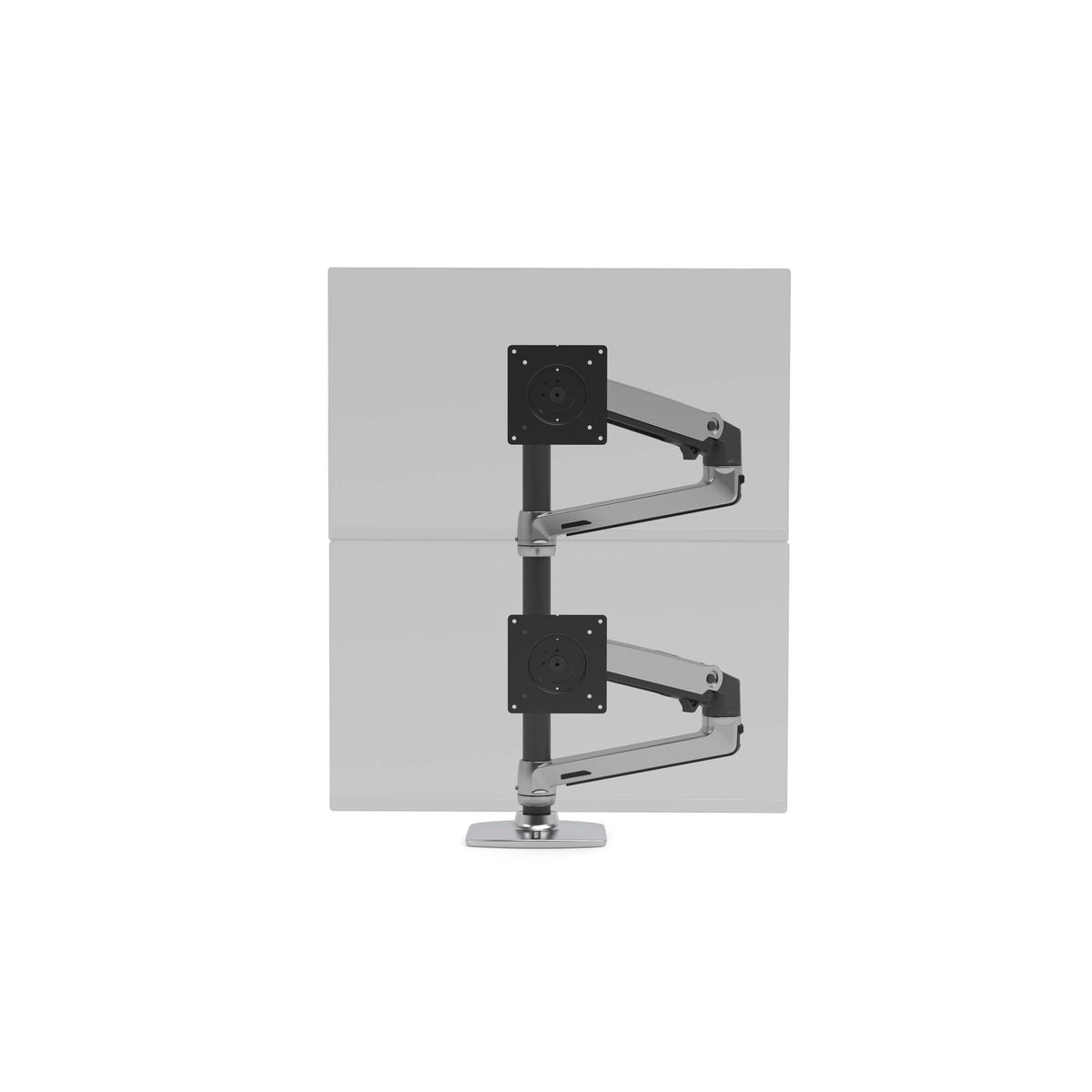

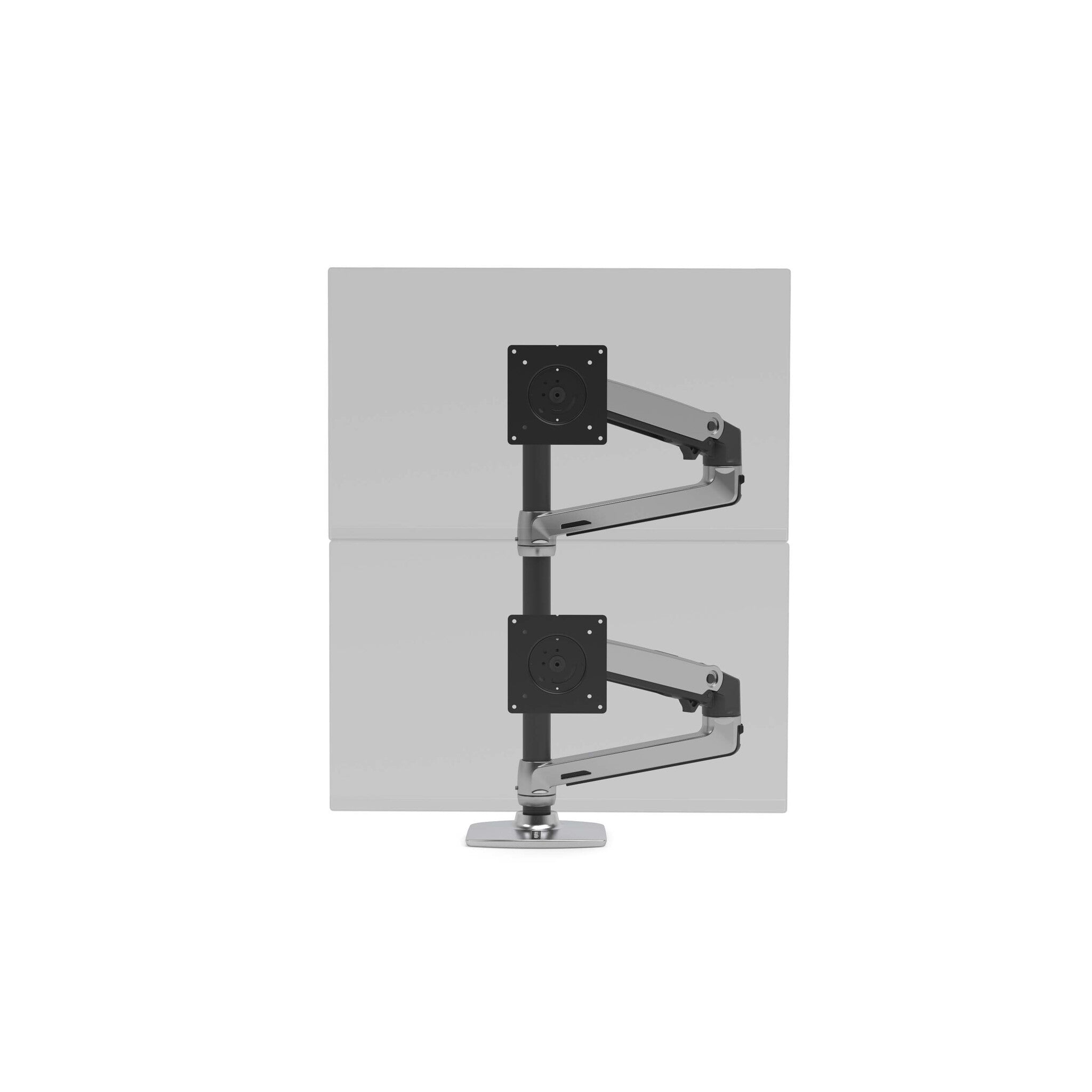

- Add a third or fourth display using the accessory LX Arm, Extension and Collar Kit
- Position monitors for maximum ergonomic comfort with unparalleled range of motion
- Helps reduce eye, back and neck strain
- Folding arms free up space in constrained areas
- Two-piece mounting clamp has keyhole-shaped holes for quick assembly and two clamping screws for secure installation

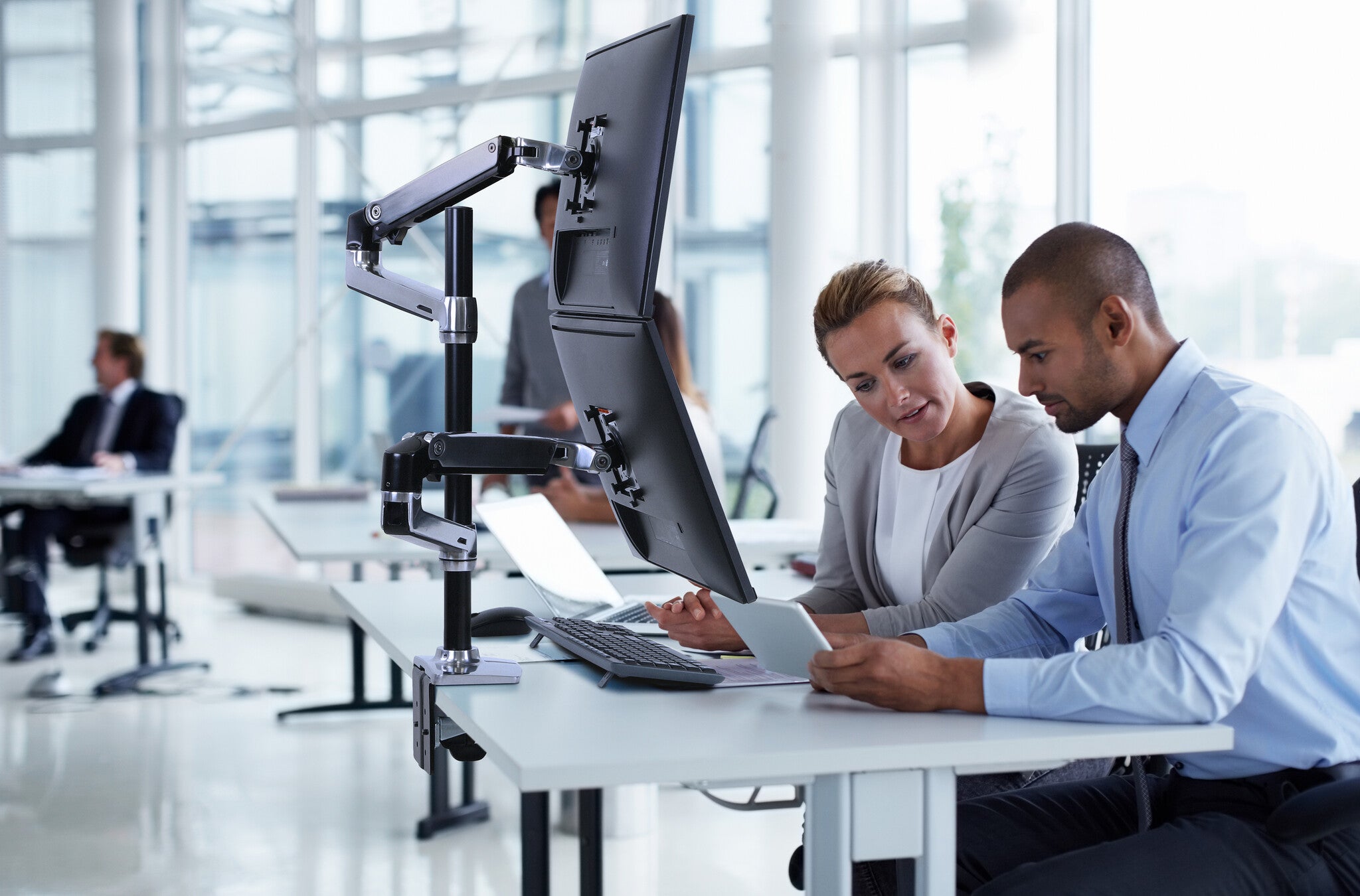

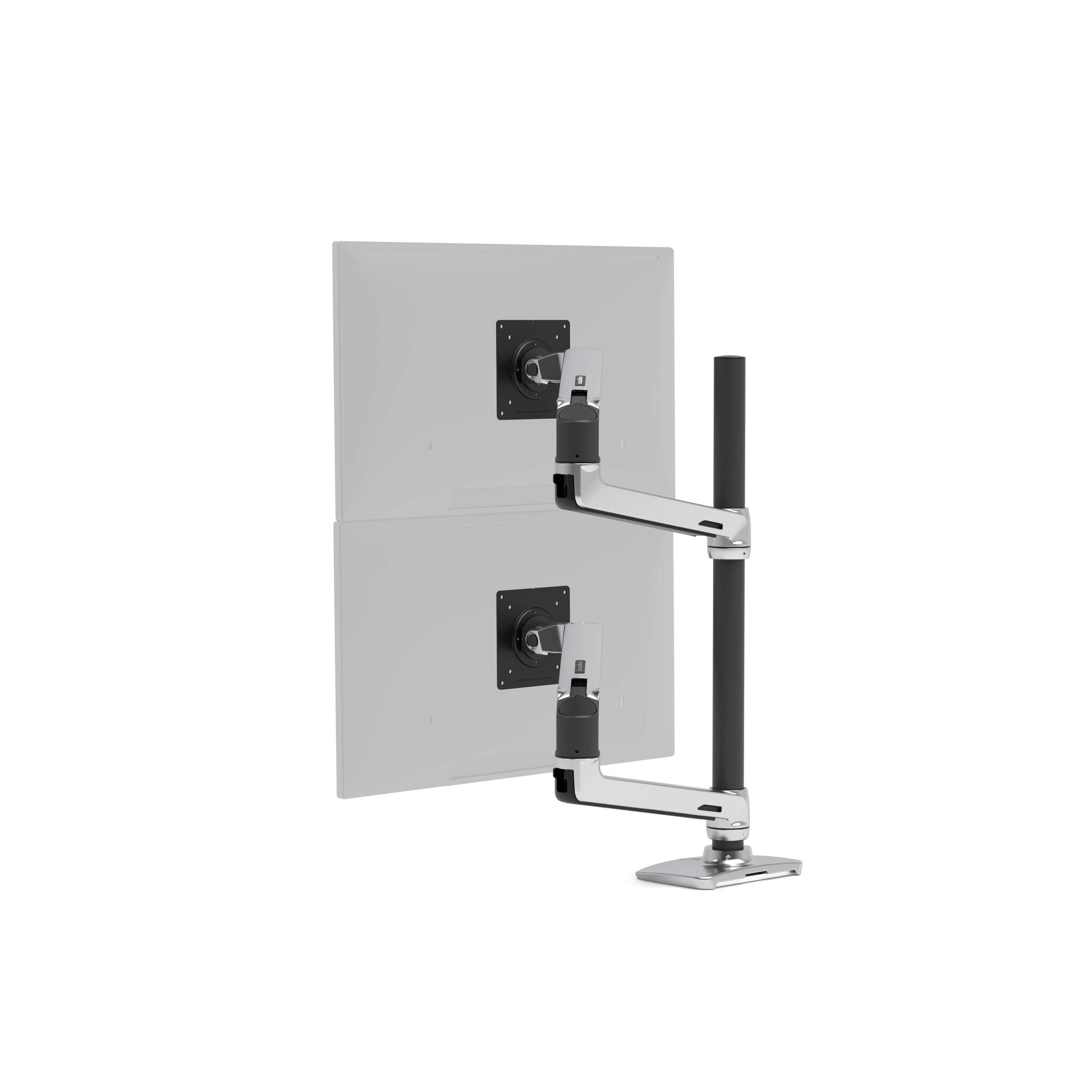

- Easily turn one or both screens from landscape mode to portrait mode—view entire pages without scrolling
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
- Patented Constant Force™ lift-and-pivot motion technology
| Mounting | |
|---|---|
| Number of displays supported | 2 |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Suitable for TV | Yes |
| Mounting | Clamp |
| Maximum weight capacity (per display) | 10 kg |
| Mounting type | Desk |
| Maximum screen size | 101.6 cm (40") |
| Maximum weight capacity | 20 kg |
| Ergonomics | |
|---|---|
| Rotating | Yes |
| Tilt adjustment | Yes |
| Cable management | Yes |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| Tilt angle range | 5 - 75° |
| Height adjustment range | 0 - 330 mm |
| Height adjustment | Yes |
| Design | |
|---|---|
| Certification | BIFMA level 2ETL Environmental VOC+ Certified |
| Housing material | Aluminium, Steel |
| Product colour | Aluminium |
| General | |
|---|---|
| Product Family | LX Series |
| Weight & dimensions | |
|---|---|
| Package weight | 10.9 kg |
| Package height | 760 mm |
| Package depth | 450 mm |
| Package width | 180 mm |
| Weight | 8.62 kg |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| VESA mount included | Yes |
| Clamp included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
