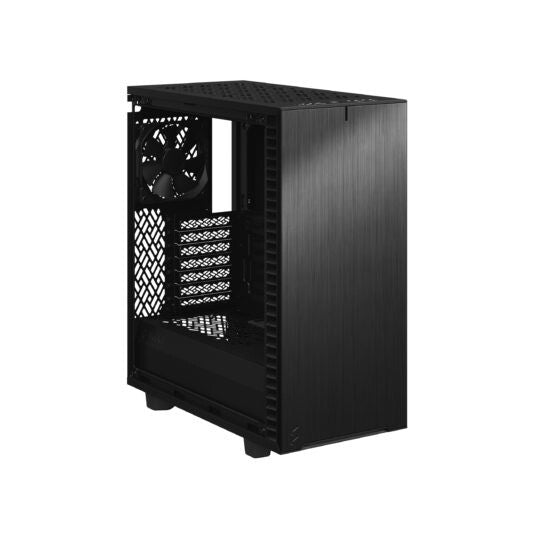

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.
A cleaner look

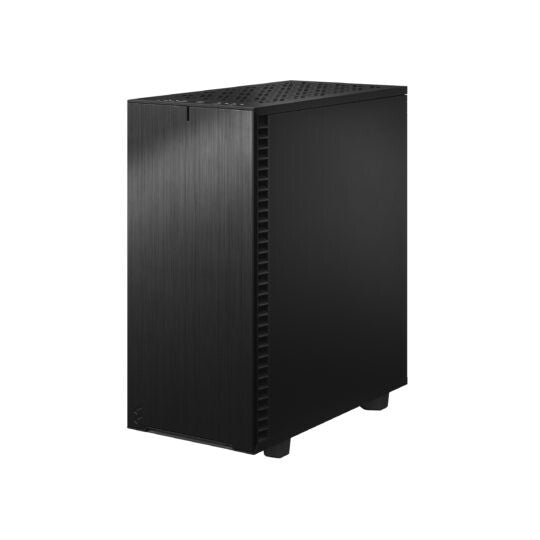

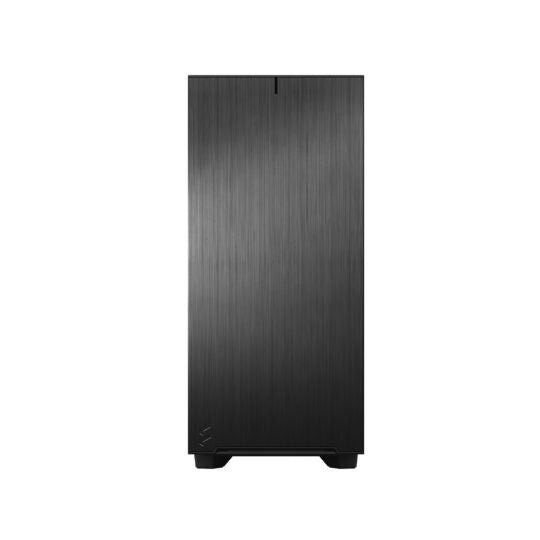

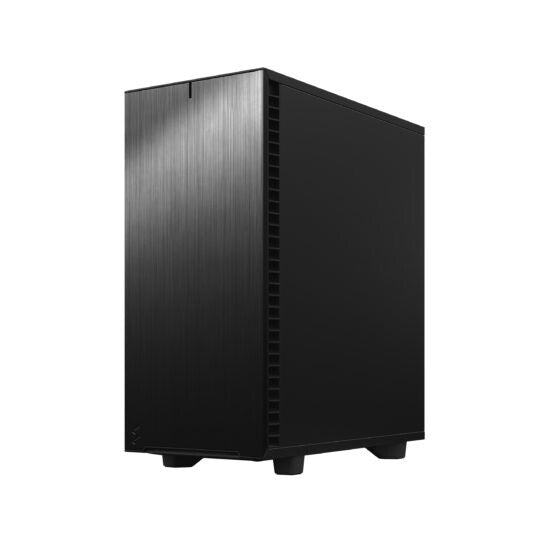

Brushed aluminum front and interchangeable side panels give a very clean look
Compact yet spacious

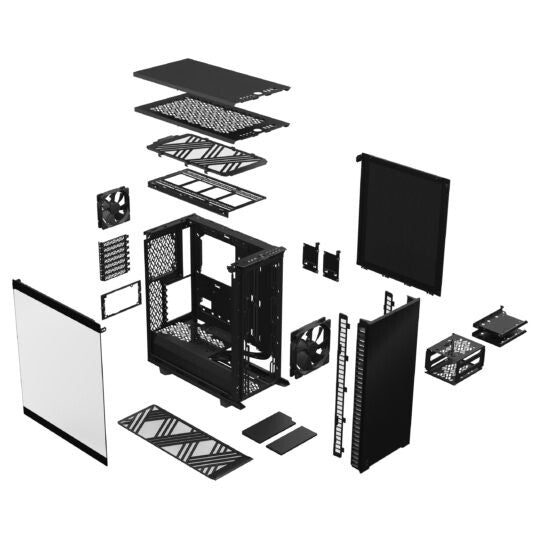

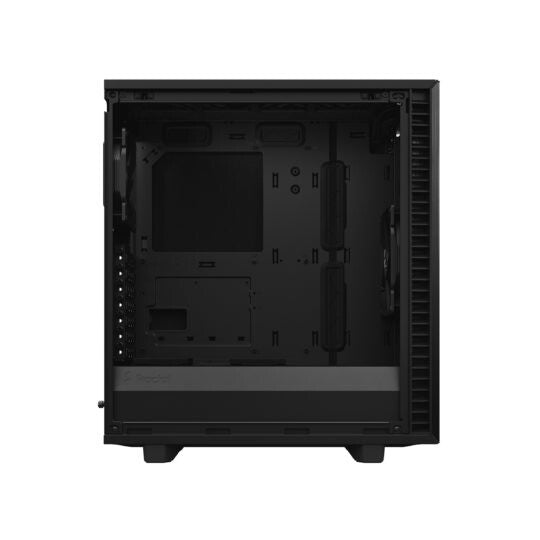

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.
Remarkably quiet
- Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
- Brushed aluminum front and top-latching side panels offer a clean sophisticated look

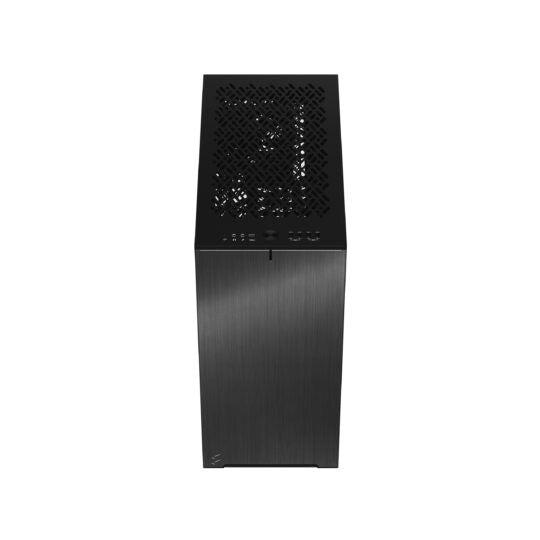

- Top panel effortlessly swaps from solid steel to filtered ventilation
Substantial cooling
- Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm

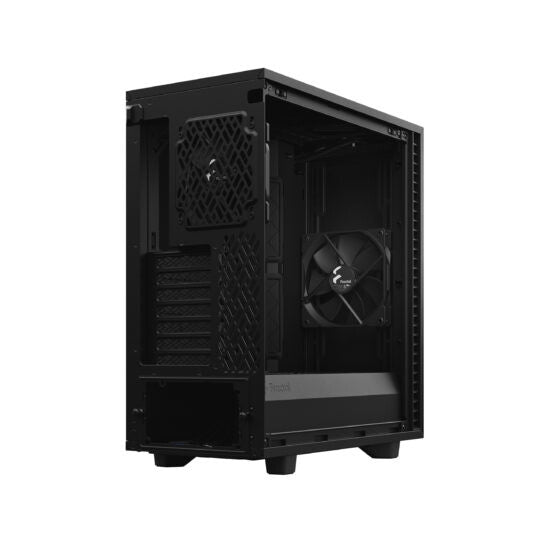

- 1x 120 mm and 1x 140 mm Dynamic X2 fans included
- Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support

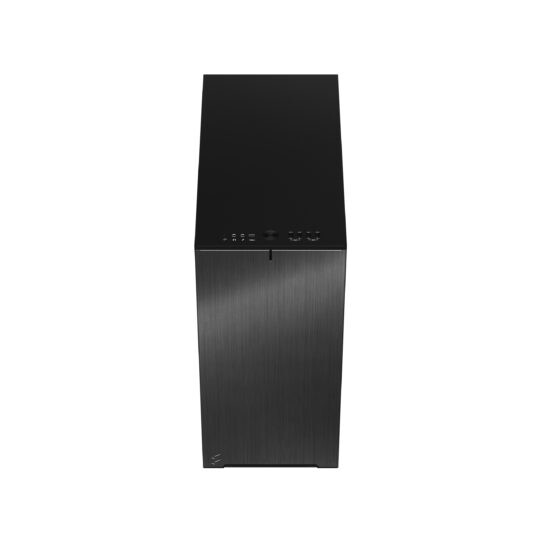

Robust Front I/O
Five front USB ports including a fast-charging USB 3.1 Gen 2 type-C at up to 10 Gbps.

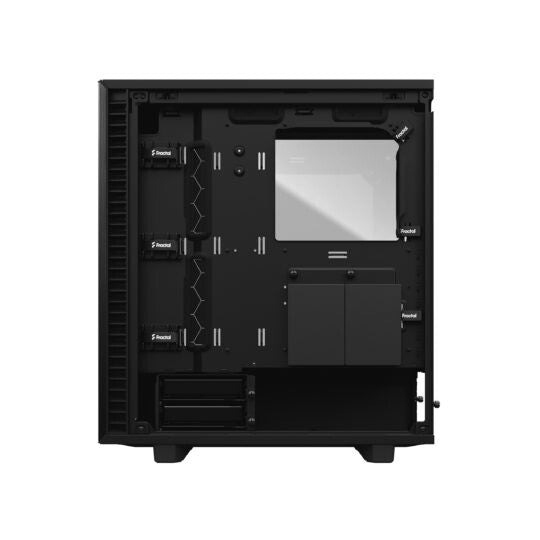

Concealed storage

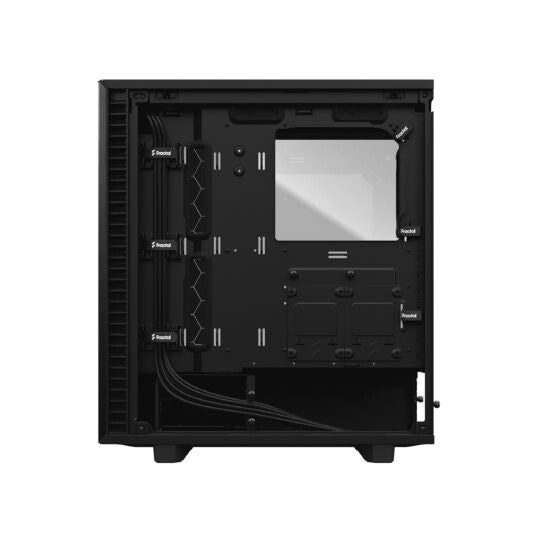

You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.
More in store
A pair of SSDs are easily mounted straight on the PSU shroud.
Front, top and base
Easy-to-clean high airflow nylon filters.

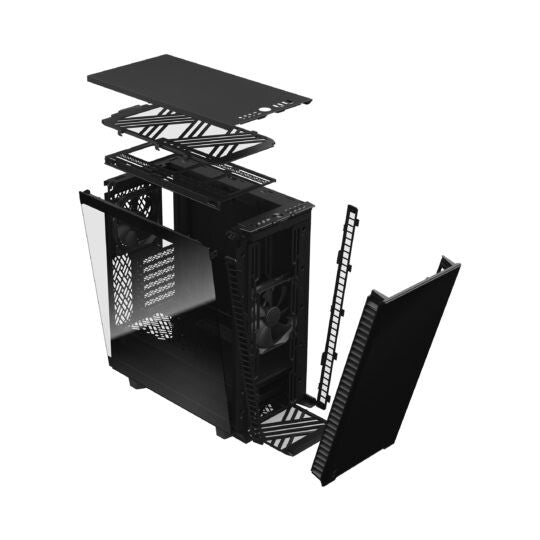

Open access

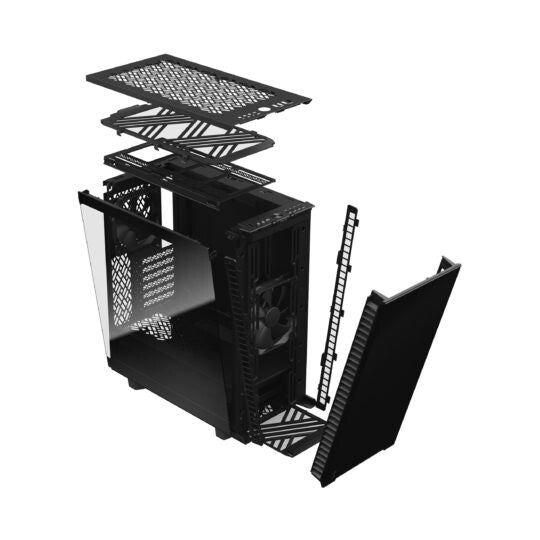

Remove the entire top to build and route with zero hindrance
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 34.1 cm |
Maximum CPU cooler height | 16.9 cm |
LED indicators | Yes |
On/off button | Yes |
Reset button | Yes |
Anti-dust filter | Yes |
Suitable for | Home/Office |

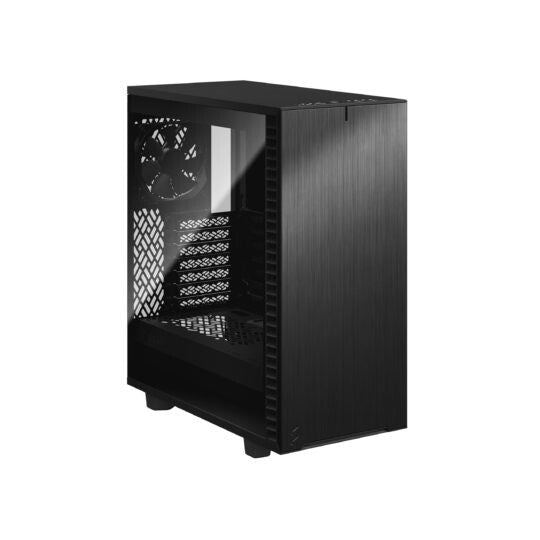

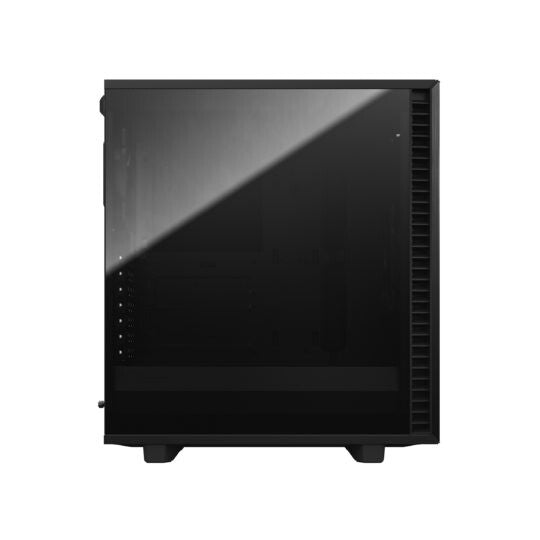

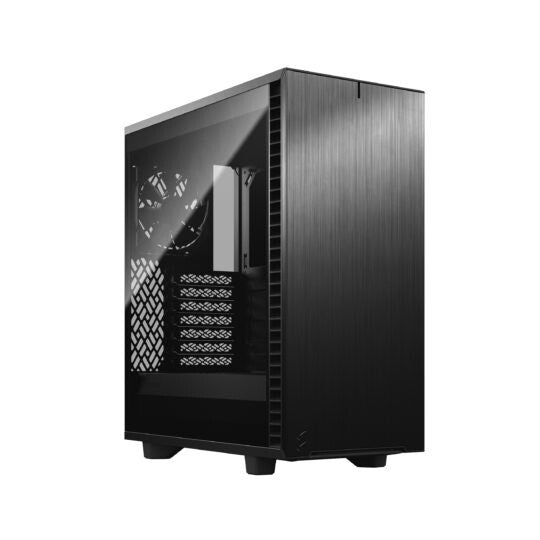

Side window | Yes |
Rack mounting | No |
Number of expansion slots | 7 |
Number of 2.5" bays | 2 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Micro-ITX |
Product colour | Black |
Material | Aluminium, Steel, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Number of power supply units | 1 |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 240 mm |
Rear radiator sizes supported | 120 mm |
Front radiator sizes supported | 280,360 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 120 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 1x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 8.76 kg |
Height | 474 mm |
Depth | 427 mm |
Width | 210 mm |
Packaging data | |
---|---|
Package weight | 11 kg |
Package height | 521 mm |
Package depth | 536 mm |
Package width | 310 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
