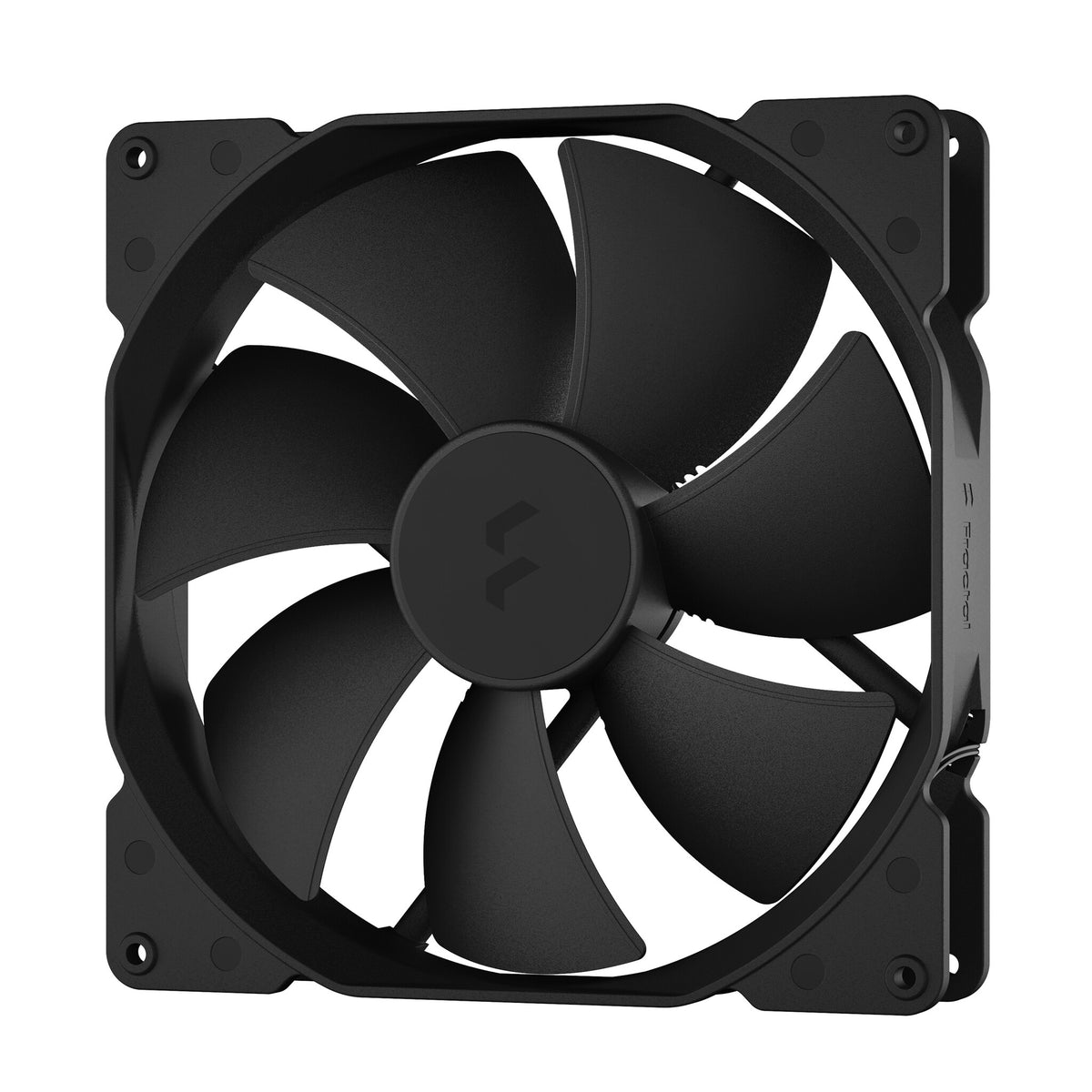

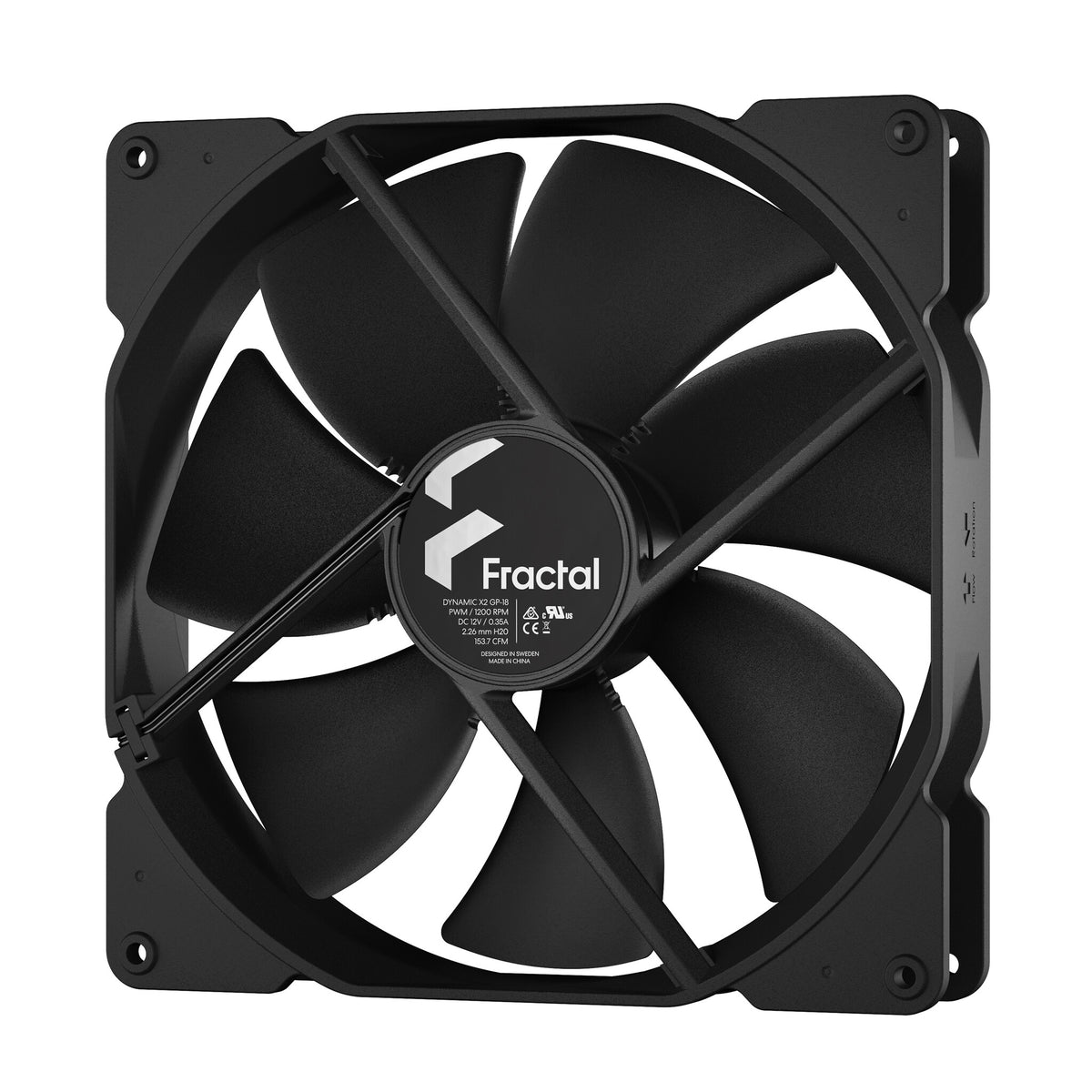

The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.
Optimized fan geometry
- Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
- Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment
- Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
High-grade LLS bearing
Long-Life Sleeve bearing with 90,000-hour MTTF delivers long-lasting dependability

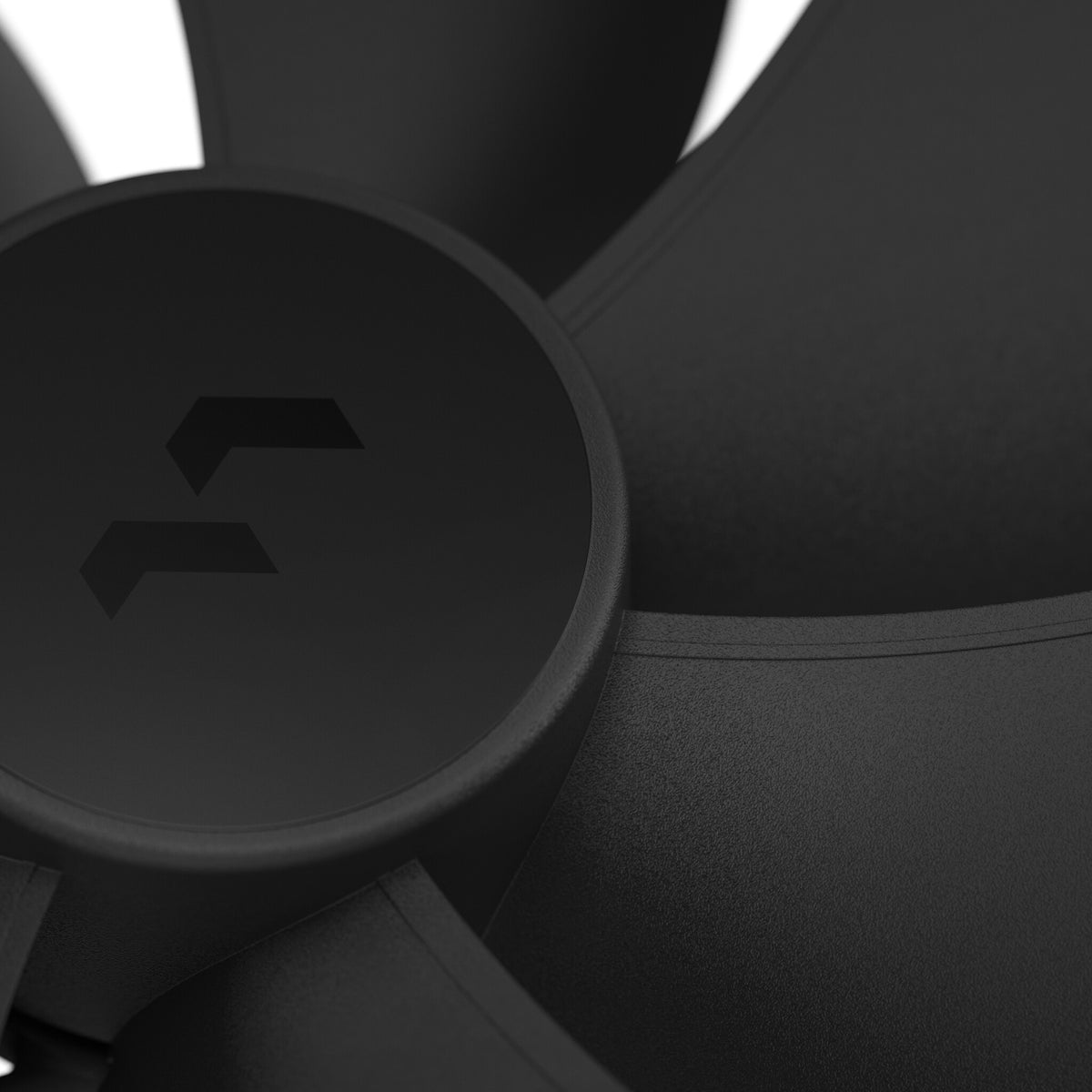

Notched blade design
- Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts

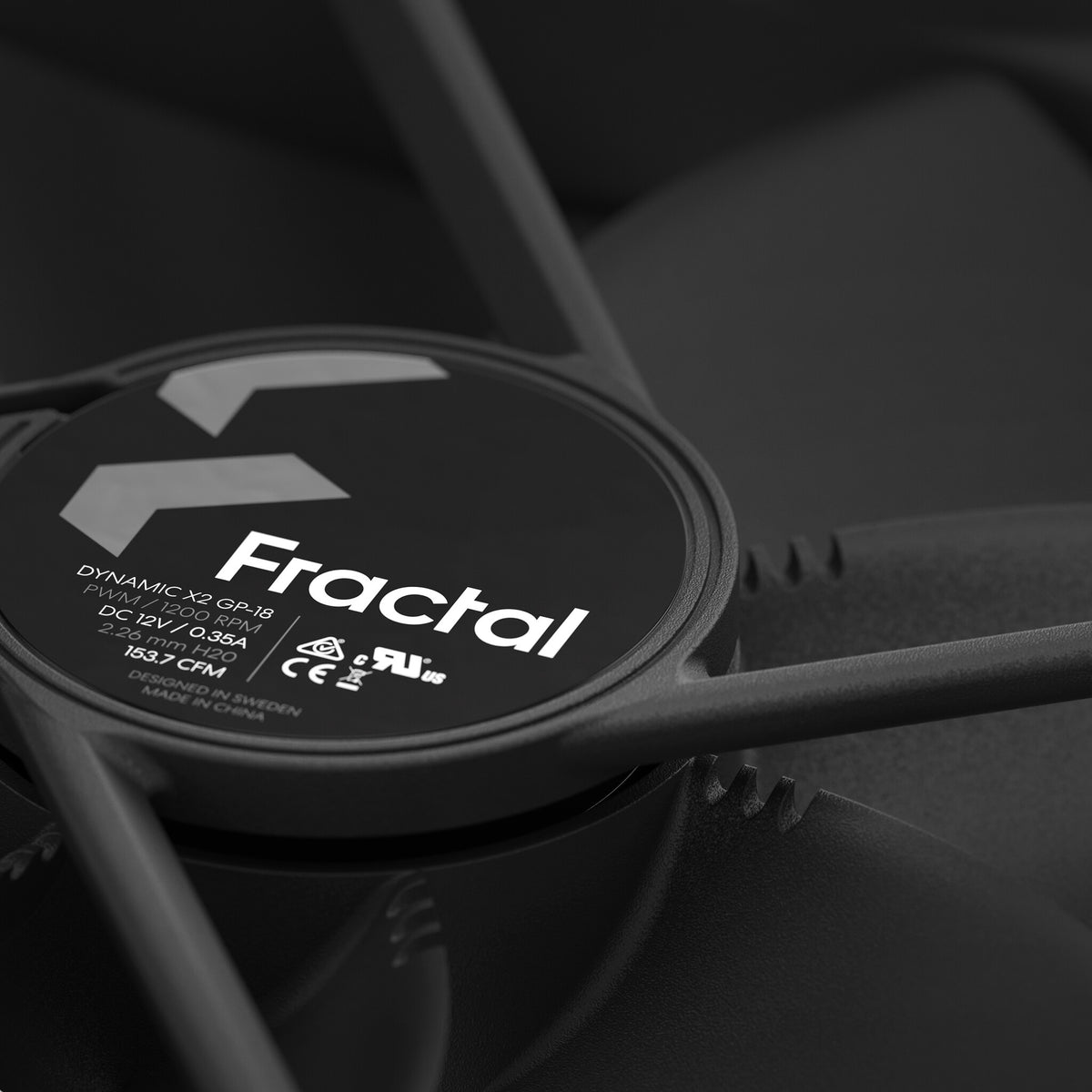

- Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence
- Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 90000 h |
| Quantity per pack | 1 pc(s) |
| Bearing type | Sleeve bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.26 mmH2O |
| Minimum air pressure | 0.4 mmH2O |
| Airflow | 261.29 m³/h |
| Maximum airflow | 153.7 cfm |
| Minimum airflow (imperial) | 44.9 cfm |
| Noise level (high speed) | 35.4 dB |
| Noise level (low speed) | 16 dB |
| Rotational speed (max) | 1200 RPM |
| Rotational speed (min) | 300 RPM |
| Compatible processor series | Not supported |
| Supported processor sockets | Not supported |
| Fan diameter | 18 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of fan blades | 7 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Maximum current | 0.35 A |
| Voltage | 6 - 12 V |
| Weight & dimensions | |
|---|---|
| Package weight | 548 g |
| Package height | 40 mm |
| Package depth | 182 mm |
| Package width | 227 mm |
| Cable length | 1 m |
| Fan weight | 499 g |
| Fan dimensions (W x D x H) | 180 x 180 x 38 mm |
| Packaging content | |
|---|---|
| Number of screws | 12 |
| Screws included | Yes |
| Package type | Hanging box |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
