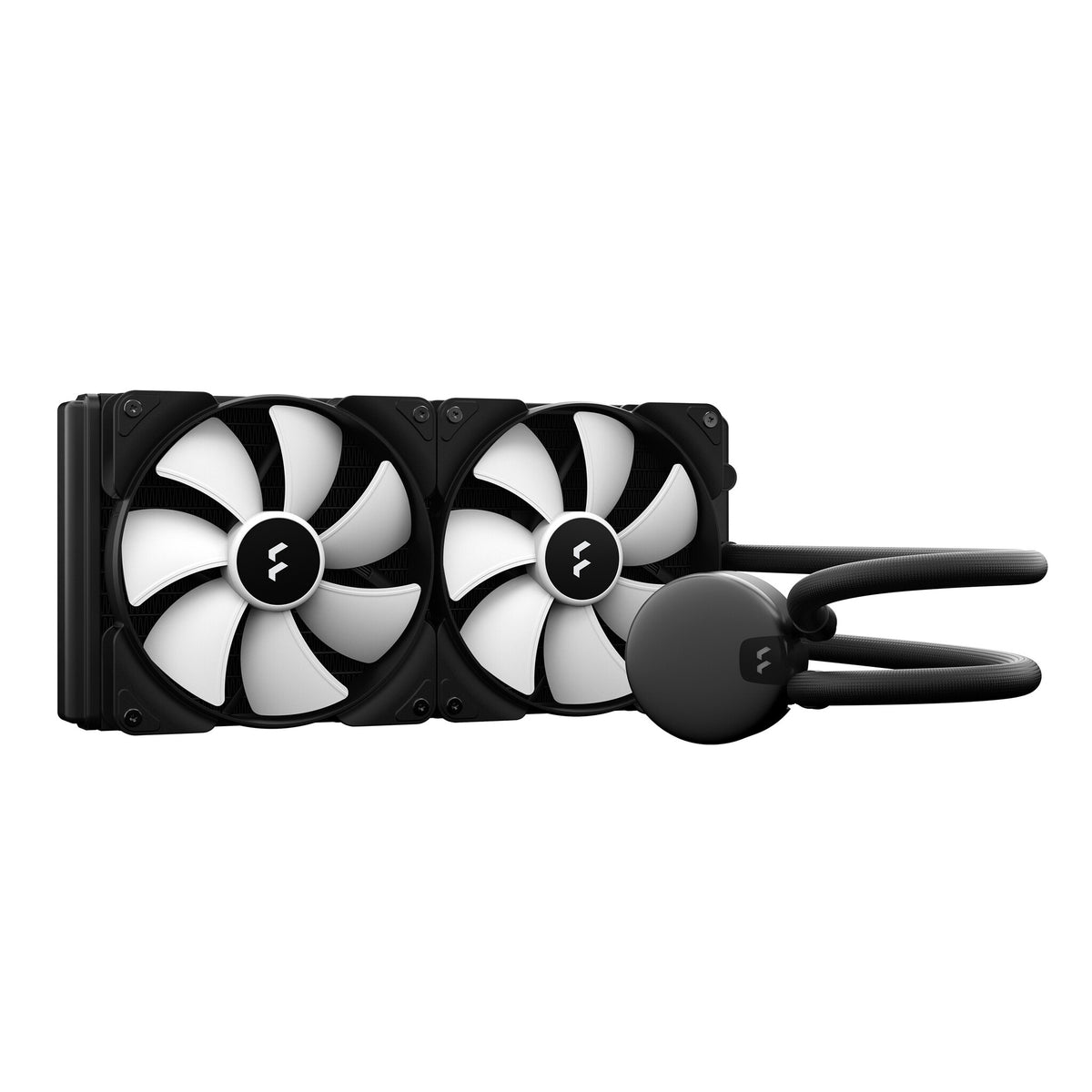

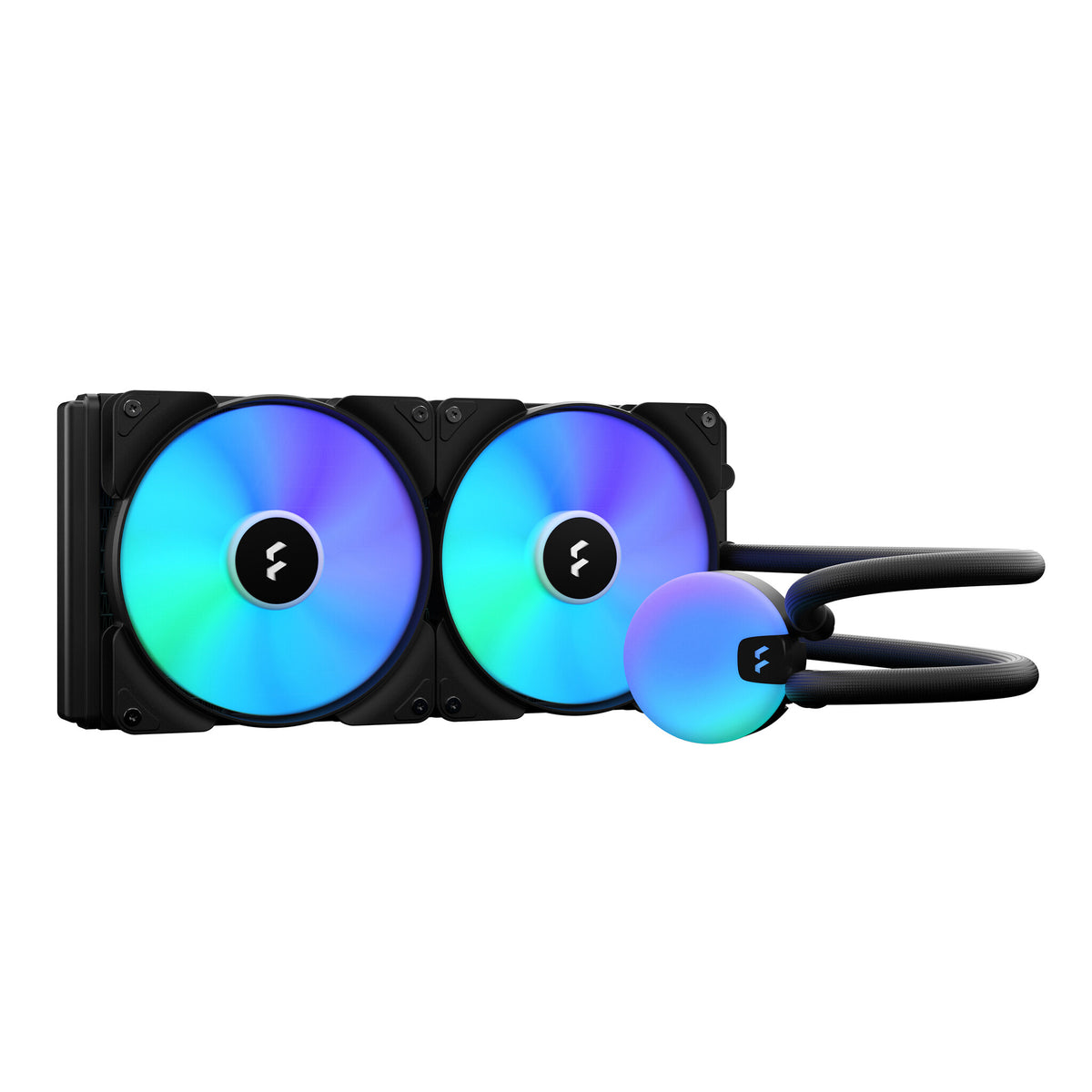

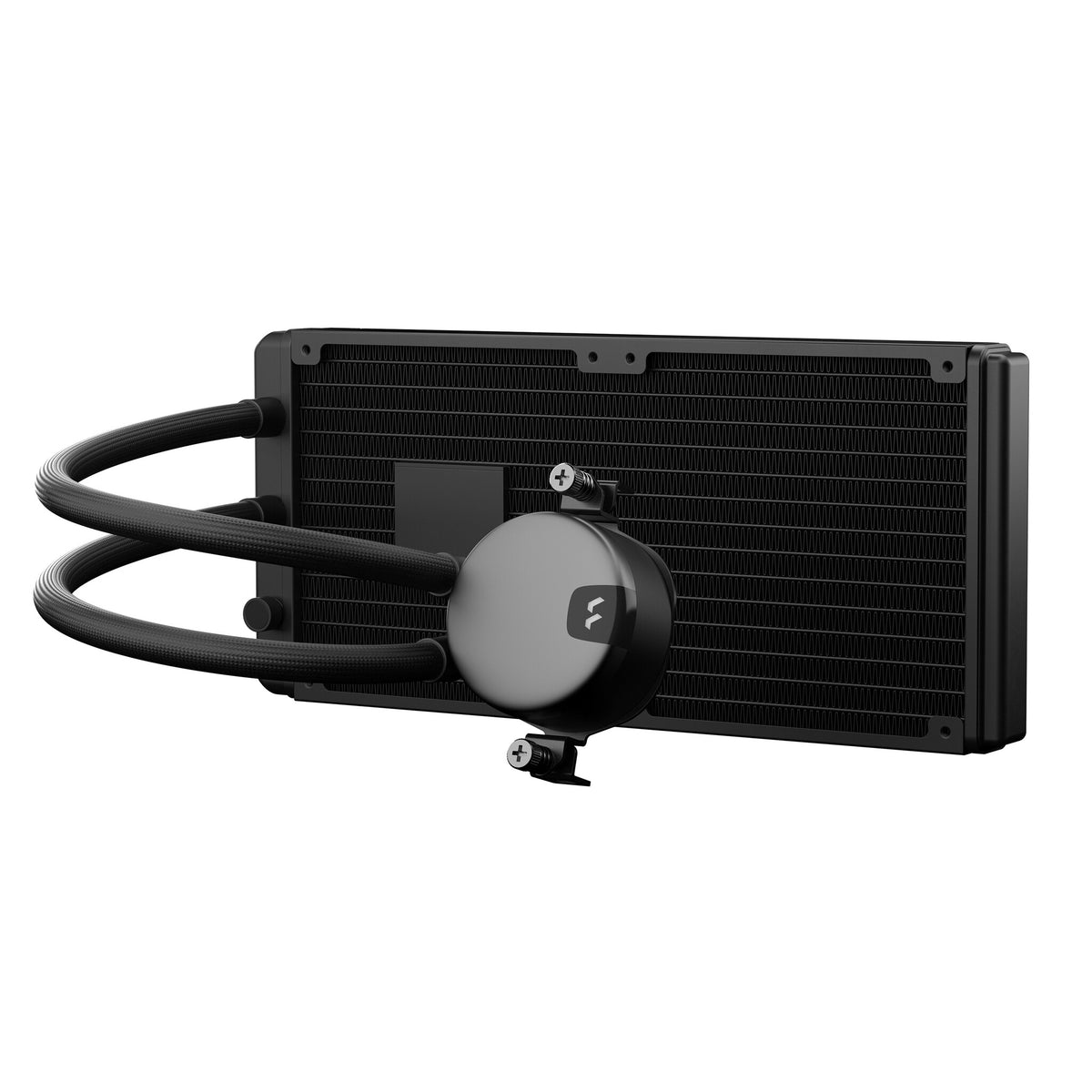

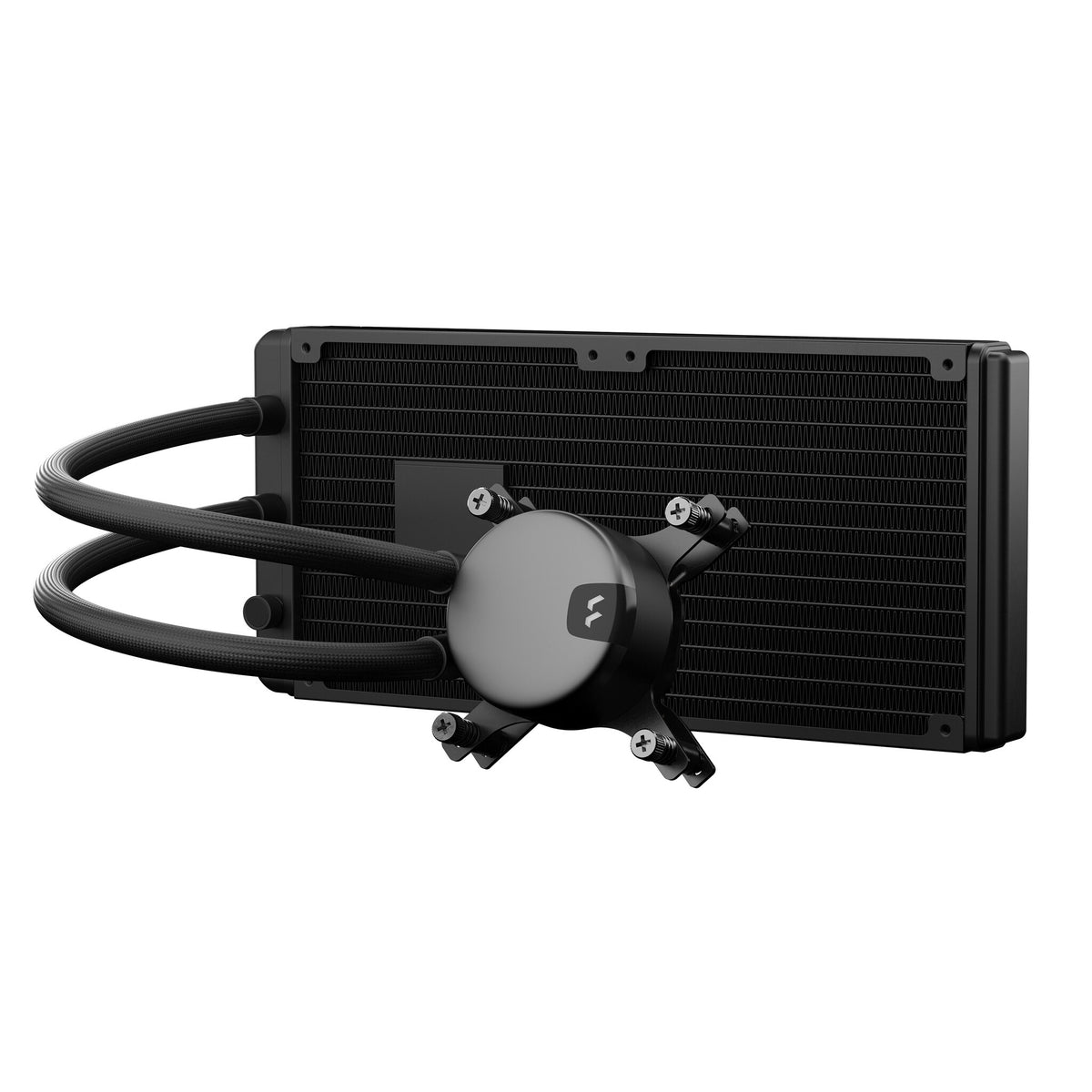

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
The right way up
- The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- Low-permeability rubber tubes with braided nylon sleeves

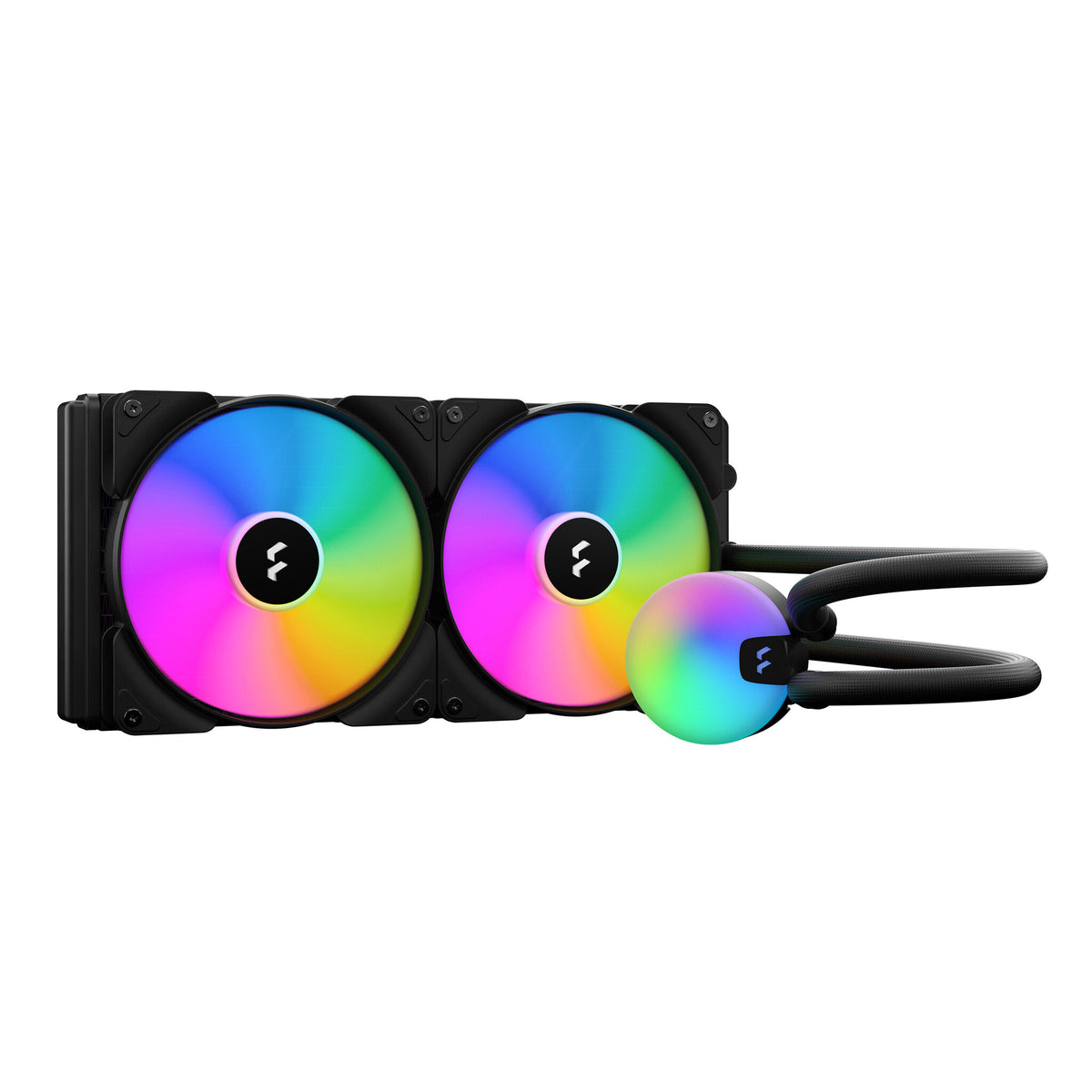

From subtle to stunning
- Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- Six ARGB LEDs are yours to command via your motherboard or controller
Color-coordinate your cooling
Compatible with ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome and Razer Chroma
Forget the thermal paste
- Thermal paste is pre-applied to ensure a proper and pain-free installation
- Articulating elbow fittings make tubes easier to route and reduces tension on the cold plate housing
Common denominators
- Compatible with LGA 1700 and AM5
- Supports the most common sockets for both Intel and AMD
Powerful aspects
Aspect fans for low turbulence and chaining support
Performance | |
---|---|
Fan's mean time to failure (MTTF) | 90000 h |
Pump's mean time to failure (MTTF) | 50000 h |
Pump motor speed | 4000 RPM |
Quantity per pack | 1 pc(s) |
Pump bearing technology | Ceramic bearing |
Fan bearing technology | Rifle bearing |
Pump noise level | 22 dB |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.05 mmH2O |
Minimum air pressure | 0.3 mmH2O |
Maximum airflow | 78 cfm |
Minimum airflow (imperial) | 20 cfm |
Noise level (high speed) | 35.5 dB |
Noise level (low speed) | 10 dB |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 14 cm |
Type | All-in-one liquid cooler |
Suitable location | Processor |
Design | |
---|---|
Illumination colour | Multi |
Number of LEDs | 6 |
Illumination LED | Yes |
Fins material | Aluminium |
Number of fans | 2 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Product colour | Black |
Power | |
---|---|
Pump voltage | 12 V |
Pump current | 340 mA |
Fan voltage | 12 V |
Fan current | 0.24 A |
Weight & dimensions | |
---|---|
Package weight | 2 kg |
Package height | 183 mm |
Package depth | 369 mm |
Package width | 171 mm |
Tube length | 40 cm |
Radiator height | 2.7 cm |
Radiator depth | 31.3 cm |
Radiator width | 14 cm |
Packaging content | |
---|---|

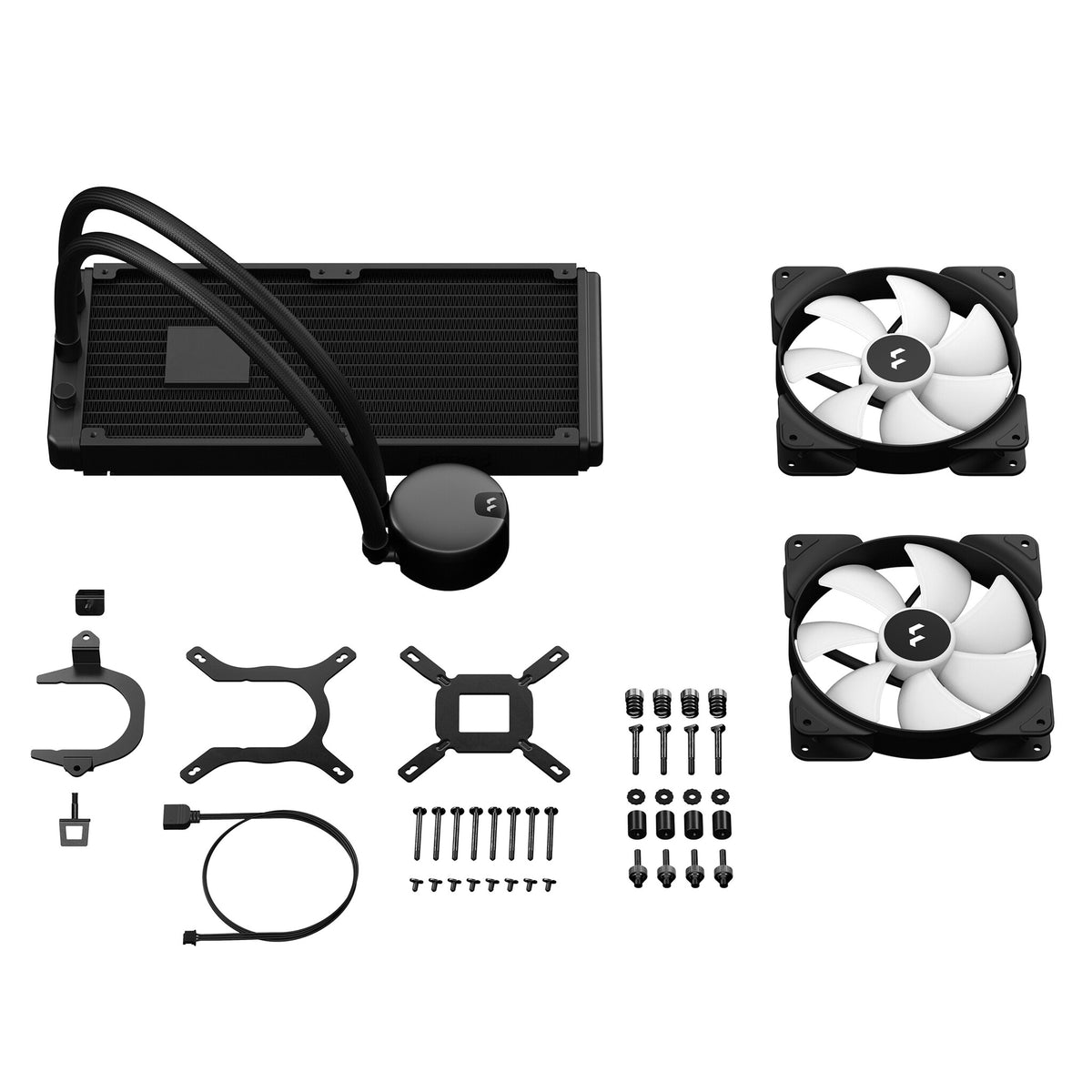

Mounting kit | Yes |

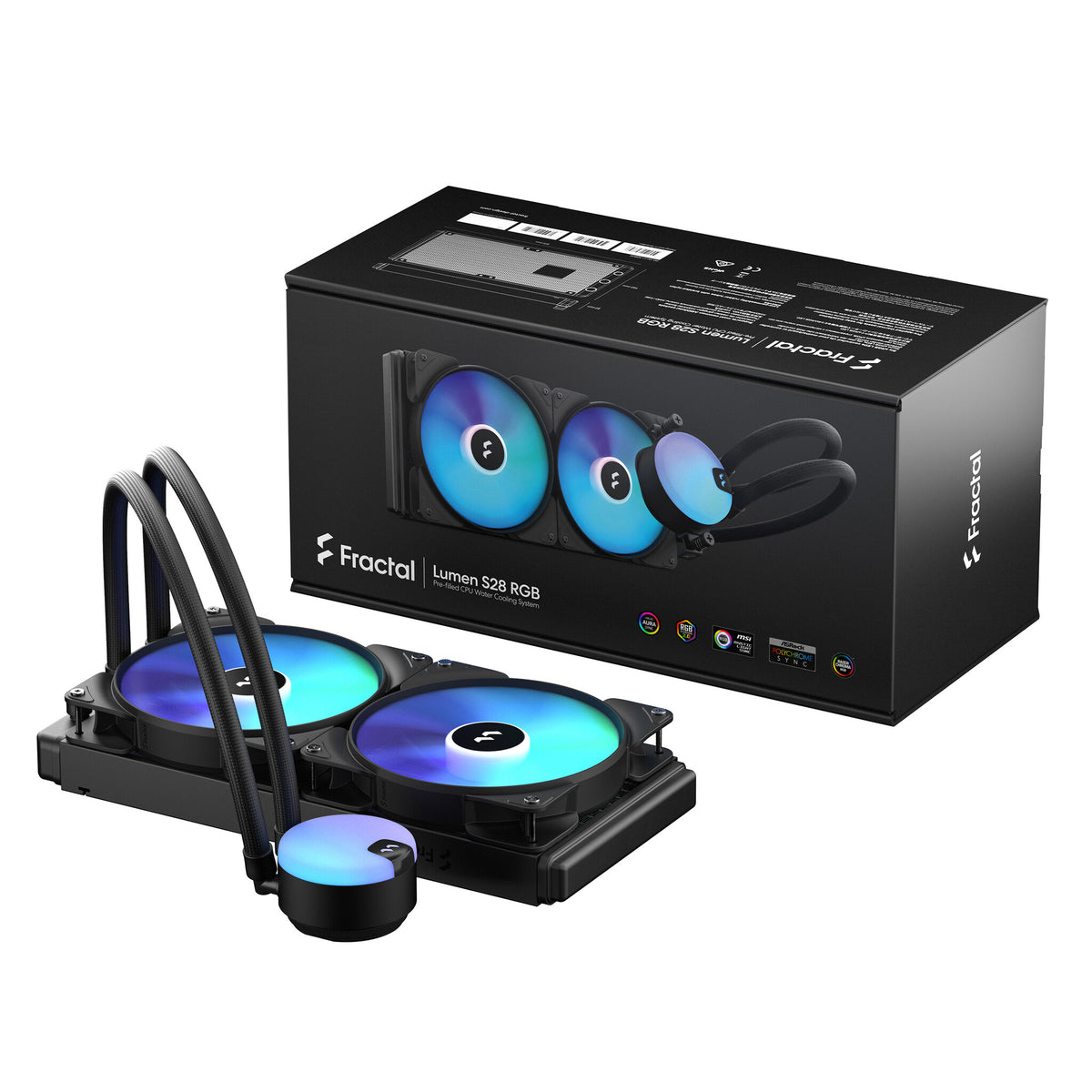

Package type | Box |
