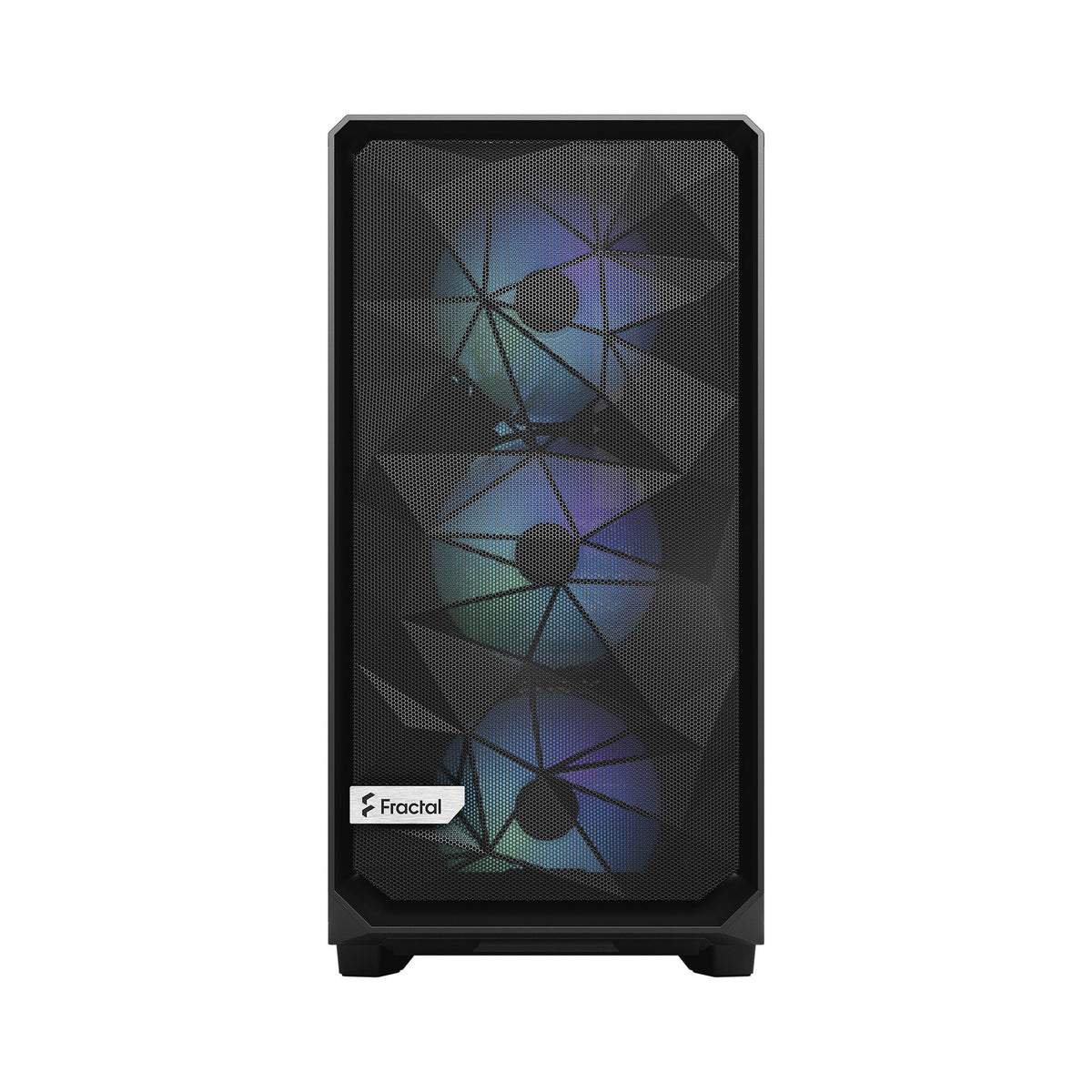

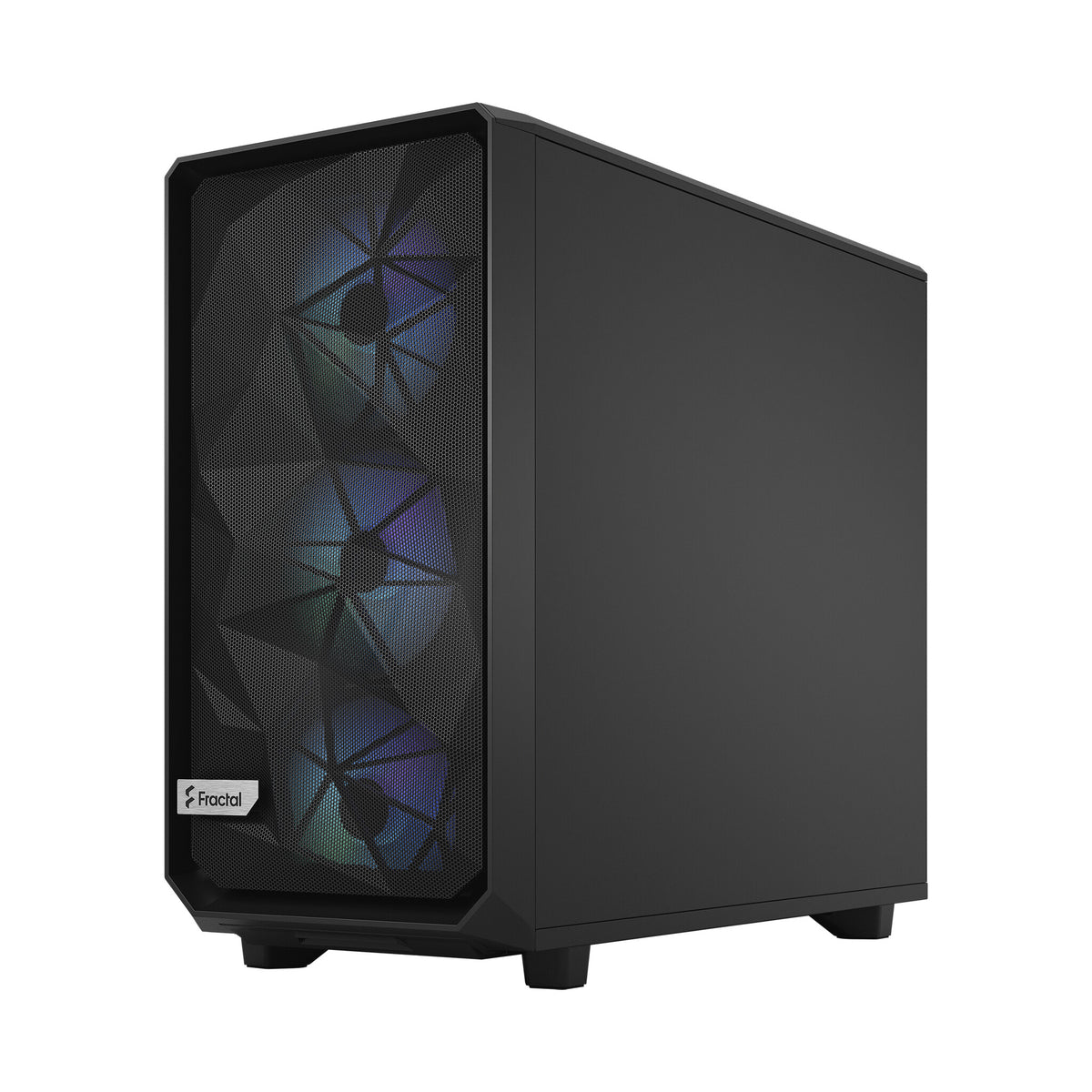

The Meshify 2 RGB is a high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a front with USB-C, hinged mesh panel and removable nylon filter. The flexible dual-layout interior supports large storage arrays and multi-radiator setups that makes cooling a breeze.
Refined airflow
- Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and four preinstalled Aspect 14 RGB PWM fans
- Repositioned front fan mounting sets a wider stage for light and color
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
Detachable front filter
- Hinged removable mesh front panel and tether-free bezel for easier access to front fan mounts
- Front nylon filter that can be removed for increased airflow
- Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
Light and color
Comes with 4x Aspect 14 RGB PWM fans pre-installed
Superlative storage
- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)

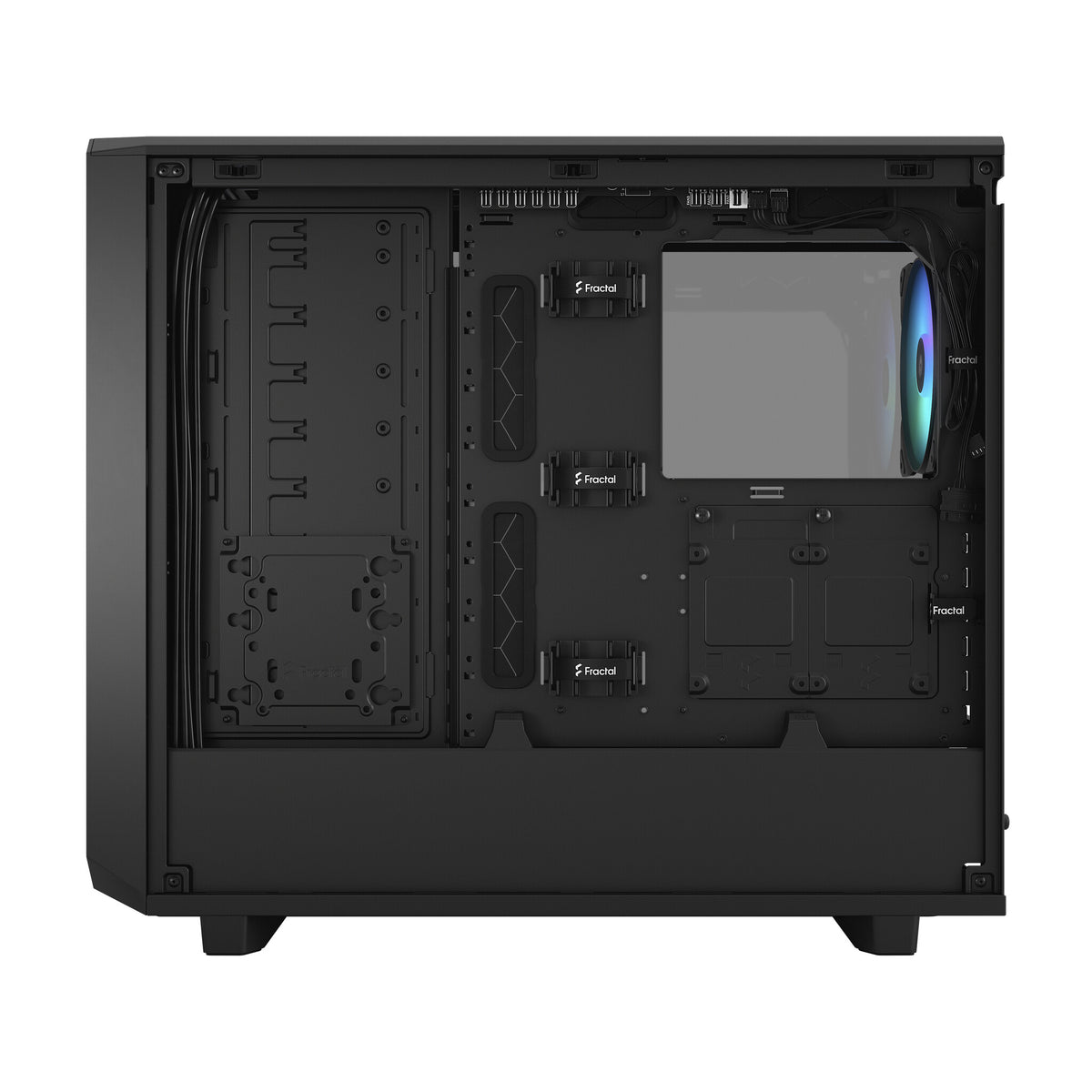

- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while preventing accidental drops
Extremely flexible
- Support for radiators up to 360 mm in front, 360 mm up top, or 280 mm in the base in the default Open Layout
- Easily holds large motherboards up to and including 285 mm E-ATX
- Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support

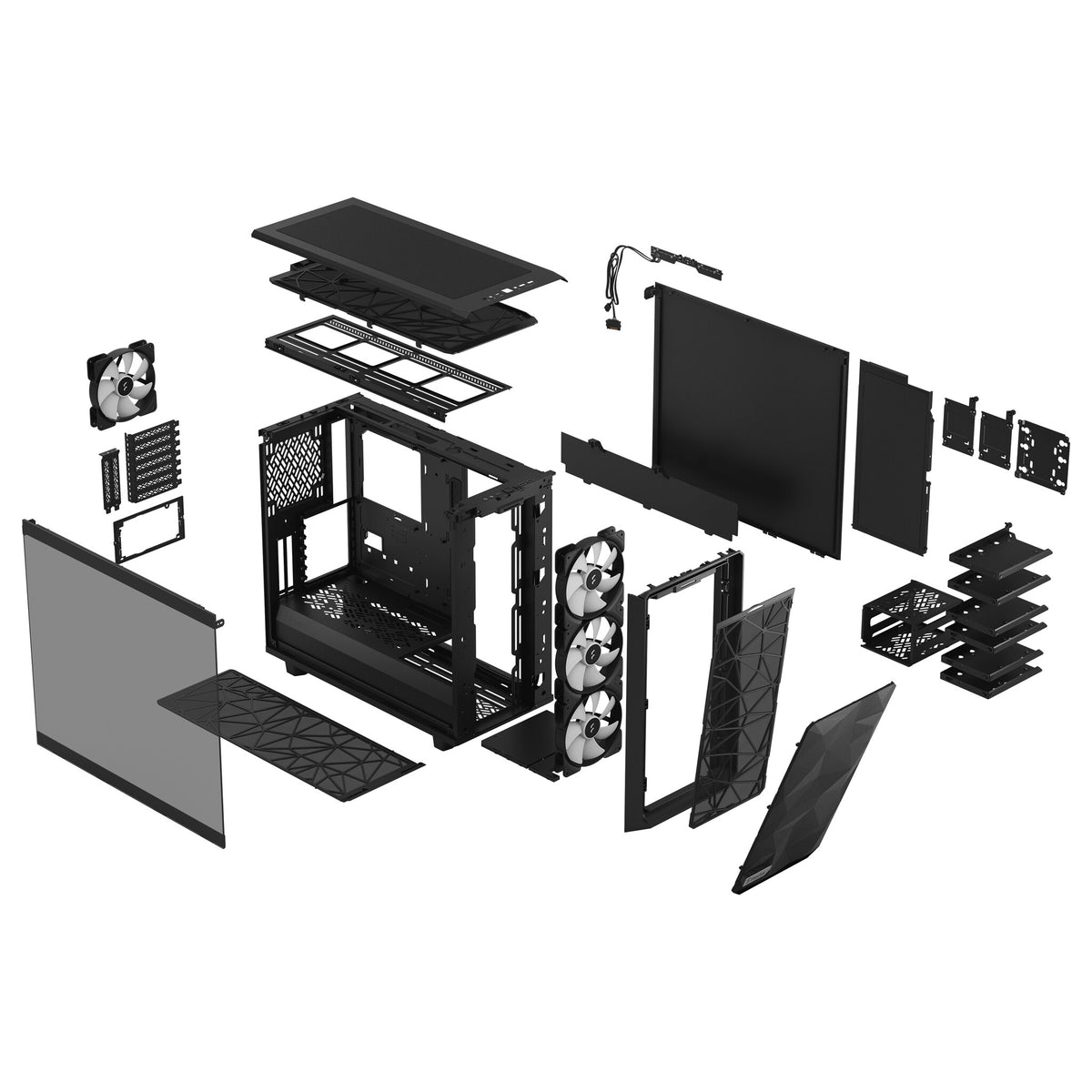

- Chassis opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
Type-C Interface

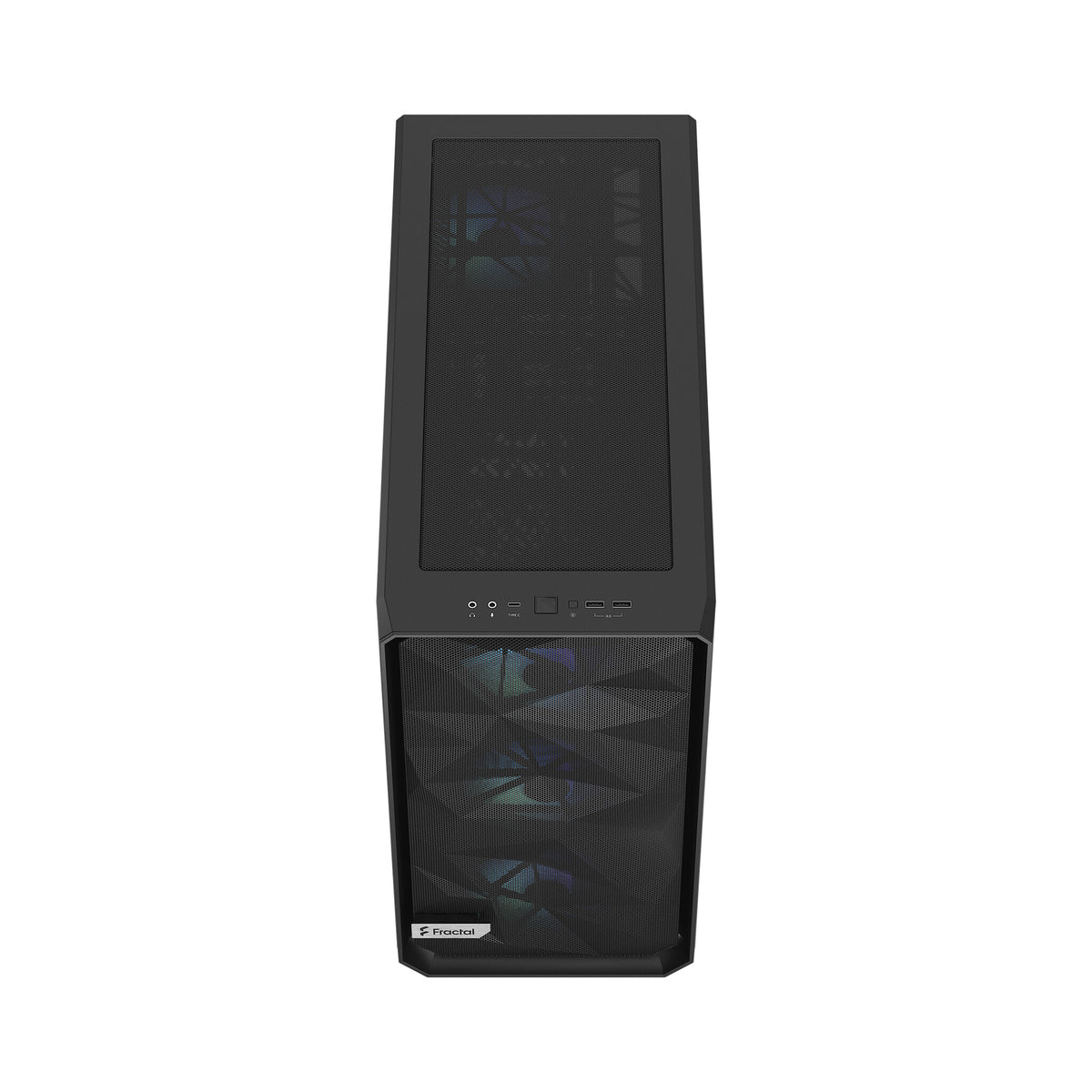

- Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
- Built in RGB controller on the front/top I/O with iconic Fractal Northern Lights effect
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Versatile Multibracket
Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
Cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Design | |
---|---|
Maximum PSU length | 25 cm |
Maximum graphics card length | 45 cm |
Maximum CPU cooler height | 18.5 cm |
On/off button | Yes |
RGB control button | Yes |
Cable management | Yes |
Anti-dust filter | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Side window | Yes |
Number of expansion slots | 9 |
Number of 2.5" bays | 14 |
Number of 3.5" bays | 4 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | Steel, Tempered glass |
Type | PC |
Power supply | |
---|---|
Supported power supply form factors | ATX |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 280,360 mm |
Rear radiator sizes supported | 120 mm |
Bottom radiator sizes supported | 240 mm |
Front radiator sizes supported | 280,360 mm |
Bottom fans diameters supported | 120,140 mm |
Number of bottom fans supported (max) | 2 |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 140 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 140 mm |
Storage | |
---|---|
SSD form factor | 2.5" |
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 11.1 kg |
Height | 474 mm |
Depth | 542 mm |
Width | 240 mm |
Packaging data | |
---|---|
Package weight | 12.7 kg |
Package height | 640 mm |
Package depth | 540 mm |
Package width | 330 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
