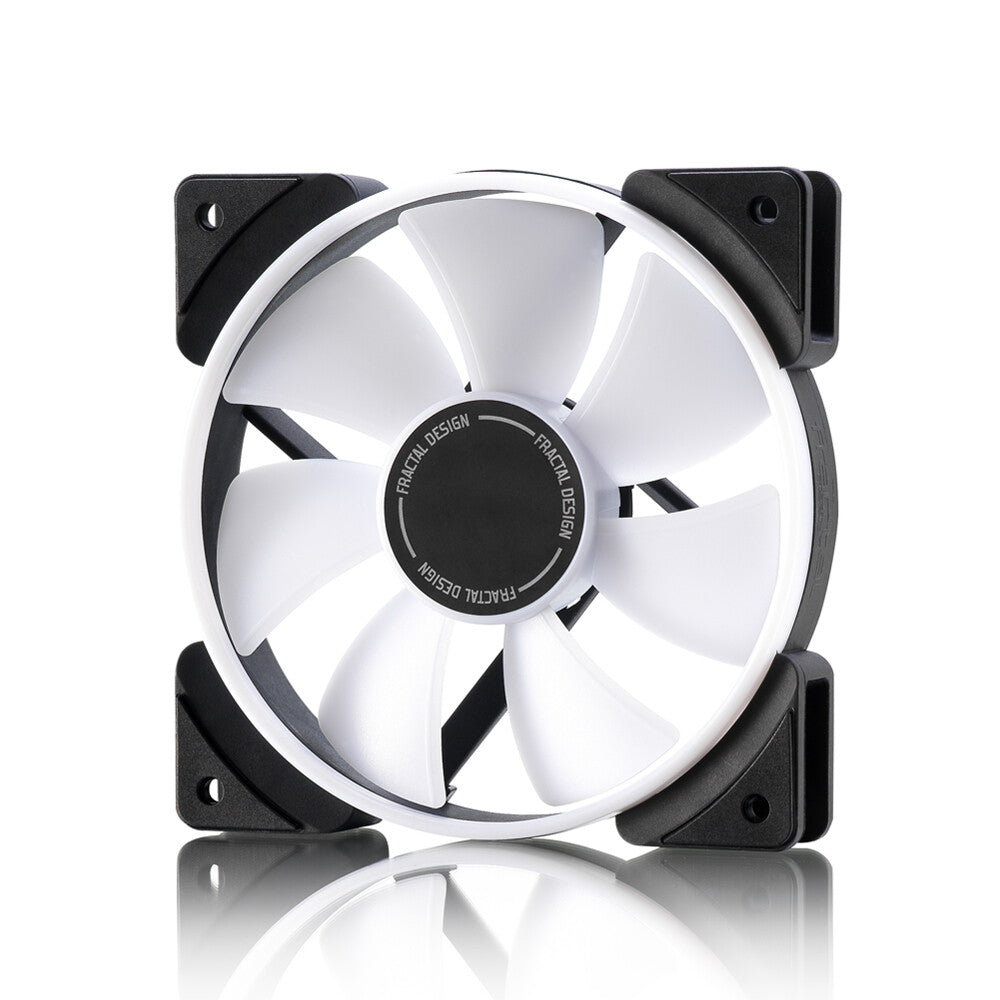

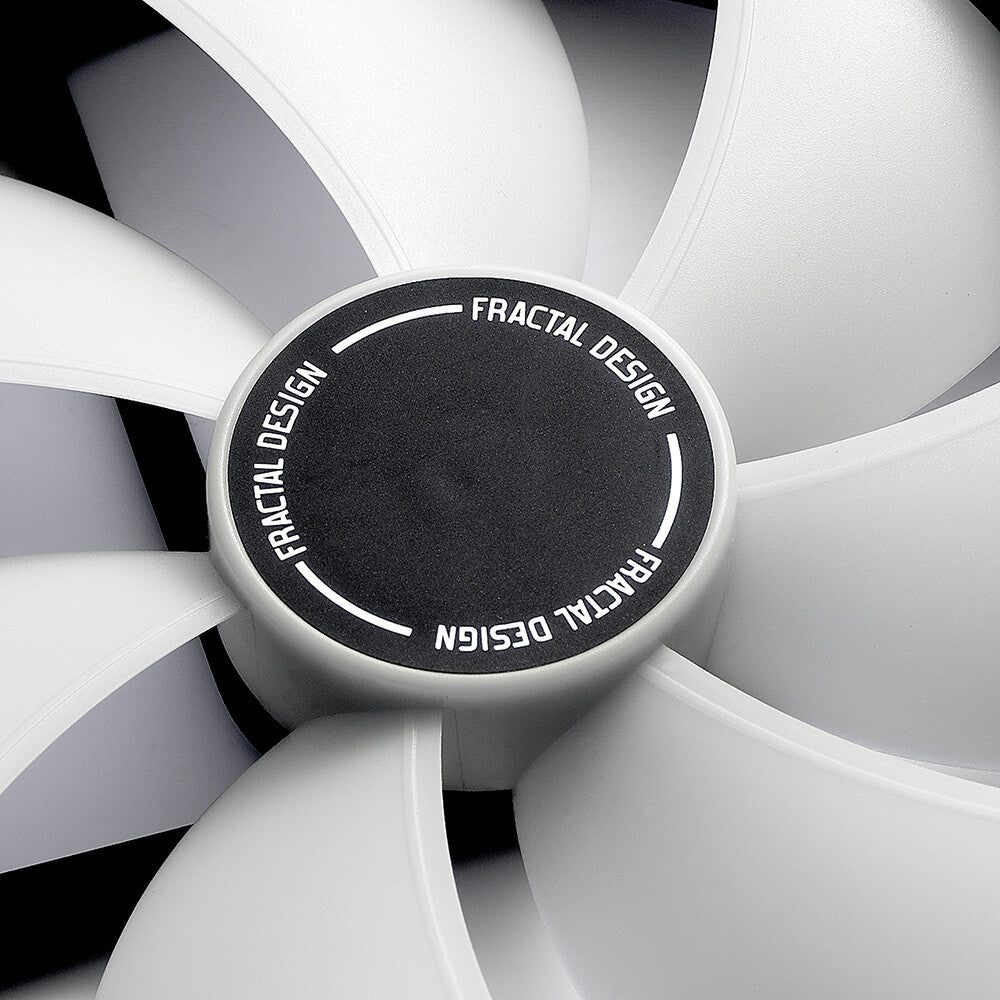

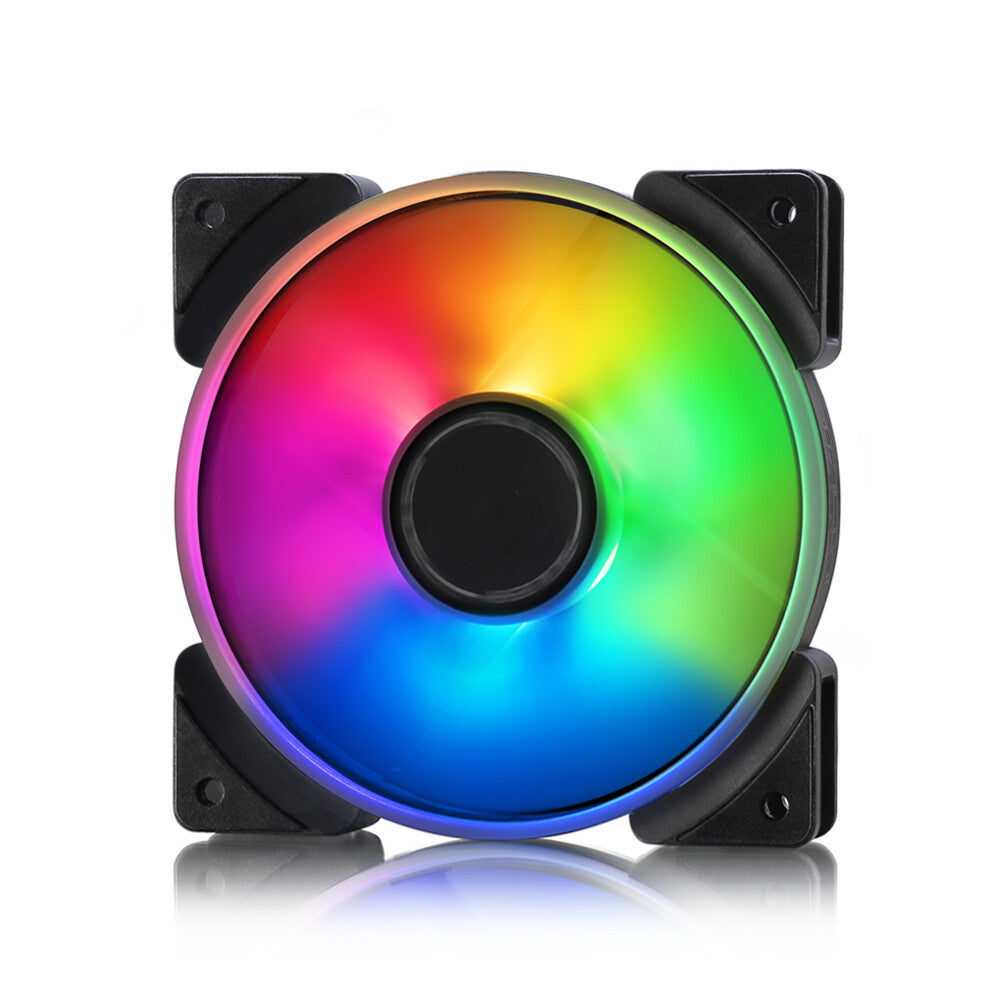

Fractal Design Prisma AL Series ARGB fans allow your system to truly shine. Six hub-mounted addressable RGB LEDs work in harmony with a white semi-opaque outer ring and fan blades to produce a beautifully uniform glow across the fan’s entire surface.
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components. Those wanting more physical control can pair Prisma with the Adjust R1 controller to switch between colors, brightness, and motion effects with the push of button.

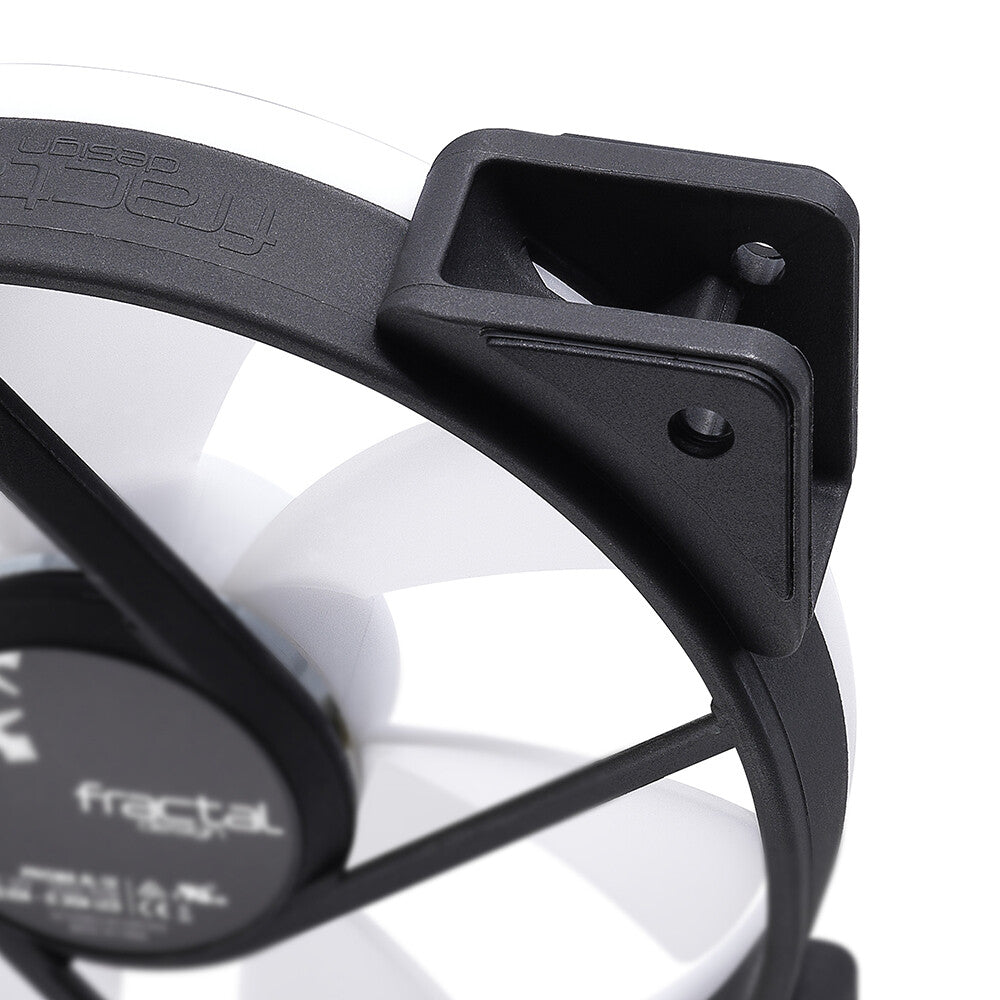

As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Quantity per pack | 1 pc(s) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.78 mmH2O |
Minimum air pressure | 0.36 mmH2O |
Airflow | 145.62 m³/h |
Maximum airflow | 85.71 cfm |
Minimum airflow (imperial) | 20.68 cfm |
Noise level (high speed) | 32.7 dB |
Noise level (low speed) | 14.8 dB |
Rotational speed (max) | 2000 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 12 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
Number of LEDs | 6 |
Illumination LED | Yes |
Number of fan blades | 7 |
Product colour | Black, White |
Power | |
---|---|
Rated current | 0.18 A |
LED voltage | 5 V |
Starting voltage | 7 V |
Voltage | 12 V |
Power supply | 2.16 W |
Weight & dimensions | |
---|---|
Package weight | 212 g |
Package height | 30 mm |
Package depth | 122 mm |
Package width | 182 mm |

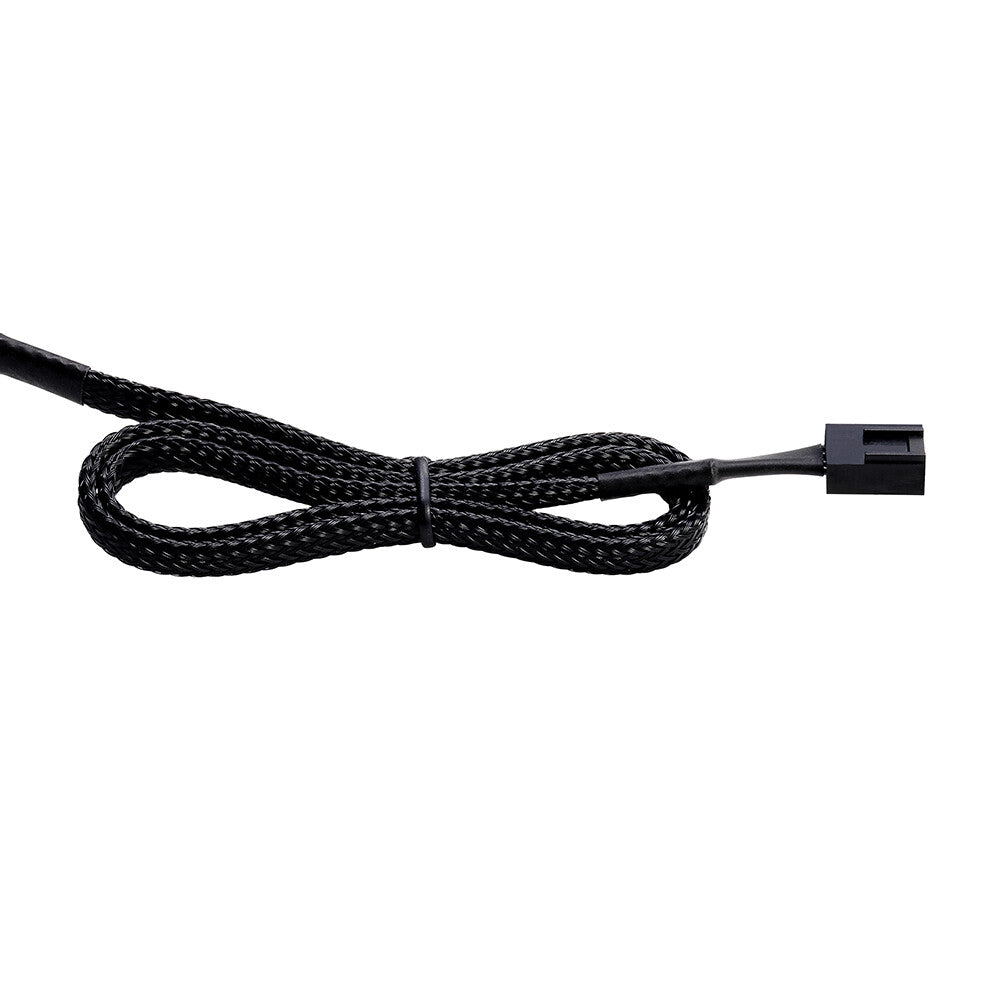

Cable length | 0.5 m |
Weight | 169 g |
Height | 120 mm |
Depth | 25 mm |
Width | 120 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
Other features | |
---|---|
Country of origin | China |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
