Supports Gigabyte Fusion, ASUS Aura, Razer Chroma, MSI Mystic Light and ASRock Polychrome
Prisma AL-12/14 allows precision software control, enabling Prisma to synergize perfectly with your components. If you prefer physical control, just pair Prisma with the newly released Adjust R1 controller to set colors, brightness, and motion effects with the push of a button.
As with any Fractal Design fan, silence remains a central focus with integrated vibration damping corners, silent LLS bearings, and PWM options for complete control over the speed of your fans, ensuring Prisma is seen, not heard.
Let your system shine
Support for ASUS Aura, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome allows precision software control, enabling Prisma to synergize perfectly with your components.
- Six individually addressable hub-mounted RGB LEDs
- Specially designed fan blades and outer ring produce an exceptionally uniform glow
- Chainable RGB cables simplify wiring and make the most of available connections
- Black sleeved power cables offer an extra touch of style
- Adjust R1 RGB or Adjust 2 controller (sold separately) enables physical control of colors and effects
- Available in 3-pack
Uniform light

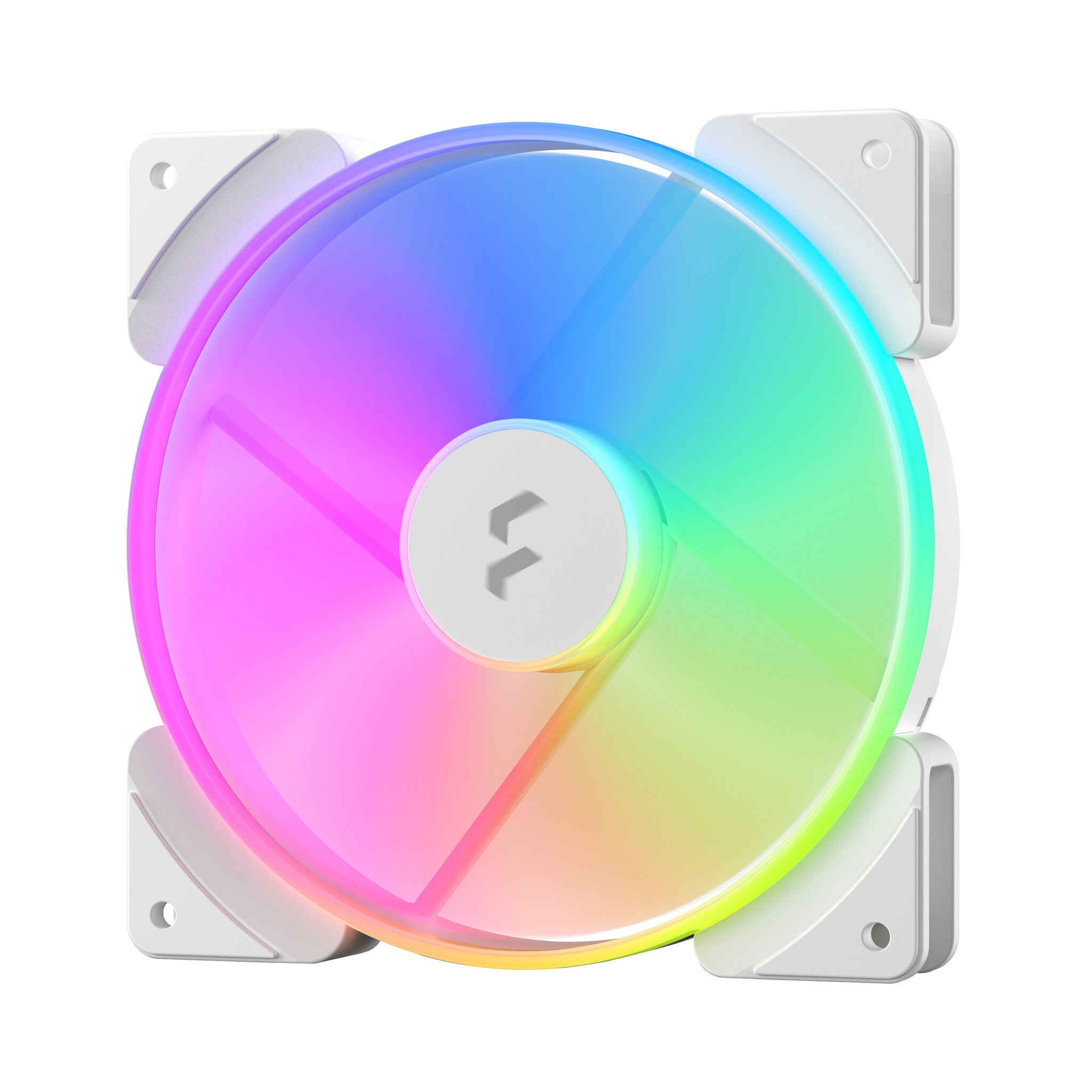

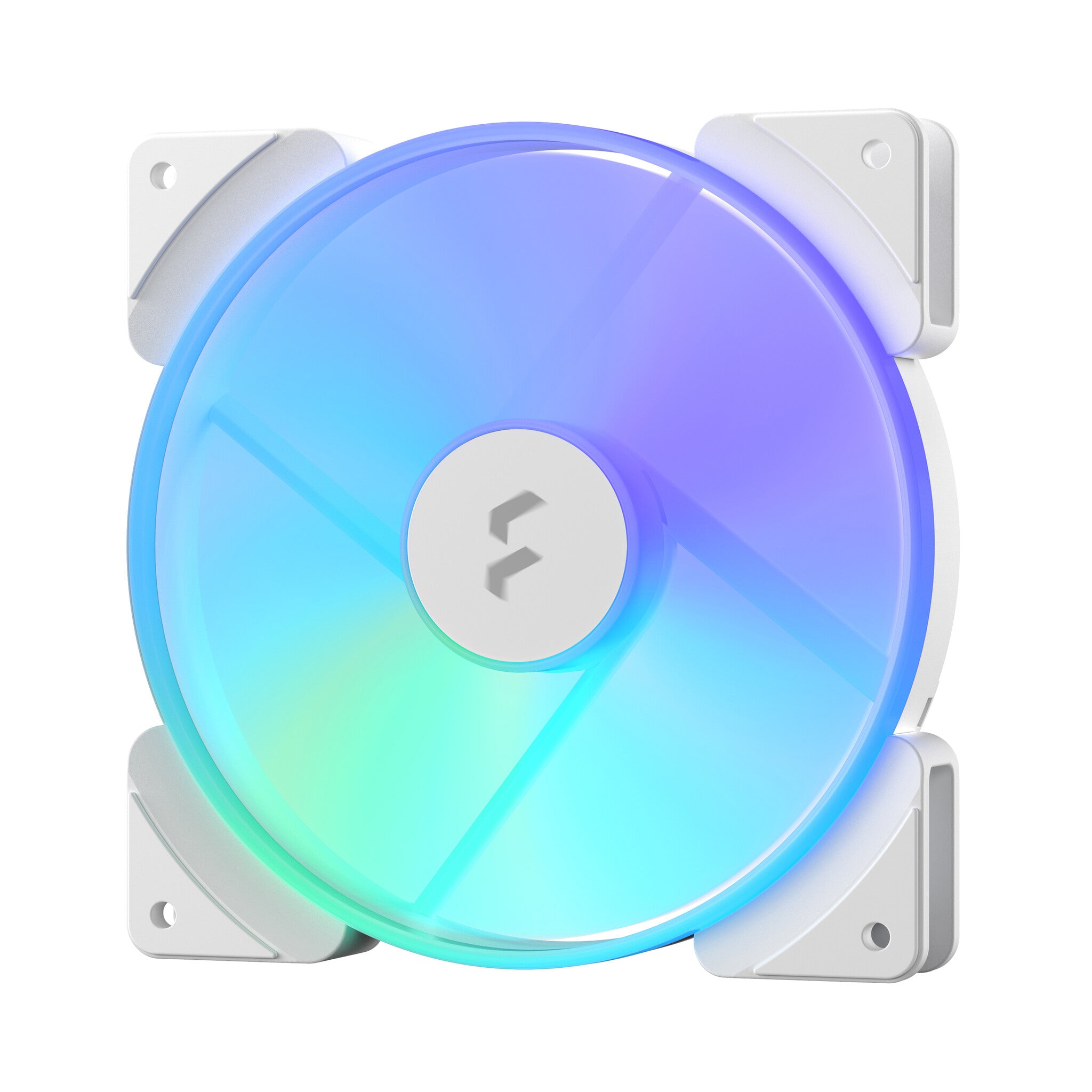

Specially designed white semi-opaque fan blades and outer ring produce an exceptionally uniform glow
Vibrant colors

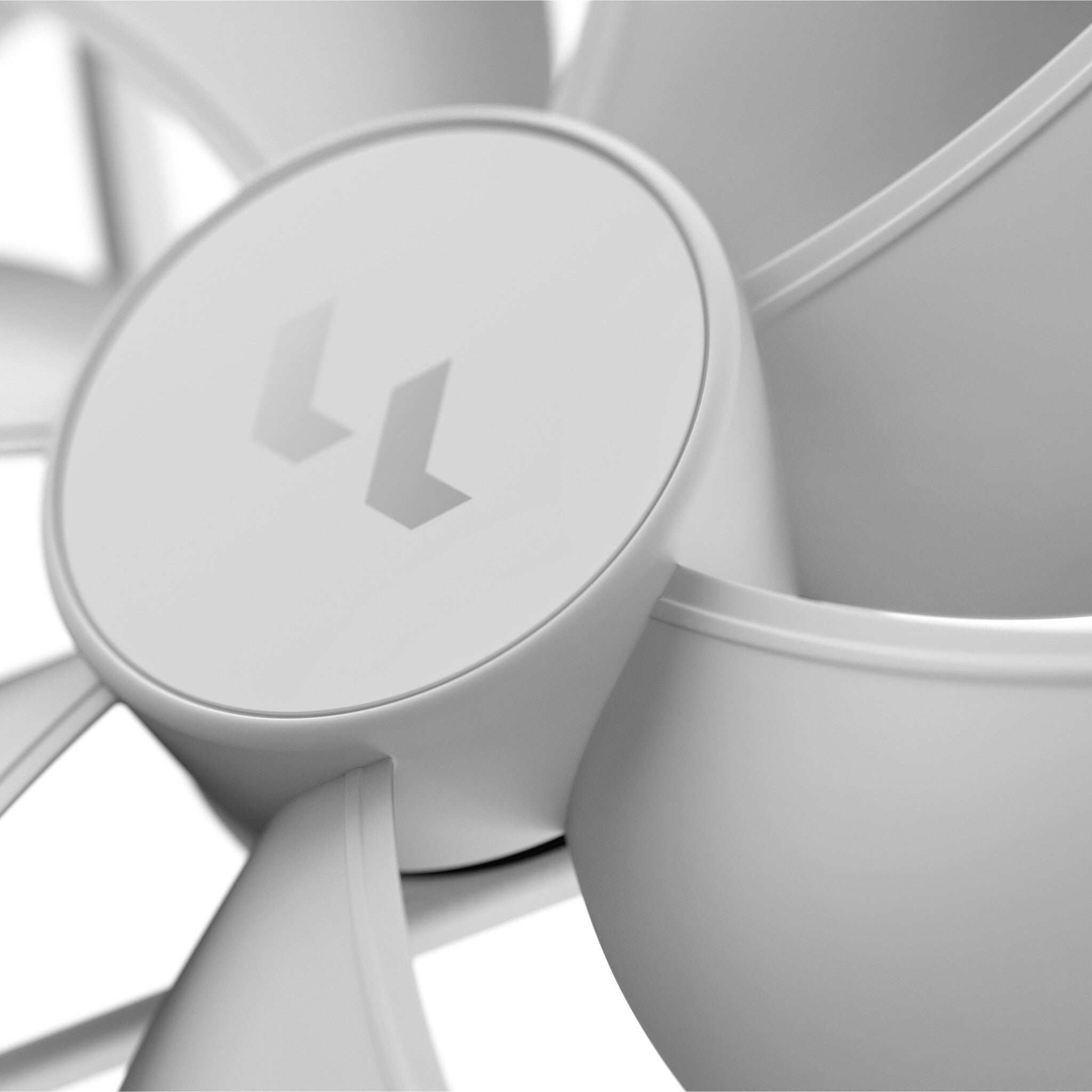

Six hub-mounted individually addressable RGB LEDs deliver powerful lighting in a full spectrum of color choices
Full control
PWM control with a wide speed range ideal for CPU heatsinks and radiators
Aerodynamic performance

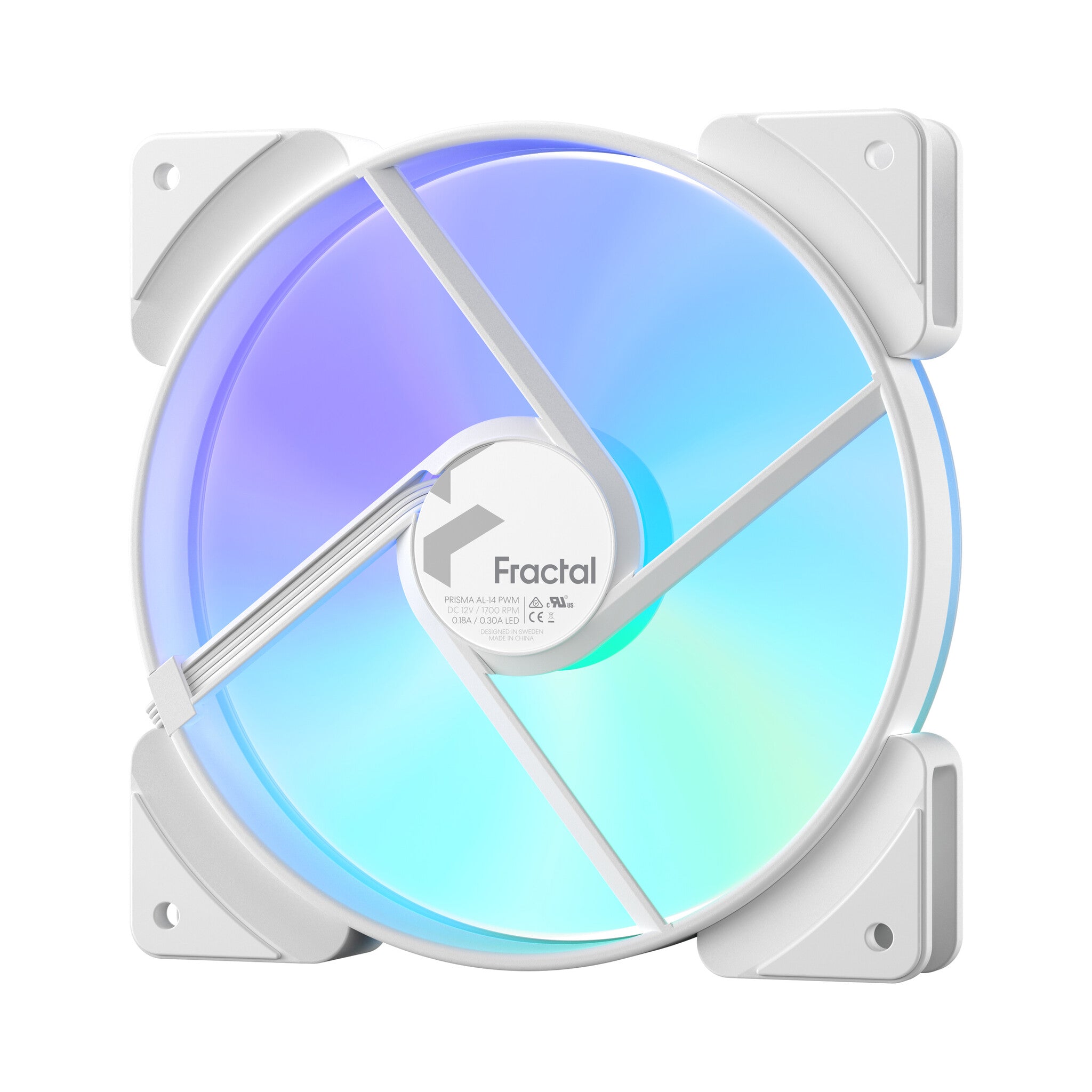

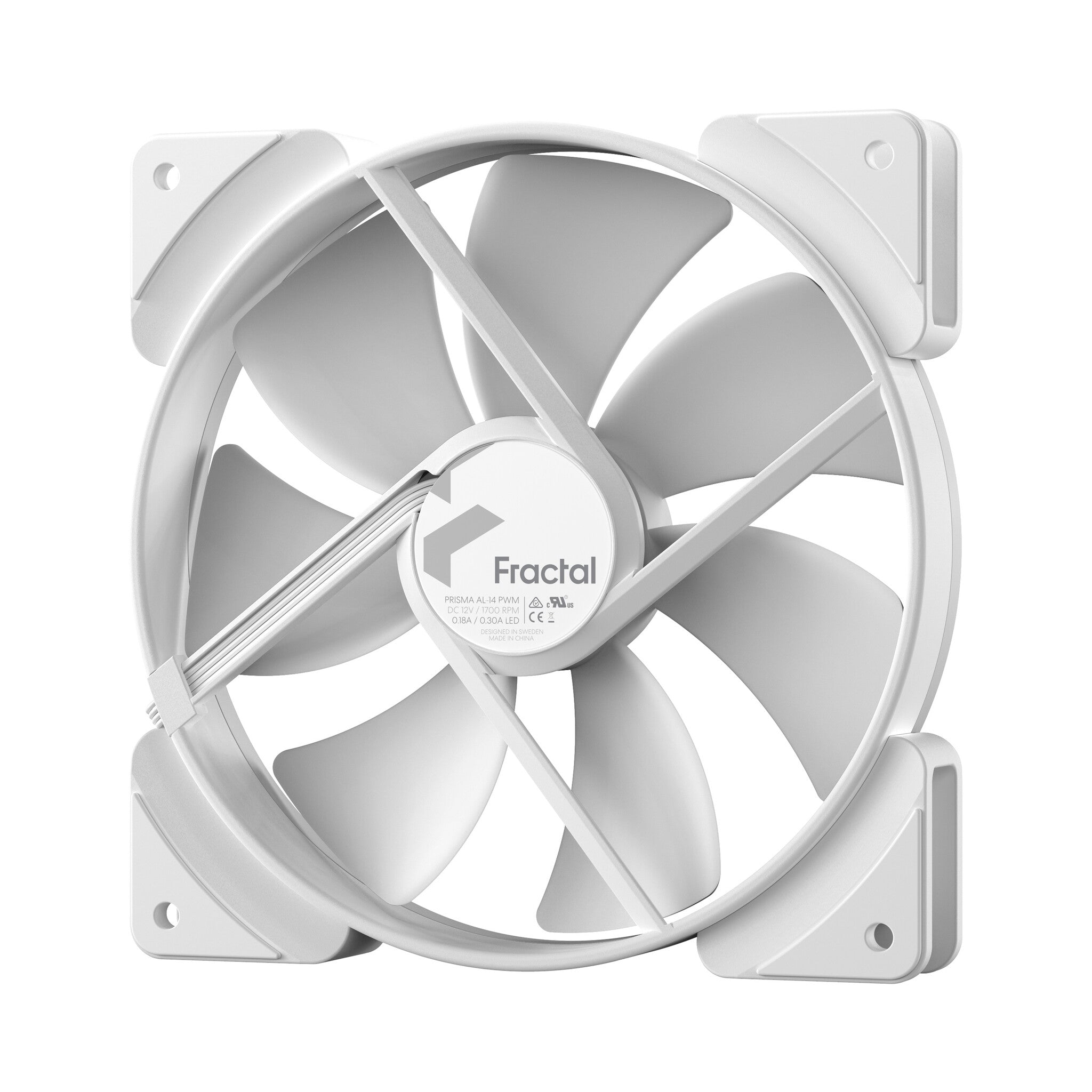

- Aerodynamic stator struts with embedded wiring reduce noise and turbulence
- Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency

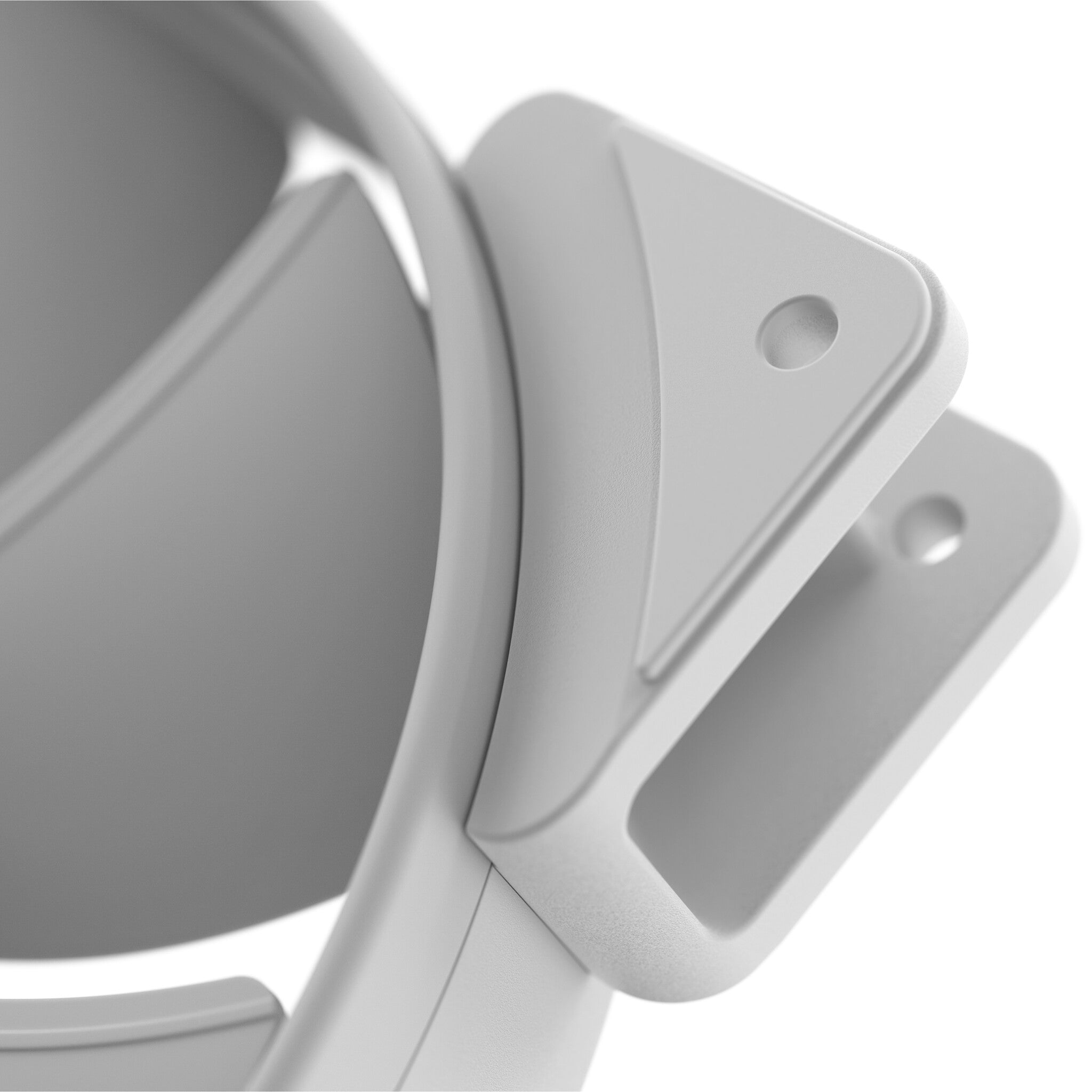

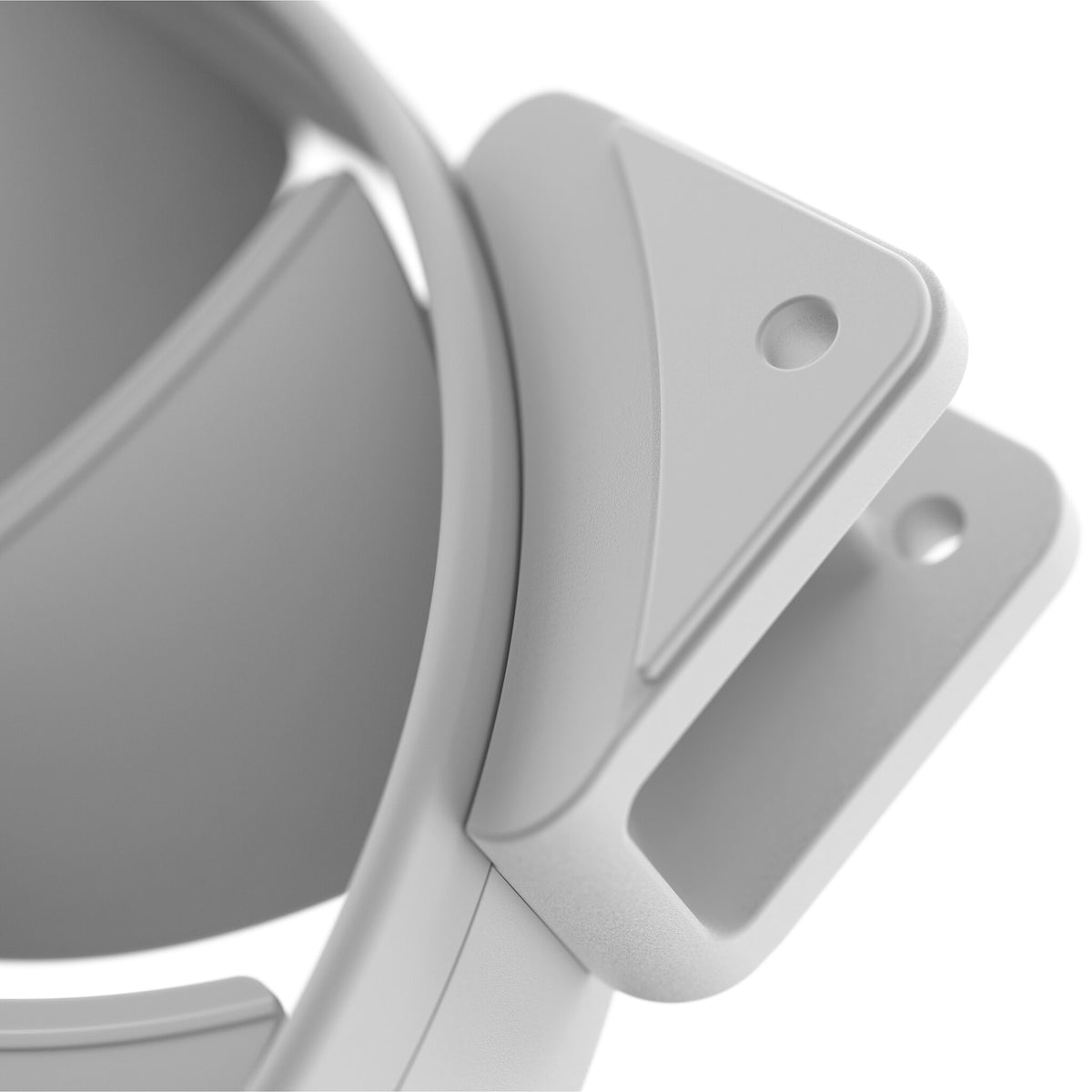

- Integrated vibration-damping corners made from high-quality synthetic rubber

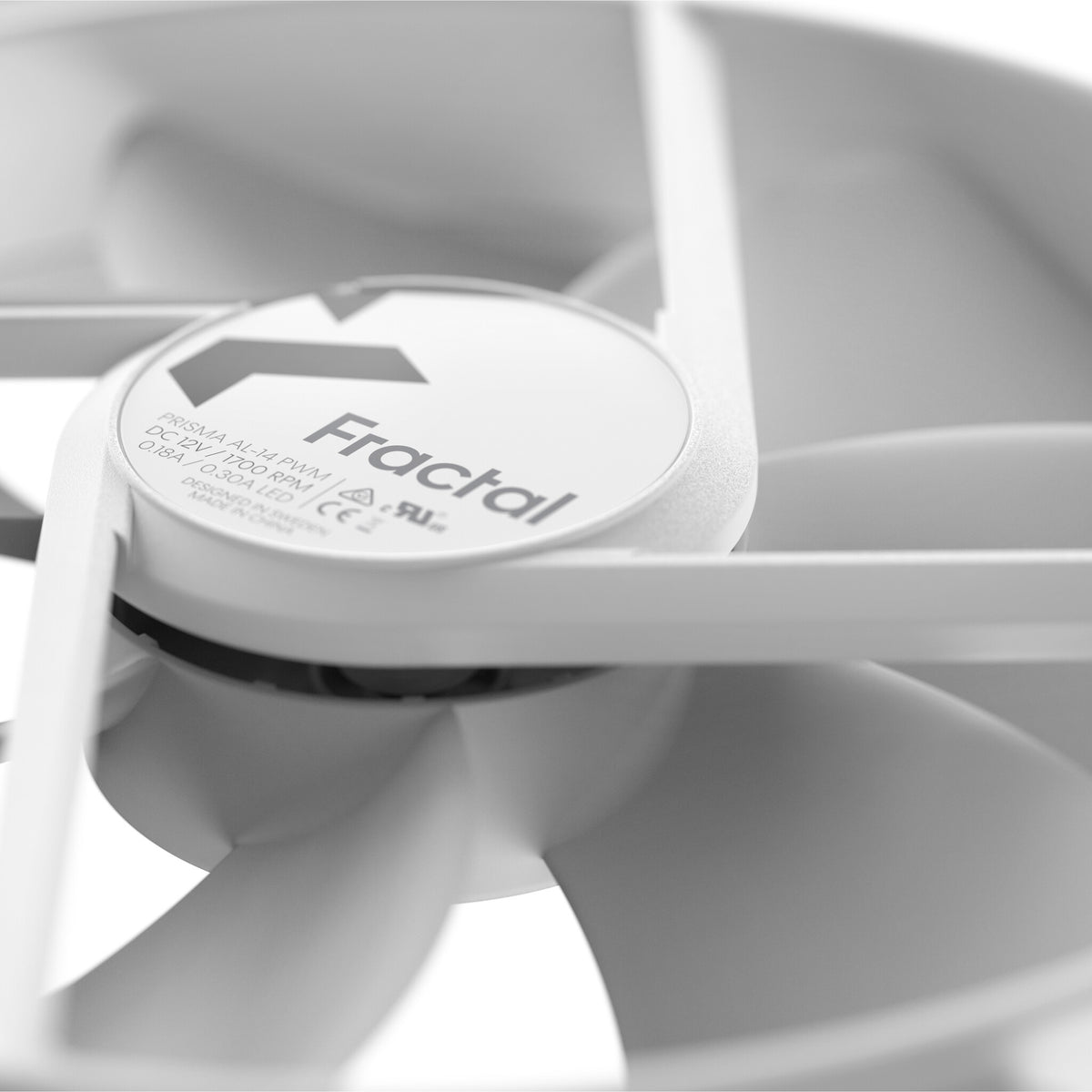

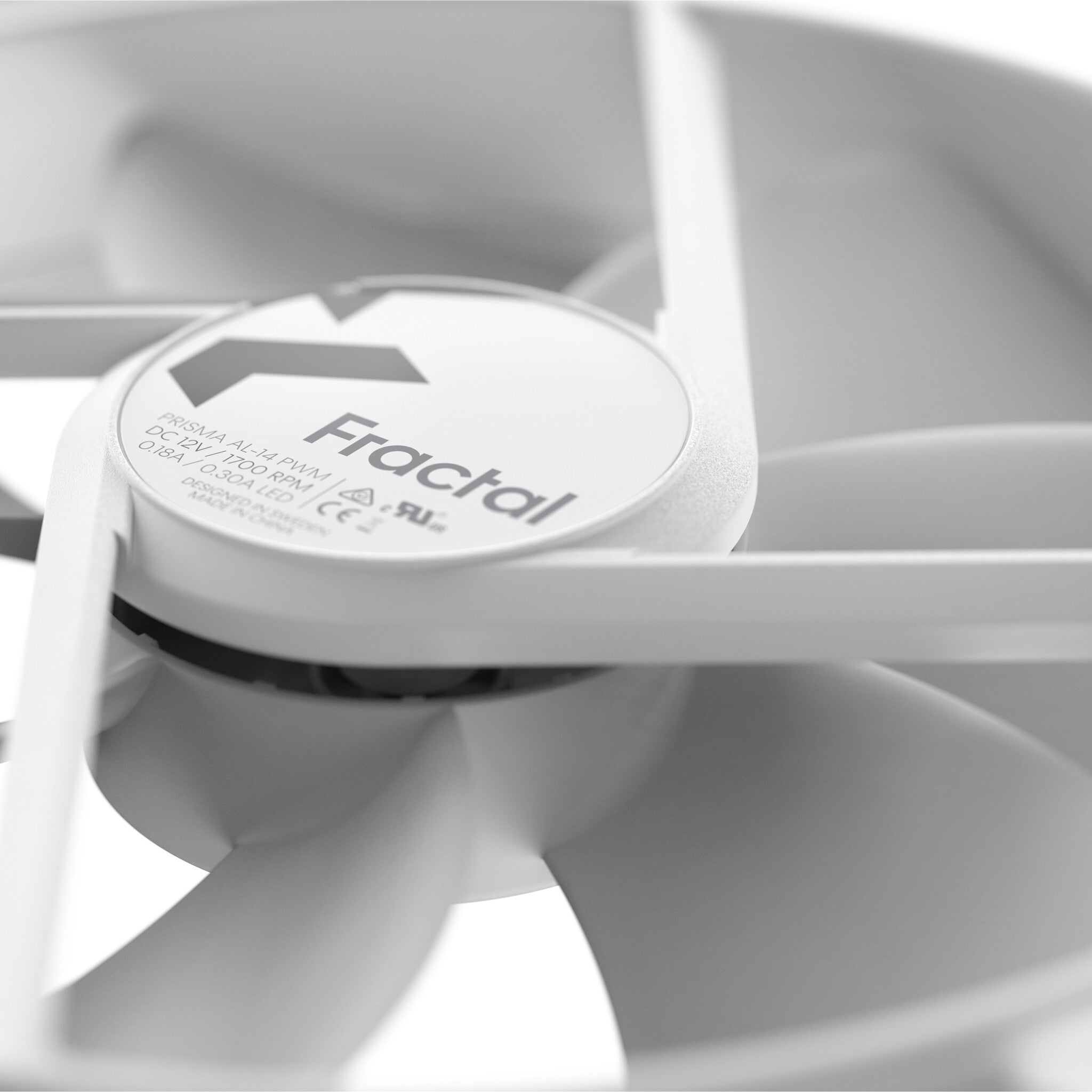

- LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Sleeve bearing |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.38 mmH2O |
Minimum air pressure | 0.44 mmH2O |
Airflow | 176.44 m³/h |
Maximum airflow | 103.85 cfm |
Minimum airflow (imperial) | 31.67 cfm |
Noise level (high speed) | 34.1 dB |
Noise level (low speed) | 15.1 dB |
Rotational speed (max) | 1700 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Number of LEDs | 6 |
Illumination LED | Yes |

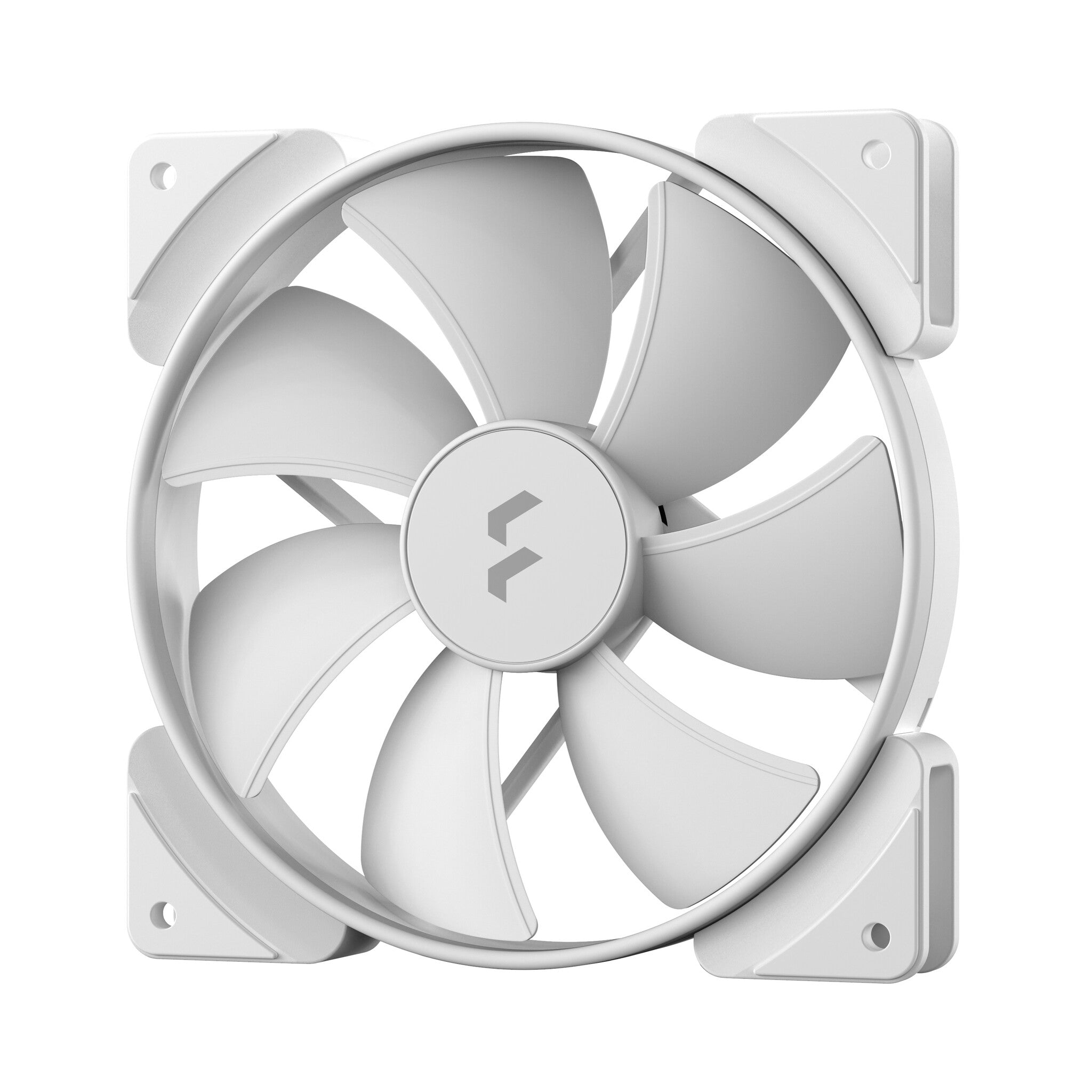

Number of fan blades | 7 |
Number of fans | 1 fan(s) |
Product colour | White |
Power | |
---|---|
LED power consumption (fan) | 1.5 W |
Fan voltage | 12 V |
Fan current | 0.18 A |
LED voltage | 5 V |
Fan power consumption | 2.16 W |
Starting voltage | 7 V |
Weight & dimensions | |
---|---|
Package weight | 248 g |
Cable length | 0.5 m |
Fan weight | 200 g |

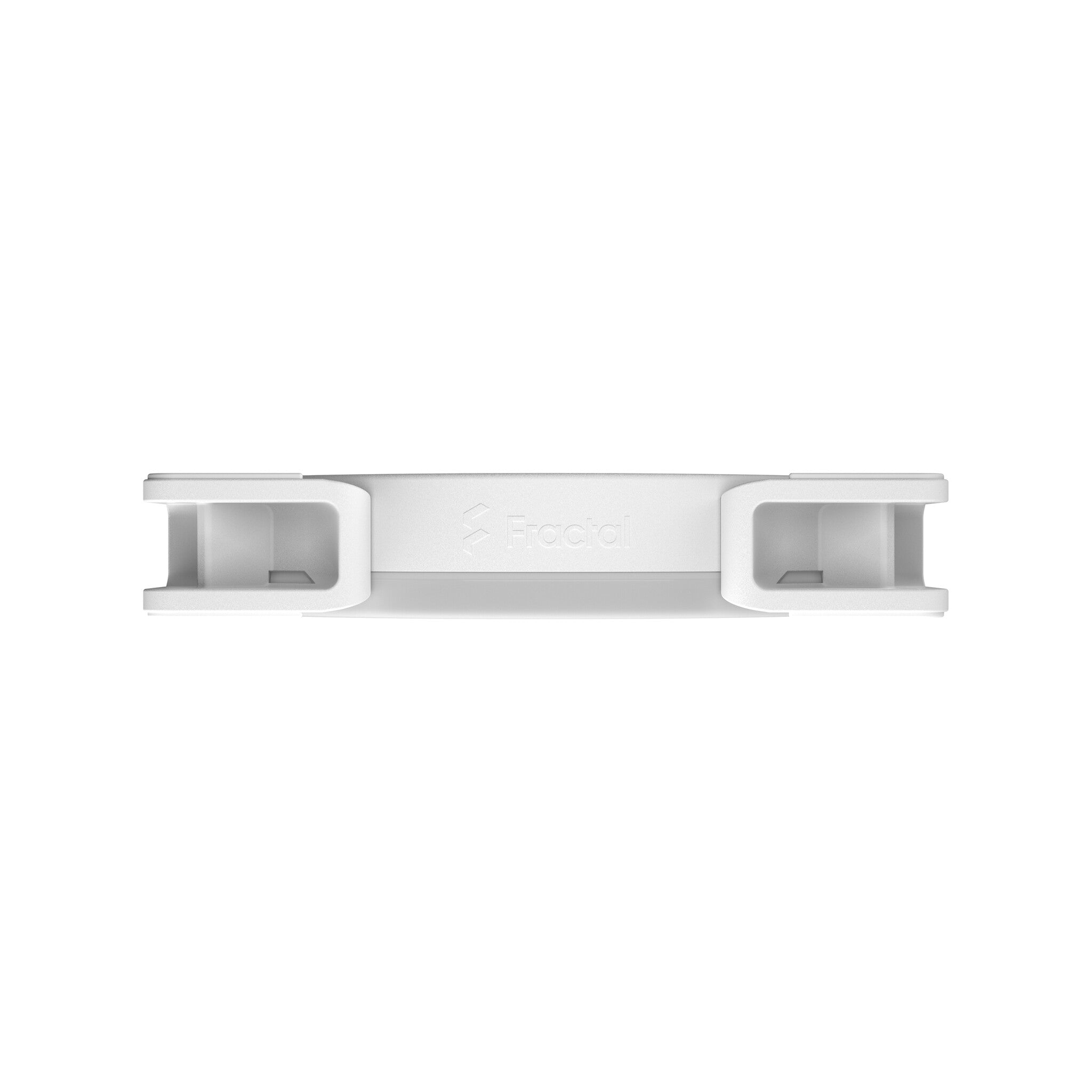

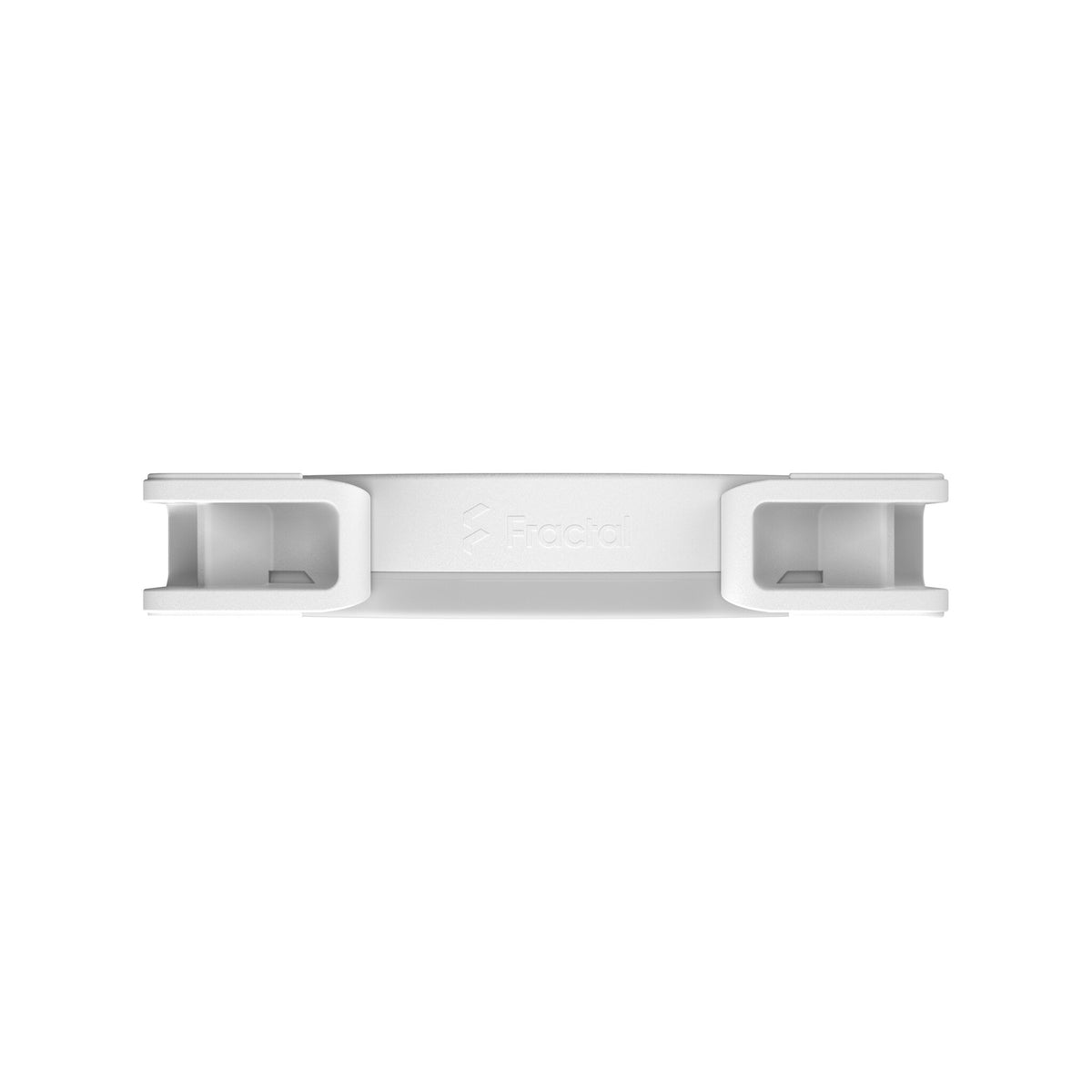

Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Packaging content | |
---|---|
Number of screws | 4 |
Screws included | Yes |
