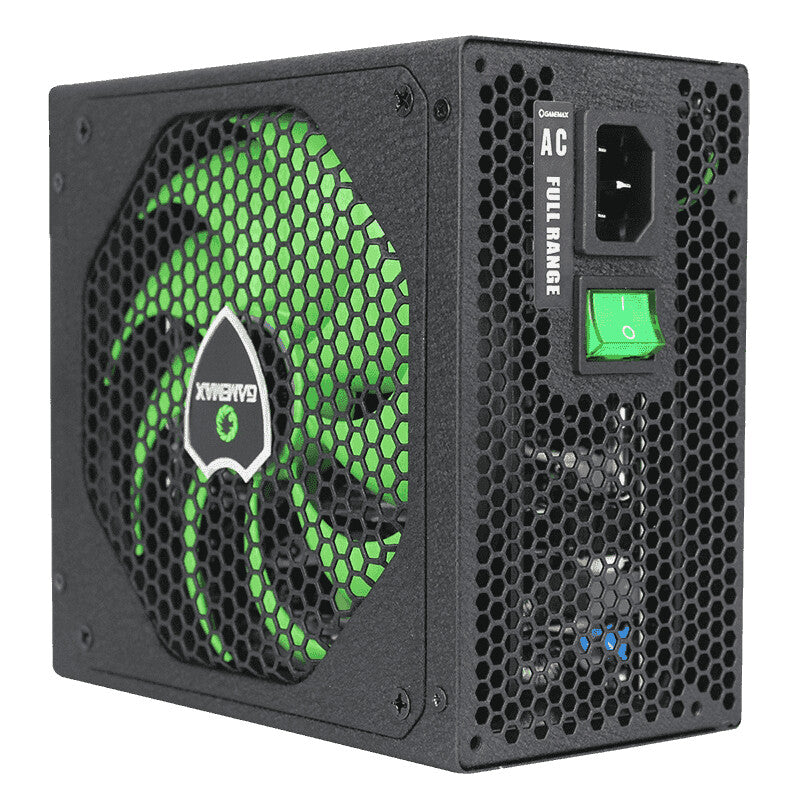

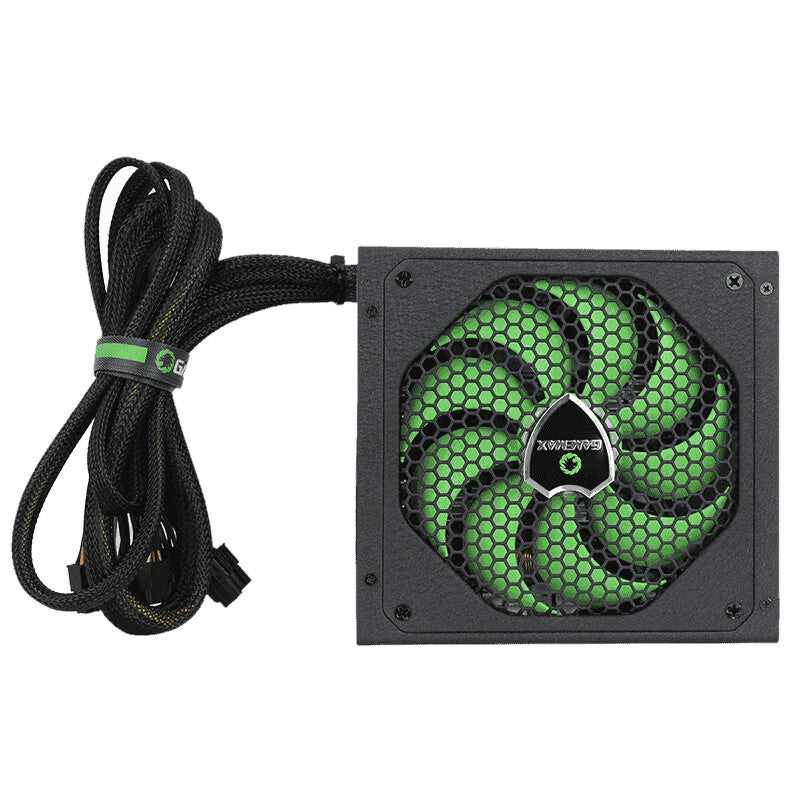

GameMax Semi-Modular Series is a semi-Modular PSU with a compact and quiet engineering, with semi-modular cables for easy maintenance, allowing you to only connect cables that your system needs. Fewer cables allows it to be tidy and better airflow inside your case. High 80 Plus efficiency, reduced ripple and electrical instabilities and better efficiency and protection gives the user durability and total confidence in your next system build. 100% 6th Generation Skylake Ready!
Power | |
---|---|
Power protection features | Over current, Over power, Over voltage, Overload, Short circuit, Under voltage |
Hold time | 17 ms |
Efficiency | 85% |
Power Good signal delay range | 100 - 500 ms |
Input current | 6.3 - 12 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 800 W |
Ports & interfaces | |
---|---|

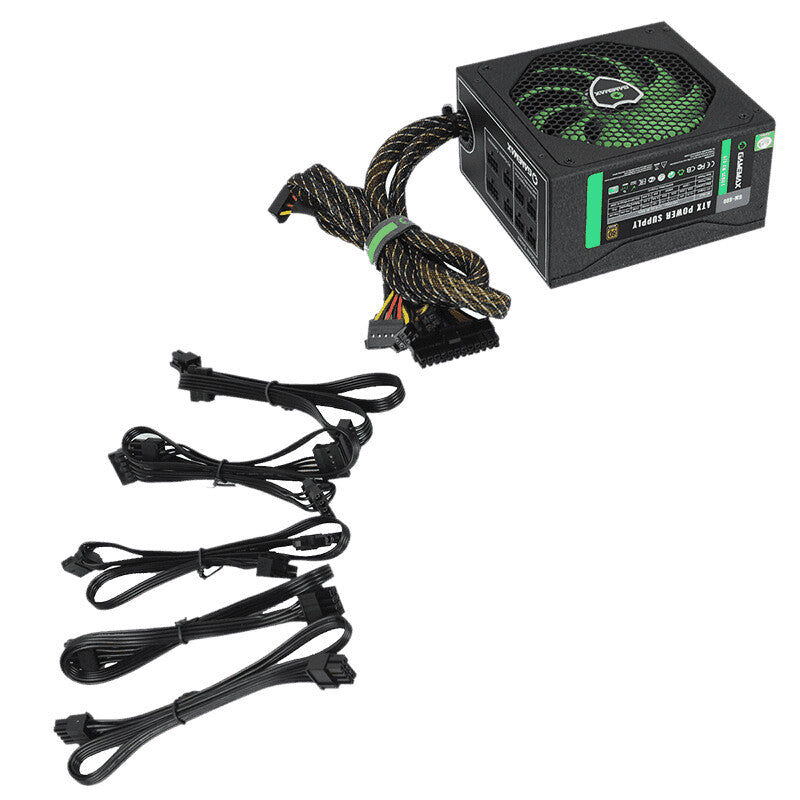

Cabling type | Semi-Modular |
ATX power connector (20+4 pin) | Yes |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power connectors (4-pin) | 3 |
Number of SATA power connectors | 8 |
Motherboard power connector | 20+4 pin ATX |
Performance | |
---|---|
Safety | CE / FCC / CB |
Mean time between failures (MTBF) | 100 h |
Noise level | 25 dB |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
Fan diameter | 14 cm |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
---|---|
Weight | 2.1 kg |
Height | 85 mm |
Depth | 150 mm |
Width | 160 mm |
Packaging data | |
---|---|
Package weight | 2.8 kg |
Package height | 242 mm |
Package depth | 122 mm |
Package width | 335 mm |
