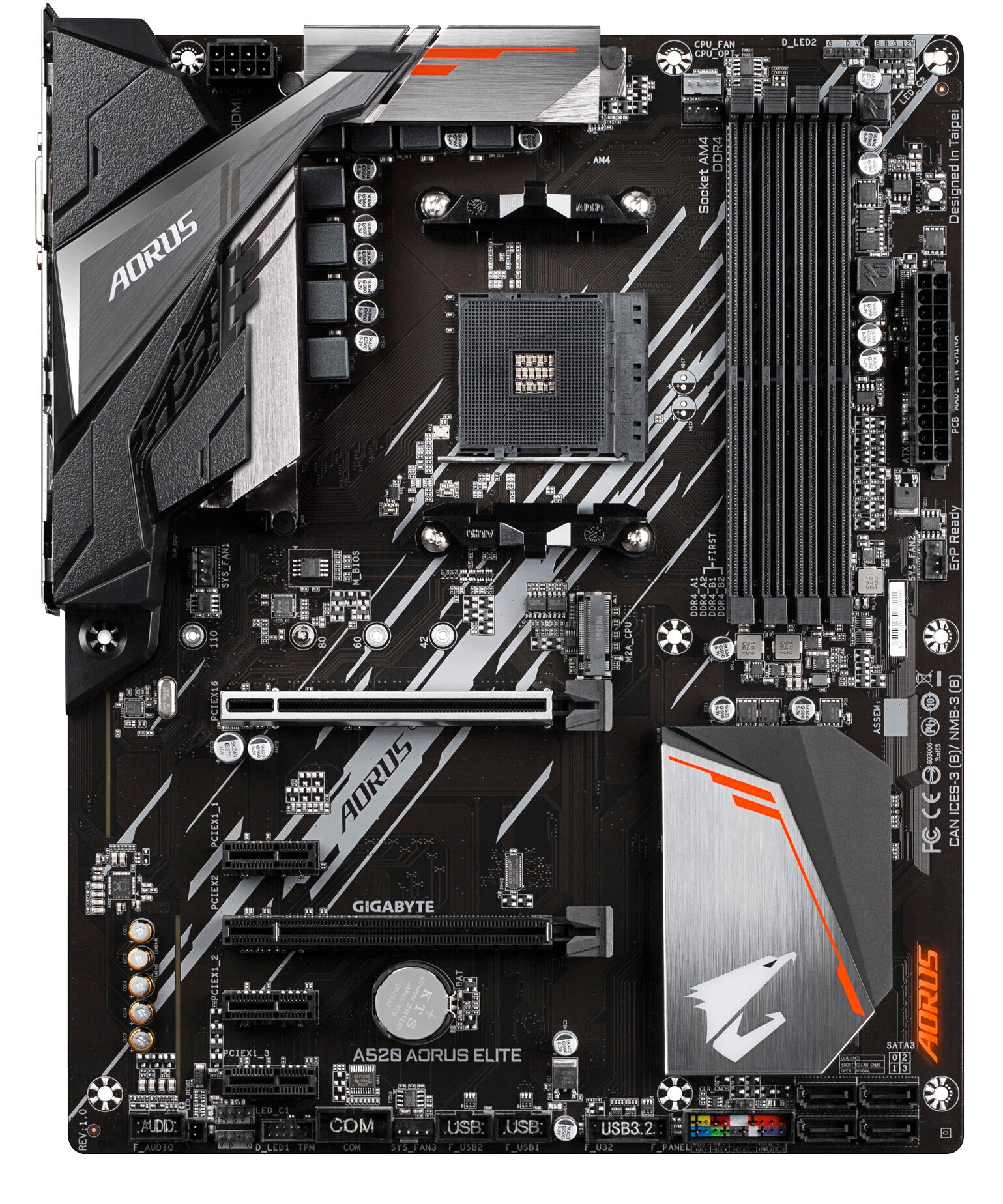

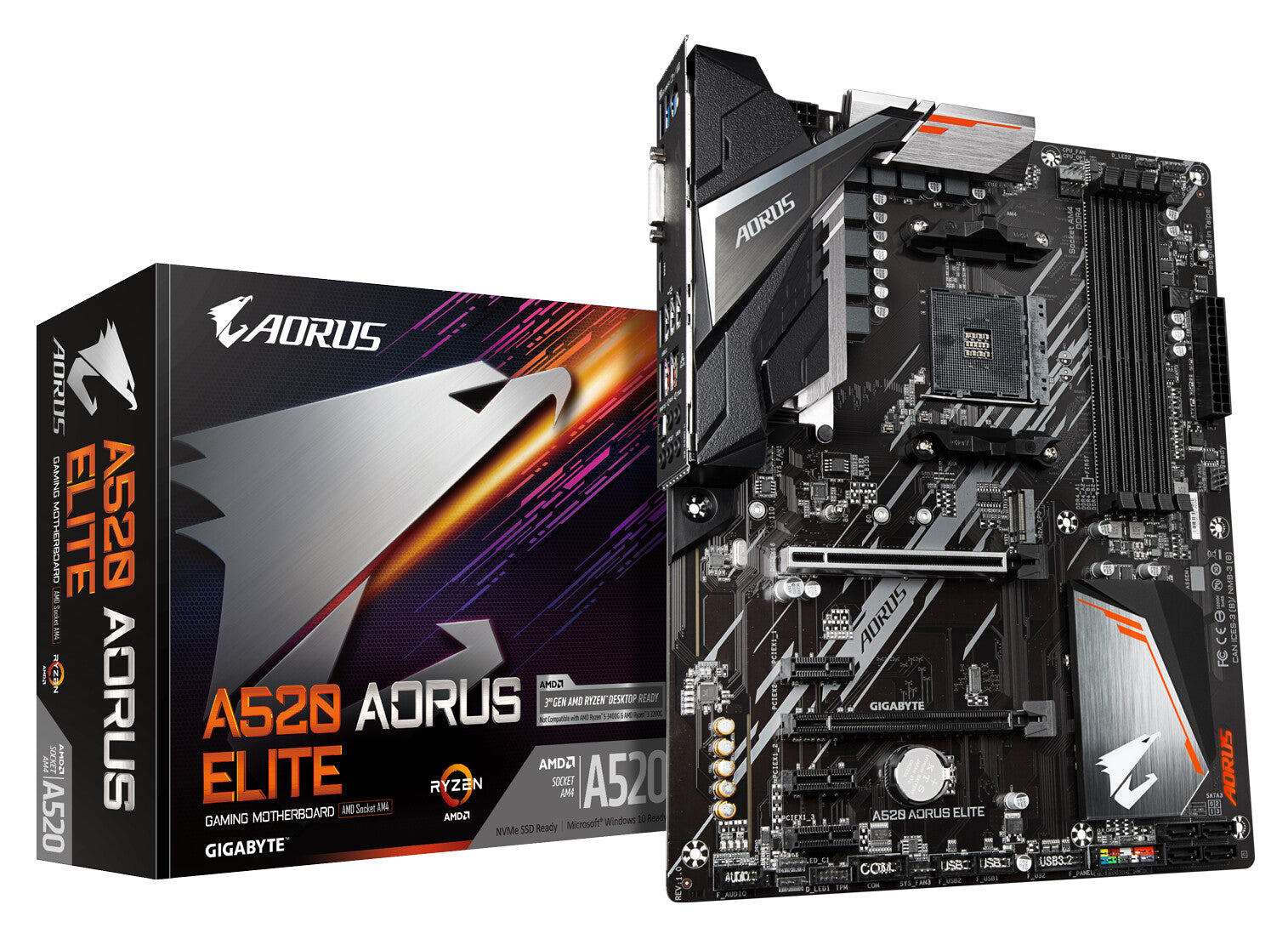

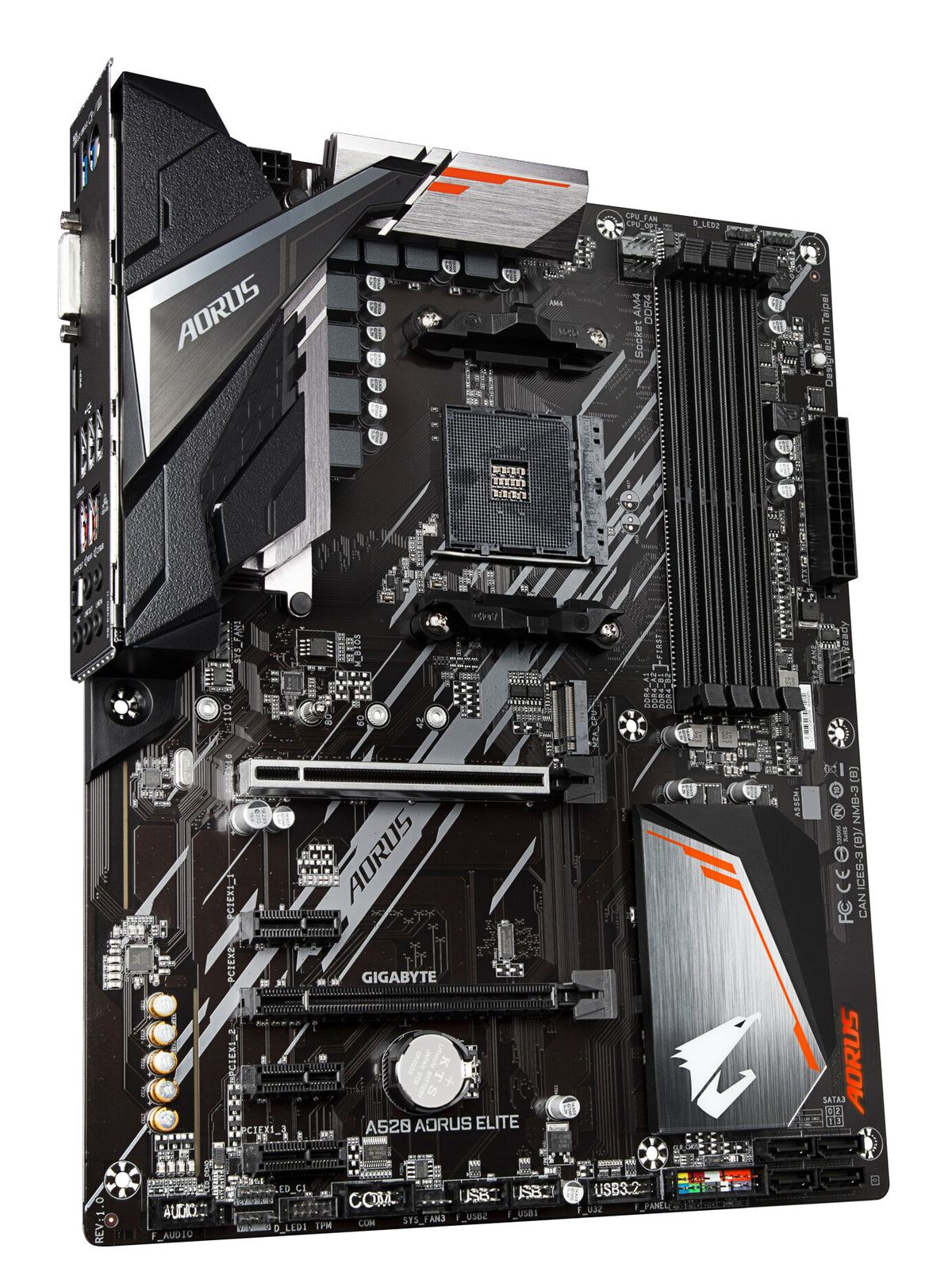

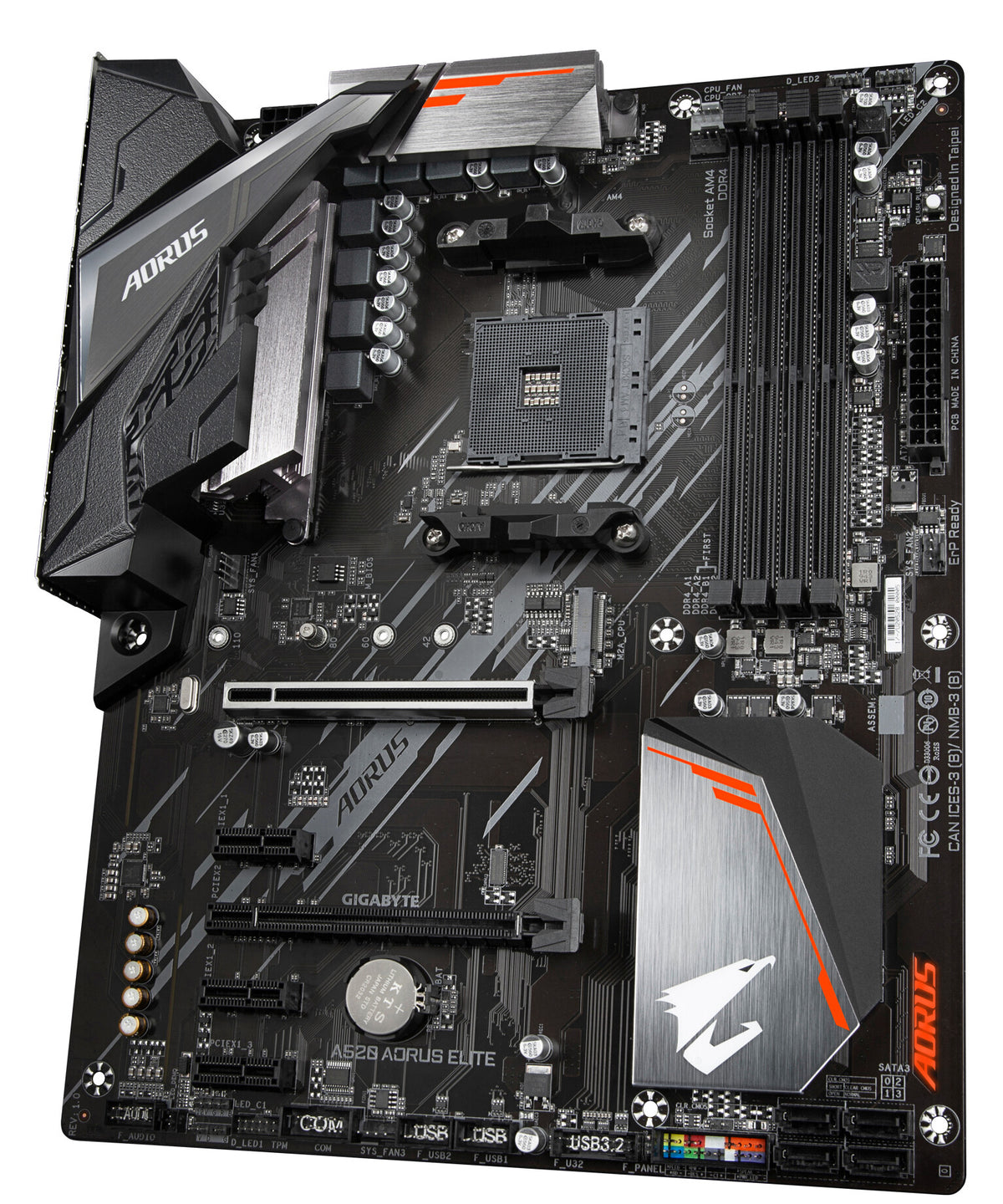

AMD A520 AORUS Motherboard with Pure Digital VRM Solution, ALC1200 Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Pre-installed IO Shield Design
The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design.
| Processor |
|---|
| Supported processor sockets |
Socket AM4 |
| Compatible processor series |
3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
| Processor socket |
Socket AM4 |
| Processor manufacturer |
AMD |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
128 GB |
| Supported memory clock speeds |
2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz |
| Non-ECC |
Yes |
| ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 1, 10 |
| Number of storage drives supported |
5 |
| Supported storage drive interfaces |
M.2, SATA III |
| Graphics |
|---|
| HDCP |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| Serial port headers |
1 |
| TPM connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| Power fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

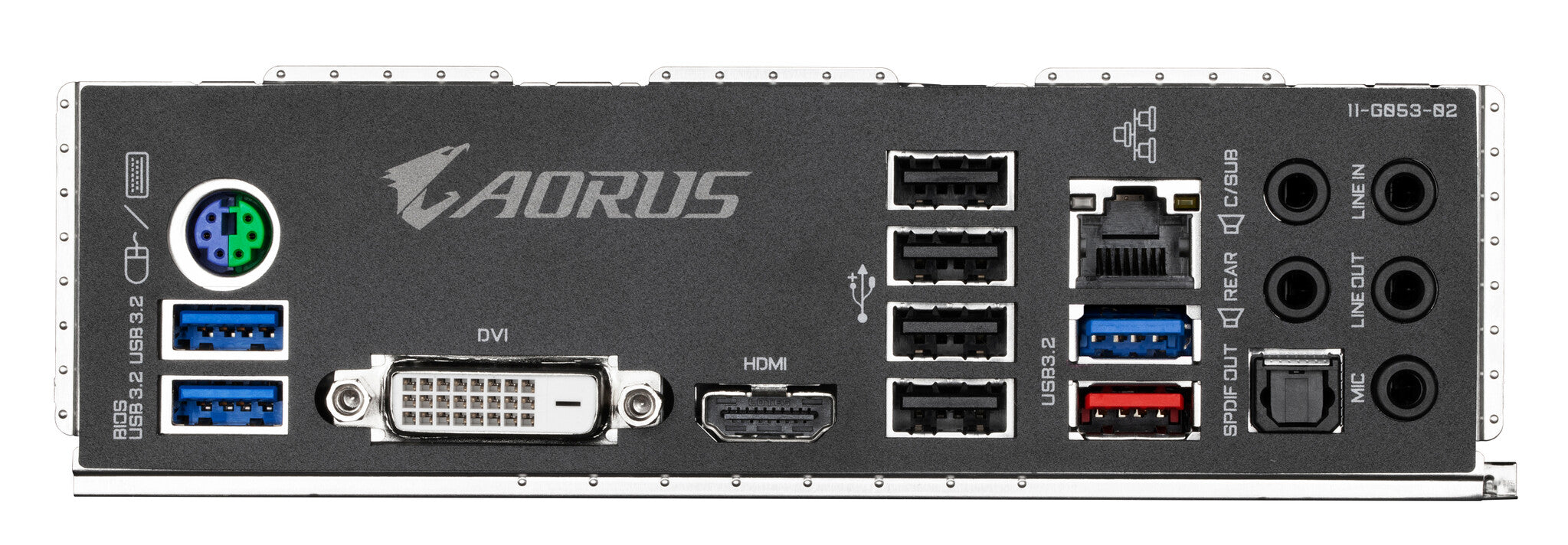

| Rear panel I/O ports |
|---|
| S/PDIF out port |
Yes |
| Headphone outputs |
5 |
| DVI-D ports quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
4 |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Windows 10 x64 |
| PC health monitoring |
Fan, Temperature, Voltage |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC1200 |
| Motherboard chipset |
AMD A520 |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
3 |
| BIOS |
|---|
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Clear CMOS jumper |
Yes |
| ACPI version |
5.0 |
| BIOS memory size |
128 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Country of origin |
China |
| Products per shipping (inner) case |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
1.35 kg |
| Package height |
80 mm |
| Package depth |
270 mm |
| Package width |
335 mm |
| Battery |
|---|
| Battery type |
CR2032 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of battery cells |
1 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Weight & dimensions |
|---|
| Height |
35 mm |
| Depth |
244 mm |
| Width |
305 mm |
| Packaging content |
|---|
| Bundled software |
Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Batteries included |
Yes |
| Technical details |
|---|
| Warranty period |
3 year(s) |
