WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

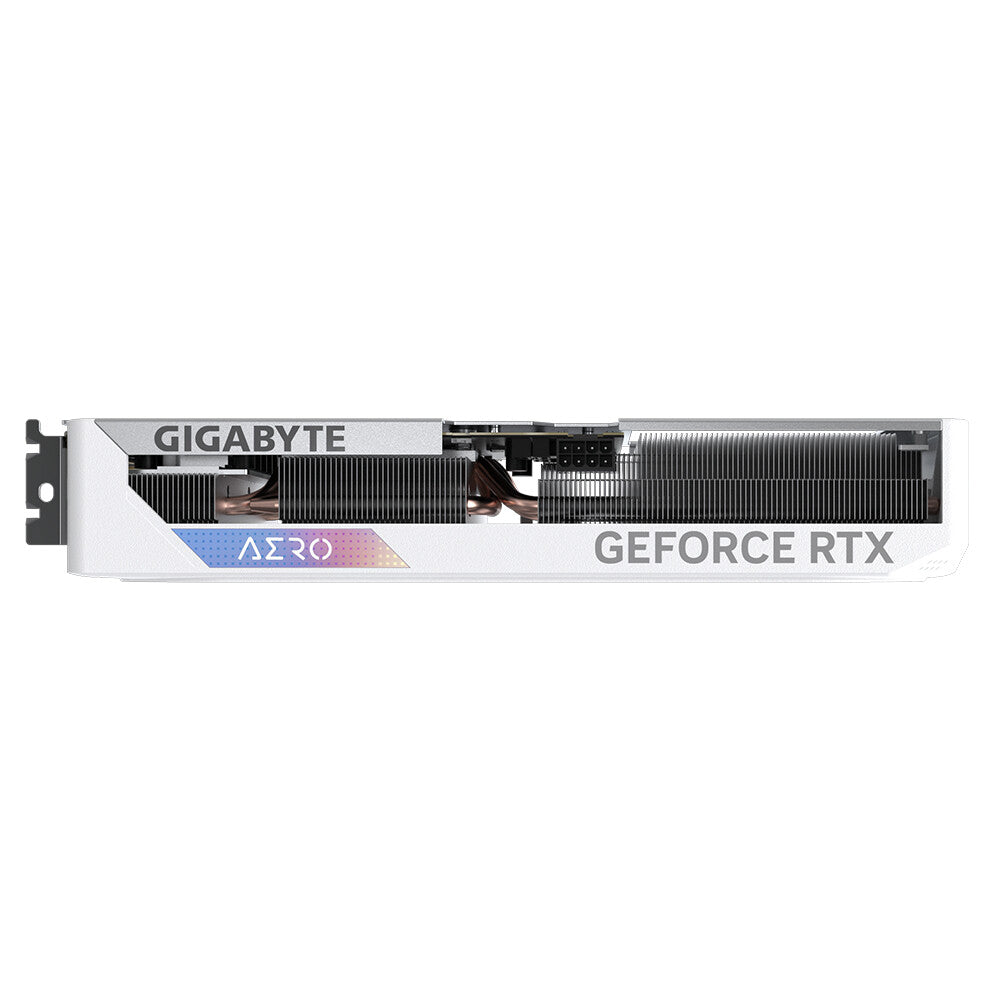

SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed | 2580 MHz |
CUDA cores | 4352 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4060 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 18 Gbit/s |
Memory bus | 128 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 8 GB |
Ports & interfaces | |
---|---|

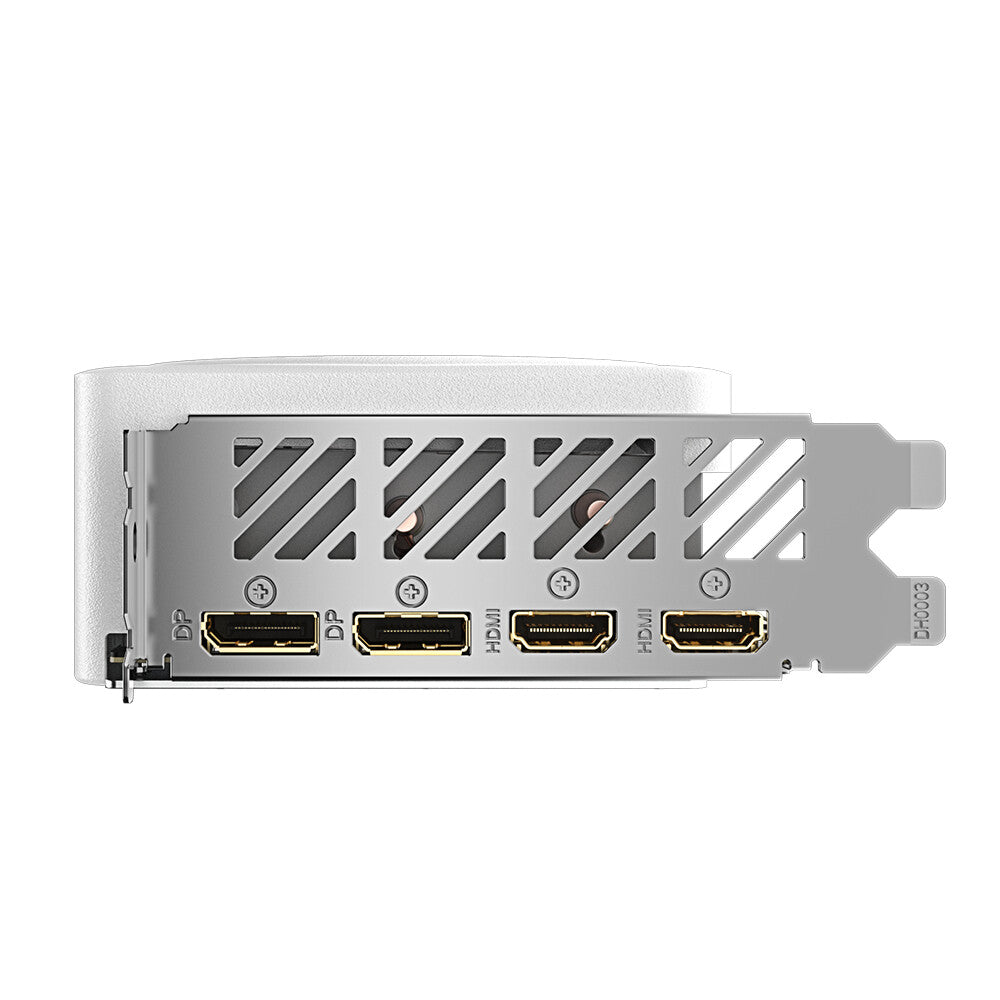

DisplayPort version | 1.4a |
HDMI version | 2.1a |
DisplayPorts quantity | 2 |
HDMI ports quantity | 2 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
Dual Link DVI | No |
HDCP | Yes |
OpenGL version | 4.6 |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Product colour | White |
Form factor | Full-Height/Full-Length (FH/FL) |
Number of fans | 3 fan(s) |
Cooling technology | GIGABYTE WINDFORCE 3X |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 8-pin |
Minimum system power supply | 500 W |
General | |
---|---|
Product Family | AERO |
Packaging content | |
---|---|
Quick installation guide | Yes |
Weight & dimensions | |
---|---|
Depth | 281 mm |
Height | 50 mm |
Width | 117 mm |
Packaging data | |
---|---|
Package type | Box |
