Top-tier performance power by PCIe 5.0 x4 controller

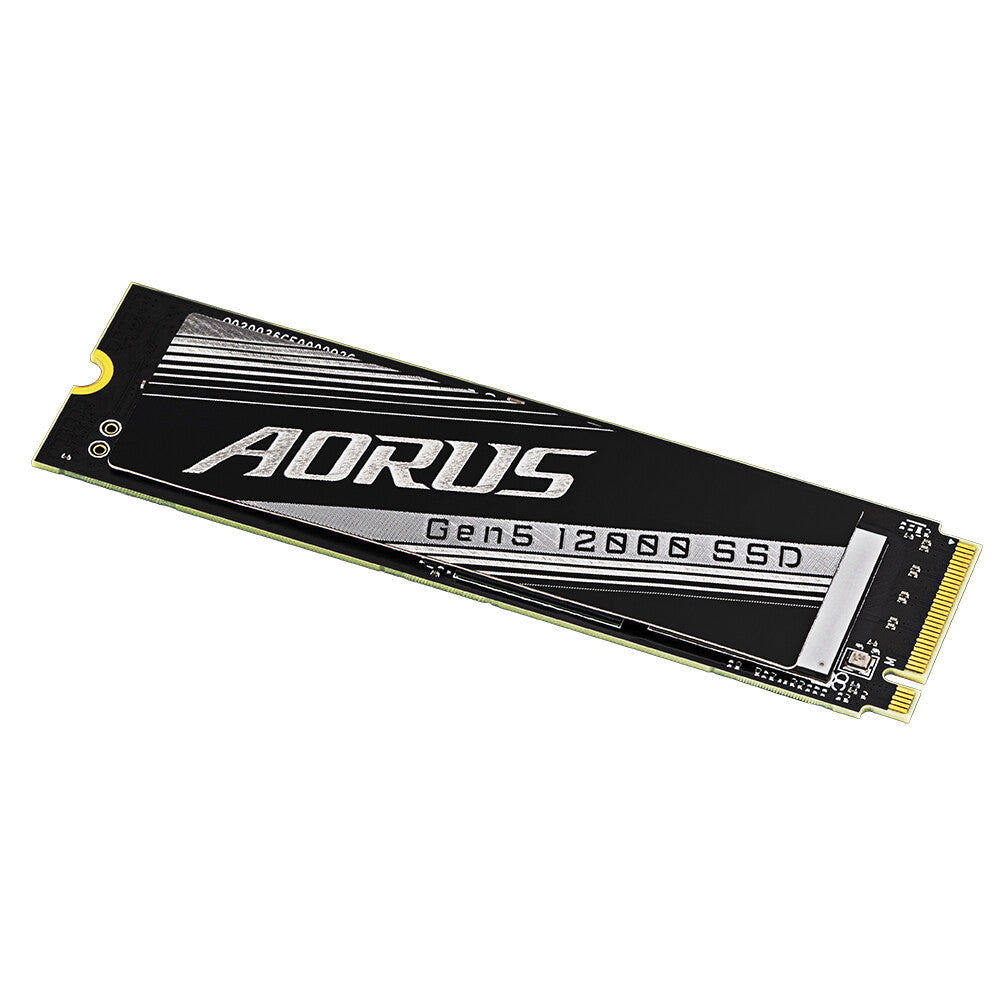

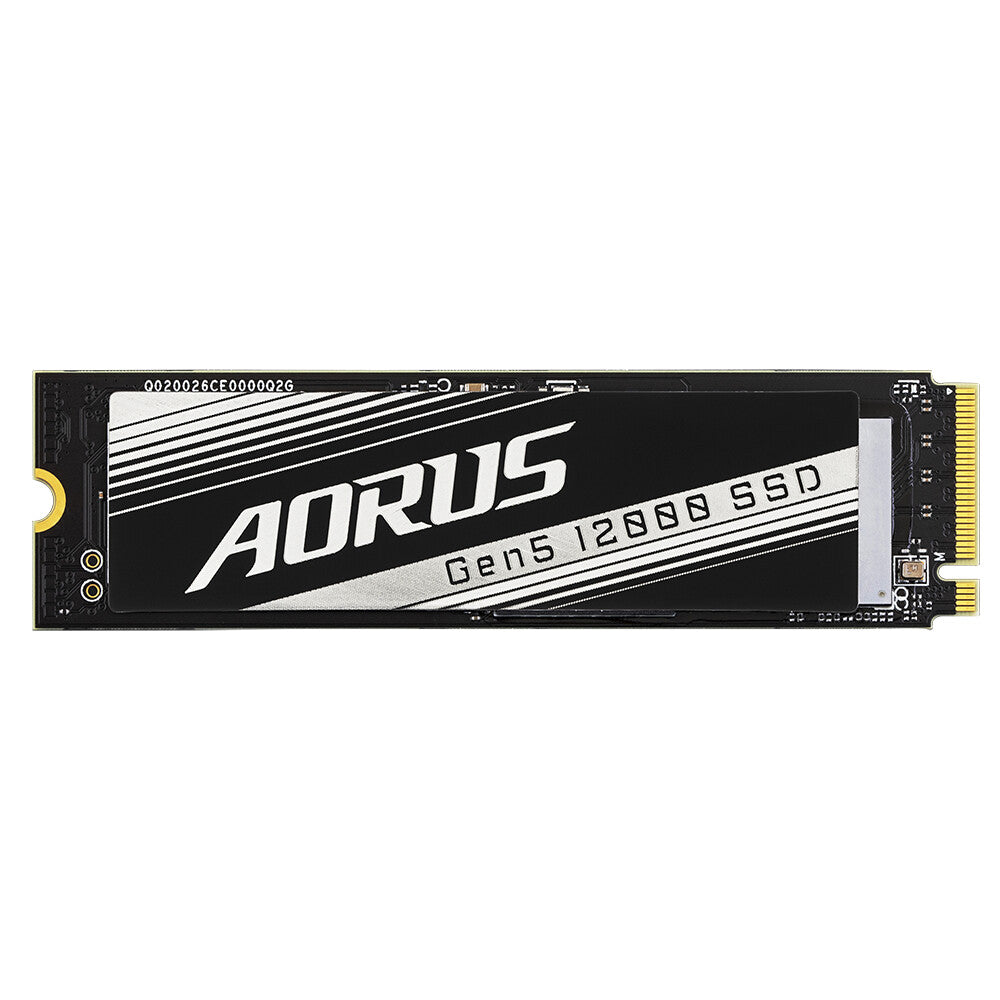

Power by the PCIe Gen5.0 x4 controller Phison PS5026-E26 and brand-new 232-layer 3D TLC NAND Flash, AORUS Gen5 12000 SSD delivers top-tier performance: sequential read/write speeds up to 12,400/11,800 MB/s. Aim at PC enthusiasts, gamers, and rendering professionals, AORUS Gen5 12000 gives users faster data transferring and a lower-latency gaming experience.
Cutting edge speed
The PS5026-E26 controller is built with the advanced 12nm process, ensuring sufficient computing power. Also, it supports up to 8 NAND Flash channels with 32CEs, DDR4 caching and complies with the NVMe 2.0 standard. AORUS Gen5 12000 SSD offers approximately 70% faster in read throughput and up to 72% higher write throughput than PCIe Gen4.0 x4.
NAND Flash Selected for High Quality and Performance
Leveraging the superior throughput and high-quality combination that 3D TLC NAND provides, AORUS Gen5 12000 SSD brings a better experience in work.

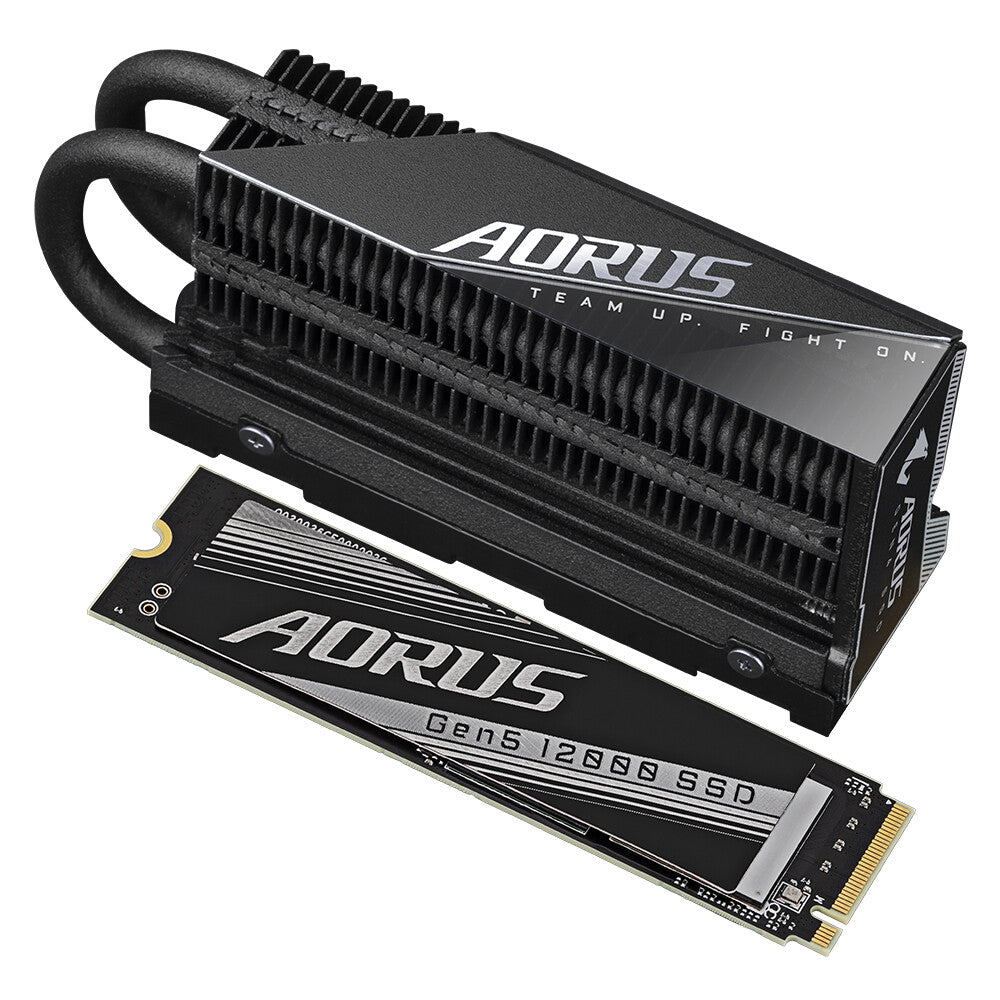

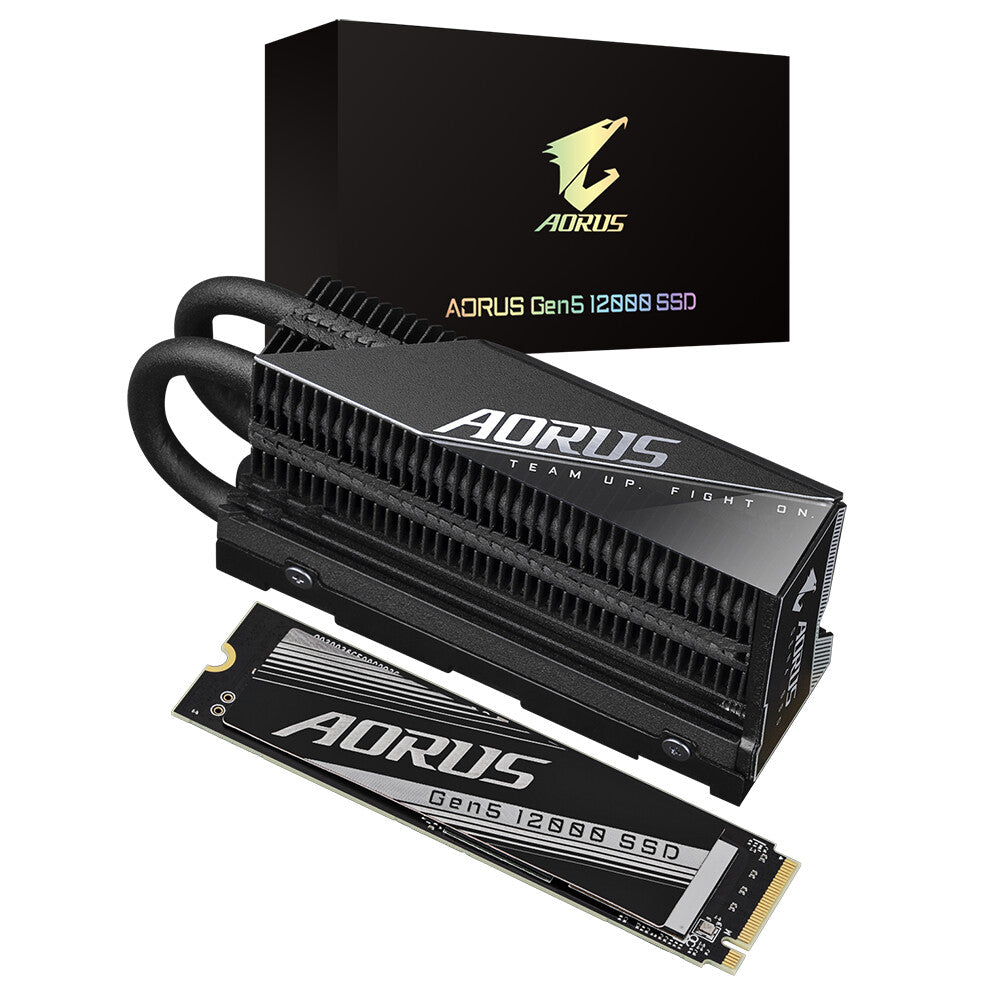

M.2 Thermal Guard XTREME with Nanocarbon Coating
AORUS Gen5 12000 SSD offer with an optional M.2 Thermal Guard XTREME which is made up of two heatpipes and stacked fins with advanced thermal technology Nanocarbon coating for maximum heat dissipation efficiency. Applied with dual side high conductivity thermal pad ensures the heat transfers to the stacked fins. The M.2 Thermal Guard XTREME is the best solution in passive airflow conditions when your personal computer adopts a CPU AIO water cooler.
Why is keeping an SSDs at lower temperatures so important?
Higher working temperature may cause data loss. The degradation factor of data loss could be a hundred times higher. Compared with regular plated heat spreader, the M.2 Thermal Guard XTREME improves thermal dissipation to keep the highest Seq. read performance. With M.2 Thermal Guard XTREME, the SSD can operate at lower working temperatures to improve data storage reliability. Enjoy smoother & upgraded storage performance any time by utilizing M.2 Thermal Guard XTREME.
GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Features | |
---|---|
TBW rating | 1400 |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Mean time between failures (MTBF) | 1600000 h |
External DDR cache quantity | 4096 MB |
External DDR cache | Yes |
PCI Express interface data lanes | x4 |
M.2 SSD size | 2280 (22 x 80 mm) |
Lithography | 12 nm |
Write speed | 11800 MB/s |
Read speed | 12400 MB/s |
Hardware encryption | No |
Component for | PC |
NVMe version | 2.0 |
NVMe | Yes |
Memory type | 3D TLC NAND |
Interface | PCI Express 5.0 |
SSD capacity | 2 TB |
SSD form factor | M.2 |
Power | |
---|---|
Power consumption (max) | 11.5 W |
Operational conditions | |
---|---|
Storage temperature (T-T) | -40 - 85 °C |
Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions | |
---|---|
Height | 44.7 mm |
Depth | 92 mm |
Width | 23.5 mm |
Packaging data | |
---|---|
Package type | Box |
Quick start guide | Yes |
Other features | |
---|---|
Cooling type | Heatsink |
