UNPARALLELED PERFORMANCE
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
Processor | |
---|---|
Supported processor sockets | Socket AM5 |
Compatible processor series | AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen 5 5th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
Processor socket | Socket AM5 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory clock speed (max) | 6400 MHz |
Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
RAID support | Yes |
Number of storage drives supported | 6 |
Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Number of displays supported | 3 |
HDCP | Yes |
Maximum resolution | 4096 x 2160 pixels |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Serial port headers | 1 |
TPM connector | Yes |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 1 |

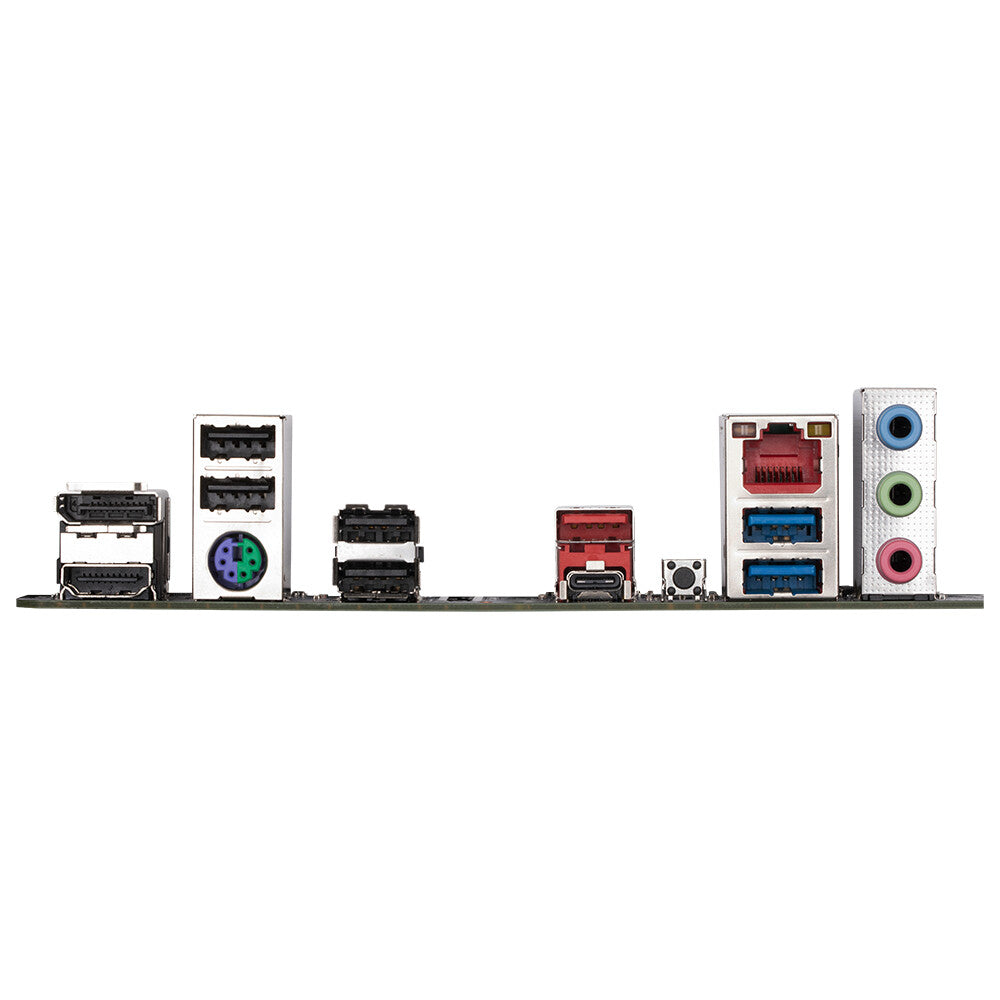

Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A, USB Type-C |
Microphone in | Yes |
Headphone outputs | 3 |
DisplayPort version | 1.4 |
DisplayPorts quantity | 2 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Wi-Fi | No |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
PC health monitoring | Fan, Temperature, Voltage |
Audio output channels | 7.1 channels |
Motherboard chipset | AMD B650 |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x16 slots | 1 |
PCI Express x1 slots | 1 |
BIOS | |
---|---|
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Clear CMOS jumper | Yes |
ACPI version | 5.0 |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 244 mm |
Width | 244 mm |
Packaging content | |
---|---|
Cables included | SATA |
