UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Processor | |
---|---|
Maximum internal memory supported by processor | 192 GB |
Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 192 GB |
Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
Supported memory clock speed (max) | 7600 MHz |
Supported memory clock speeds | 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Number of HDDs supported | 4 |
Number of storage drives supported | 6 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
DirectX version | 12.0 |
HDCP | Yes |
Maximum resolution | 4096 x 2304 pixels |
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Serial port headers | 1 |
TPM connector | Yes |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
S/PDIF out connector | Yes |
Total number of SATA connectors | 4 |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 2 |

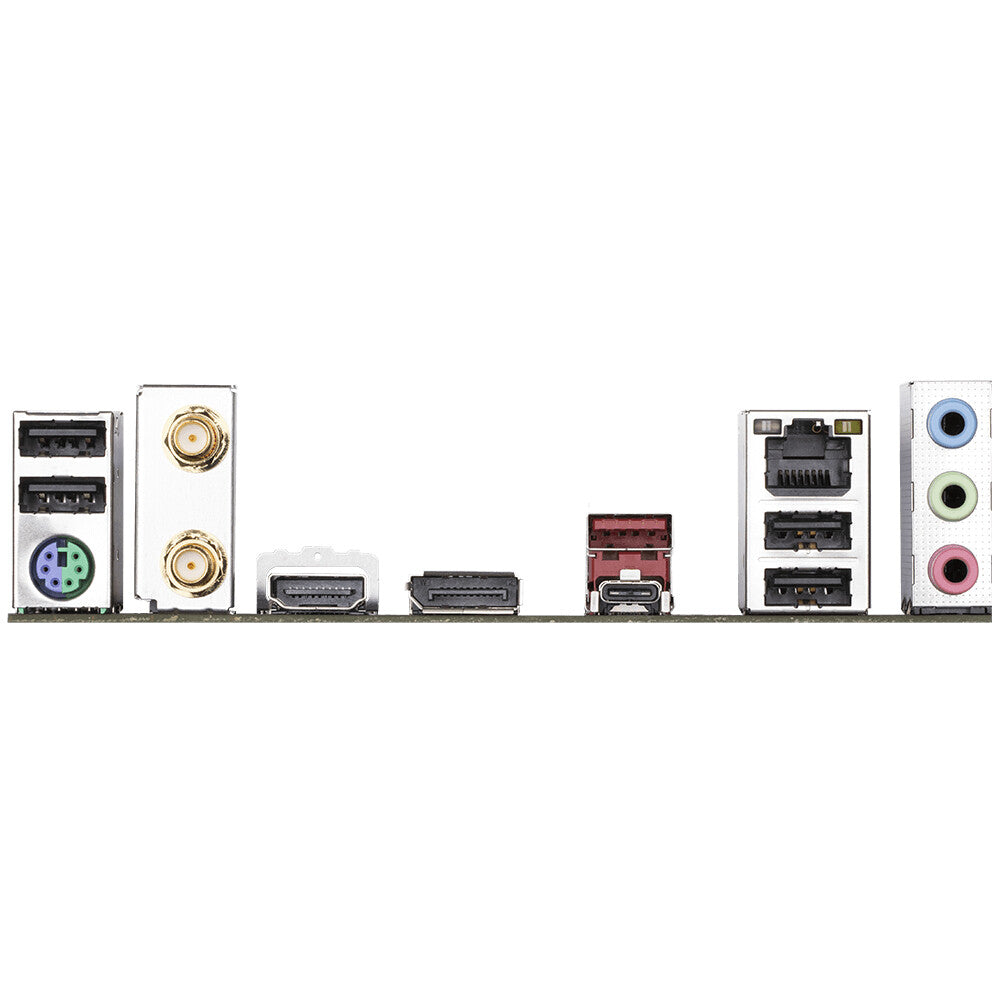

Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A, USB Type-C |
WiFi-AP antenna jack | 2 |
Microphone in | Yes |
Headphone outputs | 3 |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 2.0 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
WLAN controller model | Realtek RTL8852CE |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Power source type | ATX |
PC health monitoring | Fan, Temperature, Voltage, Water cooling |
Product colour | Brown |
Audio output channels | 7.1 channels |
Motherboard chipset | Intel B760 Express |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 2 |
PCI Express x16 slots | 5 |
BIOS | |
---|---|
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Clear CMOS jumper | Yes |
ACPI version | 5.0 |
BIOS memory size | 128 Mbit |
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Country of origin | China |
Products per shipping (inner) case | 1 pc(s) |
Packaging data | |
---|---|
Package weight | 1.34 kg |
Package height | 80 mm |
Package depth | 270 mm |
Package width | 335 mm |
Battery | |
---|---|
Battery type | CR2032 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Number of battery cells | 1 |
Battery weight | 3 g |
Lithium weight per battery | 0.07 g |
Weight & dimensions | |
---|---|
Height | 35 mm |
Depth | 244 mm |
Width | 305 mm |
Packaging content | |
---|---|
Bundled software | Norton Internet Security |
Cables included | SATA |
Batteries included | Yes |
Technical details | |
---|---|
Warranty period | 3 year(s) |
