UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Outstanding Thermal Design
GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Processor | |
---|---|
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory clock speeds | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Number of HDDs supported | 4 |
Supported storage drive interfaces | PCI Express 4.0, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
On-board graphics card model | Intel® HD Graphics |
HDCP | Yes |
Maximum resolution | 4096 x 2304 pixels |
Graphics card | HD Graphics |
Graphics card family | Intel |
On-board graphics card | Yes |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Serial port headers | 1 |
TPM connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 3 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Audio connector | Yes |
S/PDIF out connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 4 |

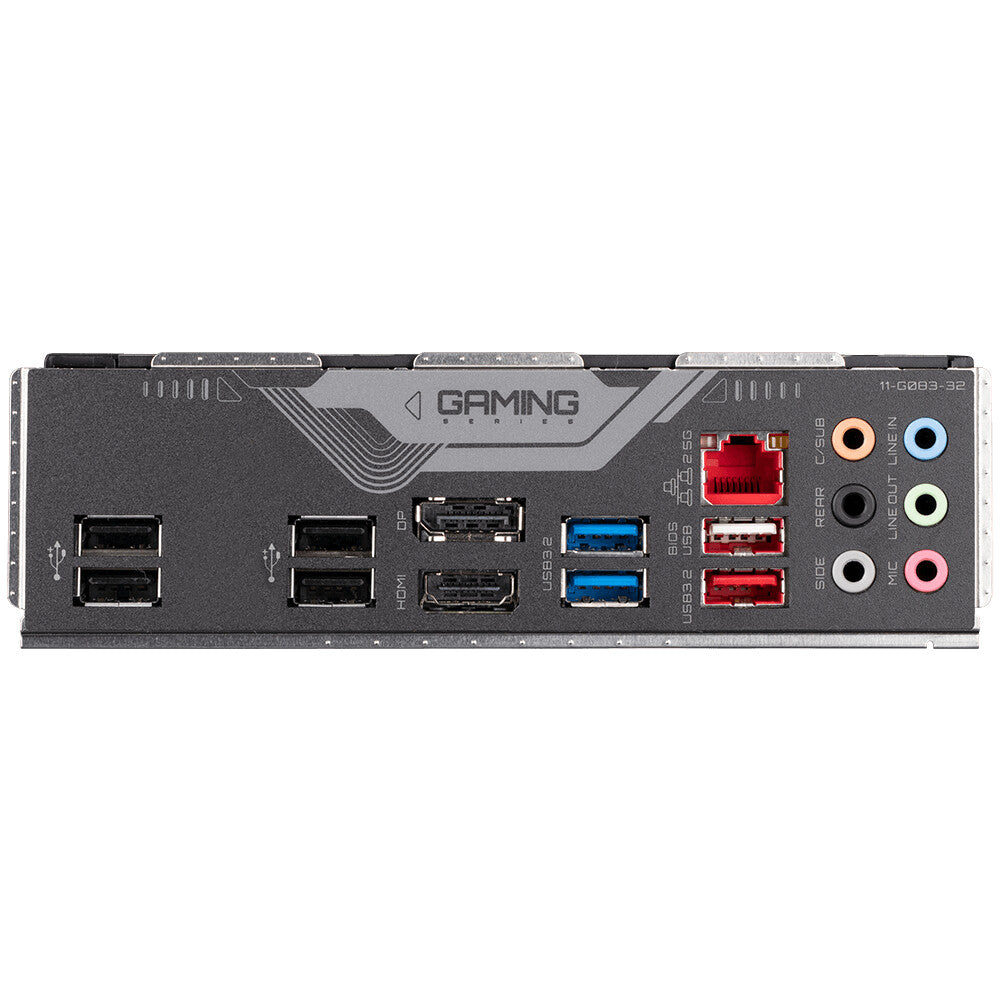

Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A, USB Type-C |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 2.0 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 5 |
Network | |
---|---|
Wi-Fi | No |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
PC health monitoring | Fan, Temperature, Voltage, Water cooling |
Audio output channels | 7.1 channels |
Motherboard chipset | Intel B760 Express |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 3 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 3.x) slots | 2 |
BIOS | |
---|---|
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Clear CMOS jumper | Yes |
ACPI version | 5.0 |
BIOS memory size | 256 Mbit |
BIOS type | EFI AMI |
Weight & dimensions | |
---|---|
Depth | 244 mm |
Width | 305 mm |
Packaging content | |
---|---|
Bundled software | Norton® Internet Security (OEM version)LAN bandwidth management software |
