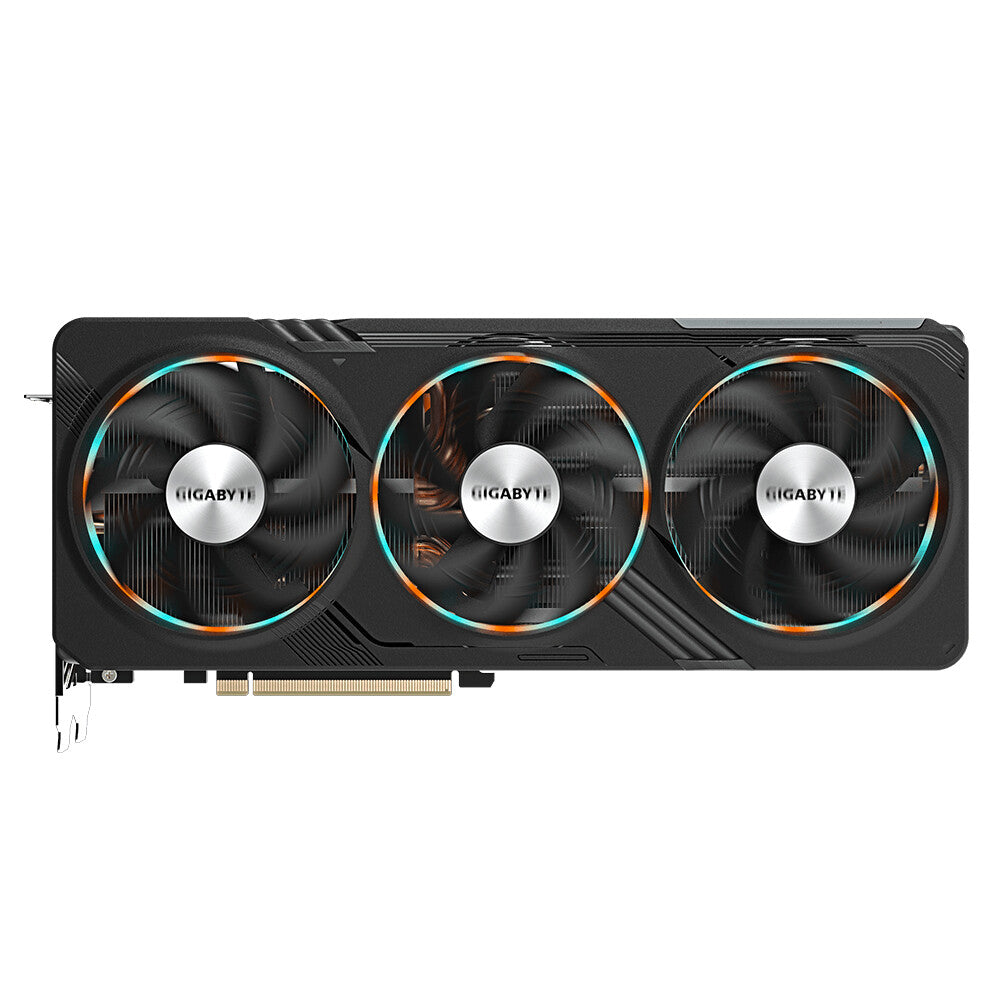

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
4-YEAR WARRANTY
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Processor | |
---|---|
Maximum displays per videocard | 4 |
Processor boost clock speed (Gaming mode) | 2610 MHz |
Processor frequency | 2640 MHz |
CUDA cores | 7680 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4070 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 21 Gbit/s |
Memory bus | 192 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 12 GB |

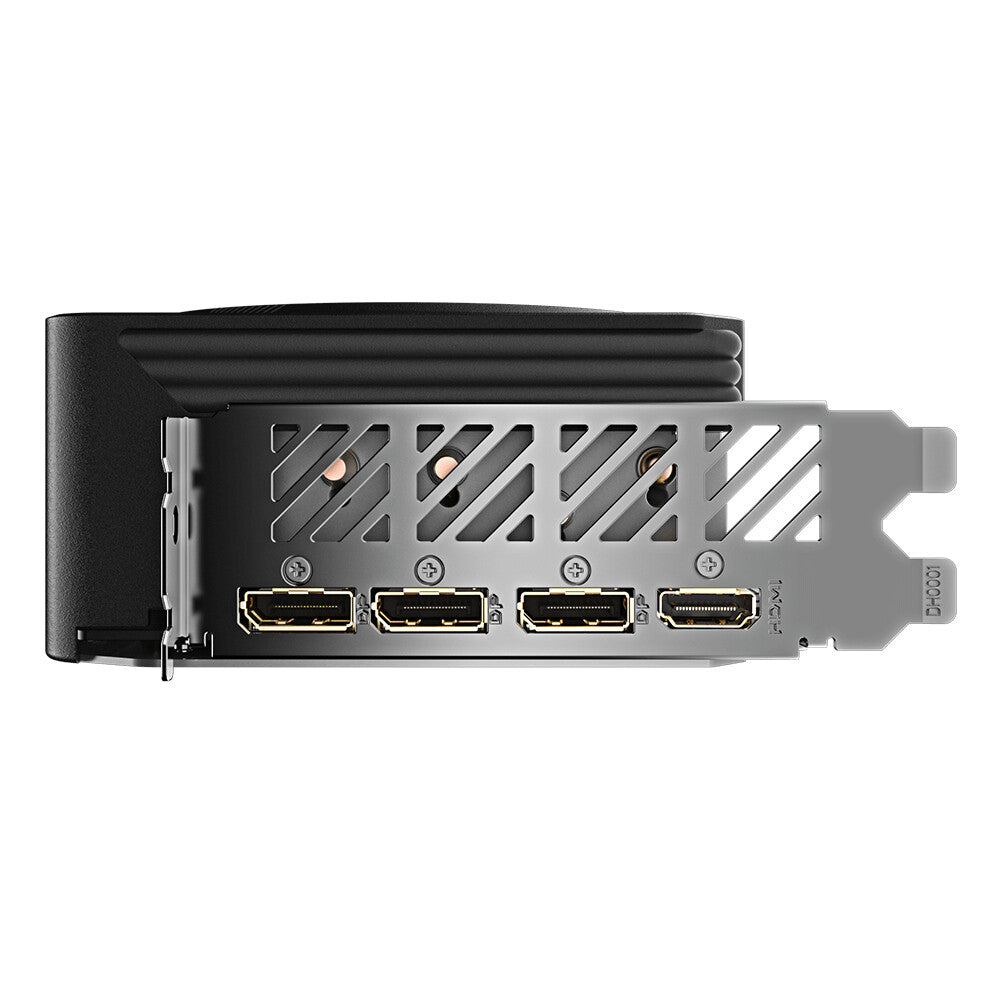

Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1a |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
OpenGL version | 4.6 |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black, Silver |
Form factor | Full-Height/Full-Length (FH/FL) |
Number of fans | 3 fan(s) |
Cooling technology | Gigabyte WATERFORCE |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 16-pin |
Minimum system power supply | 750 W |
General | |
---|---|
Product Family | GAMING |
Logistics data | |
---|---|
Quantity per pack | 1 pc(s) |
Weight & dimensions | |
---|---|
Depth | 300 mm |
Height | 57.6 mm |
Width | 130 mm |
Packaging data | |
---|---|
Package weight | 2.47 kg |
