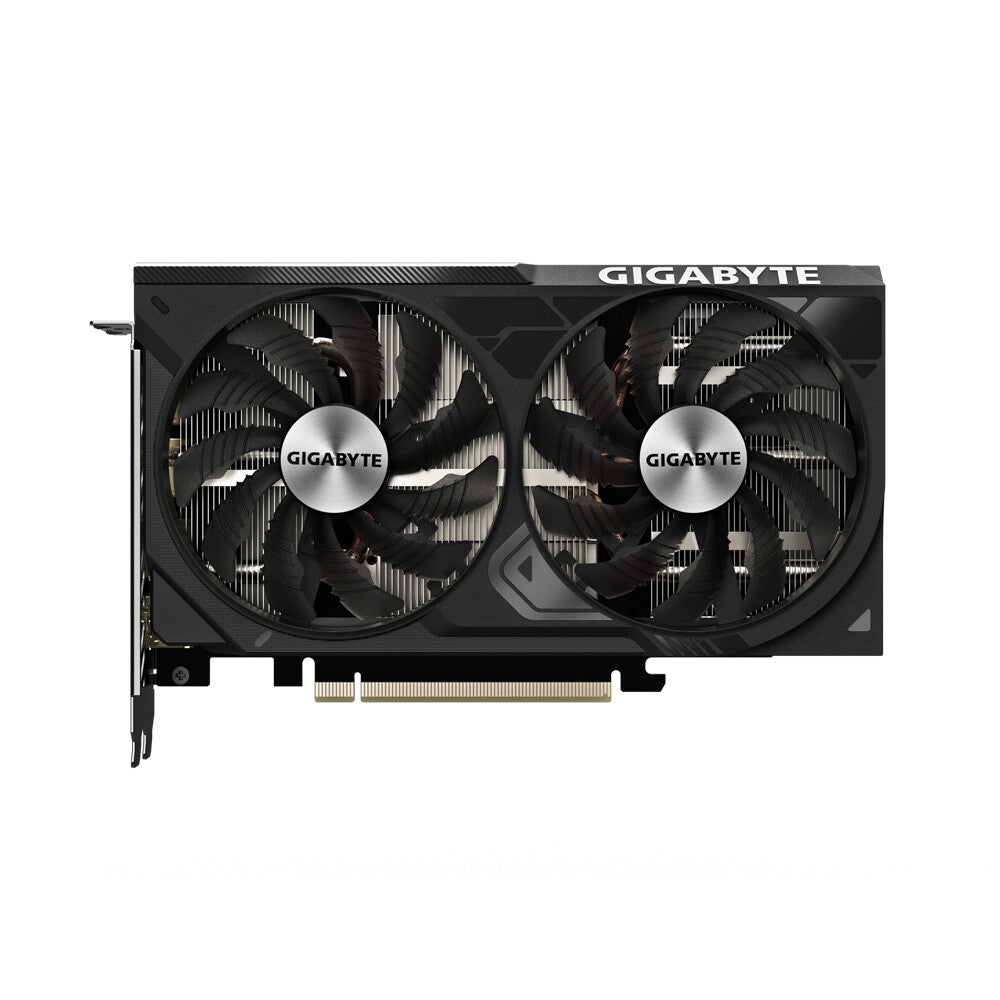

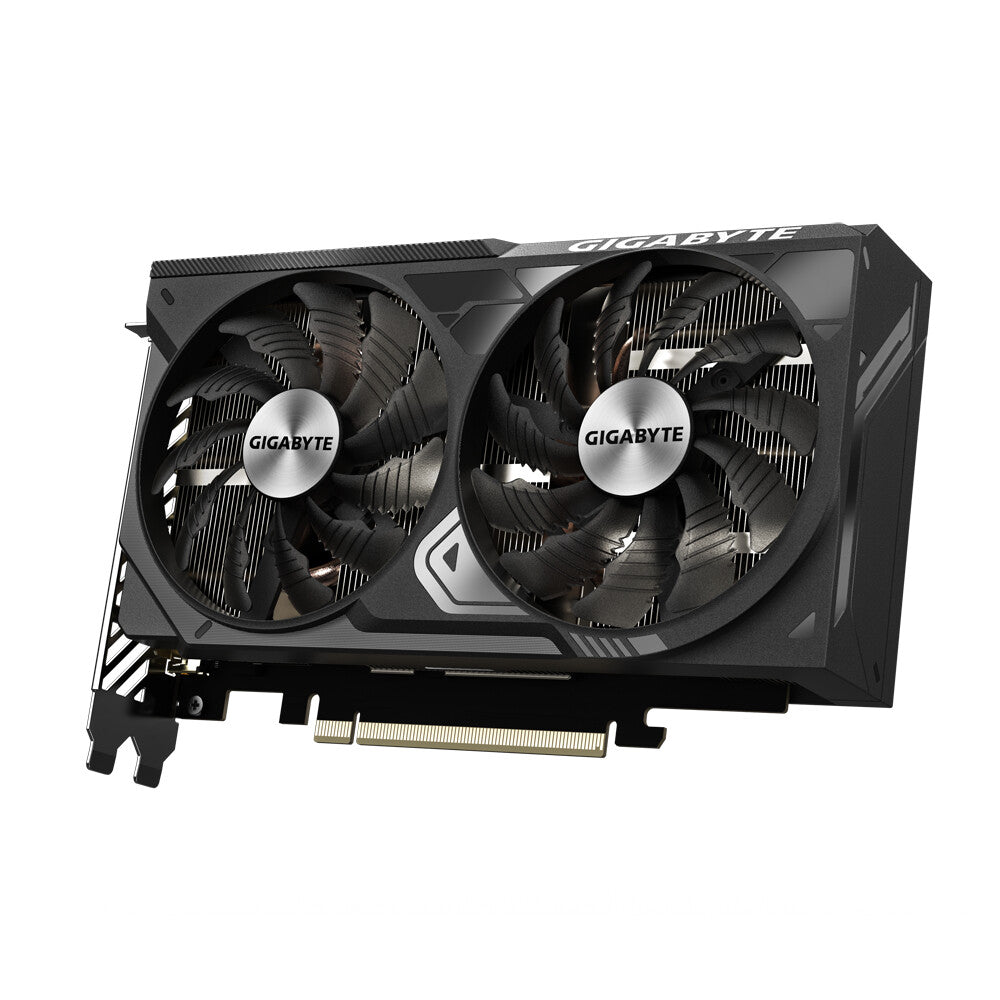

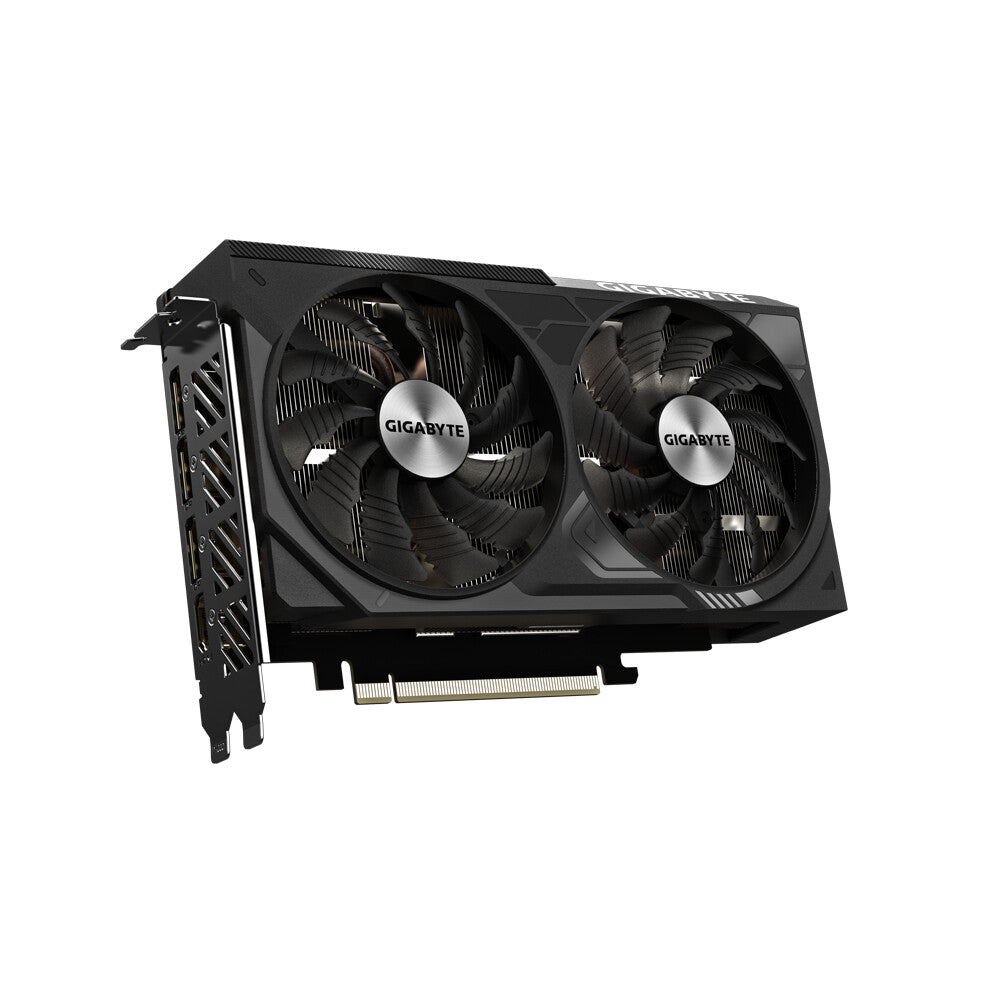

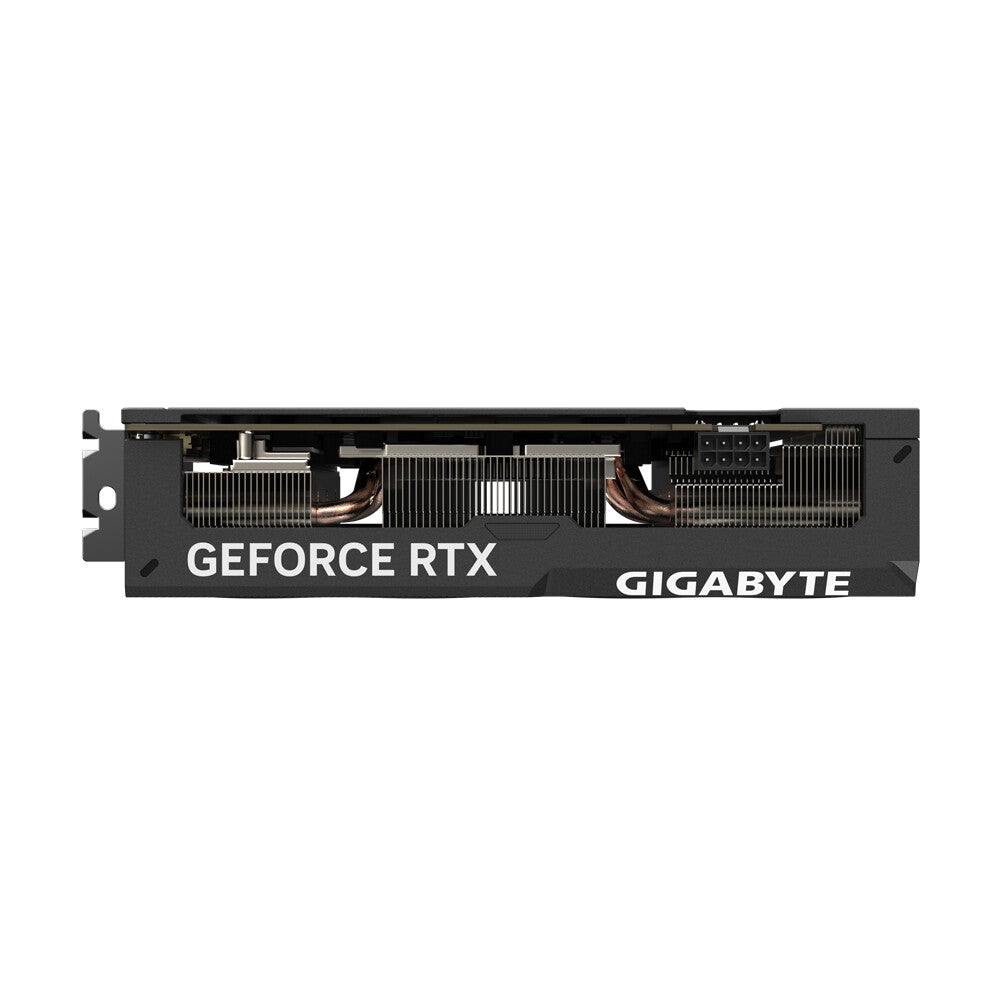

The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Processor | |
---|---|
Maximum displays per videocard | 4 |
Processor frequency | 2490 MHz |
CUDA cores | 5888 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4070 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bandwidth (max) | 21 GB/s |
Memory clock speed | 21000 MHz |
Memory bus | 192 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 12 GB |

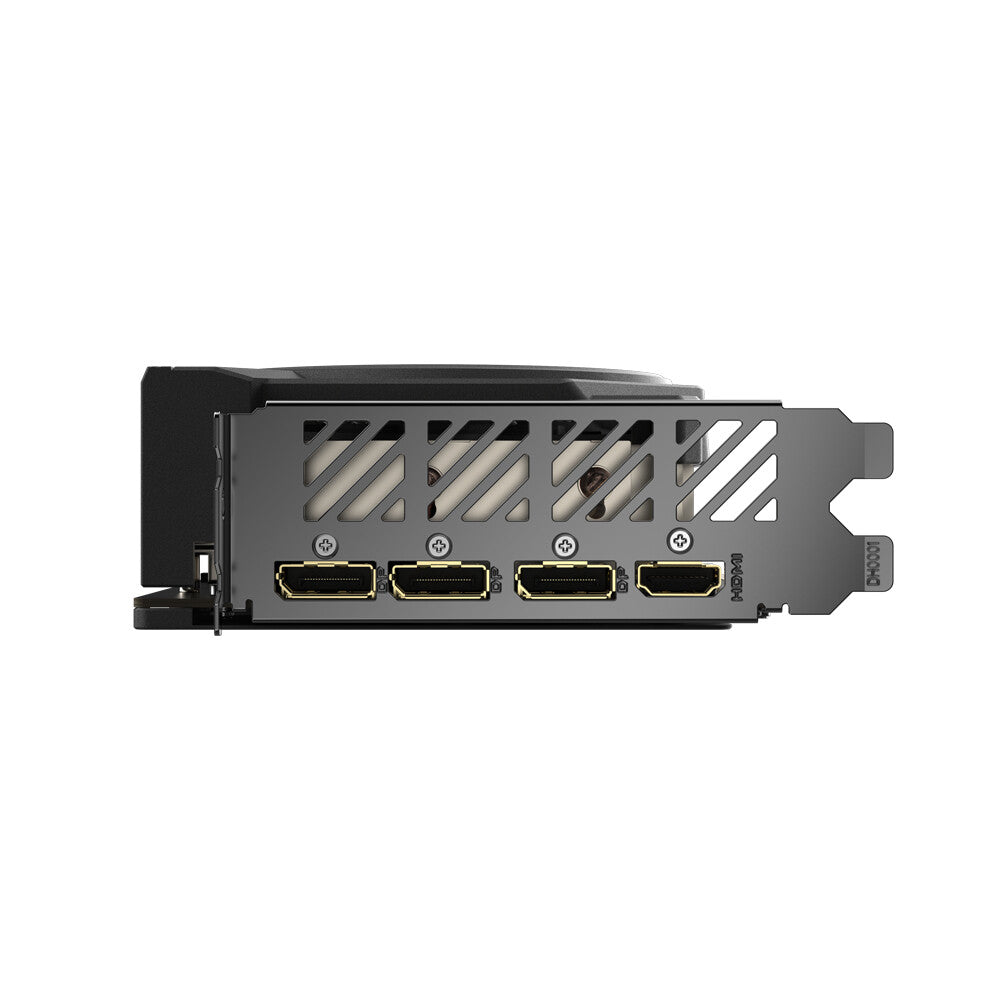

Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1a |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
Dual Link DVI | No |
OpenGL version | 4.6 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black |
Illumination | Yes |
Number of slots | 2.5 |
Form factor | Full-Height/Full-Length (FH/FL) |
Number of fans | 2 fan(s) |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 8-pin |
Thermal Design Power (TDP) | 200 W |
Minimum system power supply | 650 W |
Logistics data | |
---|---|
Products per shipping (inner) case | 1 pc(s) |
Technical details | |
---|---|
Warranty period | 3 year(s) |
Weight & dimensions | |
---|---|
Depth | 201 mm |
Height | 48.4 mm |
Width | 122.3 mm |
Weight | 620 g |
Packaging data | |
---|---|
Package type | Box |
Package weight | 1.02 kg |
Package height | 65 mm |
Package depth | 295 mm |
Package width | 210.5 mm |
Bundled software | GIGABYTE CONTROL CENTER |
User guide | Yes |
