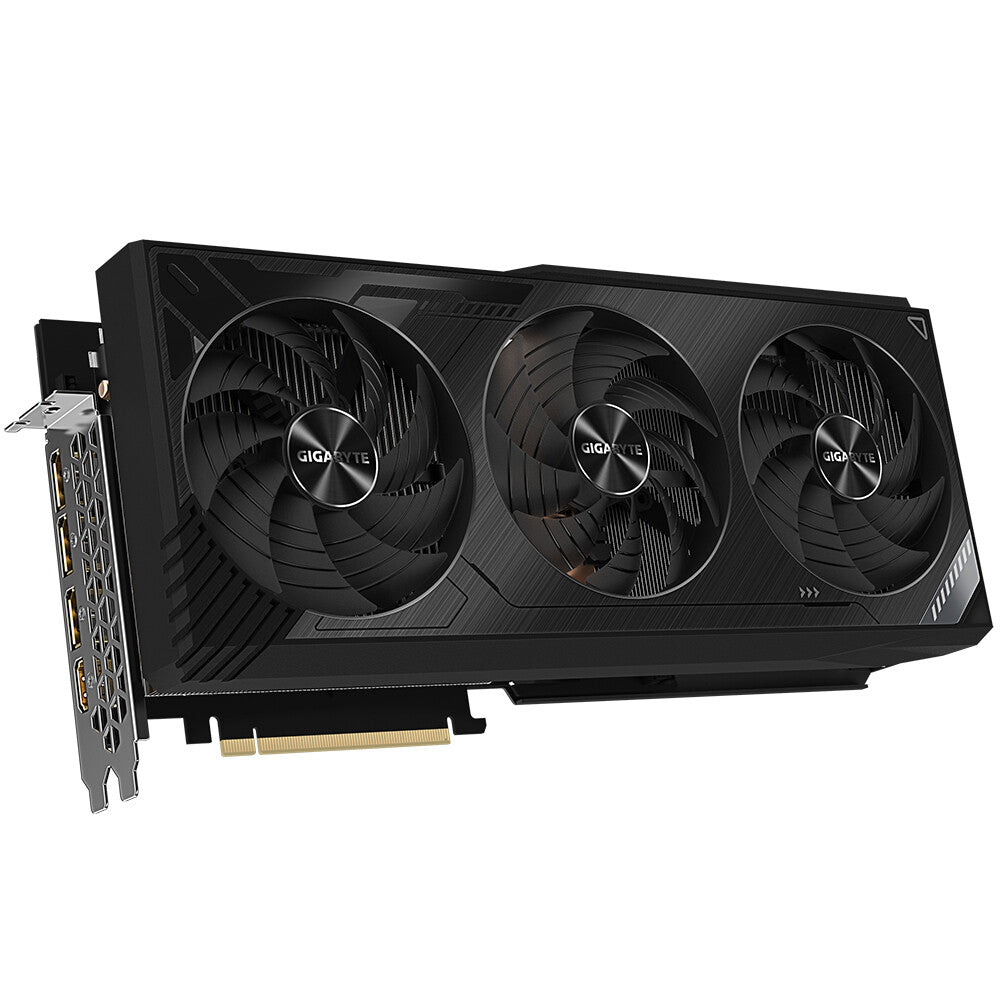

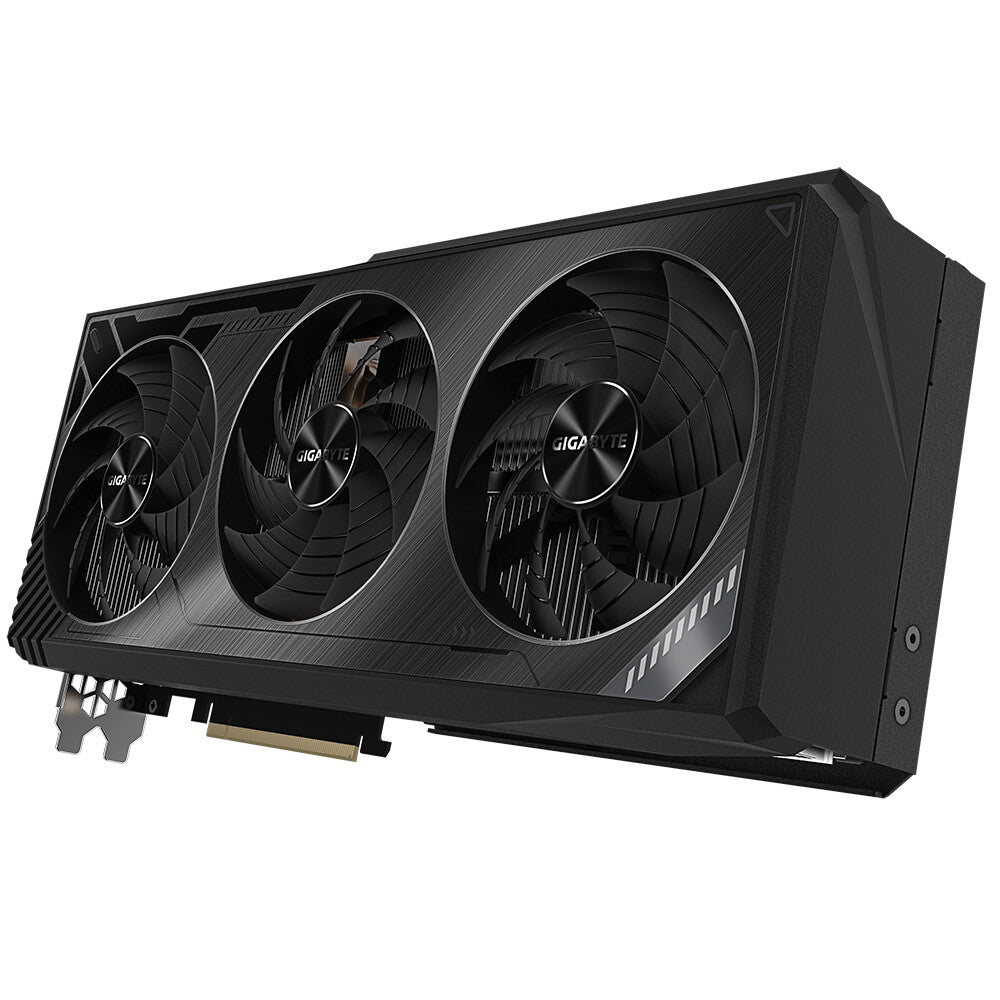

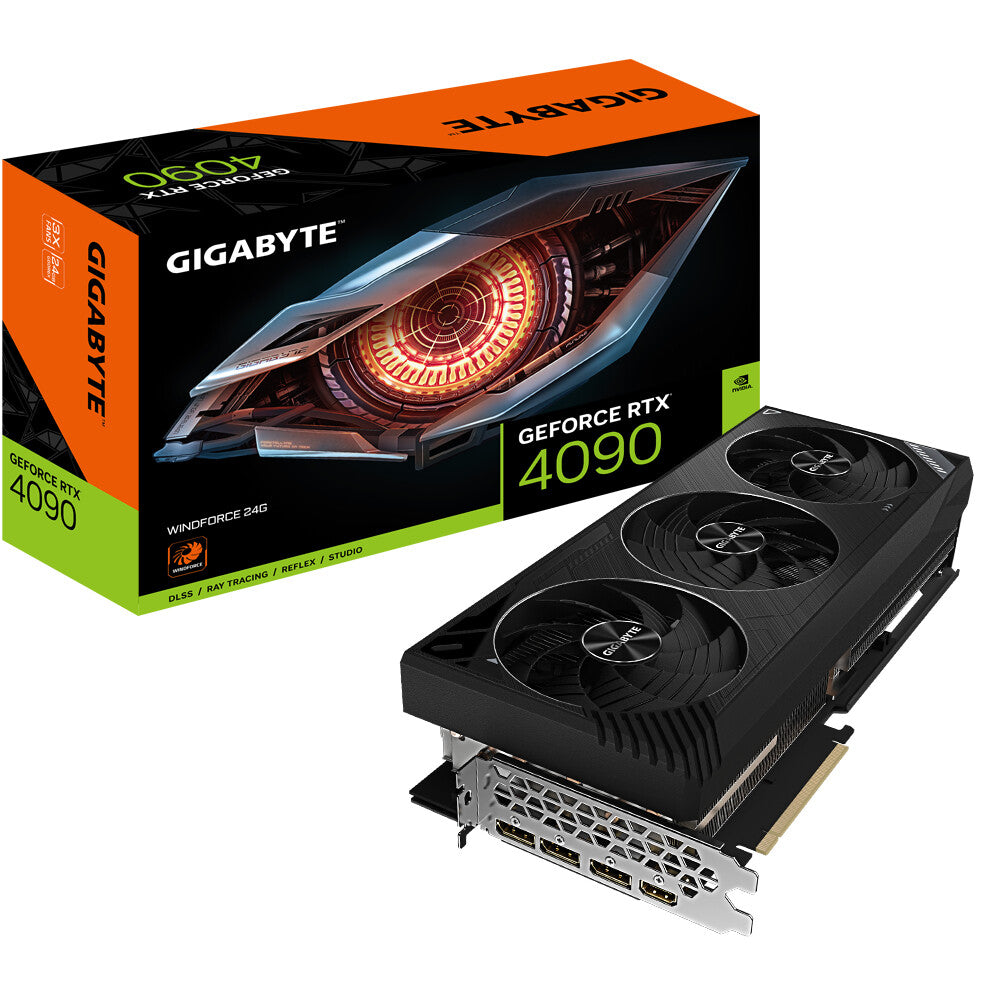

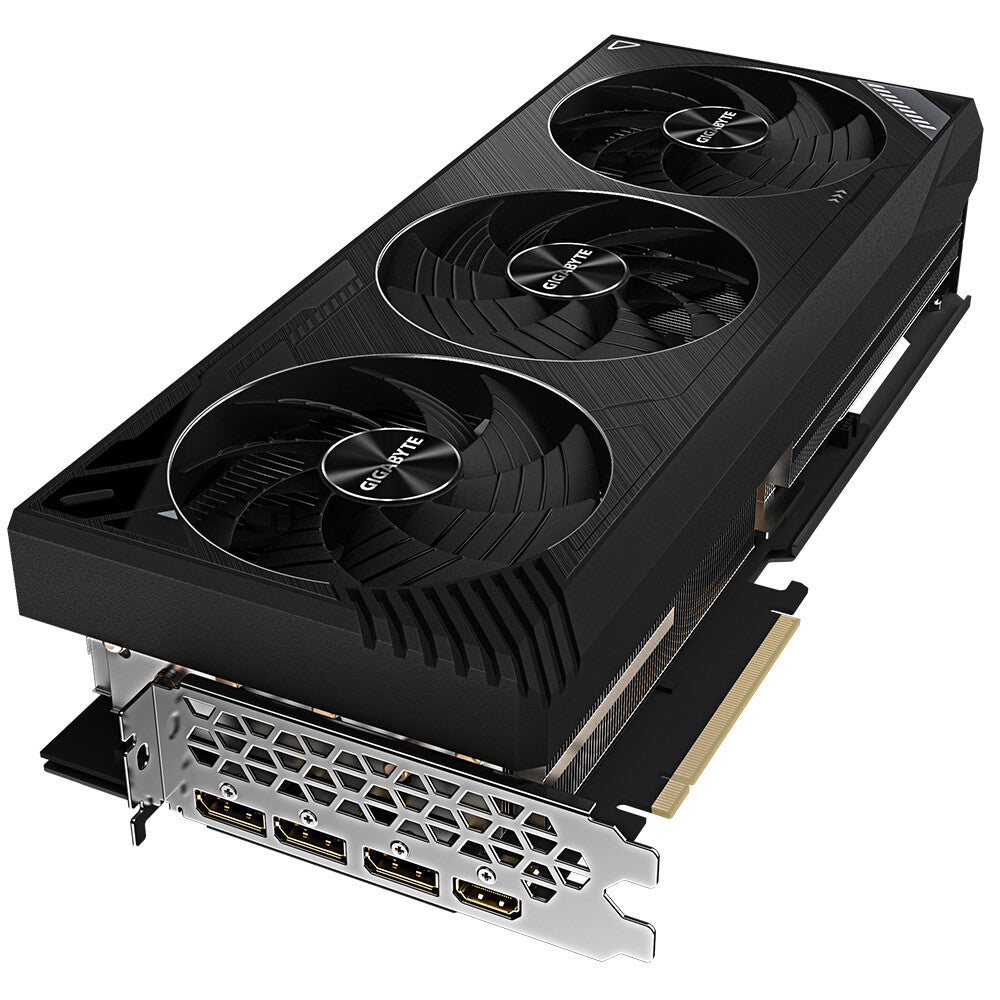

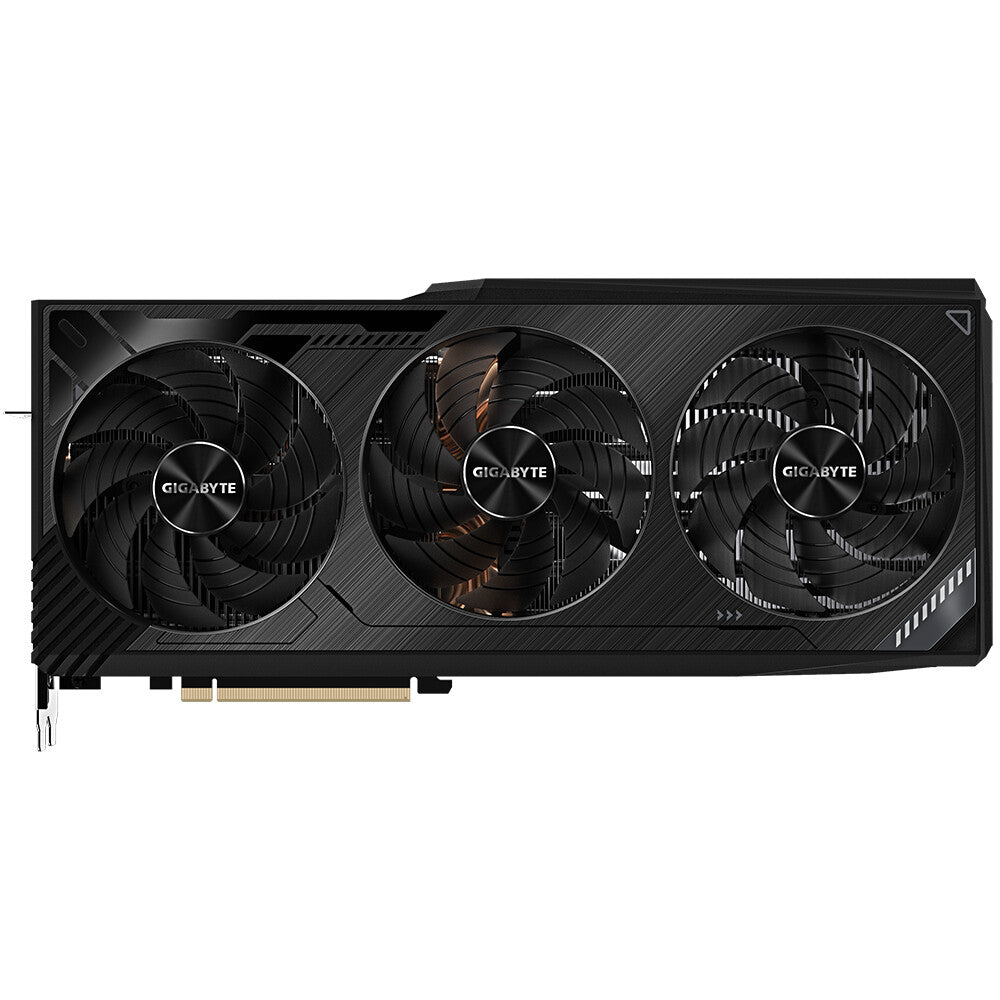

NVIDIA GeForce RTX 4090, 24GB GDDR6X, 384 bit, 2100MHz, PCI Express 4.0, 1 x HDMI (2.1), 3 x DP (1.4), CUDA, DirectX 12.0, OpenGL 4.6
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
DOUBLE BALL BEARING
The double ball bearing structure has better heat endurance and efficiency than sleeve structure.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.

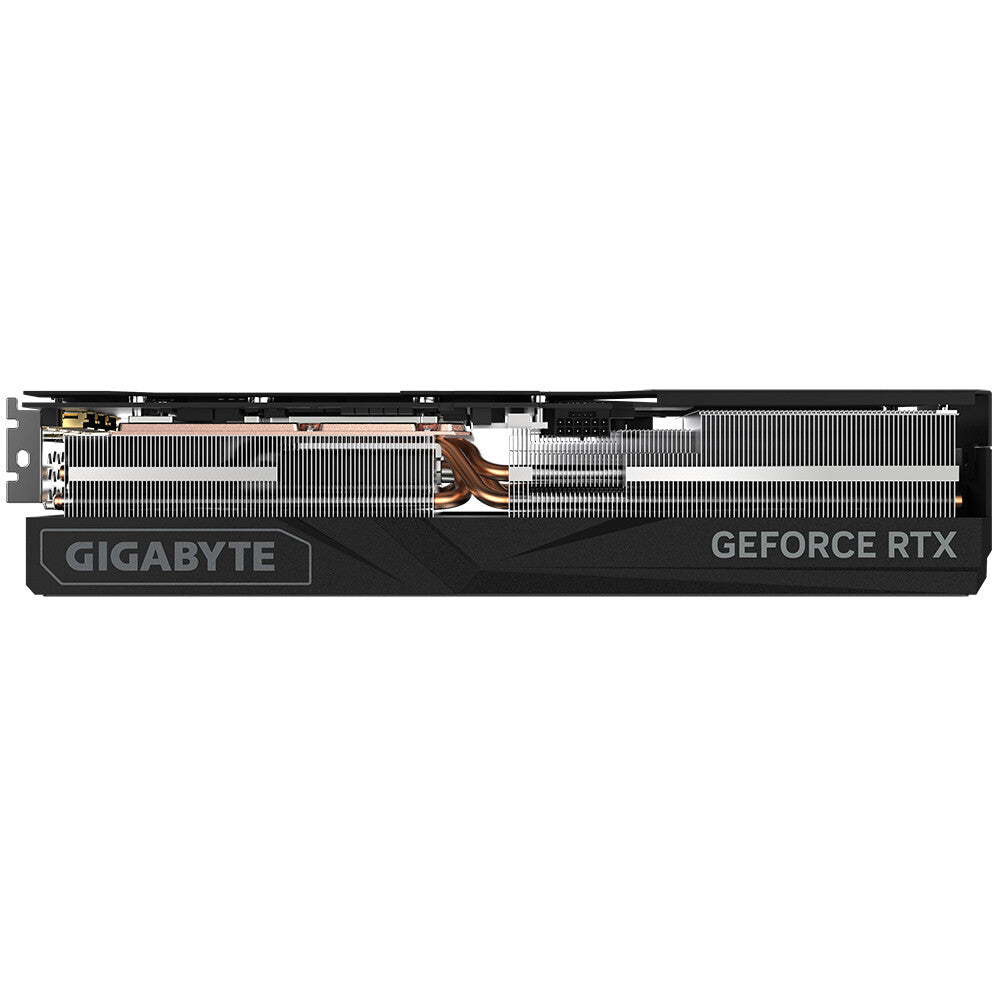

LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

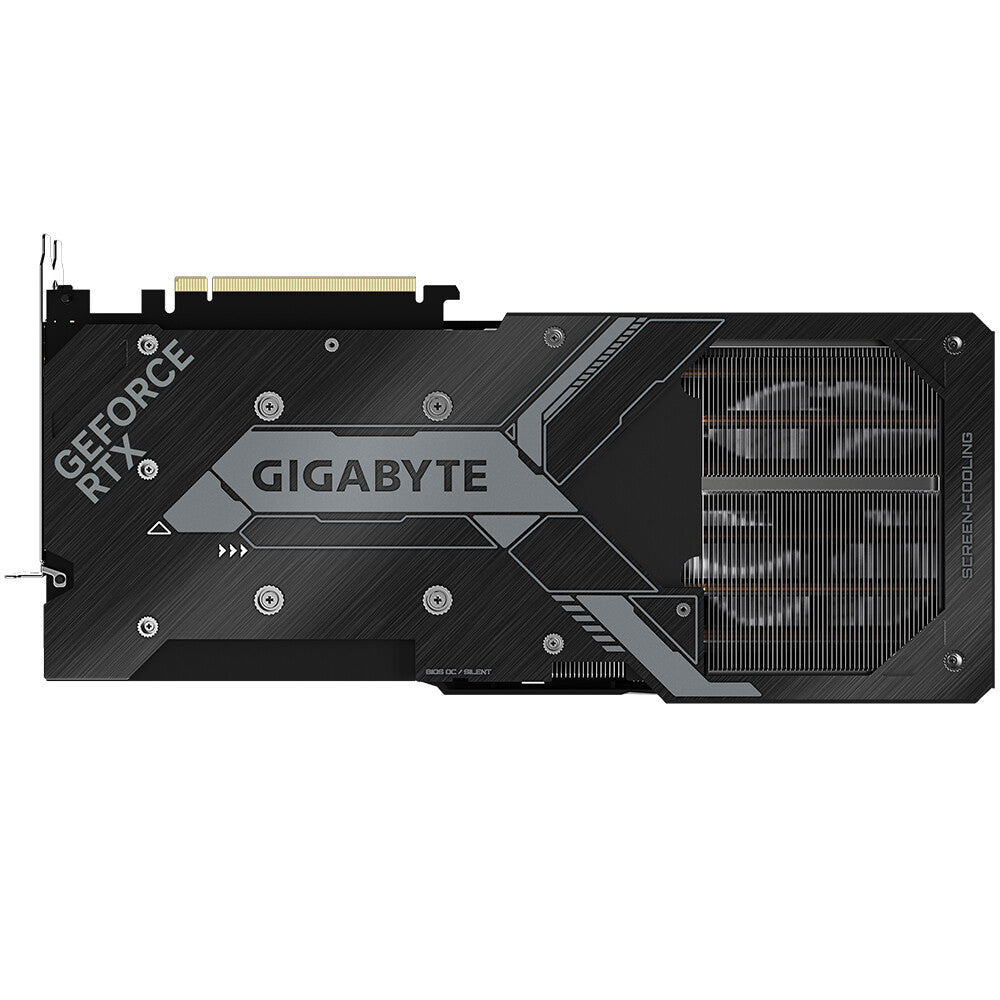

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
POWER INDICATORS
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| Processor |
|---|
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor boost clock speed |
2520 MHz |
| CUDA cores |
16384 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4090 |
| Graphics processor family |
NVIDIA |
| Memory |
|---|
| Memory clock speed |
2100 MHz |
| Memory bus |
384 bit |
| Graphics card memory type |
GDDR6X |
| Discrete graphics card memory |
24 GB |

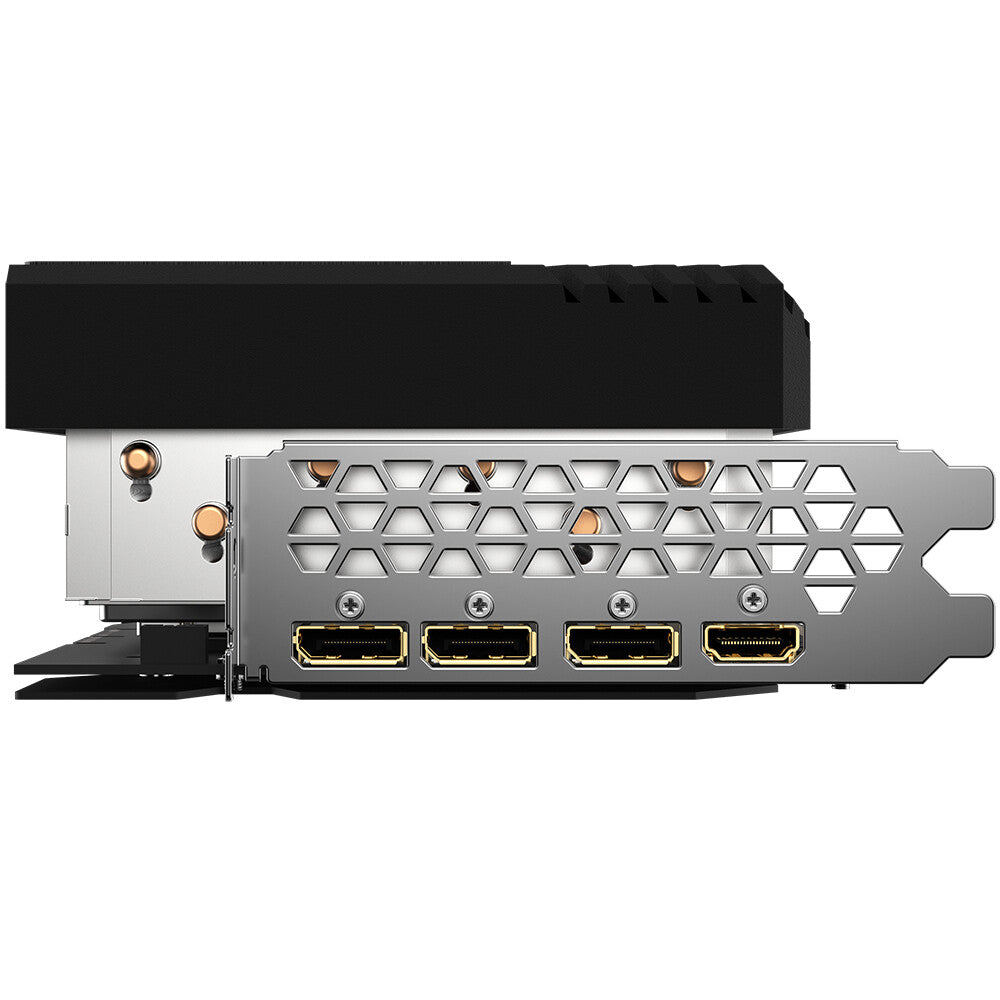

| Ports & interfaces |
|---|
| DisplayPort version |
1.4 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
1 |
| Interface type |
PCI Express 4.0 |
| Performance |
|---|
| Dual Link DVI |
No |
| HDCP |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12.0 |
| TV tuner integrated |
No |
| Design |
|---|
| Product colour |
Black |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Power |
|---|
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
850 W |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Weight & dimensions |
|---|
| Height |
150 mm |
| Length |
331 mm |
| Packaging data |
|---|
| Package type |
Box |
