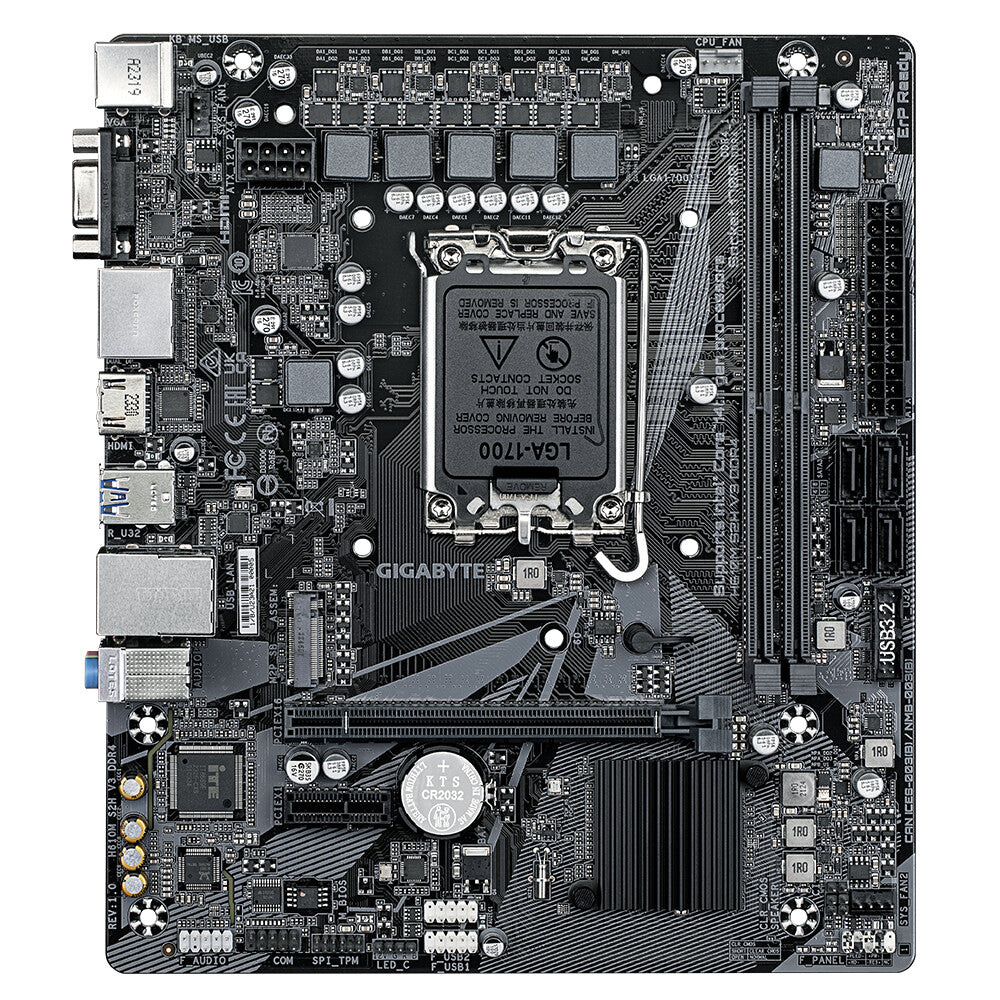

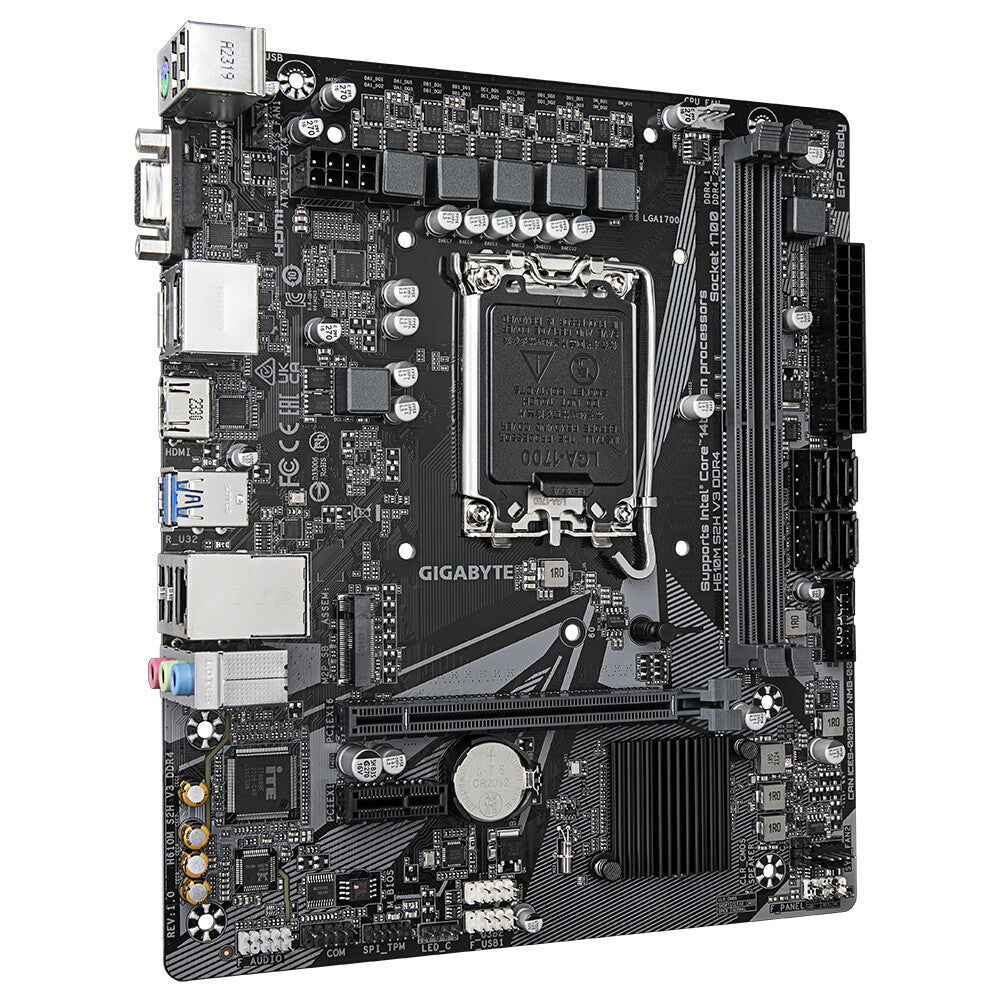

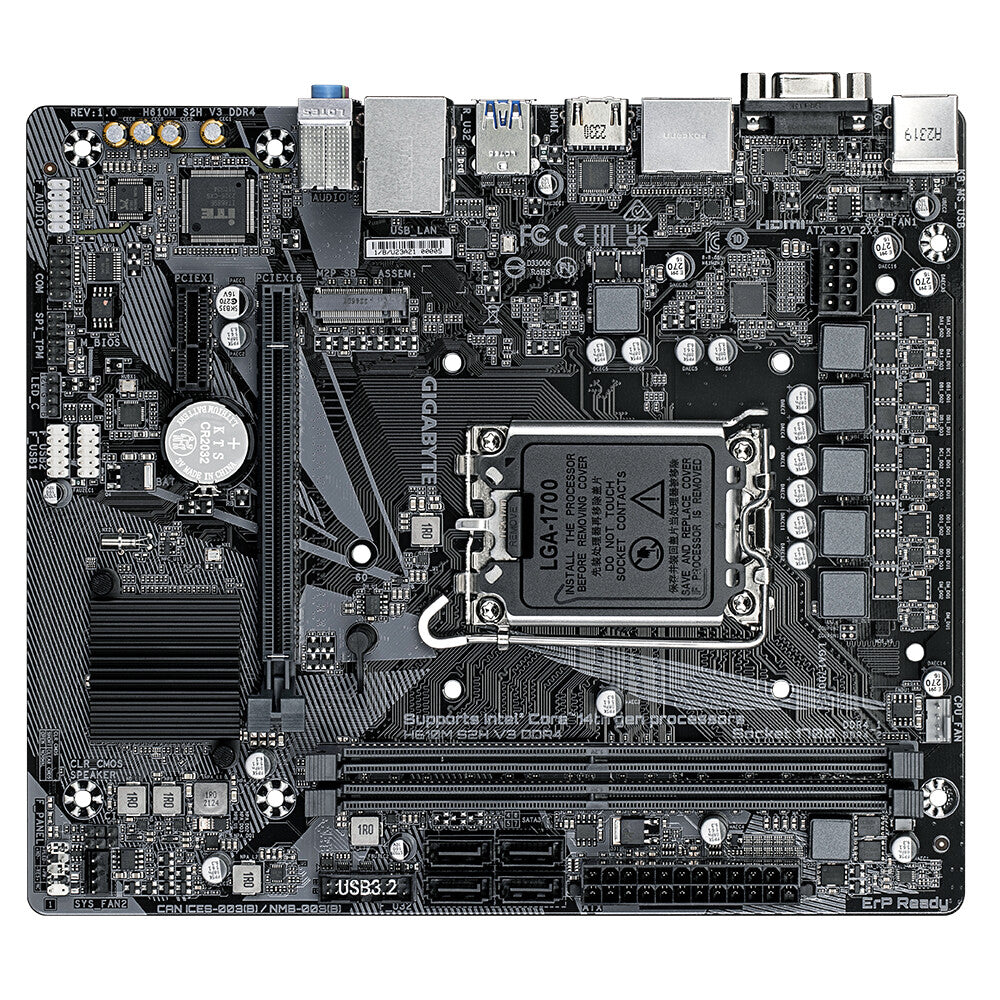

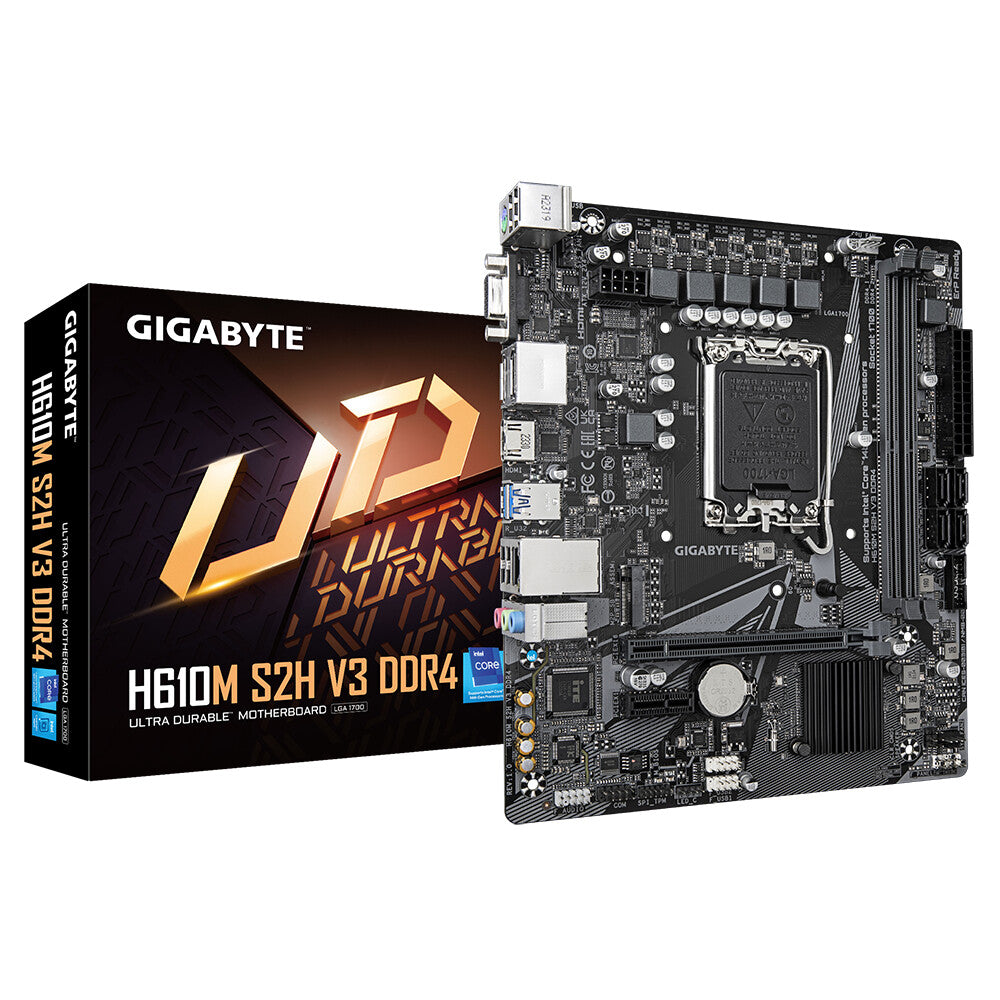

    Gigabyte H610M S2H V3 DDR4 Micro ATX motherboard - Intel H610 Express LGA 1700

    Gigabyte H610M S2H V3 DDR4 Micro ATX motherboard - Intel H610 Express LGA 1700

    (UK Consumers)
    ex. VAT (Rest of World)
    PayPal Credit 0% for 4 months
    GLOBAL SHIPPING – UPS & DHL
    BUSINESS CUSTOMERS – please email: Sales@clove.co.uk
    FAST SHIPPING – All orders

    Key Features

    • Supports Intel® Core™ 14th/ 13th /12th processors
    • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
    • 4+1+1 Hybrid Digital VRM Design
    • GbE LAN with Bandwidth Management
    • NVMe PCIe 3.0 x4 M.2
    • 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
    • High Quality Audio Capacitors and Audio Noise Guard
    • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
    • GIGABYTE APP Center, Simple and Easy Use
    • Anti-Sulfur Resistors Design

    Intel H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6

    Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
    4+1+1 Phases Low RDS(on) MOSFETs
    Solid capacitors to improve transient response and minimize oscillation.
    8-pin Solid Pin CPU Power Connector.

    Processor
    Maximum internal memory supported by processor 64 GB
    Supported processor sockets LGA 1700
    Compatible processor series Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
    Processor socket LGA 1700
    Processor manufacturer Intel
    Memory
    Unbuffered memory Yes
    Maximum internal memory 64 GB
    Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB
    Supported memory clock speed (max) 3200 MHz
    Supported memory clock speeds 3200, 3000, 2933, 2666, 2400, 2133 MHz
    Non-ECC Yes
    ECC Yes
    Memory channels Dual-channel
    Memory slots type DIMM
    Number of memory slots 2
    Supported memory types DDR4-SDRAM
    Storage controllers
    Number of HDDs supported 1
    Number of storage drives supported 5
    Supported storage drive interfaces M.2, SATA III
    Supported storage drive types HDD & SSD
    Graphics
    HDCP Yes
    Maximum resolution 4096 x 2304 pixels
    Parallel processing technology support Not supported
    Internal I/O
    RGB LED pin header Yes
    Serial port headers 1
    TPM connector Yes
    12V power connector Yes
    EPS power connector (8-pin) Yes
    CPU fan connector Yes
    ATX Power connector (24-pin) Yes
    Front panel connector Yes
    Front panel audio connector Yes
    Number of SATA III connectors 4
    USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
    USB 2.0 connectors 2

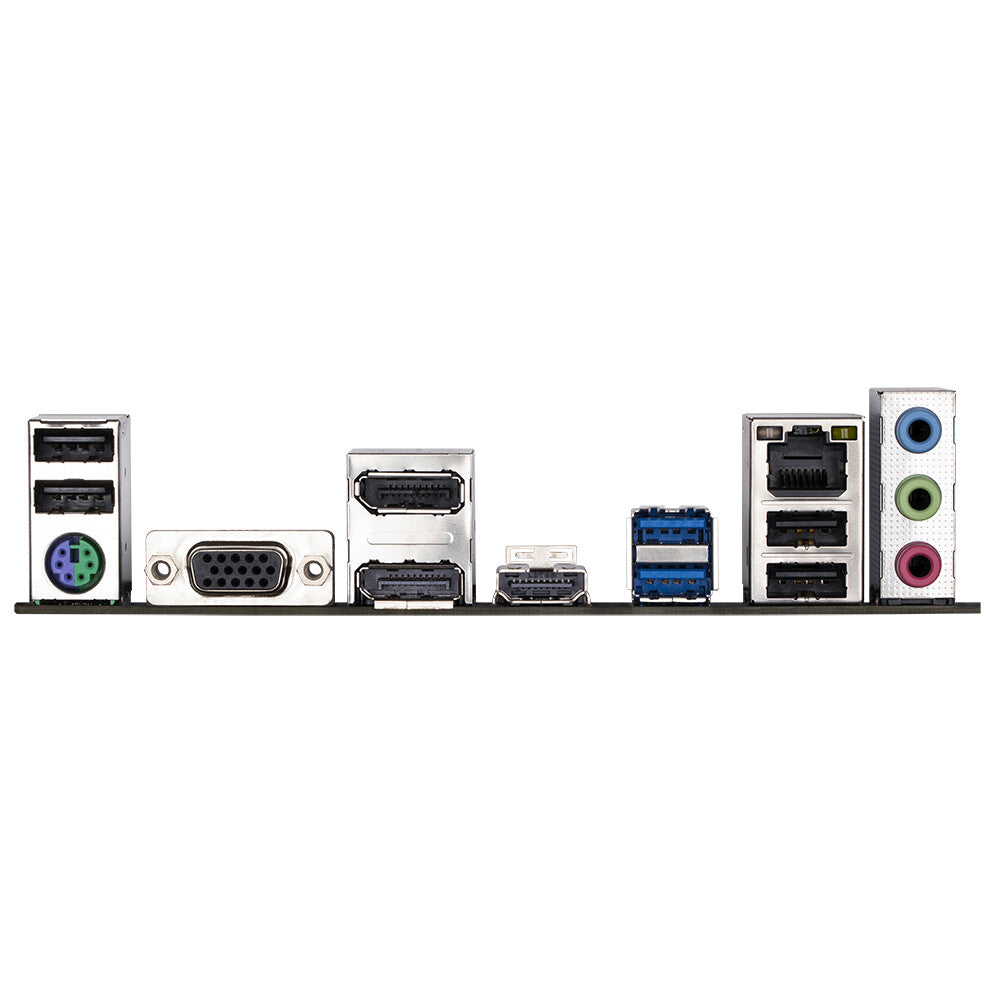

    Rear panel I/O ports
    USB connector type USB Type-A
    Microphone in Yes
    Headphone outputs 3
    DisplayPorts quantity 2
    DVI-D ports quantity 1
    HDMI ports quantity 1
    VGA (D-Sub) ports quantity 1
    PS/2 ports quantity 2
    Ethernet LAN (RJ-45) ports 1
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
    USB 2.0 ports quantity 4
    Network
    Wi-Fi No
    Ethernet interface type Gigabit Ethernet
    Ethernet LAN Yes
    Features
    Windows operating systems supported Windows 10 x64, Windows 11 x64
    Power source type ATX
    Cooling type Active
    PC health monitoring Fan, Temperature, Voltage, Water cooling
    Product colour Black
    Audio output channels 7.1 channels
    Audio chip Realtek ALC897
    Motherboard chipset Intel H610 Express
    Motherboard chipset family Intel
    Motherboard form factor micro ATX
    Component for PC
    Expansion slots
    Number of M.2 (M) slots 1
    PCI Express x16 slots 1
    PCI Express x1 slots 1
    BIOS
    Desktop Management Interface (DMI) version 2.7
    System Management BIOS (SMBIOS) version 2.7
    Clear CMOS button Yes
    Clear CMOS jumper Yes
    ACPI version 5.0
    BIOS memory size 128 Mbit
    BIOS type UEFI AMI
    Logistics data
    Country of origin China
    Products per shipping (inner) case 1 pc(s)
    Packaging data
    Package weight 703 g
    Package height 52 mm
    Package depth 235 mm
    Package width 265 mm
    Battery
    Battery type CR2032
    Battery technology Lithium-Manganese Dioxide (LiMnO2)
    Number of battery cells 1
    Battery weight 3 g
    Lithium weight per battery 0.07 g
    Weight & dimensions
    Height 35 mm
    Depth 215 mm
    Width 230 mm
    Packaging content
    Bundled software Norton Internet Security (OEM version)LAN bandwidth management software
    Cables included SATA
    Batteries included Yes
    Technical details
    Warranty period 3 year(s)
