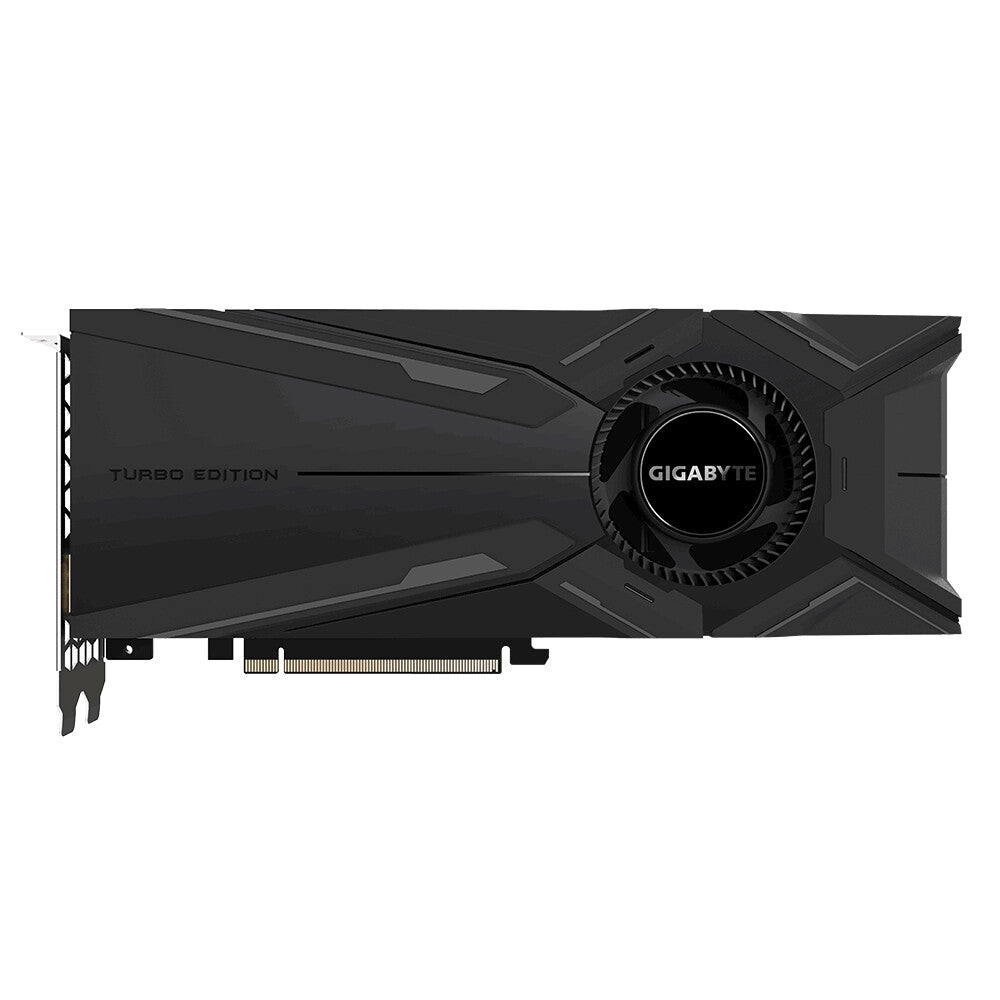

TURBO FAN COOLING SYSTEM
GIGABYTE turbo fan cooling system is designed for systems that use multiple graphics cards in space restricted chassis. With the vapor chamber direct touch GPU, blower fan and specially shaped exterior, it provides more airflow and better heat dissipation.
THE OPTIMIZED AIRFLOW
The specially designed exterior increases the intake airflow of the graphics card in a limited space, and then the heat generated by the graphics card is quickly taken out of the entire chassis by the ultra-durable blower fan.
VAPOR CHAMBER DIRECT TOUCH
Vapor chamber has the best thermal conductivity to transfer the heat rapidly from the GPU to the heat sink. In addition, the heat of the VRAM and the MOSFET is also conducted through the metal patch to the heat sink, and then the heat is taken out of the entire chassis by the blower fan.
DOUBLE BALL BEARING
Double ball bearing is the most durable fan construction with a durability of over 50,000 hours. Double ball bearing has at least twice life as sleeve bearing.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 8 + 3 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
NVIDIA NVLINKTM SUPPORT
Support for NVIDIA NVLinkTM (NVIDIA SLI) technology, which combines 2 identical GPUs with an GeForce RTX NVLink Bridge to deliver the ultimate experience in 4K gaming or VR gaming. You can also adjust the light effect on the bridge with the AORUS Engine.
POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
Processor | |
---|---|
Parallel processing technology support | 2-Way SLI, NVLink |
FireStream | No |
Processor frequency | 1545 MHz |
CUDA cores | 4352 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 2080 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bandwidth (max) | 616 GB/s |
Memory clock speed | 14000 MHz |
Memory bus | 352 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 11 GB |

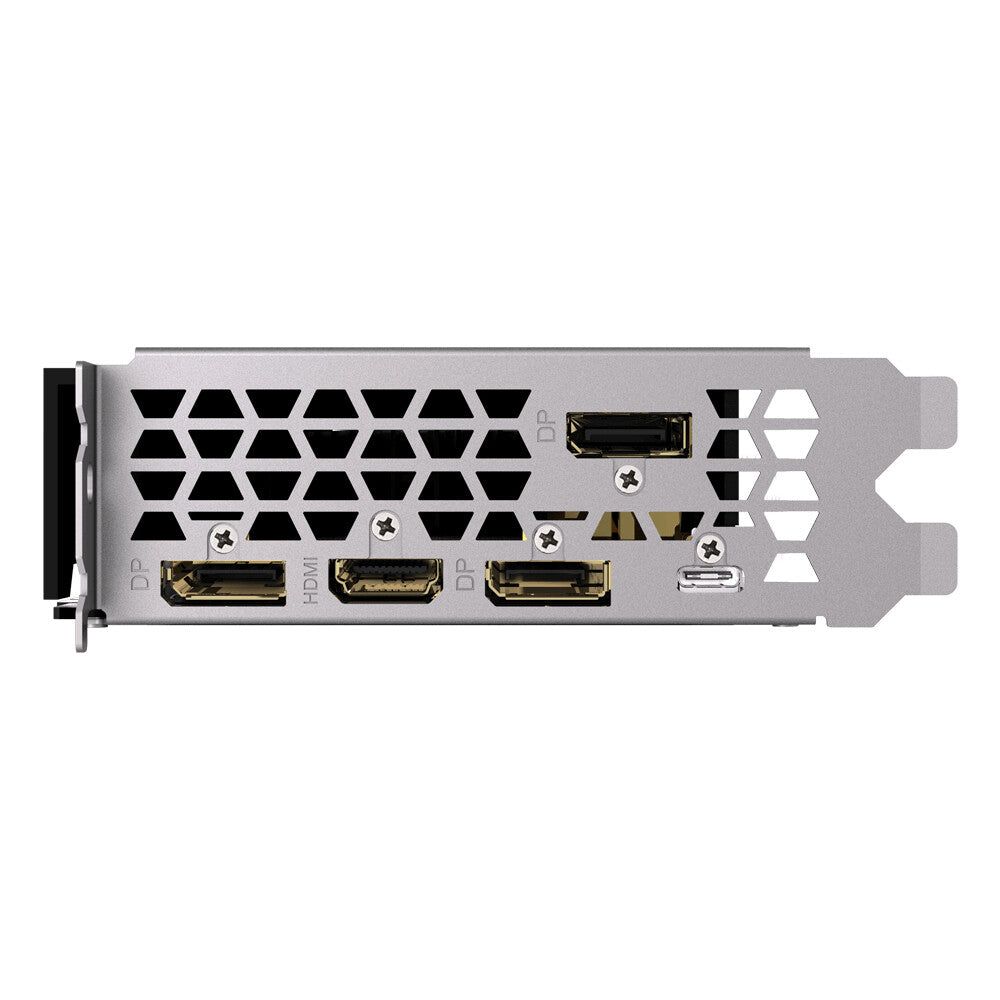

Ports & interfaces | |
---|---|
USB Type-C ports quantity | 1 |
DisplayPort version | 1.4 |
HDMI version | 2.0b |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x16 3.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
OpenGL version | 4.5 |
Shader model version | No |
DirectX version | 12.0 |
TV tuner integrated | No |
PhysX | No |
Design | |
---|---|
Product colour | Black |
Number of fans | 1 fan(s) |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 2x 8-pin |
Minimum system power supply | 750 W |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 39.6 mm |
Height | 113.7 mm |
Length | 272 mm |
Packaging data | |
---|---|
Drivers included | Yes |
