Breakthrough performance, more possibility
Revolutionary Power Design

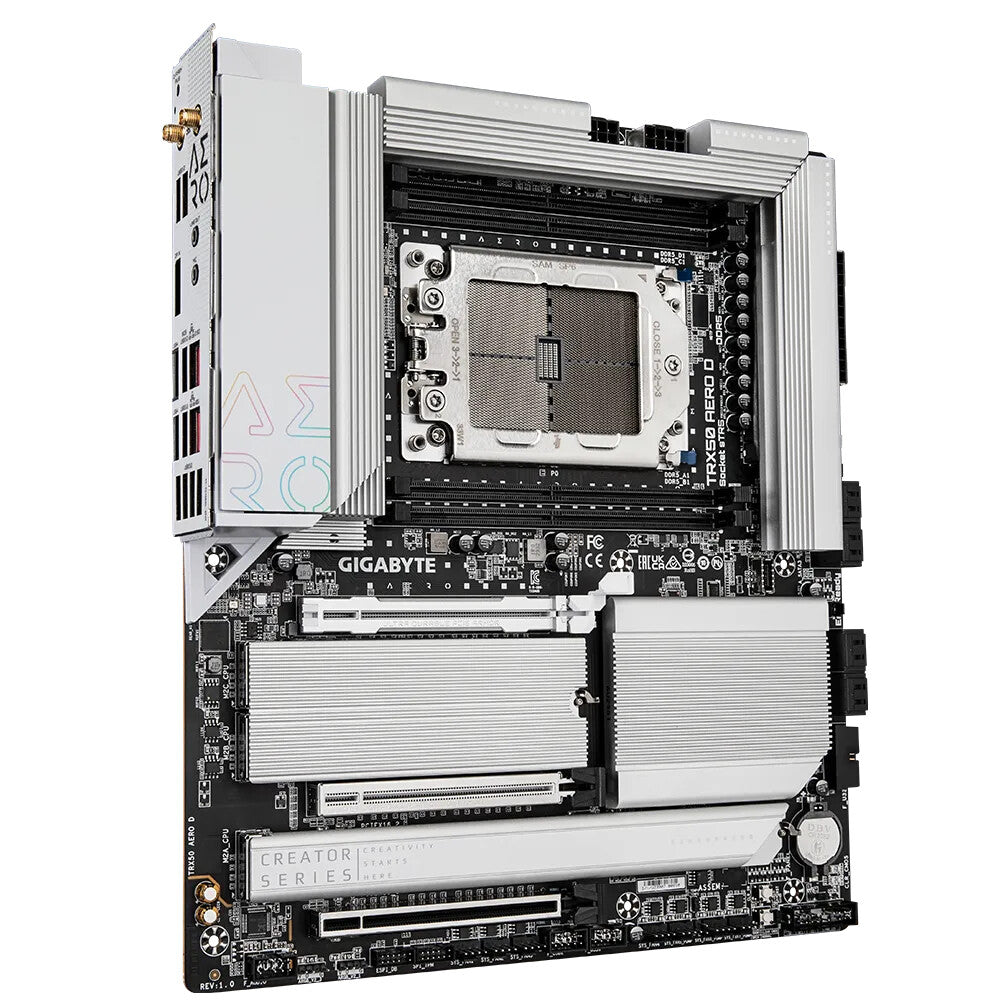

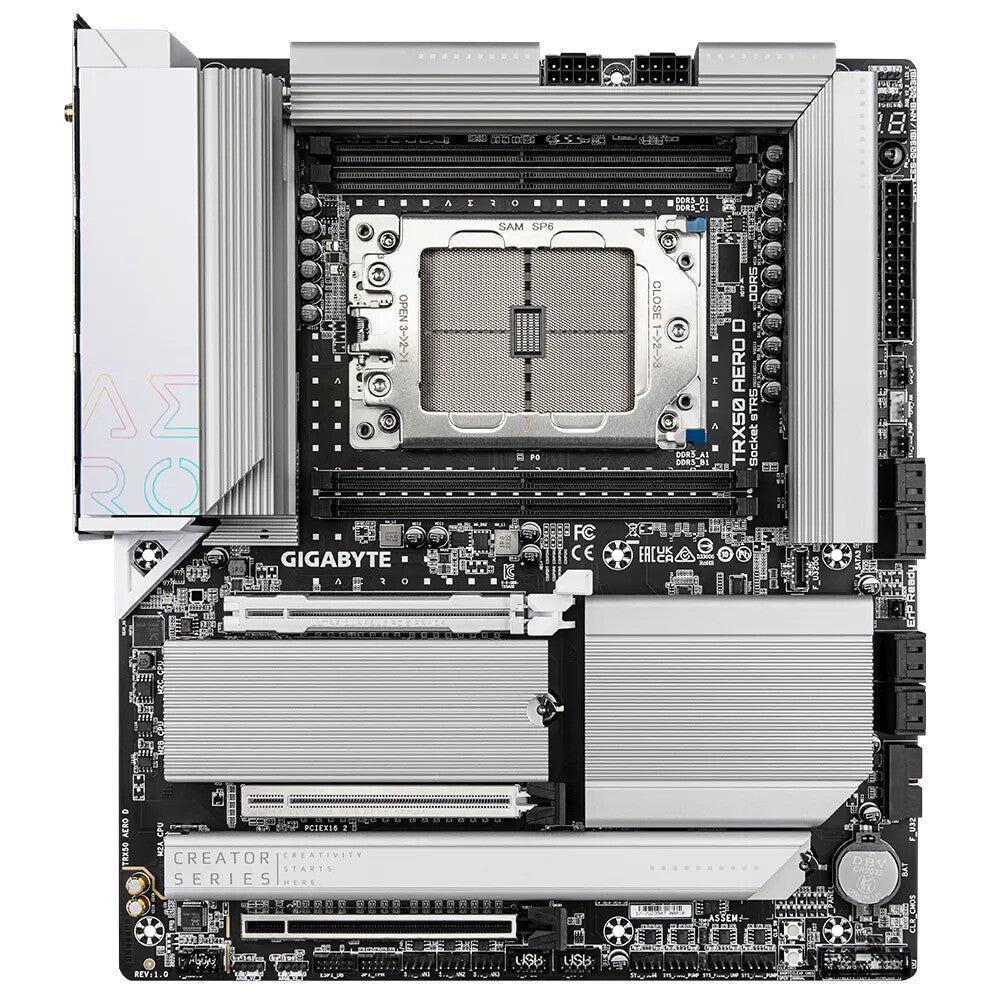

The TRX50 AERO D motherboard is designed for content creators, enthusiasts, and AI professionals. Equipped with the all-digital 16+8+4 phases power design of the Infineon multiphase PWM controller, the TRX50 AERO D unleashes exceptional performance of the new generation AMD Ryzen™ Threadripper™ CPU, while providing the best stability under heavy workloads and committing the most powerful HEDT platform to builders.
Processor | |
---|---|
Maximum internal memory supported by processor | 1 TB |
Maximum number of SMP processors | 1 |
Compatible processor series | AMD Ryzen™ Threadripper™ |
Processor socket | Socket sTR5 |
Processor manufacturer | AMD |
Memory | |
---|---|
Maximum internal memory | 1 TB |
Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB, 64GB, 128GB, 128MB, 256MB |
Supported memory clock speed (max) | 7800 MHz |
Supported memory clock speeds | 4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz |
ECC | Yes |
Memory channels | Quad-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
RAID support | Yes |
Number of HDDs supported | 8 |
Number of storage drives supported | 12 |
Supported storage drive interfaces | M.2, SATA |
Supported storage drive types | SSD |
Graphics | |
---|---|
DirectX version | 12.0 |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 10 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Audio connector | Yes |
Total number of SATA connectors | 8 |
Number of SATA III connectors | 8 |
USB 3.2 Gen 2x2 connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

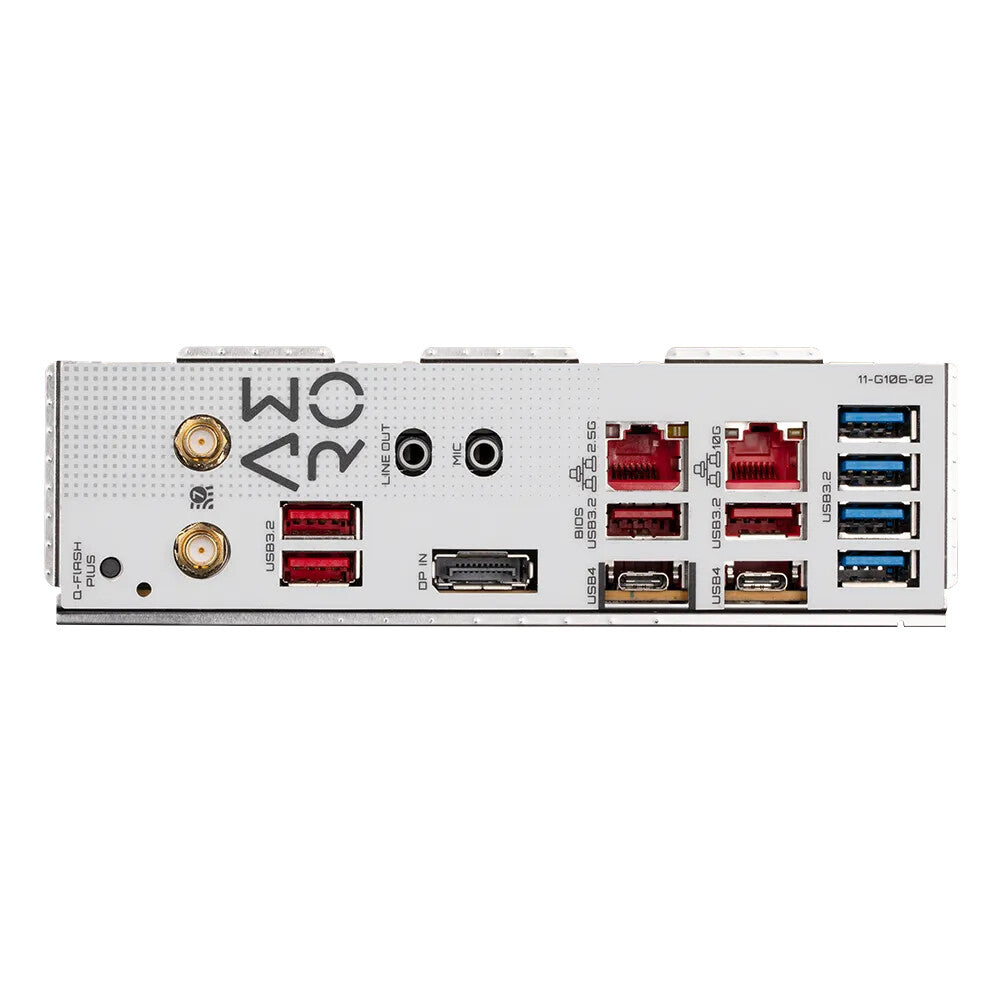

Rear panel I/O ports | |
---|---|
Headphone outputs | 2 |
DisplayPorts quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi | Yes |
Ethernet interface type | 10 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 11 x64 |
PC health monitoring | Fan, Temperature, Voltage, Water cooling |
Product colour | Black |
Audio output channels | 2.0 channels |
Audio chip | Realtek ALC4080 |
Motherboard chipset | AMD TRX50 |
Motherboard chipset family | AMD |
Motherboard form factor | Extended ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 4 |
PCI Express x16 (Gen 5.x) slots | 2 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 slots | 3 |
BIOS | |
---|---|
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Clear CMOS button | Yes |
Clear CMOS jumper | Yes |
ACPI version | 5.0 |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Country of origin | China |
Products per shipping (inner) case | 1 pc(s) |
Packaging data | |
---|---|
Package weight | 3.04 kg |
Package height | 80 mm |
Package depth | 294 mm |
Package width | 345 mm |
Battery | |
---|---|
Battery type | CR2032 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Number of battery cells | 1 |
Battery weight | 3 g |
Lithium weight per battery | 0.07 g |
Weight & dimensions | |
---|---|
Height | 35 mm |
Depth | 264 mm |
Width | 305 mm |
Packaging content | |
---|---|
Bundled software | Norton Internet Security (OEM version),LAN bandwidth management software |
Batteries included | Yes |
Technical details | |
---|---|
Warranty period | 3 year(s) |
