UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Processor | |
---|---|
Maximum internal memory supported by processor | 128 GB |
Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
Supported memory clock speed (max) | 5333 MHz |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Number of HDDs supported | 4 |
Number of storage drives supported | 8 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
DirectX version | 12.0 |
HDCP | Yes |
Maximum resolution | 4096 x 2304 pixels |
Parallel processing technology support | Crossfire |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
Thunderbolt headers | 2 |
TPM connector | Yes |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Total number of SATA connectors | 4 |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

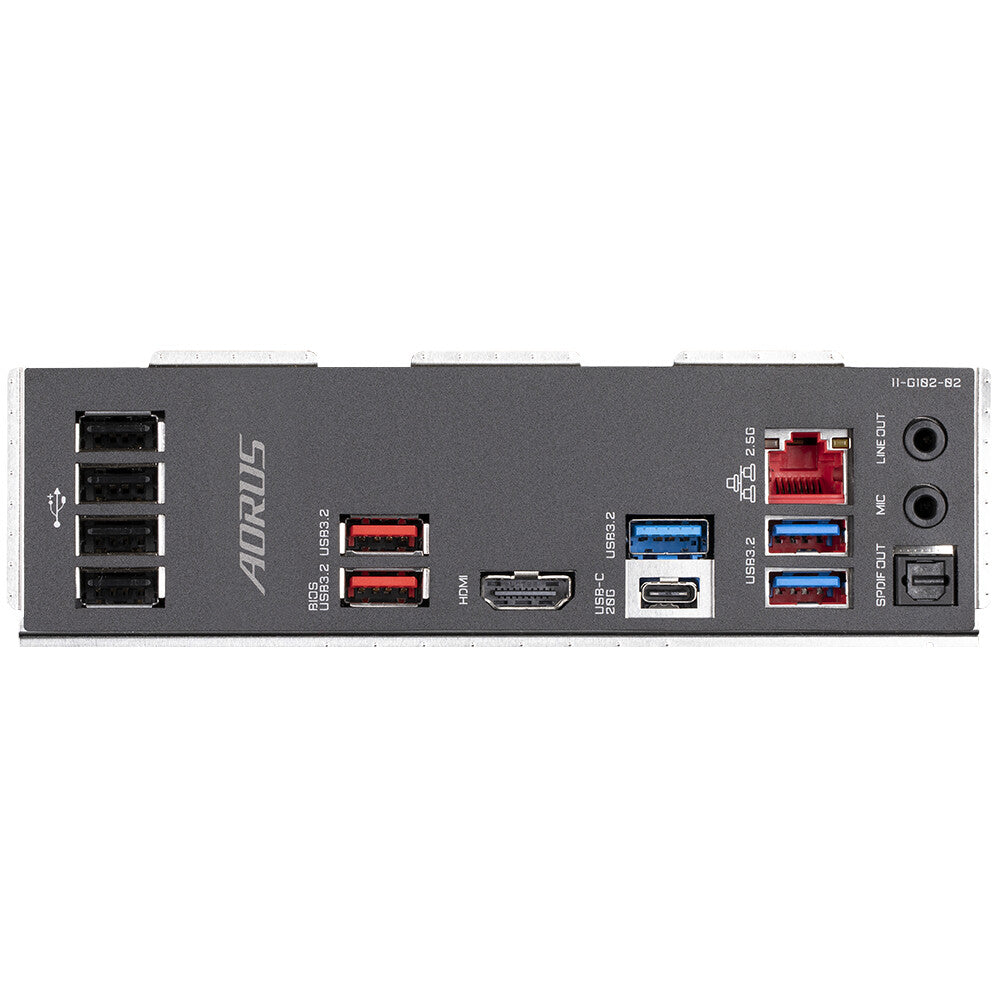

Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A, USB Type-C |
WiFi-AP antenna jack | 2 |
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 2 |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 2.0 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Wi-Fi | No |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
PC health monitoring | Fan, Temperature, Voltage, Water cooling |
Product colour | Black |
Audio output channels | 7.1 channels |
Motherboard chipset | Intel Z790 Express |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 4 |
PCI Express x16 slots | 2 |
BIOS | |
---|---|
Desktop Management Interface (DMI) version | 2.7 |
System Management BIOS (SMBIOS) version | 2.7 |
Clear CMOS button | Yes |
Clear CMOS jumper | Yes |
ACPI version | 5.0 |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Logistics data | |
---|---|
Country of origin | China |
Products per shipping (inner) case | 1 pc(s) |
Battery | |
---|---|
Battery type | CR2032 |
Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
Number of battery cells | 1 |
Battery weight | 3 g |
Lithium weight per battery | 0.07 g |
Weight & dimensions | |
---|---|
Height | 35 mm |
Depth | 244 mm |
Width | 305 mm |
Packaging content | |
---|---|
Bundled software | Norton Internet Security |
Cables included | SATA |
Batteries included | Yes |
Technical details | |
---|---|
Warranty period | 3 year(s) |
