Empowering the hybrid workforce

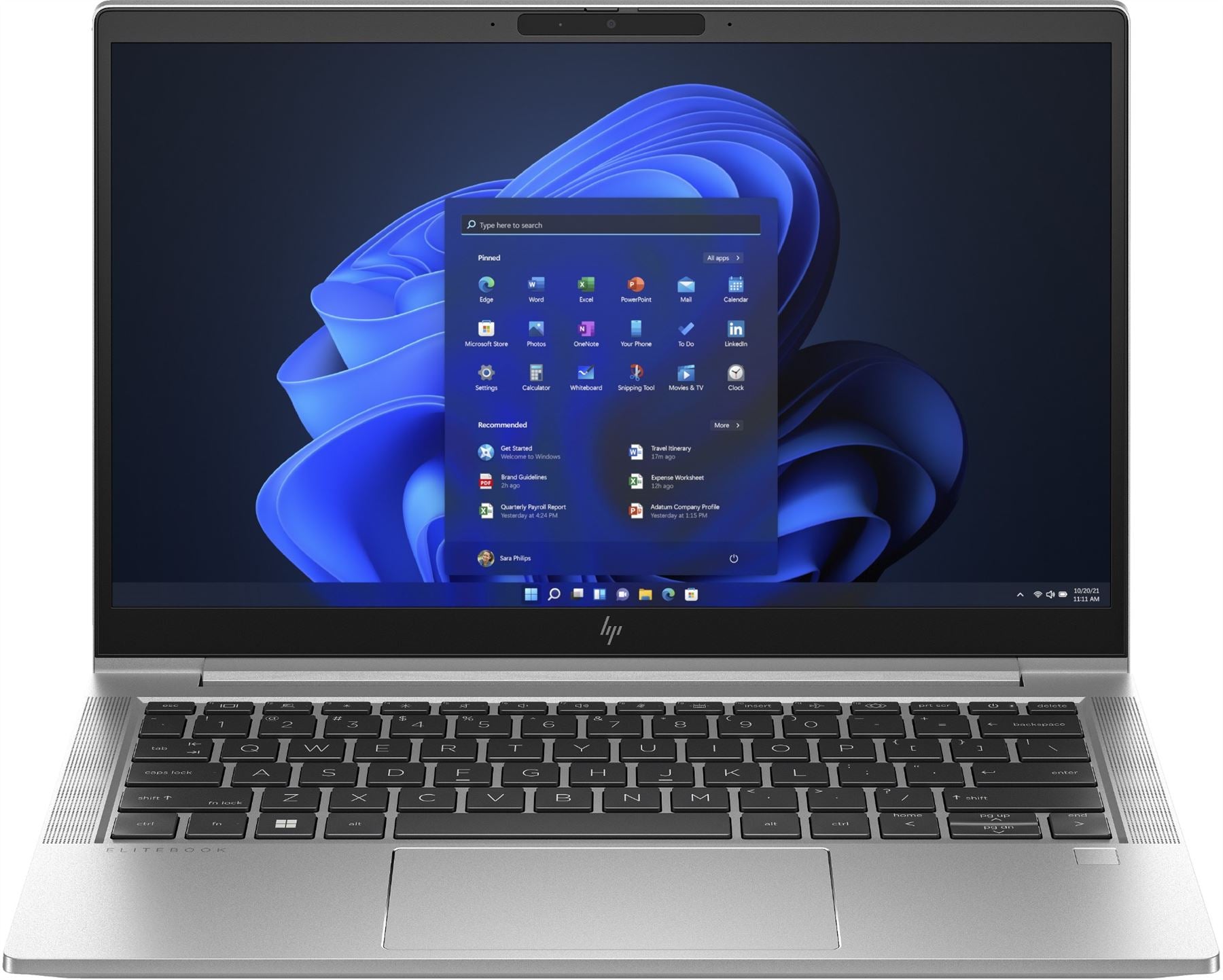

Simplify hybrid work with the cost-effective, highly secure, and easy to manage HP EliteBook 630. With the latest Intel® processor[2], this PC easily adapts for use at home, in the office, or when traveling.
| Design | |
|---|---|
| Original brand name | HP |
| Introduction year | 2023 |
| Market positioning | Premium |
| Form factor | Clamshell |
| Colour name | Pike silver aluminum |
| Product colour | Silver |
| Product type | Laptop |
| Display | |
|---|---|
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Display diagonal (metric) | 33.8 cm |
| Display brightness | 250 cd/m² |
| Display bezel technology | Micro-Edge |
| Anti-glare screen | Yes |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 33.8 cm (13.3") |
| Processor | |
|---|---|
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Processor cache type | L3 |
| Processor cache | 12 MB |
| Processor cores | 10 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Processor threads | 12 |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor model | i5-1335U |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | No |
| Non-ECC | Yes |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory clock speed | 3200 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel Iris Xe Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Camera | |
|---|---|
| Infrared (IR) camera | Yes |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ports & interfaces | |
|---|---|
| USB Power Delivery | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Keyboard | |
|---|---|
| Keyboard special features | Spill-resistant |
| Input device model | HP Premium Collaboration Keyboard |
| Spill-resistant keyboard | Yes |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Pointing device | Clickpad |
| Software | |
|---|---|
| Pre-installed software | HP Connection Optimizer; HP Hotkey Support; HP Power Manager; myHP; HP Privacy Settings; HP Notifications; HP PC Hardware Diagnostics Windows; HP Services Scan; HP Smart Support (download) |
| Operating system installed | Windows 11 Pro |
| Brand-specific features | |
|---|---|
| HP GTIN (EAN/UPC) | 197961327502 |
| HP segment | Business |
| HP Management tools | HP Client Management Script Library (download); HP Driver Packs (download); HP Client Catalog (download); HP Manageability Integration Kit Gen4 (download); HP Image Assistant Gen5 (download); HP Patch Assistant (download); HP Cloud Recovery; HP Connect for Microsoft Endpoint Manager |
| HP Security tools | Absolute persistence module; HP Secure Erase; HP Sure Click; HP Sure Sense; BIOS Update via Network; HP Sure Admin; HP BIOSphere Gen6; HP Client Security Manager Gen7; TPM 2.0 embedded security chip (Common Criteria EAL4+ and FIPS 140-2 Level 2 Certified); HP Sure Start Gen7; HP Wake on WLAN; HP Tamper Lock; HP Sure Run Gen5; HP Sure Recover Gen5; Secured-Core PC Enable |
| HP Smart AC Adapter | Yes |
| HP Connection Optimizer | Yes |
| Battery | |
|---|---|
| Battery weight | 181.83 g |
| Battery capacity | 42 Wh |
| Number of battery cells | 3 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 45 W |
| Security | |
|---|---|
| Password protection | Yes |
| Fingerprint reader | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | GS mark, ENERGY STAR, CCC |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Height | 15.9 mm |
| Depth | 208.4 mm |
| Width | 306.9 mm |
| Weight | 1.22 kg |
| Packaging data | |
|---|---|
| Package height | 305 mm |
| Package depth | 483 mm |
| Package width | 69 mm |
| General | |
|---|---|
| Product Family | EliteBook |
| Product Series | 600 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8471300000 |
