Take your mainstream display to the edge

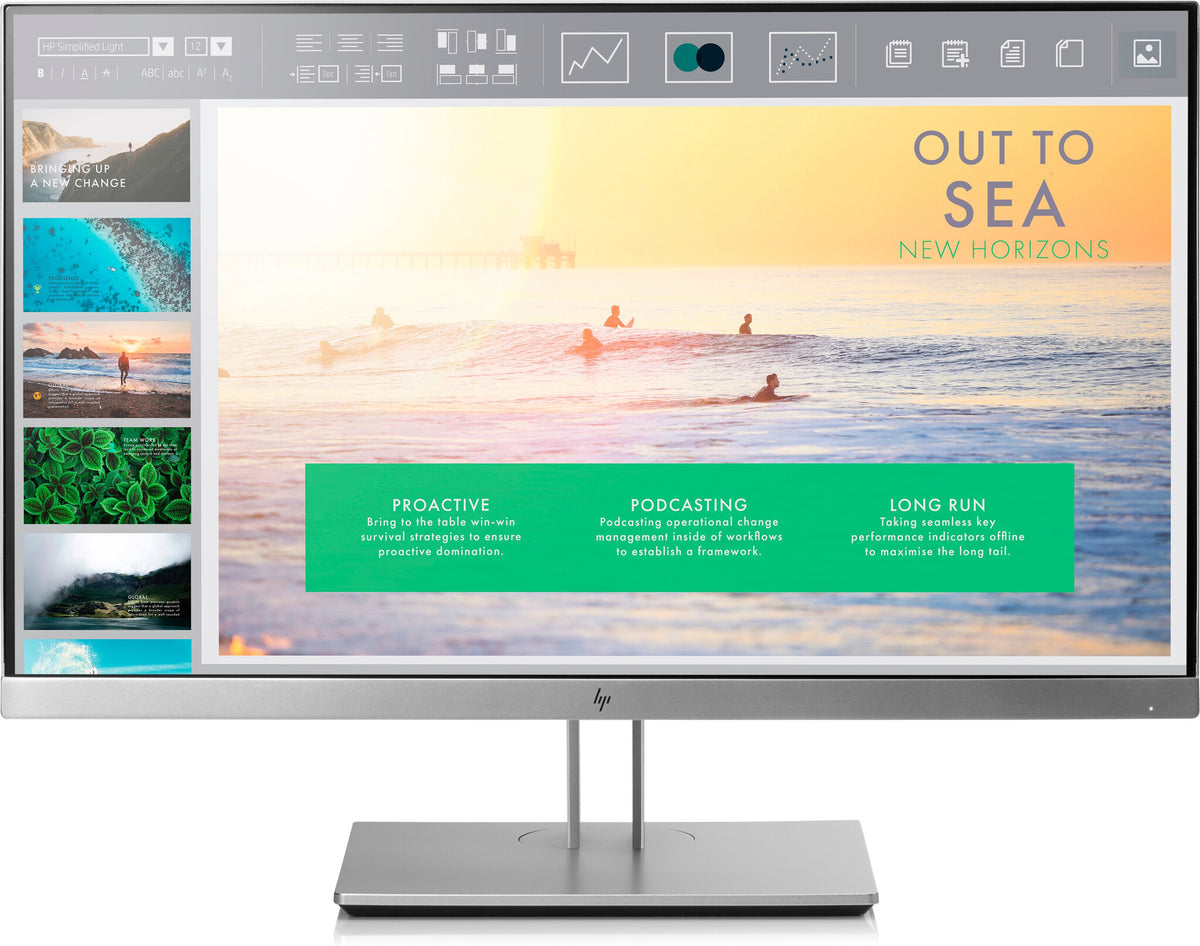

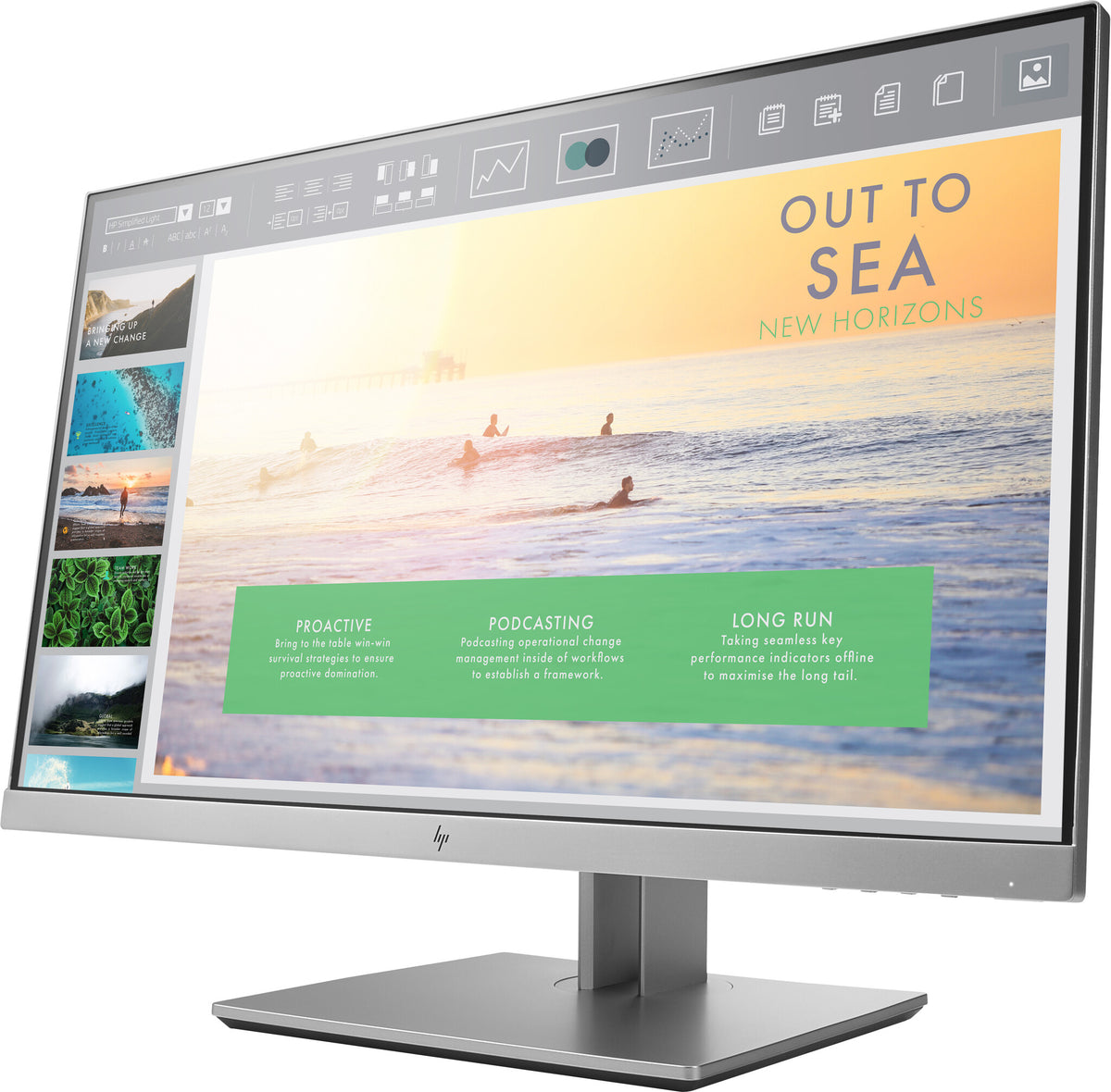

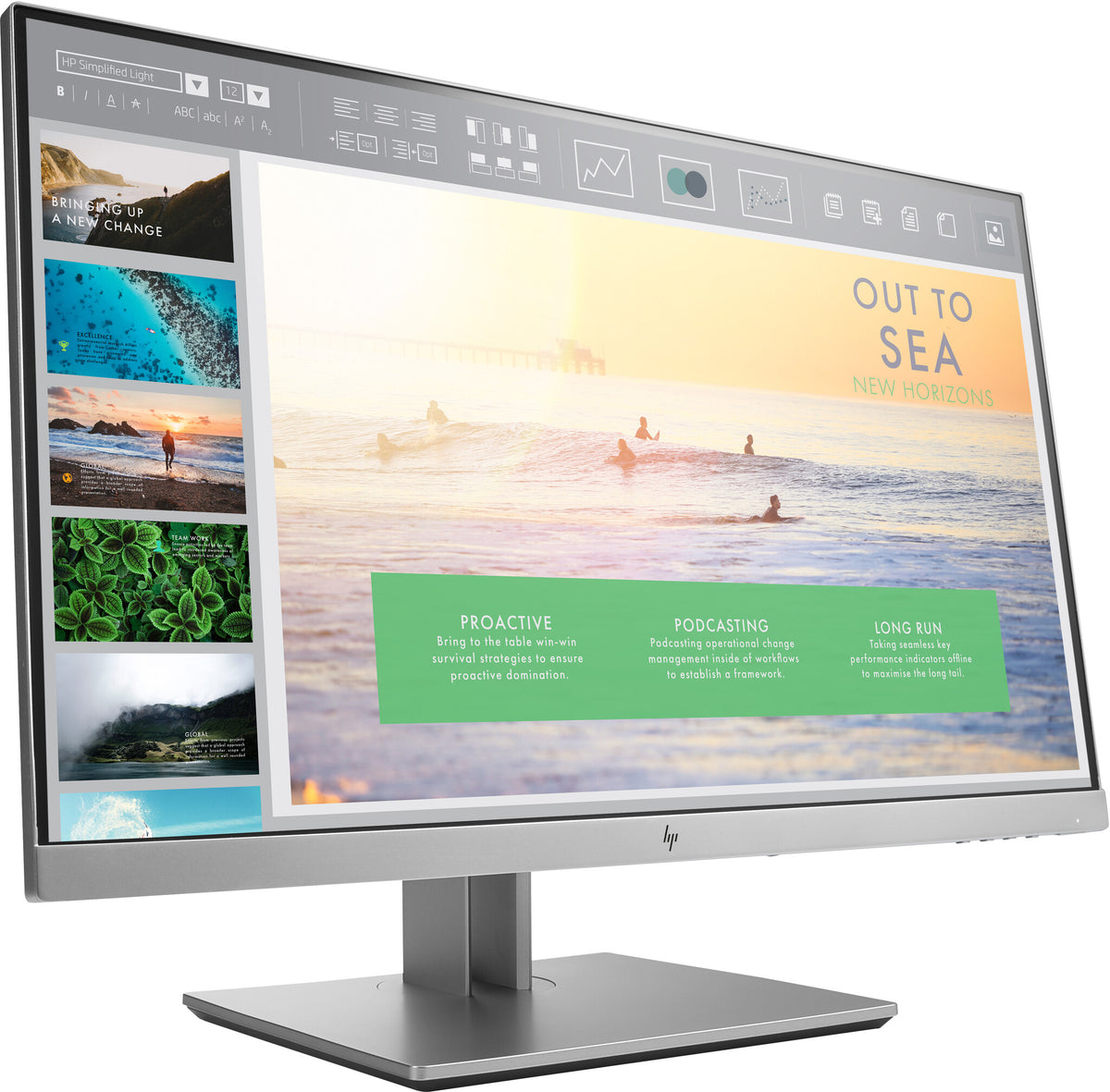

Style meets substance in a strikingly modern business display crafted for optimal viewing, productivity, and ergonomics. The HP EliteDisplay E233 58.42 cm (23") Monitor has a 3-sided micro-edge bezel for seamless multi-display1 tiling and 4-way adjustability so you can comfortably power through your day.
Break the boundaries
Expand your productivity with uninterrupted views of one screen or many with a 3-sided micro-edge bezel that supports virtually seamless arrays. Get crisp visuals from any angle on the 1920 x 1080 Full HD resolution, 58.42 cm (23") diagonal IPS screen.
Work comfortably

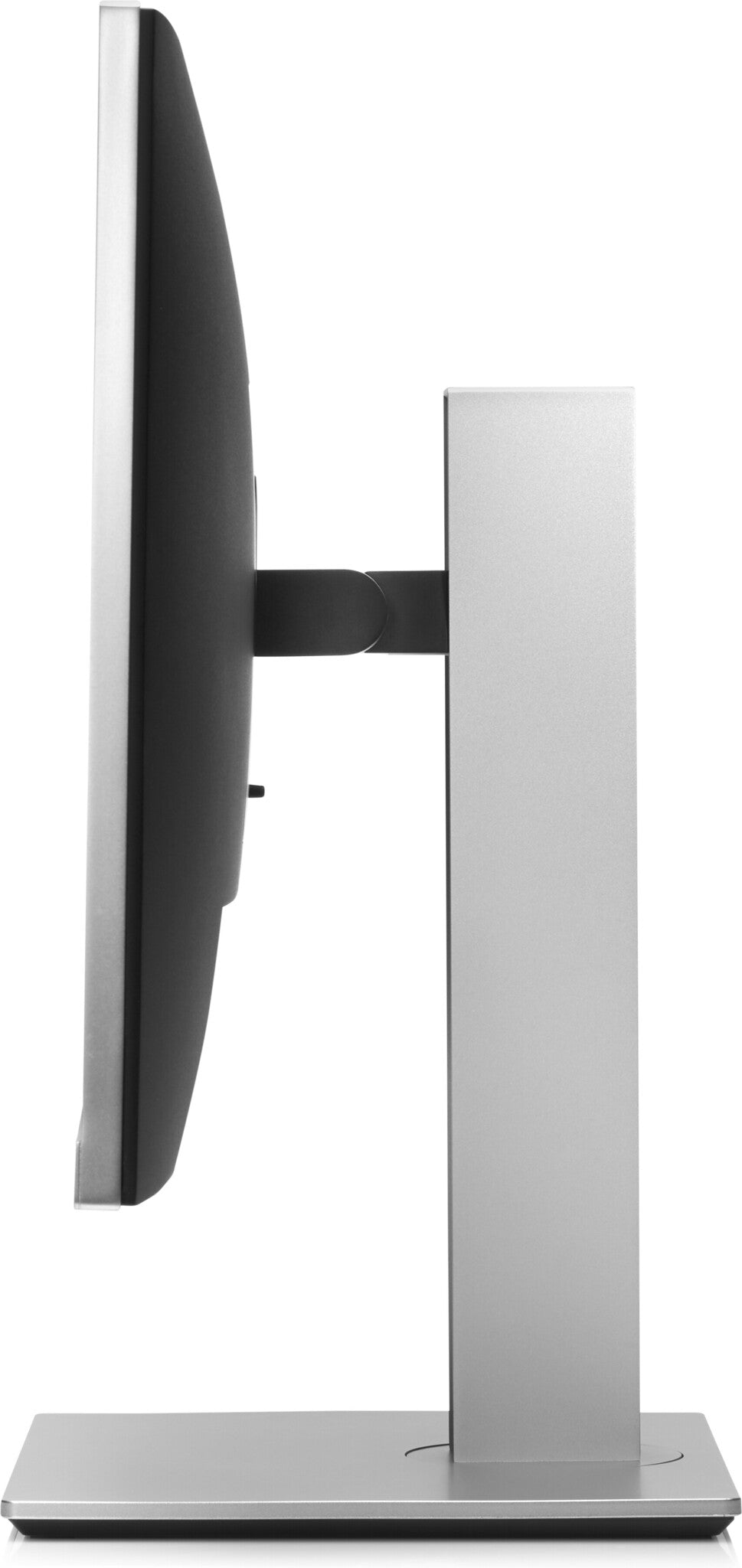

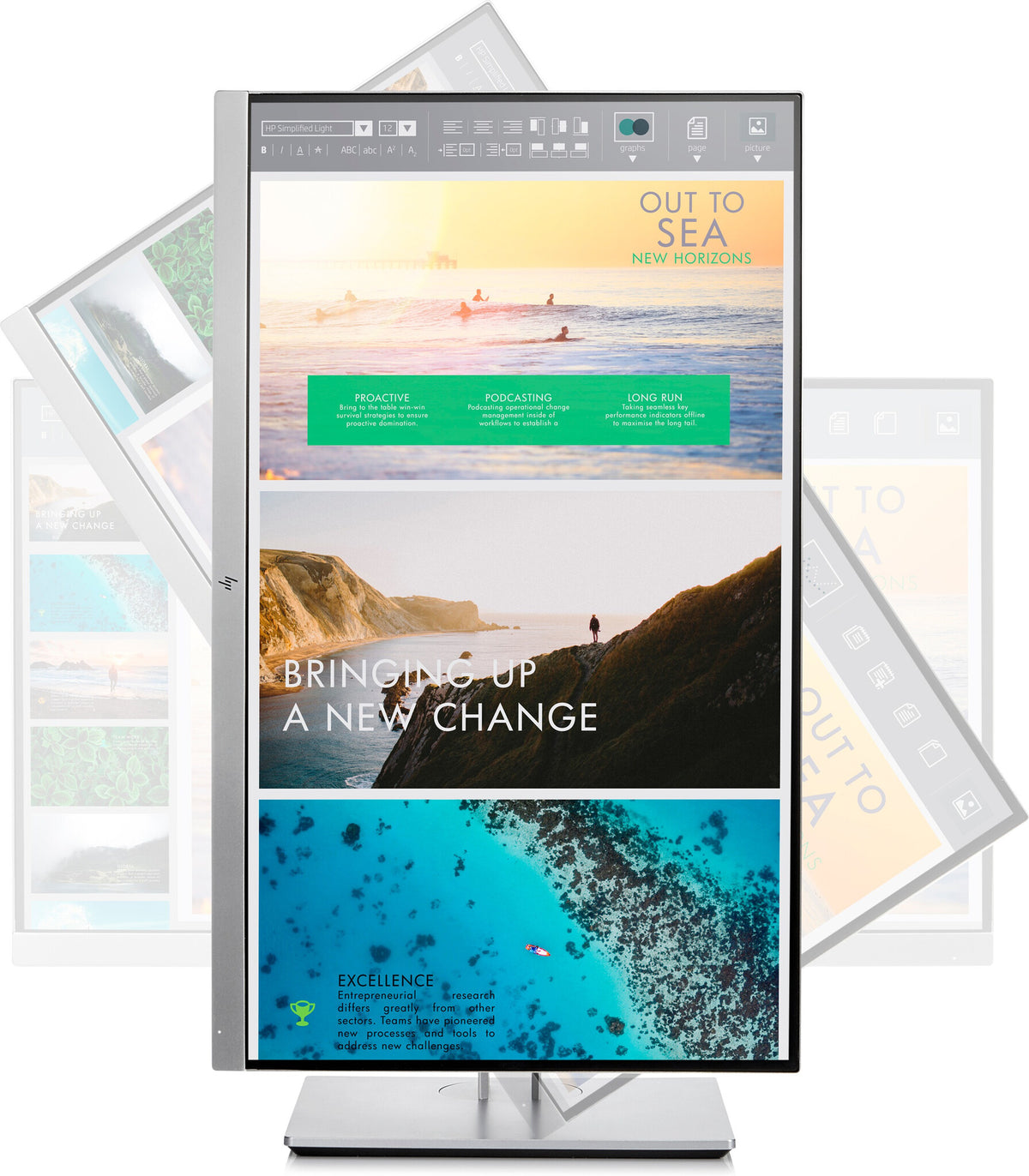

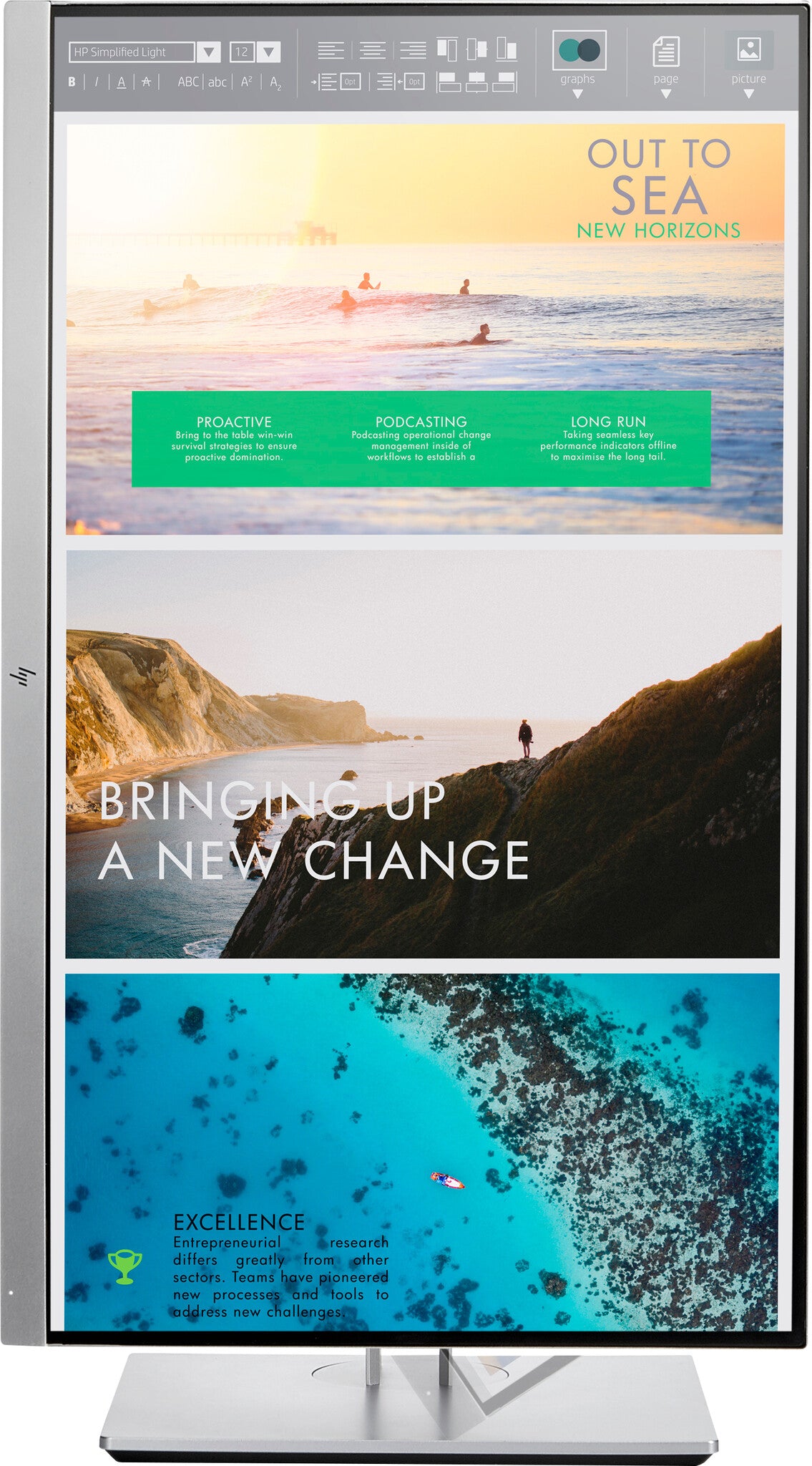

Find your most comfortable, productive position with adjustable tilt, height, swivel, and up to 150 mm height adjustment settings. Use pivot rotation to customize portrait or landscape views when using multiple displays.
Experience simple, convenient connectivity

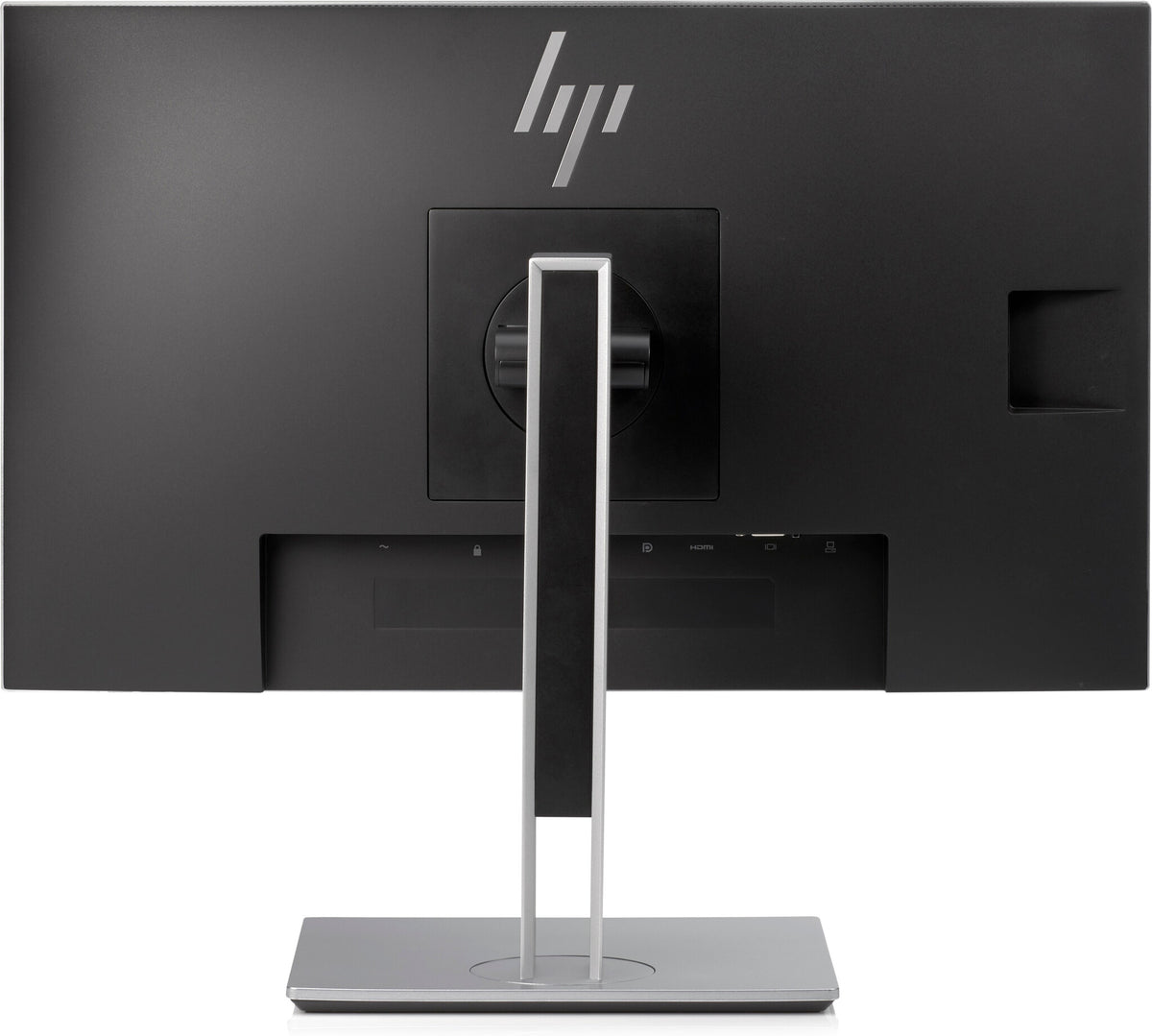

Work with your most frequently-used devices with VGA, HDMI, and DisplayPort™. Connect your USB accessories right at the display with two USB 3.0 ports.
Adaptable for a single-footprint setup
Create an efficient, compact solution when you mount your compatible HP Desktop Mini PC, Thin Client or Chromebox directly on the column stand using the optional HP B300 PC Mounting Bracket.
Be responsible
Reduce power consumption and help lower costs with a low halogen, ENERGY STAR® certified, EPEAT® Gold registered display that meets TCO Certified Edge with 85% Post-Consumer Recycled plastics.
Divide and conquer
Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and helps deter theft by dimming a display that’s disconnected without approval.
Make it yours
Build a complete solution with optional HP accessories like an HP Single Arm to take the display off the desk, an HP USB Graphics Adapter for multi-display setups or an HP S100 Speaker Bar for space-saving audio.
Click or call for support
Rest assured that your IT investment is supported by a three-year standard limited warranty. To extend your protection, select an optional HP Care service.
Display | |
---|---|
3D | No |
Viewable size, vertical | 28.6 cm |
Viewable size, horizontal | 50.9 cm |
Vertical scan range | 50 - 60 Hz |
Horizontal scan range | 30 - 80 kHz |
Pixel pitch | 0.265 x 0.265 mm |
Display number of colours | 16.78 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (dynamic) | 5000000:1 |
Contrast ratio (typical) | 1000:1 |
Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+) |
Screen shape | Flat |
Response time | 5 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 58.4 cm (23") |
Performance | |
---|---|
HP segment | Business |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in camera | No |
Built-in speaker(s) | No |
Design | |
---|---|
Country of origin | China |
Product colour | Black, Silver |
Market positioning | Business |
Ports & interfaces | |
---|---|
HDCP | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
DVI port | No |
VGA (D-Sub) ports quantity | 1 |
USB Type-A downstream ports quantity | 2 |
Number of upstream ports | 1 |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Plug and Play | Yes |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese |
Tilt angle range | -5 - 23° |
Swivel angle range | -45 - 45° |
Swivelling | Yes |
Pivot angle | 0 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Annual energy consumption | 25 kWh |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 36 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 19 W |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 20 - 80% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 5 - 35 °C |
Packaging content | |
---|---|
Cables included | AC, DisplayPort, HDMI, VGA |
Weight & dimensions | |
---|---|
Weight (without stand) | 3.29 kg |
Height (without stand) | 311.7 mm |
Depth (without stand) | 44.7 mm |
Width (without stand) | 521 mm |
Weight (with stand) | 5.8 kg |
Height (with stand) | 457.9 mm |
Depth (with stand) | 218 mm |
Width (with stand) | 521 mm |
Sustainability | |
---|---|
Sustainability certificates | EPEAT Gold, ENERGY STAR |
General | |
---|---|
Product Family | EliteDisplay |
Thin Client | |
---|---|
Thin client installed | No |
Other features | |
---|---|
Energy efficiency class (old) | A+ |
TV tuner integrated | No |
On/off switch | Yes |
Display | LED |
