Take your mainstream display to the edge

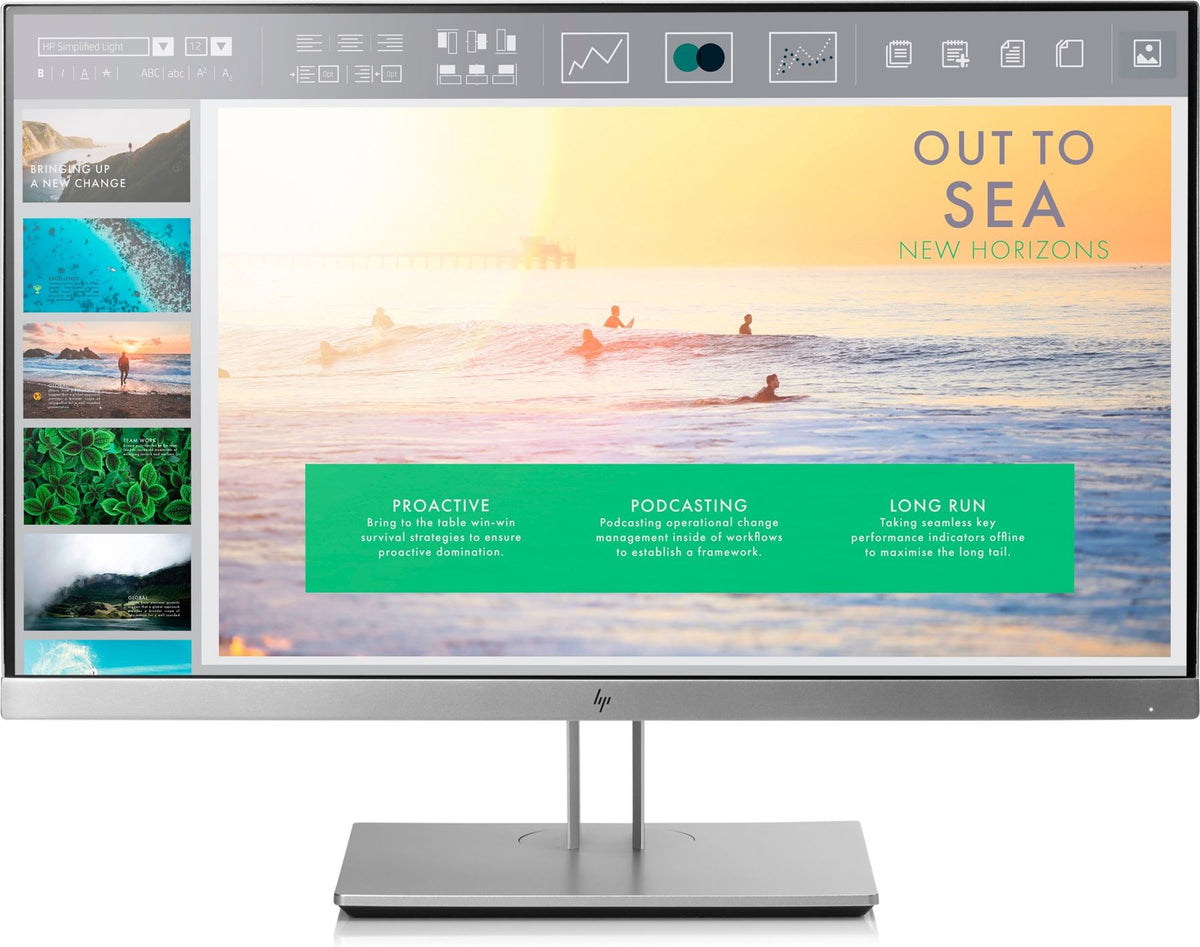

Style meets substance in a strikingly modern business display crafted for optimal viewing, productivity, and ergonomics. The HP EliteDisplay E233 58.42 cm (23") Monitor has a 3-sided micro-edge bezel for seamless multi-display1 tiling and 4-way adjustability so you can comfortably power through your day.
| Display | |
|---|---|
| Display | LED |
| HDCP | Yes |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 5000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.265 x 0.265 mm |
| Horizontal scan range | 30 - 80 kHz |
| Vertical scan range | 50 - 60 Hz |
| Viewable size, horizontal | 50.9 cm |
| Viewable size, vertical | 28.6 cm |
| 3D | No |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+) |
| Display resolution | 1920 x 1080 pixels |
| Response time | 5 ms |
| Display diagonal | 58.4 cm (23") |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | No |
| Panel type | IPS |
| Audio | |
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| HP segment | Business |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese |
| Plug and Play | Yes |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| TV tuner integrated | No |
| Design | |
| Market positioning | Business |
| Country of origin | China |
| Product colour | Black, Silver |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 2 |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| TV tuner | |
| TV tuner integrated | No |
| Technical details | |
| Height (without stand) | 311.7 mm |
| Depth (without stand) | 44.7 mm |
| Width (without stand) | 521 mm |
| Cable lock slot | Yes |
| On/off switch | Yes |
| Product colour | Black, Silver |
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Country of origin | China |
| Weight (with stand) | 5.8 kg |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 23° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | 0 - 90° |
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, French, Italian, Japanese, Portuguese |
| Plug and Play | Yes |
| Height adjustment | Yes |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| On/off switch | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 36 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 19 W |
| Annual energy consumption | 25 kWh |
| Energy efficiency scale | A++ to E |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height (without stand) | 311.7 mm |
| Depth (without stand) | 44.7 mm |
| Width (without stand) | 521 mm |
| Width (with stand) | 521 mm |
| Depth (with stand) | 218 mm |
| Height (with stand) | 457.9 mm |
| Weight (with stand) | 5.8 kg |
| Weight (without stand) | 3.29 kg |
| Packaging content | |
| Cables included | AC, DisplayPort, HDMI, VGA |
| Sustainability | |
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
| Features | |
| Country of origin | China |
| Packaging data | |
| Cables included | AC, DisplayPort, HDMI, VGA |
| Other features | |
| Country of origin | China |
| Display | LED |
| On/off switch | Yes |
| TV tuner integrated | No |
| Energy efficiency class (old) | A+ |
| Height (without stand) | 311.7 mm |
| Depth (without stand) | 44.7 mm |
| Width (without stand) | 521 mm |
| Power consumption (max) | 36 W |
| Energy efficiency scale | A++ to E |
| Touchscreen | No |
| Thin Client | |
| Thin client installed | No |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
