Safe charging
The EU plug CEE 7/16 according to protection class II complies with the applicable requirements for indoor use and thus protects the connected end devices against overcharging, overvoltage, overheating and short circuit.

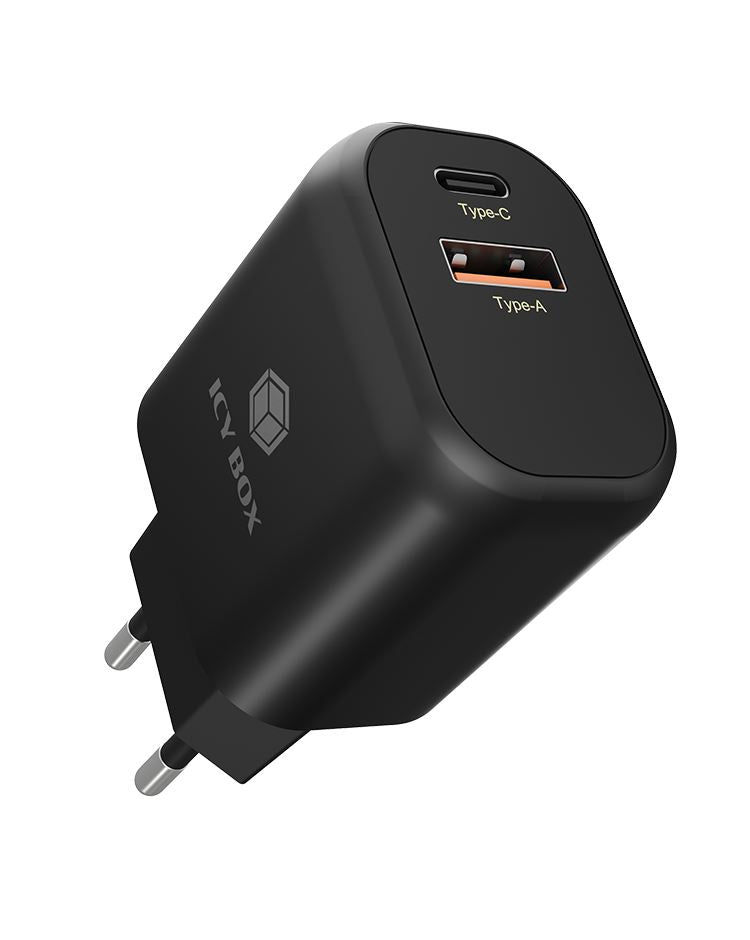

One for all
The handy plug-in power supply is extremely flexible. On the one hand, it is compatible with all common end devices and, on the other hand, simultaneous use of both USB ports is indispensable, which means synchronous charging via the USB Type-C® and Type-A interface.
Diversity on board
Regardless of whether your external device that needs to be charged has a USB Type-C® or a Type-A connector, this small quick charger accepts both connector types. The Type-C® connector has a Power Delivery 3.0 specification and the Type-A connector charges via the Quick Charge 3.0 protocol. So it’s super practical in any case!
Performance | |
---|---|
Country of origin | China |
USB Power Delivery revision | 3.0 |
USB Power Delivery | Yes |
Fast charging technology | Quick Charge 3.0 |
Fast charging | Yes |
USB Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Power source type | AC |
Charger compatibility | Universal |
Charger type | Indoor |
Design | |
---|---|
Plug and Play | Yes |
Housing material | Plastic |
Product colour | Black |
Power | |
---|---|
Power plug type | Type C (CEE 7/16) |
Output current (12V) | 1.5 A |
Output current (9V) | 2.25 A |
Output current (5V) | 3 A |
Maximum power | 20 W |
Input current | 0.5 A |
Input frequency | 50/60 Hz |
Input voltage | 100 - 240 V |
Weight & dimensions | |
---|---|
Weight | 52 g |
Height | 80 mm |
Depth | 30 mm |
Width | 42 mm |
Packaging data | |
---|---|
Package weight | 90 g |
Package height | 85 mm |
Package depth | 35 mm |
Package width | 100 mm |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 10 - 90% |
Operating relative humidity (H-H) | 25 - 90% |
Storage temperature (T-T) | 10 - 90 °C |
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Quick installation guide | Yes |
Logistics data | |
---|---|
Products per master (outer) case | 56 pc(s) |
Master (outer) case gross weight | 5.7 kg |
Master (outer) case height | 300 mm |
Master (outer) case length | 470 mm |
Master (outer) case width | 220 mm |
Harmonized System (HS) code | 85044090 |
