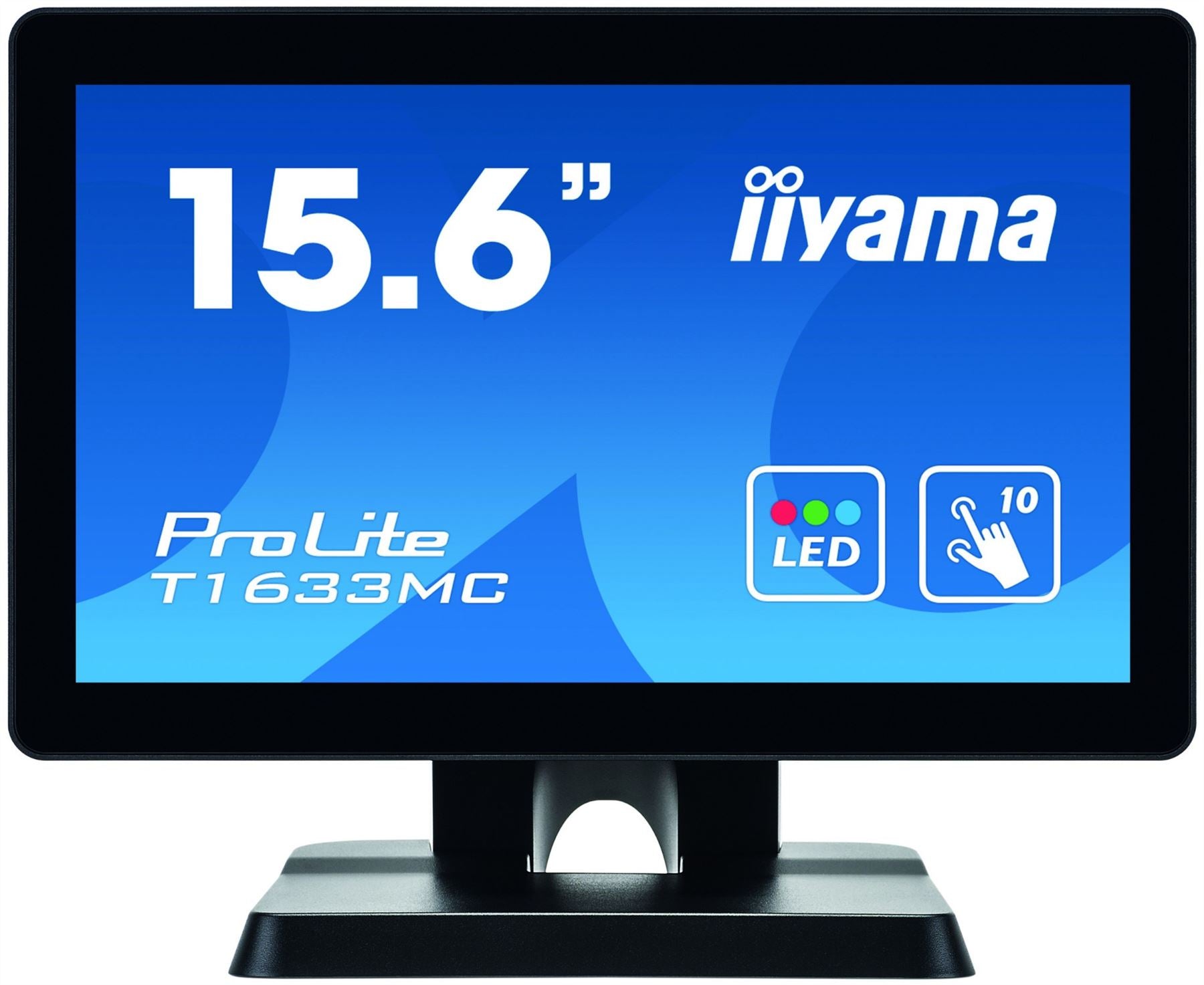

The 15.6” LED-backlit ProLite T1633MC-B1 uses Projective Capacitive Multi-Touch Technology and is built into an eye catching bezel with edge-to-edge glass. The screen features a 1366 x 768 resolution, triple inputs (HDMI, DisplayPort, VGA) and USB Hub, comes with a rugged bezel and IP54 rated front making it suitable for demanding environments.The ProLite T1633MC-B1 is the ideal solution for in-store retail and kiosk integration. TOUCH TECHNOLOGY - CAPACITIVE This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. IP54 The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water. LED-BACKLIT A typical CCFL LCD uses four backlight lamps. Using LED diodes considerably lowers the power consumption and reduces the CO2 emission into the environment making this LCD a true ECO-Friendly product.
Display | |
---|---|
HDCP | Yes |
Screen shape | Flat |
Display number of colours | 16.78 million colours |
Native aspect ratio | 16:9 |
Maximum refresh rate | 60 Hz |
Display technology | LED |
Viewing angle, horizontal | 160° |
Viewing angle, vertical | 160° |
Pixel pitch | 0.252 x 0.252 mm |
Horizontal scan range | 31.4 - 60.3 kHz |
Vertical scan range | 56 - 75 Hz |
Aspect ratio | 16:9 |
Separate H/V sync | Yes |
Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 768 (WXGA), 1366 х 768 |
Display resolution | 1366 x 768 pixels |
Response time | 8 ms |
Display diagonal | 39.6 cm (15.6") |
Contrast ratio (typical) | 500:1 |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Display diagonal (metric) | 39.5 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 255 cd/m² |
Performance | |
Built-in microphone | No |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
OmniTapps Multitouch compatibility | No |
Blue light filter | Yes |
Management features | |
Number of OSD languages | 11 |
On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
Multimedia | |
Built-in microphone | No |
Built-in camera | No |
Design | |
Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
Product colour | Black |
International Protection (IP) code | IP54 |
Camera | |
Built-in camera | No |
Ports & interfaces | |
Number of upstream ports | 1 |
USB Type-A downstream ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDCP | Yes |
HDMI | Yes |
USB Touch port | Yes |
Technical details | |
Cable lock slot | Yes |
HDMI | Yes |
Display viewable area (HxV) | 344.2 x 193.6 mm |
Built-in microphone | No |
Product colour | Black |
Sustainability certificates | RoHS |
Weight (with stand) | 4.5 kg |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Ergonomics | |
Wall mountable | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
Tilt angle range | 5 - 90° |
Number of OSD languages | 11 |
On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
Cable lock slot type | Kensington |
Tilt adjustment | Yes |
Power | |
Power consumption (standby) | 2 W |
Power consumption (typical) | 13.5 W |
Power consumption (off) | 2 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | F |
Energy consumption (SDR) per 1000 hours | 13 kWh |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Packaging content | |
Quick start guide | Yes |
Cables included | AC, DisplayPort, HDMI, USB |
AC adapter included | Yes |
Weight & dimensions | |
Width (with stand) | 389 mm |
Depth (with stand) | 312.5 mm |
Height (with stand) | 254 mm |
Weight (with stand) | 4.5 kg |
Sustainability | |
Sustainability certificates | RoHS |
Packaging data | |
AC adapter included | Yes |
Quick start guide | Yes |
Cables included | AC, DisplayPort, HDMI, USB |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Quick start guide | Yes |
HDMI | Yes |
Energy efficiency scale | A to G |
AC adapter included | Yes |
Display viewable area (HxV) | 344.2 x 193.6 mm |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Glass protection | Yes |
Certificates | |
Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
