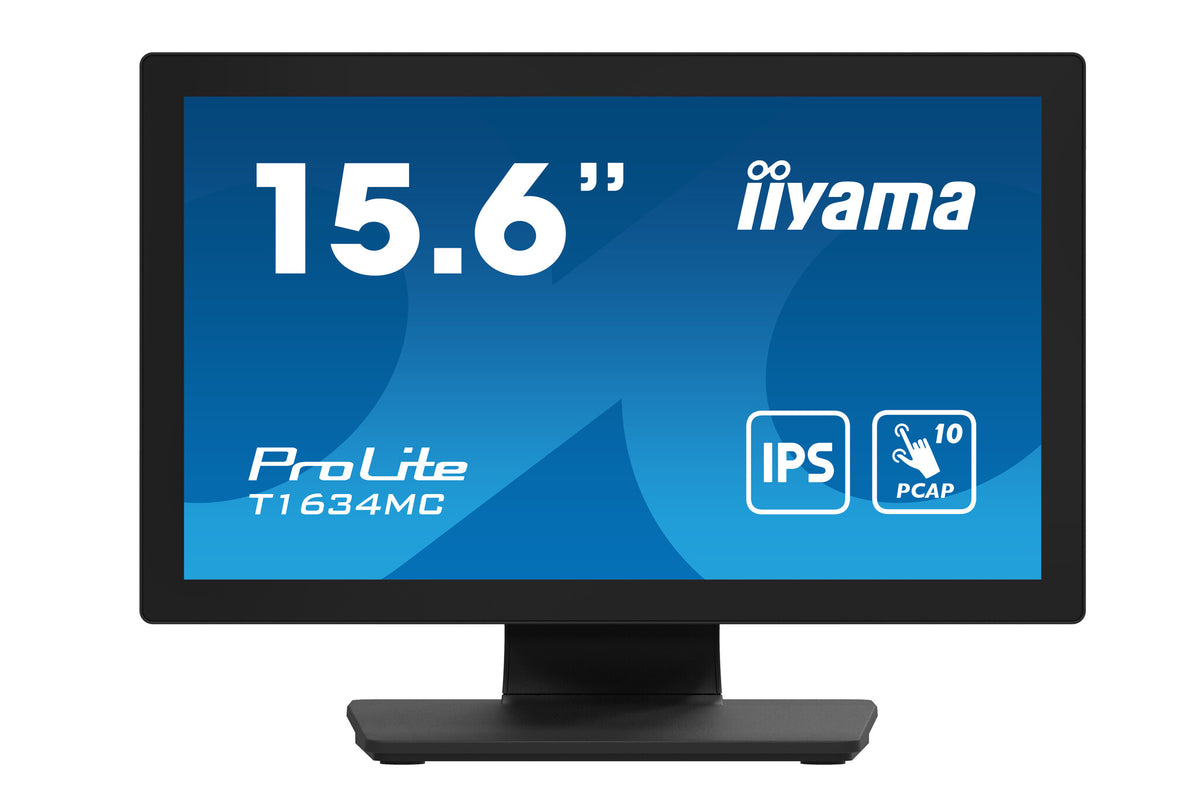

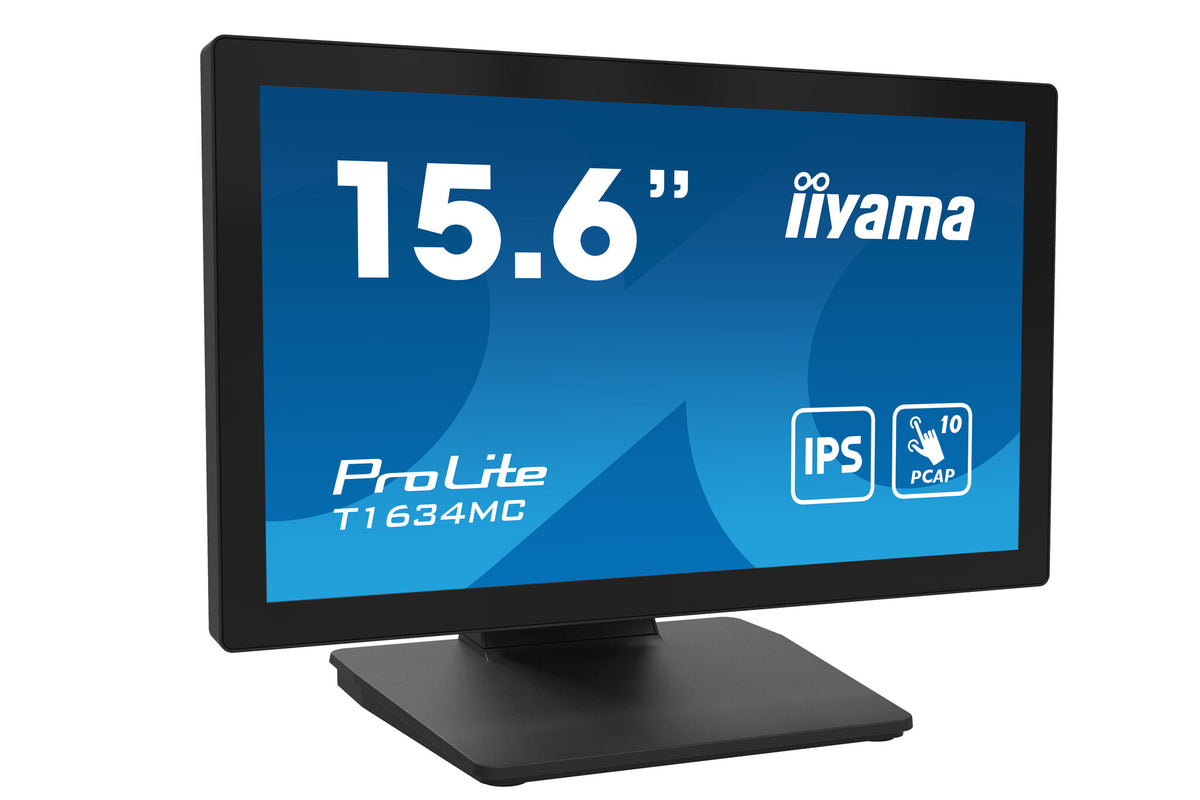

15.6" Full HD PCAP 10 point touch monitor with edge-to-edge glass, IPS Panel Technology and touch through glass function
The ProLite T1634MC-B1S uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colours and wide viewing angles. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding environments. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications.
Display | |
---|---|
Second display effective viewing area | 344.2 x 193.6 mm |
Colour gamut | 90% |
Colour depth | 6 bit |
Display diagonal (metric) | 39.5 cm |
Digital horizontal frequency | 30 - 84 kHz |
Pixel pitch | 0.179 x 0.179 mm |
Response time (fast) | 25 ms |
Display number of colours | 16.2 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (typical) | 700:1 |
Screen shape | Flat |
Display surface | Matt |
Display brightness (typical) | 405 cd/m² |
Display brightness (peak) | 450 cd/m² |
Number of simultaneous touchpoints | 10 |
Touchscreen technology | Projected capacitive system |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 39.6 cm (15.6") |
Design | |
---|---|
Glass thickness | 2.4 mm |
International Protection (IP) code | IP65 |
Product colour | Black |
Market positioning | Office |
Ports & interfaces | |
---|---|
HDCP | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
On Screen Display (OSD) | Yes |
Tilt angle range | 90 - 5° |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | External |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 18 W |
Energy consumption (SDR) per 1000 hours | 10 kWh |
Energy efficiency class (HDR) | Not available |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Cables included | AC, DisplayPort, HDMI, USB |
Weight & dimensions | |
---|---|
Weight (with stand) | 3.4 kg |
Height (with stand) | 285.5 mm |
Depth (with stand) | 200 mm |
Width (with stand) | 381 mm |
Packaging data | |
---|---|
Package weight | 5.18 kg |
Package height | 355 mm |
Package depth | 150 mm |
Package width | 445 mm |
Sustainability | |
---|---|
European Product Registry for Energy Labelling (EPREL) code | 1530736 |
General | |
---|---|
Product Family | ProLite |
