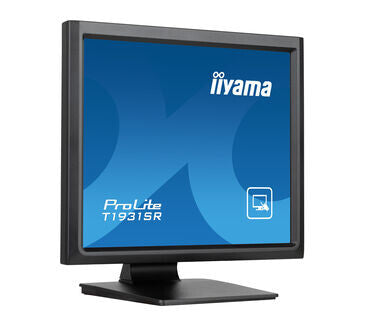

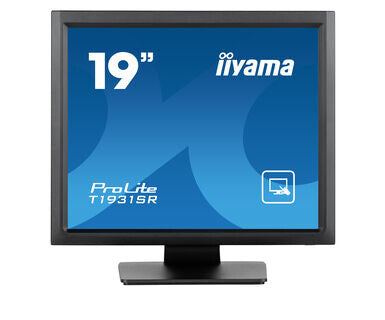

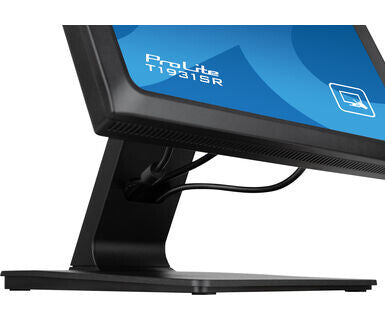

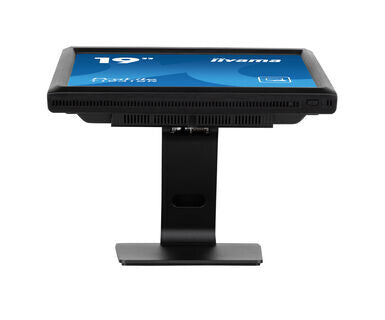

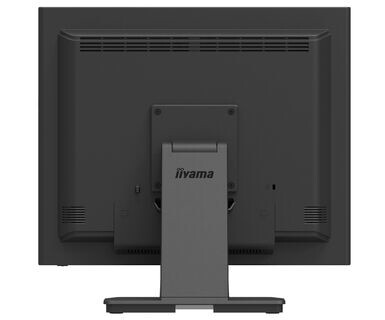

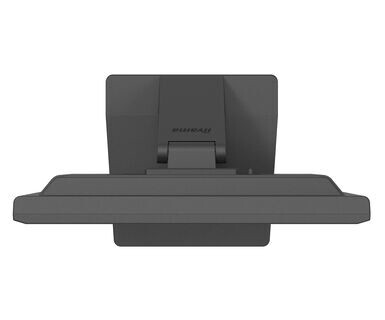

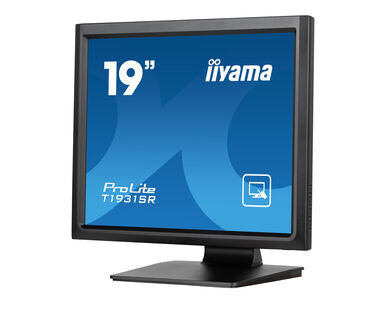

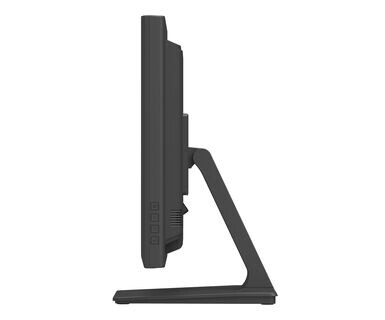

The T1931SR-B1S is based on 5-wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display includes both analogue (VGA) and digital inputs (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1931SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.
Display | |
---|---|
Viewable size, vertical | 30 cm |
Viewable size, horizontal | 37.5 cm |
Horizontal scan range | 31.5 - 80 kHz |
Pixel pitch | 0.293 x 0.293 mm |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Response time | 14 ms |
Display brightness (typical) | 250 cd/m² |
Touchscreen technology | Resistive |
Panel type | IPS |
HD type | SXGA |
Touchscreen | Yes |
Display technology | LCD |
Native aspect ratio | 5:4 |
Display resolution | 1280 x 1024 pixels |
Display diagonal | 48.3 cm (19") |
Performance | |
---|---|
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
RMS rated power | 2 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | CE, EAC, RoHS, ErP, WEEE, cULus, VCCI, REACH, UKCA |
International Protection (IP) code | IP54 |
Product colour | Black |
Market positioning | Business |

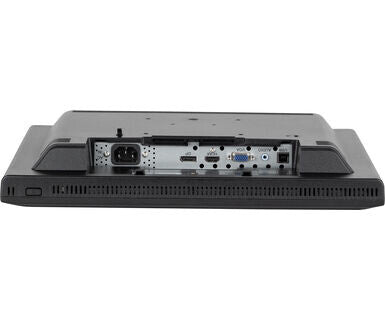

Ports & interfaces | |
---|---|
HDCP | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
VGA (D-Sub) ports quantity | 1 |
USB Touch ports quantity | 1 |
USB Touch port | Yes |
Built-in USB hub | No |
Ergonomics | |
---|---|
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Traditional Chinese, German, English, Estonian, French, Italian, Japanese |
On Screen Display (OSD) | Yes |

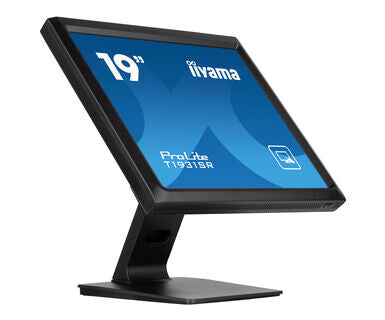

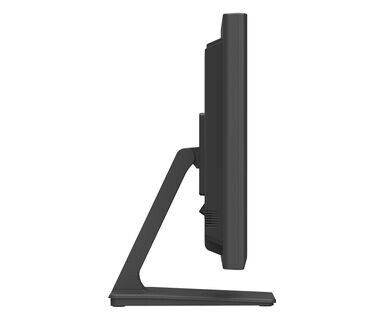

Tilt angle range | 90 - 5° |
Height adjustment | No |
Cable lock slot type | Kensington |
Cable lock slot | Yes |

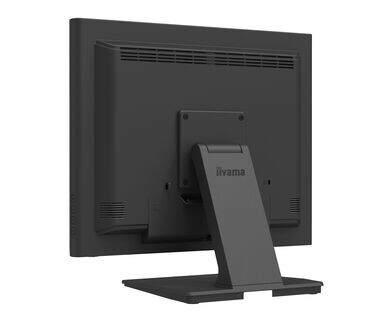

Cable management | Yes |

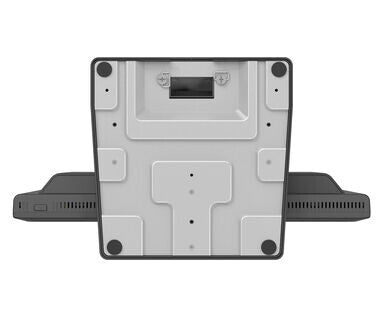

Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (standby) | 1.5 W |
Power consumption (typical) | 20 W |
Energy consumption (SDR) per 1000 hours | 13 kWh |
Energy efficiency class (SDR) | E |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC, Audio, DisplayPort, HDMI, USB |
Weight & dimensions | |
---|---|
Weight (with stand) | 6 kg |
Height (with stand) | 431.5 mm |
Depth (with stand) | 239.5 mm |
Width (with stand) | 432 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 8 kg |
Package height | 495 mm |
Package depth | 190 mm |
Package width | 530 mm |
General | |
---|---|
Product Family | ProLite |
