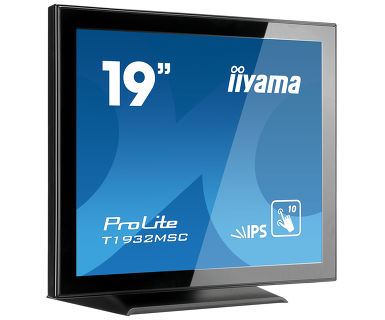

The ProLite T1932MSC-B5X 19" multi-touch screen is based on projected capacitive technology which thanks to a glass overlay covering the screen guarantees high durability, scratch-resistance and perfect picture performance. The touch function remains unaffected even if the glass is scratched. A solid and steady base supports the touchscreen with an adjustable stand offering full 90 degree positioning angles. Menu Buttons are located on the side of the screen which can be locked to prevent tampering and includes a handy function to deactivate the touchscreen for cleaning. In addition, the edge-to-edge glass design creates an eye-catching finish with high light transmission guaranteeing perfect picture clarity and brilliant colours. Available in black and white. IPS IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it. Scratch resistance Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. Touch technology - Capacitive This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen. IP The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction. Speakers This LED monitor is equipped with two high quality stereo speakers.
Display | |
---|---|
HDCP | Yes |
Screen shape | Flat |
Display number of colours | 16.78 million colours |
Native aspect ratio | 5:4 |
Display technology | LED |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Pixel pitch | 0.2928 x 0.2928 mm |
Horizontal scan range | 31 - 80 kHz |
Vertical scan range | 50 - 75 Hz |
Aspect ratio | 5:4 |
Display resolution | 1280 x 1024 pixels |
Response time | 14 ms |
Display diagonal | 48.3 cm (19") |
Contrast ratio (typical) | 1000:1 |
Touchscreen type | Tabletop |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Panel type | IPS |
Display diagonal (metric) | 48 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 225 cd/m² |
Audio | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Performance | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Management features | |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Multimedia | |
Number of speakers | 2 |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Design | |
Certification | CB, CE, TÜV-Bauart, EAC, CU, cULus |
Product colour | Black |
International Protection (IP) code | IP65 |
Ports & interfaces | |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDCP | Yes |
HDMI | Yes |
USB Touch port | Yes |
Technical details | |
Height (without stand) | 30.2 cm |
Depth (without stand) | 5.45 cm |
Width (without stand) | 43.2 cm |
Cable lock slot | Yes |
HDMI | Yes |
Display viewable area (HxV) | 374.8 x 300 mm |
Product colour | Black |
Power supply type | AC |
Weight (with stand) | 6.9 kg |
Touchscreen type | Tabletop |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
Tilt angle range | -5 - 90° |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Cable lock slot type | Kensington |
Tilt adjustment | Yes |
Power | |
Power supply type | AC |
AC input voltage | 100 - 240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (standby) | 2 W |
Power consumption (typical) | 25 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 14 kWh |
Packaging content | |
Quick start guide | Yes |
Cables included | AC, Audio (3.5mm), DisplayPort, HDMI, USB |
Weight & dimensions | |
Height (without stand) | 30.2 cm |
Depth (without stand) | 5.45 cm |
Width (without stand) | 43.2 cm |
Width (with stand) | 432 mm |
Depth (with stand) | 219 mm |
Height (with stand) | 391 mm |
Weight (with stand) | 6.9 kg |
Packaging data | |
Quick start guide | Yes |
Cables included | AC, Audio (3.5mm), DisplayPort, HDMI, USB |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Height (without stand) | 30.2 cm |
Depth (without stand) | 5.45 cm |
Width (without stand) | 43.2 cm |
Quick start guide | Yes |
HDMI | Yes |
Energy efficiency scale | A to G |
Power supply type | AC |
Dimensions (W x D x H) with stand | 432 x 219 x 391 mm |
Display viewable area (HxV) | 374.8 x 300 mm |
Touchscreen type | Tabletop |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Certificates | |
Certification | CB, CE, TÜV-Bauart, EAC, CU, cULus |
