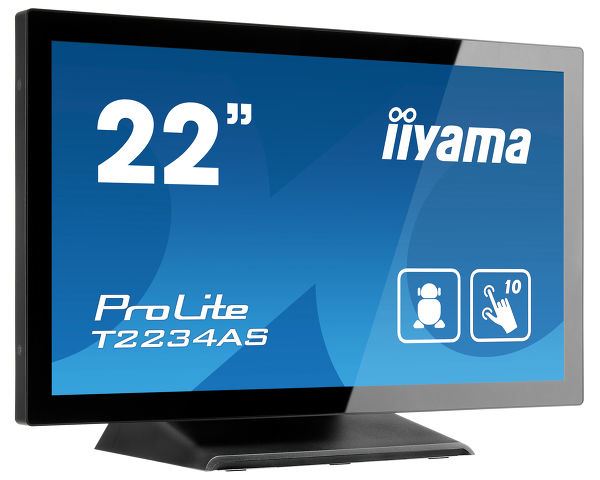

22” PCAP 10pt touch screen with Android Connect and go with the ProLite T2234AS-B1, the all-in-one monitor solution for shops, retail or information desks. This 21.5” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The HDMI output makes it easy to connect a second customer-facing display for dynamic content and advertising. The robust screen comes with a rugged bezel and an IP65 rating, meaning the monitor is dust and water resistant from the front. Cables can be neatly tied with the special cable cover, so they cannot come loose or move around. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect interactive display for instore retail. Touch technology - Capacitive This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Display | |
---|---|
HDCP | Yes |
Screen shape | Flat |
Display number of colours | 16.78 million colours |
Native aspect ratio | 16:9 |
HD type | Full HD |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Pixel pitch | 0.247 x 0.247 mm |
Aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Response time | 8 ms |
Display diagonal | 54.6 cm (21.5") |
Contrast ratio (typical) | 1000:1 |
Surface hardness | 7H |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Panel type | IPS |
Display diagonal (metric) | 55 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
LED backlight | Yes |
Display brightness | 305 cd/m² |
Audio | |
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
Performance | |
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
Megapixel (approx.) | 2.1 MP |
Compatible memory cards | SD |
Card reader integrated | Yes |
Built-in microphone | No |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Operating system installed | Android |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Operating system version | 8.1 |
Management features | |
Plug and Play | Yes |
Network | |
Ethernet LAN (RJ-45) ports | 1 |
Bluetooth | Yes |
Bluetooth version | 4.0 |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Wi-Fi | Yes |
Ethernet LAN | Yes |
Multimedia | |
Number of speakers | 2 |
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
Megapixel (approx.) | 2.1 MP |
Built-in microphone | No |
Built-in camera | No |
Design | |
Certification | CE, CU, cULus, CCC |
Product colour | Black |
International Protection (IP) code | IP65 |
Glass thickness | 2.5 mm |
Camera | |
Megapixel (approx.) | 2.1 MP |
Built-in camera | No |
Ports & interfaces | |
USB Type-A downstream ports quantity | 4 |
HDMI ports quantity | 1 |
HDCP | Yes |
HDMI | Yes |
Compatible memory cards | SD |
Card reader integrated | Yes |
RS-232C | Yes |
Bluetooth | Yes |
Bluetooth version | 4.0 |
Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Wi-Fi | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Technical details | |
Placement supported | Horizontal/Vertical |
HDMI | Yes |
Compatible memory cards | SD |
Card reader integrated | Yes |
Built-in microphone | No |
Product colour | Black |
Built-in processor | Yes |
Power supply type | AC |
Weight (with stand) | 6.6 kg |
Surface hardness | 7H |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
RS-232C | Yes |
Software | |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Ergonomics | |
Wall mountable | Yes |
Panel mounting interface | 100 x 100 mm |
Tilt angle range | -5 - 90° |
Plug and Play | Yes |
Power | |
Power supply type | AC |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 25 W |
AC adapter output voltage | 12 V |
Power management | Yes |
Packaging content | |
Quick start guide | Yes |
Cables included | AC |
AC adapter included | Yes |
Weight & dimensions | |
Width (with stand) | 517.5 mm |
Depth (with stand) | 219 mm |
Height (with stand) | 351.5 mm |
Weight (with stand) | 6.6 kg |
Thin Client | |
Operating system installed | Android |
Processor frequency | 1.8 GHz |
Internal memory | 2048 MB |
Internal memory type | DDR3 |
Graphics card | Mail T760 MP4 |
eMMC capacity | 16 GB |
Packaging data | |
AC adapter included | Yes |
Quick start guide | Yes |
Cables included | AC |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Bluetooth | Yes |
Bluetooth version | 4.0 |
Quick start guide | Yes |
HDMI | Yes |
Surface hardness | 7H |
Built-in processor | Yes |
Power supply type | AC |
AC adapter included | Yes |
Placement supported | Horizontal/Vertical |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Power management | Yes |
Touchscreen type | Multi-user |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Full HD | Yes |
Certificates | |
Certification | CE, CU, cULus, CCC |
