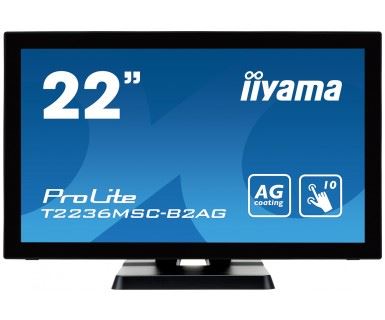

22" 10 point touch monitor with edge-to-edge glass and Anti Glare coating With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2236MSC delivers seamless and accurate touch response. The AMVA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. Touch technology - Capacitive This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (gloved or not) and magnetic ball. AMVA AMVA technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it. AG Coating The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks. Scratch resistance Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched. Speakers This LED monitor is equipped with two high quality stereo speakers.
Audio | |
---|---|
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
Performance | |
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
OmniTapps Multitouch compatibility | No |
Display | |
Display brightness (typical) | 250 cd/m² |
Screen shape | Flat |
Display number of colours | 16.78 million colours |
Native aspect ratio | 16:9 |
HD type | Full HD |
Display technology | LED |
Contrast ratio (dynamic) | 12000000:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Pixel pitch | 0.248 x 0.248 mm |
Horizontal scan range | 30 - 80 kHz |
Vertical scan range | 56 - 75 Hz |
Aspect ratio | 16:9 |
Separate H/V sync | Yes |
3D | No |
Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
Backlight type | LED |
Display resolution | 1920 x 1080 pixels |
Response time | 8 ms |
Display diagonal | 54.6 cm (21.5") |
Contrast ratio (typical) | 3000:1 |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Display diagonal (metric) | 55 cm |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 215 cd/m² |
Management features | |
Number of OSD languages | 9 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
Plug and Play | Yes |
Multimedia | |
Number of speakers | 2 |
Built-in speaker(s) | Yes |
RMS rated power | 4 W |
Built-in camera | No |
Design | |
Certification | CE, TÜV-Bauart, CU |
Product colour | Black |
Camera | |
Built-in camera | No |
Ports & interfaces | |
Built-in USB hub | Yes |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Number of upstream ports | 1 |
USB Type-A downstream ports quantity | 4 |
DVI port | Yes |
VGA (D-Sub) ports quantity | 1 |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
Audio input | 3.5mm |
PC Audio in | Yes |
HDMI | Yes |
Technical details | |
Height (without stand) | 31.6 cm |
Depth (without stand) | 5.7 cm |
Width (without stand) | 52.2 cm |
Cable lock slot | Yes |
HDMI | Yes |
Display viewable area (HxV) | 268.1 x 476.6 mm |
Product colour | Black |
Power supply type | AC |
Weight (with stand) | 5.8 kg |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Software | |
Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
Tilt angle range | -5 - 90° |
Number of OSD languages | 9 |
On Screen Display (OSD) languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |
Plug and Play | Yes |
Tilt adjustment | Yes |
Power | |
Power supply type | AC |
AC input voltage | 100-240 V |
AC input frequency | 50 - 60 Hz |
Power consumption (typical) | 23 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | F |
Energy consumption (SDR) per 1000 hours | 19 kWh |
Power management | Yes |
Operational conditions | |
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Packaging content | |
Quick start guide | Yes |
Cables included | AC, Audio (3.5mm), DVI, USB, VGA |
Weight & dimensions | |
Height (without stand) | 31.6 cm |
Depth (without stand) | 5.7 cm |
Width (without stand) | 52.2 cm |
Width (with stand) | 522.5 mm |
Depth (with stand) | 367 mm |
Height (with stand) | 254 mm |
Weight (with stand) | 5.8 kg |
Packaging data | |
Quick start guide | Yes |
Cables included | AC, Audio (3.5mm), DVI, USB, VGA |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Height (without stand) | 31.6 cm |
Depth (without stand) | 5.7 cm |
Width (without stand) | 52.2 cm |
Quick start guide | Yes |
HDMI | Yes |
Energy efficiency scale | A to G |
Power supply type | AC |
Dimensions (W x D x H) with stand | 522.5 x 367 x 254 mm |
Display viewable area (HxV) | 268.1 x 476.6 mm |
Power management | Yes |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Certificates | |
Certification | CE, TÜV-Bauart, CU |
