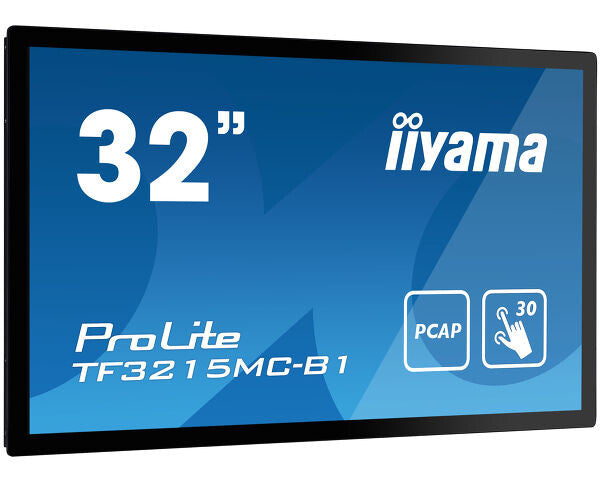

The ProLite TF3215MC-B1 (31.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B1 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
Display | |
---|---|
HDCP | Yes |
Screen shape | Flat |
Display number of colours | 16.78 million colours |
Native aspect ratio | 16:9 |
HD type | Full HD |
Display technology | LED |
Contrast ratio (dynamic) | 3000:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Horizontal scan range | 30 - 68 kHz |
Vertical scan range | 47 - 63 Hz |
Display resolution | 1920 x 1080 pixels |
Response time | 8 ms |
Display diagonal | 81.3 cm (32") |
Contrast ratio (typical) | 16:9 |
Surface hardness | 7H |
Touchscreen type | Kiosk |
Touchscreen | Yes |
Number of simultaneous touchpoints | 30 |
Touch technology | Single-touch |
Touchscreen technology | Projected capacitive system |
Display brightness | 460 cd/m² |
Performance | |
Megapixel (approx.) | 2.1 MP |
Mean time between failures (MTBF) | 50000 h |
Built-in microphone | No |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
OmniTapps Multitouch compatibility | No |
Operating hours (hours/days) | 24/7 |
Management features | |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Multimedia | |
Megapixel (approx.) | 2.1 MP |
Built-in microphone | No |
Built-in camera | No |
Design | |
Country of origin | China |
Product colour | Black |
International Protection (IP) code | IP65 |
Housing material | Metal |
Glass thickness | 3 mm |
Mean time between failures (MTBF) | 50000 h |
Camera | |
Megapixel (approx.) | 2.1 MP |
Built-in camera | No |
Ports & interfaces | |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
HDCP | Yes |
HDMI | Yes |
Technical details | |
Height (without stand) | 43.4 cm |
Depth (without stand) | 6.1 cm |
Width (without stand) | 74 cm |
Mean time between failures (MTBF) | 50000 h |
HDMI | Yes |
Display viewable area (HxV) | 392.8 x 698.4 mm |
Built-in microphone | No |
Product colour | Black |
Country of origin | China |
Surface hardness | 7H |
Touchscreen type | Kiosk |
Touchscreen | Yes |
Number of simultaneous touchpoints | 30 |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Number of OSD languages | 7 |
On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese |
Plug and Play | Yes |
Power | |
Power consumption (standby) | 2 W |
Power consumption (typical) | 43 W |
Energy efficiency scale | A to G |
Energy efficiency class (SDR) | F |
Energy consumption (SDR) per 1000 hours | 31 kWh |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Packaging content | |
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Weight & dimensions | |
Height (without stand) | 43.4 cm |
Depth (without stand) | 6.1 cm |
Width (without stand) | 74 cm |
Weight (without stand) | 10.3 kg |
Package width | 890 mm |
Package depth | 155 mm |
Package height | 630 mm |
Package weight | 12.8 kg |
Packaging data | |
Package width | 890 mm |
Package depth | 155 mm |
Package height | 630 mm |
Package weight | 12.8 kg |
Quick start guide | Yes |
Cables included | AC, HDMI, USB |
Features | |
Country of origin | China |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Height (without stand) | 43.4 cm |
Depth (without stand) | 6.1 cm |
Width (without stand) | 74 cm |
Quick start guide | Yes |
HDMI | Yes |
Surface hardness | 7H |
Energy efficiency scale | A to G |
Mean time between failures (MTBF) | 50000 h |
Display viewable area (HxV) | 392.8 x 698.4 mm |
Touchscreen type | Kiosk |
Touchscreen | Yes |
Number of simultaneous touchpoints | 30 |
Full HD | Yes |
